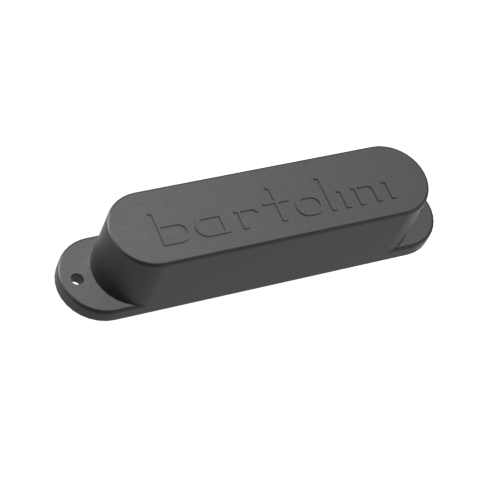

Bartolini 3D-01 Deep Bright Single Coil Guitar Pickup

The Bartolini 3D-01 Single Coil Pickup For Strat-style Guitars - High Clarity And Definition That's Great For Rock, Blues, And Grunge

Designed in the Grunge era, the 3D-01 is a thick and dirty single coil. It has a very good mid-frequency response and a wide sensing aperture for a big voice. As a pro-level pickup, it is fully sealed to be sweat-proof and alcohol-proof. The 3D-01 can be used in the neck, middle, or bridge position. In the neck position, it pairs nicely with a 3XQ in the middle and 1D-01 at the bridge. In the bridge position, it pairs nicely with the 3X at the neck and 3XQ in the middle position.

SPECIFICATIONS

3D Technical Details

• Coil Structure: True Single
• Cable Type: Shielded Coaxial Hot Core
• Magnetic Circuit: Carbon steel and brass powered by ceramic (ferrite) magnets
• projected for narrow field
• DC Resistance: ~2.9KΩ
• Resonant Frequency: ~5.6KHz
• Sensing Width: 2.01" [51mm] Max

Shape Details

• 2.75" [69.9mm] Long,
• 0.69" [17.5mm] Wide,
• 0.66" [16.8mm] Thick + 0.11" [2.8mm] Cable
• Flanges with 6-32 tapped holes for your screws
