PRODUCT DETAILS

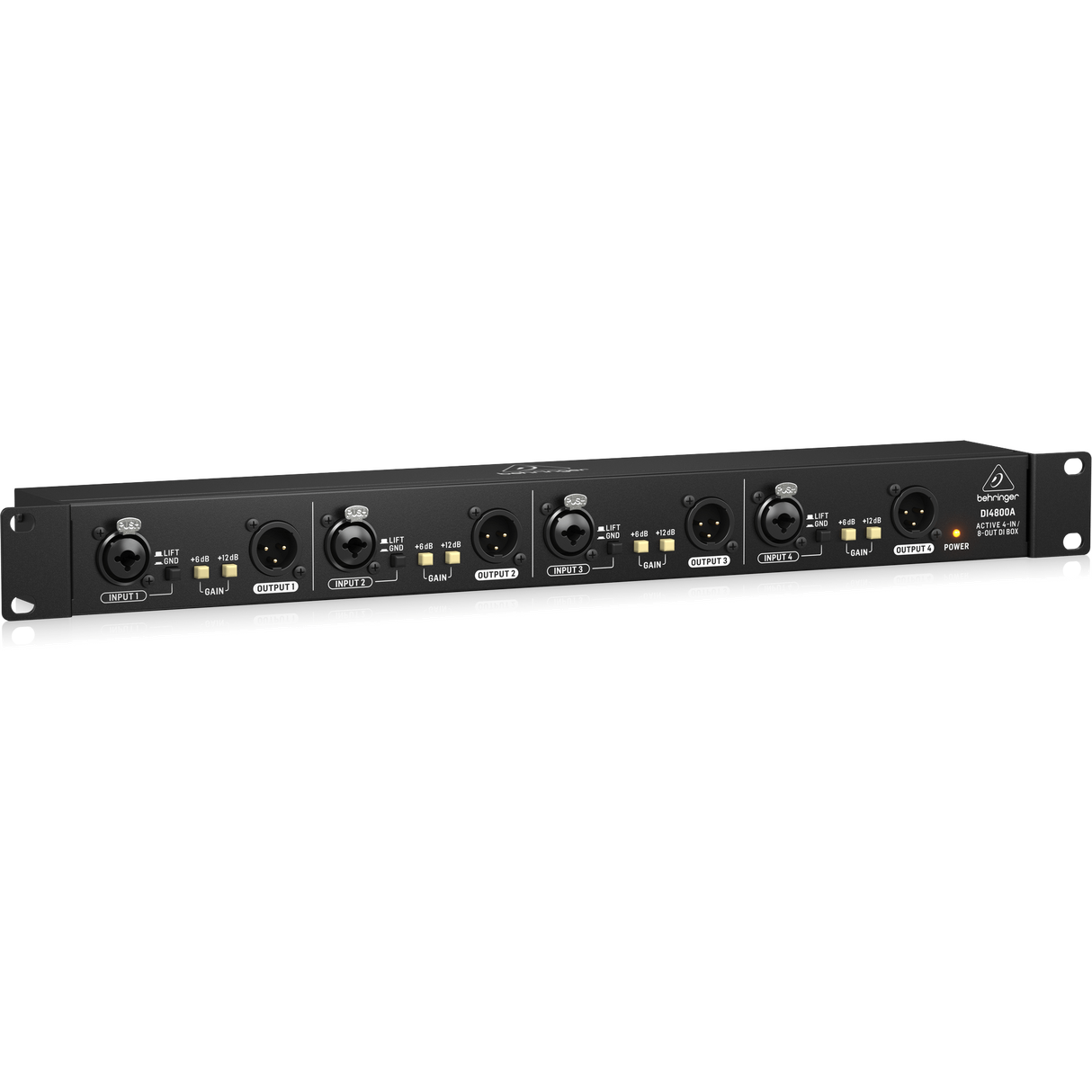

Behringer ULTRA-DI PRO DI4800A Professional 4-Channel Active DI-Box
Professional Stage and Studio Performance with the Behringer ULTRA-DI PRO DI4800A 4-Channel Active DI Box
The Behringer ULTRA-DI PRO DI4800A is a professional four-channel active direct injection box, booster, and line isolator designed for stage and studio applications. It provides perfect impedance and signal matching for connecting instruments directly to mixers or amplifiers, offering ultra-flat frequency response and maximum signal integrity. Compact and rack-mountable, the DI4800A delivers reliable, low-noise performance for any professional audio environment.
- Professional four-channel direct injection box for stage and studio use
- Provides impedance and signal matching for direct connection of instruments to mixers and amplifiers
- Renowned Behringer OT-1 transformers ensure ultra-flat frequency response
- Selectable gain boost up to +18 dB for low-level signals
- Ground lift switch eliminates typical ground loop problems
- Switchable -20 dB output attenuation
- XLR/TRS combo connectors for flexible input options
- Transformer-balanced XLR outputs for high-quality signal transfer
- Powered via external 12 V DC power supply (included)
- Rugged 1U rackmount chassis with gold-plated connectors
Pro-Active Signal Management
The ULTRA-DI PRO DI4800A provides advanced signal control with four independent DI channels, each equipped with a gain boost of +6 dB, +12 dB, or +18 dB. It accommodates guitars, basses, keyboards, and other line-level devices, ensuring optimal sound performance. Each channel includes a -20 dB attenuation switch, gold-plated XLR outputs for low-noise operation, and ground-lift switches to eliminate hum from ground loops.
¼-Inch In, XLR Out – and Much More
Delivering exceptional sound quality at an affordable price, the 4-channel ULTRA-DI PRO DI4800A gives musicians and engineers a powerful tool for achieving pristine signal paths in live or studio environments. Whether boosting low-level instruments or providing transformer isolation, the DI4800A is built to enhance clarity and reduce noise across your entire signal chain.
SPECIFICATIONS
Inputs
- Connectors: 4 x XLR/TRS combo jacks, balanced
- Impedance: 20 kΩ
- Maximum Input Level: +20 dBu
- Channel Boost Switchable: +6 dB, +12 dB, +18 dB
Outputs
- Connectors: 8 x XLR, transformer balanced
- Impedance: 600 Ω
- Maximum Output Level: +20 dBu
- Output Pad Switch: 20 dB attenuation
System
- Frequency Response: 20 Hz to 20 kHz (±3 dB)
- Total Harmonic Distortion + Noise: 0.01% at 1 kHz, 0 dBu
- Signal-to-Noise Ratio: 120 dB
- Ground Lift Switch: Removes ground connection
- Power Requirement: 12 V DC, 500 mA
Physical
- Operating Temperature Range: 5° C – 40° C (41° F – 104° F)
- Dimensions (W x D x H): 483 x 71 x 44 mm (19.0 x 2.8 x 1.7 inches)
- Weight: 1.4 kg (3.1 lbs)
Manufacturer: Behringer
Model: DI4800A
SKU: I804889-N-3-WHXA
EAN: 4033653081412
