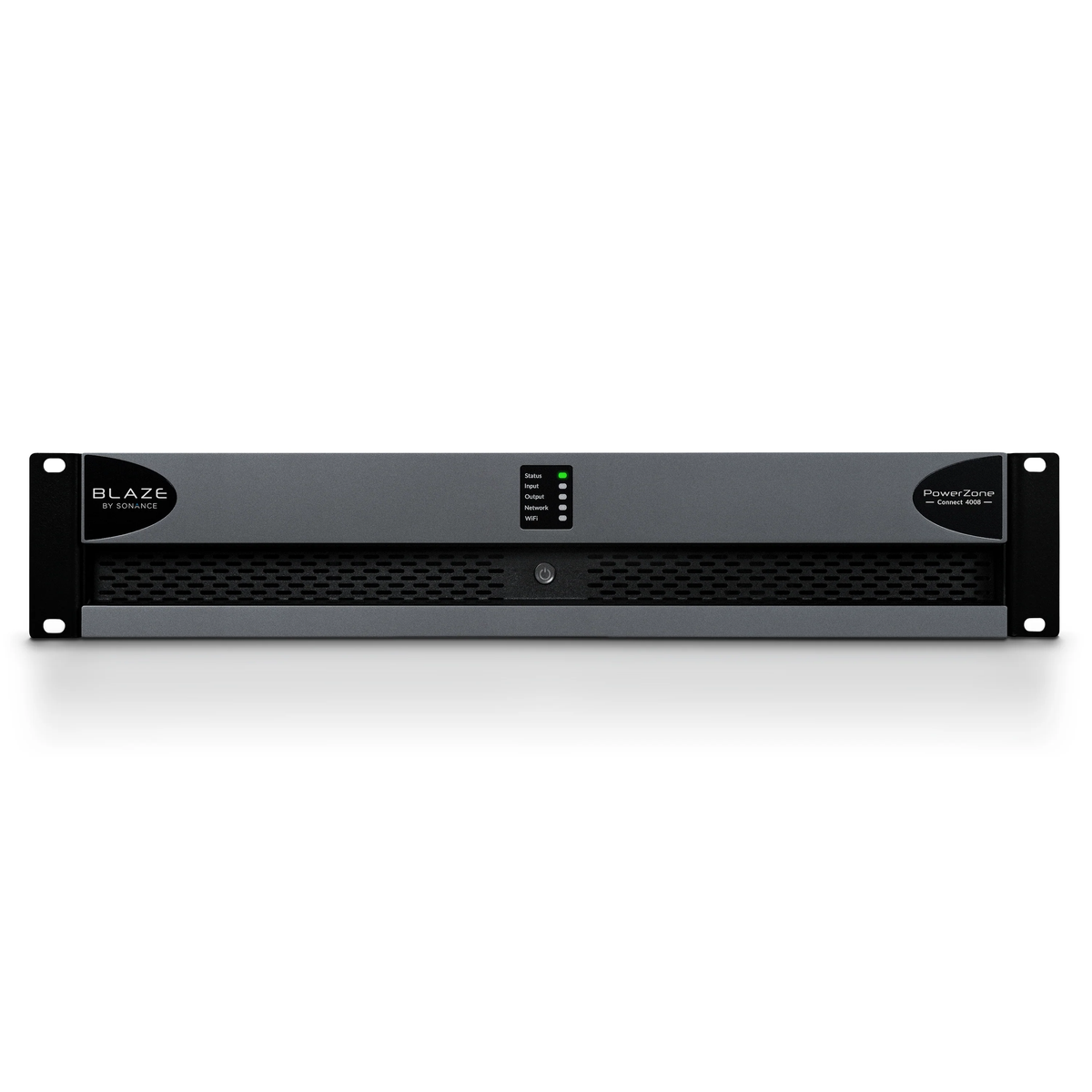

Blaze Audio PowerZone Connect 4008 500-Watt 8-Channel Power Amplifier
MSRP: $375000
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Power Complex Audio Systems with the PowerZone Connect 4008 DSP Amplifier
The PowerZone Connect 4008 is a 4000-watt, 8-channel Class-D power amplifier designed for professional installed audio systems that require flexible power distribution and integrated signal processing. Its built-in PowerZone Control DSP provides full-matrix configuration through a web-based interface, while hybrid Lo-Z and Hi-Z operation allows the amplifier to support conventional low-impedance loudspeakers as well as 70V and 100V distributed systems. Powered by Pascal UMAC Class-D technology and housed in a full-rack 2U chassis, the PowerZone Connect 4008 combines high output capability, system flexibility, and streamlined control in a single amplifier.
- 4000W total system power
- 8-channel Class-D power amplifier
- Built-in PowerZone Control DSP with full-matrix configuration
- Web-based DSP control eliminates the need for dedicated configuration software
- Supports both Lo-Z and Hi-Z loudspeaker systems
- 8 x 500W output at 2 or 4 Ohms
- 4 x 1000W bridged output at 4 or 8 Ohms
- 4 x 1000W output for 70V or 100V distributed systems
- BTL power sharing provides flexible output configuration
- Powered by Pascal UMAC Class-D amplifier technology
- S/PDIF digital input and output
- Configurable GPIO for system integration
- UREC universal power supply with power factor correction
- ErP and Energy Star compliant
- UL listed audio equipment
- Full-rack 2U chassis
- 5-year warranty
Built-In PowerZone Control DSP
The PowerZone Connect 4008 includes built-in DSP that can be configured through the PowerZone Control web application. Full-matrix routing and signal processing provide flexible system setup without requiring a separate external DSP processor for many installations.
Flexible Lo-Z and Hi-Z Power
The amplifier supports both conventional low-impedance loudspeakers and high-impedance distributed systems. In Lo-Z applications, it can deliver up to eight channels of amplification, while bridged configurations provide higher output for demanding loads. For distributed audio systems, four 1000W outputs are available at either 70V or 100V.
Pascal UMAC Class-D Amplification
Pascal UMAC Class-D technology provides high output capability in an efficient 2U rackmount design. The universal power supply with power factor correction supports professional installation environments while helping maximize system efficiency.
Professional System Integration
S/PDIF digital connectivity and configurable GPIO provide additional flexibility when integrating the PowerZone Connect 4008 into commercial and installed audio systems. Its full-rack chassis is designed for straightforward installation in standard professional equipment racks.
SPECIFICATIONS
Amplifier
- Amplifier Type: DSP-Enabled Class-D
- Channels: 8
- Total System Power: 4000W
- Power Sharing: BTL
- Built-In DSP: Yes
- Dante Compatibility: No
Output Power
- 2 Ohms: 8 x 500W SE
- 4 Ohms: 8 x 500W SE or 4 x 1000W BTL
- 8 Ohms: 8 x 250W SE or 4 x 1000W BTL
- 70V: 4 x 1000W BTL
- 100V: 4 x 1000W BTL
- Lo-Z Channel Configuration: 8 x 500W @ 2 / 4 Ohms
- Hi-Z Channel Configuration: 4 x 1000W @ 70V
DSP and Connectivity
- DSP Platform: PowerZone Control
- DSP Configuration: Full-Matrix
- Control Interface: Built-In Web Application
- Digital Audio: S/PDIF Input / Output
- GPIO: Configurable
Power
- Power Consumption: 1400W
- Power Supply: UREC Universal Power Supply with PFC
- Compliance: ErP and Energy Star
- Certification: UL Listed Audio Equipment
Physical
- Rack Size: 2U
- Width: 17.3" / 439.42 mm
- Height: 3.5" / 88.9 mm
- Depth: 16.3" / 414.02 mm
- Weight: 25.6 lbs. / 11.61 kg
Additional Information
- SKU: LBX-888-010
- Warranty: 5 Years
Manufacturer: BLAZE
Model: LBX-888-010
SKU: I829120-N-1-WHXD
