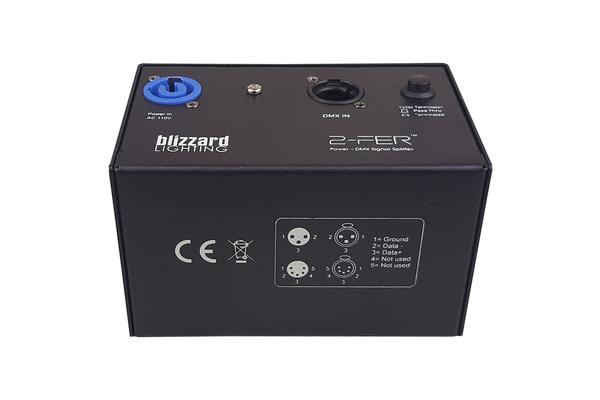

Blizzard 2-Fer 3-Pin DMX Signal Splitter

Get A Power Splitter and DMX Splitter All In One With The Blizzard 2-Fer 3-Pin DMX Signal Splitter

2-WAYS x 2

The 2-Fer is a 2-way power splitter + 2-way DMX splitter, all housed together in 1 convenient unit. It’s an ideal accessory for use in any situation where powerCON power cables and DMX cables are frequently used, plus, it’s also a great fit with Blizzard’s DMX-PC (DMX + powerCON compatible) combo cables. These well-built and reliable units are designed to make users lives and lighting setups a whole lot simpler!

HIGHLY RELIABLE

2-Fer units are highly reliable and are fitted with 1x 20A powerCON compatible input and 2x 20A powerCON compatible outputs (flush mounted), plus, they come with the 3-pin DMX (2-FER-3PIN) DMX connectors with 1 signal input and 2 signal outputs. The DMX connectors on 2-Fer splitters are 100% optically isolated, and the units are also equipped with a built-in 120Ω terminator/pass thru switch for completing a DMX chain properly.

• 1x DMX signal input
• 2x DMX signal outputs
• 1x powerCON compatible input
• 2x powerCON compatible outputs
• Optically isolated XLR connectors
• Flush mounted power connectors
• 3-pin XLR connectors
• 120Ω terminator/pass thru switch
• 12/14 AWG internal wiring
• Output power/signal LED status indicators
• Housing Material: Steel
• Threaded clamp mounting hole (M10)
• Well-built and highly reliable

WEIGHT AND DIMENSIONS

• Length: 5.4 inches (136 mm)
• Depth: 3.3 inches (82 mm)
• Height: 3.5 inches (88mm)
• Weight: 2.5 lbs (1.1 kg)

POWER & CURRENT

• Operating Voltage: 110-240VAC, 50-60 Hz


Manufacturer: Blizzard Lighting
Model: 2-FER-3PIN
Warranty: See manufacturer website for details
SKU: I552155-N-2
UPC: #685450870726
