Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier
The Bose FreeSpace IZA 2120-HZ Integrated Zone Amplifier is purpose-built for commercial background and foreground music and paging applications. Optimized for use with Bose FreeSpace and DesignMax loudspeakers, it combines 2 x 120 W of 70/100V Class-D power with onboard DSP, Loudspeaker EQ, Opti-Voice paging, and Dynamic EQ to deliver clear announcements and full, balanced music at any volume level across two independent zones.
- True two-zone design with independent outputs, level, source selection, tone controls, and paging/aux routing
- Opti-Voice paging enhances vocal frequencies for clearer announcements and smooth transitions between music and speech
- Dynamic EQ maintains full and balanced music at low, medium, and high volume levels
- Independent Loudspeaker EQ per output for simple, optimized connection to Bose FreeSpace and DesignMax loudspeakers
- Reliable 2 x 120 W Class-D amplification optimized for 70/100V high-impedance systems
- Support for dual remotes and Bose ControlCenter controllers for flexible, wall-mounted zone volume/source control
- Front-panel controls for input select, tone, and master level plus 3.5 mm aux input for quick connection of mobile devices
- Intuitive, PC-free setup for inputs, outputs, paging priorities, remotes, and Auto-Standby options
- Remote muting capability for integration with centralized control and safety systems
- Compact 1U rackmount chassis with forced-air cooling for dependable commercial operation
Ideal for retail stores, restaurants and bars, hospitality venues, conference centers, schools, and auxiliary zones, the FreeSpace IZA 2120-HZ brings together routing, processing, and amplification in a single, easy-to-use package that elevates everyday audio while simplifying installation and operation.
Specifications
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools and education facilities
- Auxiliary and overflow zones
Power and Performance
- Amplifier Power: 2 x 120 W @ 70/100V
- Amplifier Type: Class-D, high-impedance
- Frequency Response: 55 Hz – 20 kHz (+0 / –3 dB, @ 1 W reference 1 kHz)
- Total Harmonic Distortion + Noise (THD+N): ≤ 0.3% (at rated power)
- Channel Separation (Crosstalk): ≤ –58 dBu (below rated power, 1 kHz)
- Dynamic Range: 88 dB
Integrated DSP
- Conversion: 24-bit / 48 kHz A/D and D/A
- Processing Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
- Loudspeaker Presets: High-pass filter, FS2C/SE/P, FS4CE/SE, DM2C-LP/S, SUB (55 – 100 Hz)
- Audio Latency: 10.4 ms (any input to speaker output or aux output)
Audio Inputs
-
Line Inputs (Program A/B)
- Channels: 2 unbalanced, 2 balanced
- Connectors: Stereo RCA, 5-pin Euroblock
- Input Range: –8 dBu to 22 dBu
- Gain Adjustment: 0 dB to –30 dB
- Input Impedance: 20 kΩ (fixed)
- Maximum Input Level: 22 dBu
- Nominal Input Level: 4 dBu
-
Page Input
- Channels: 1 balanced mic/line
- Connector: 4-pin Euroblock
- Input Range: –58 dBu to 12 dBu
- Gain Adjustment: 0 dB to +50 dB
- Input Impedance: 2 kΩ (fixed)
- Maximum Input Level: 12 dBu
- Nominal Input Level: –38 dBu
-
Auxiliary Input
- Channels: 1 unbalanced line
- Connector: 1/8" (3.5 mm) TRS
- Input Range: –60 dBu to –1 dBu
- Input Impedance: 20 kΩ (fixed)
- Maximum Input Level: –1 dBu
- Nominal Input Level: –8 dBu
Audio Outputs
-
Amplifier Outputs
- Outputs: 2 (Zone 1 / Zone 2)
- Connector: 2-pin inverted Euroblock
- Power: 2 x 120 W @ 70/100V
-
Auxiliary Output
- Outputs: 1 unbalanced
- Connector: Stereo RCA
- Output Impedance: 400 Ω
- Nominal Output Level: 2 dBu

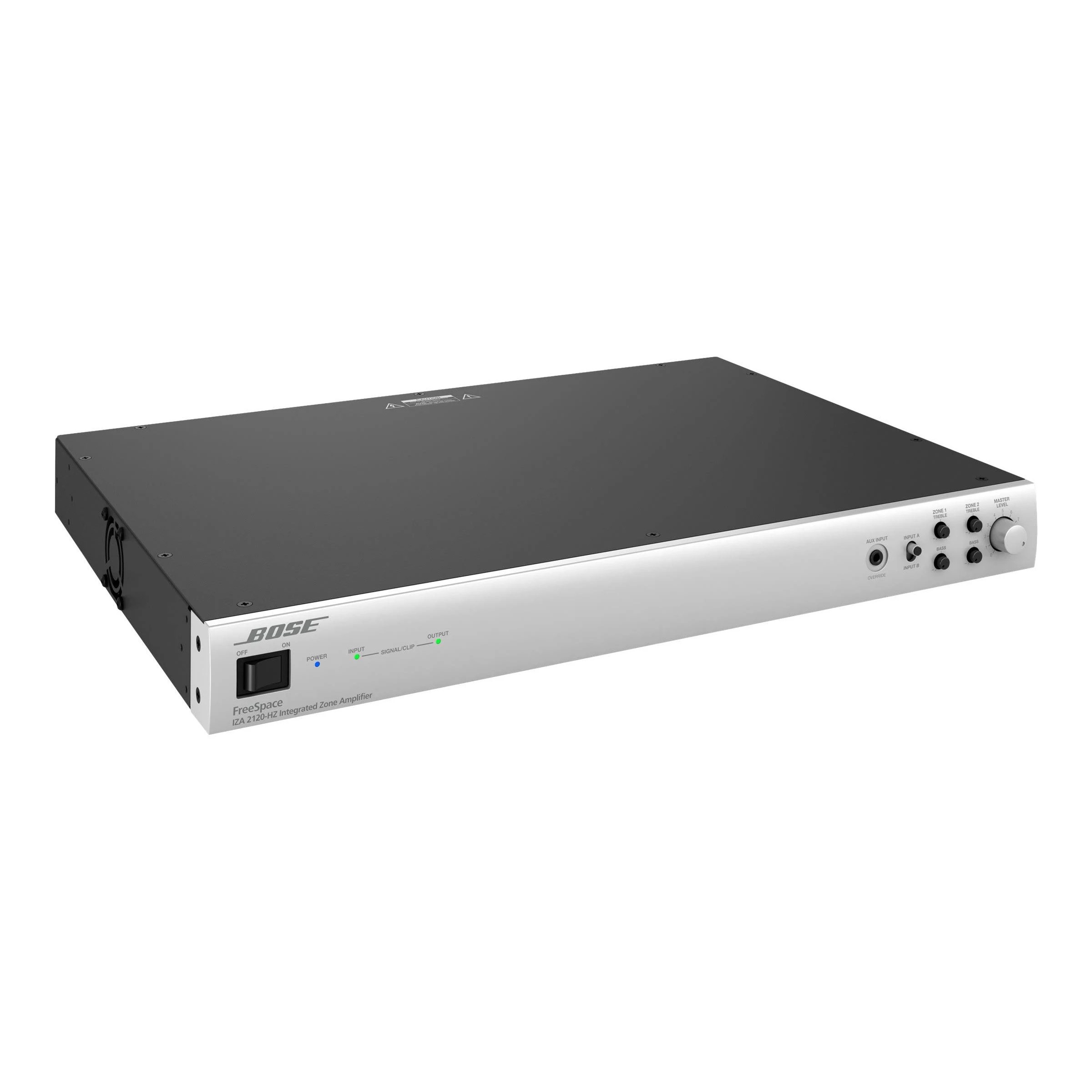

Front Panel Indicators and Controls
- Power LED: Solid blue (power on), blinking blue (standby)
- Input Signal Clip LED: Green (–37 dBu to 11 dBu), red (over 11 dBu, master level set to 5)
- Output Signal Clip LED: Green (–46 dBFS to –2 dBFS), red (over –2 dBFS, approx. 80 W/channel)
- Controls: Power On/Off, Input Select (A/B), Treble and Bass tone controls (per zone), Master Level

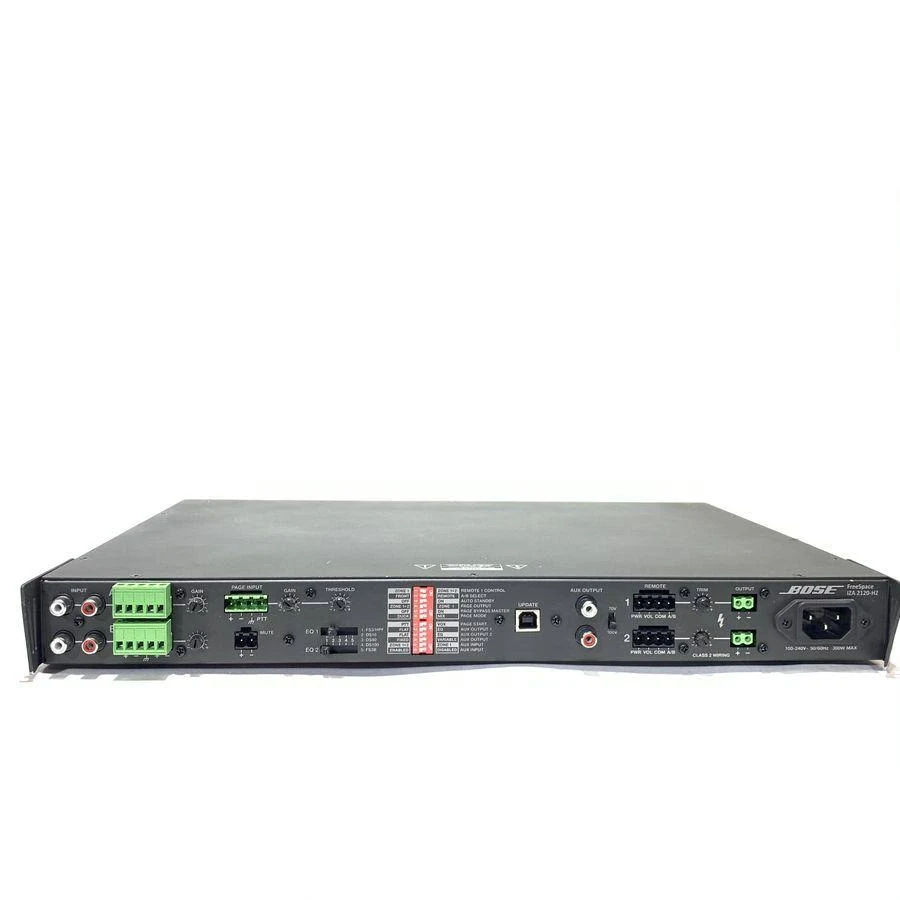

Rear Panel Controls and Connections
- Amplifier mode DIP switches
- Loudspeaker EQ preset selector
- Input gain trims (A/B/Page)
- Output trims
- Remote connectors (x2) for Bose ControlCenter zone controllers
- Remote mute input (contact closure, normally open)
Electrical
- Mains Voltage: 100 VAC – 240 VAC (±10%, 50/60 Hz)
- AC Power Consumption: 26 W (standby), 300 W (max)
- Mains Connector: IEC C14
- Maximum Inrush Current: 12.6 A (230 VAC / 50 Hz), 6.6 A (120 VAC / 60 Hz)
- Protection: High temperature, output short, excessively low or high AC line voltage
- Auto-Standby: Yes (reduced power consumption when idle)
Physical
- Dimensions (H x W x D): 1.7" x 19.0" x 12.8" (44 mm x 483 mm x 324 mm)
- Net Weight: 9.0 lb (4.1 kg)
- Shipping Weight: 12.0 lb (5.4 kg)
- Cooling: Single fan, continuous left-to-right airflow
- Form Factor: 1U rackmount
Control and Integration
- Control Inputs: Remote inputs for one or two Bose ControlCenter CC-1/CC-2 controllers, or 1 & 1 combination
- Zone Control: Dual remotes for independent or combined zone volume/source control
- Remote Muting: Mute input via contact closure (normally open) for centralized control systems
Manufacturer: BOSE
Model: 719782-1430
SKU: I643866-N-3-WHXE
UPC: 017817818827
