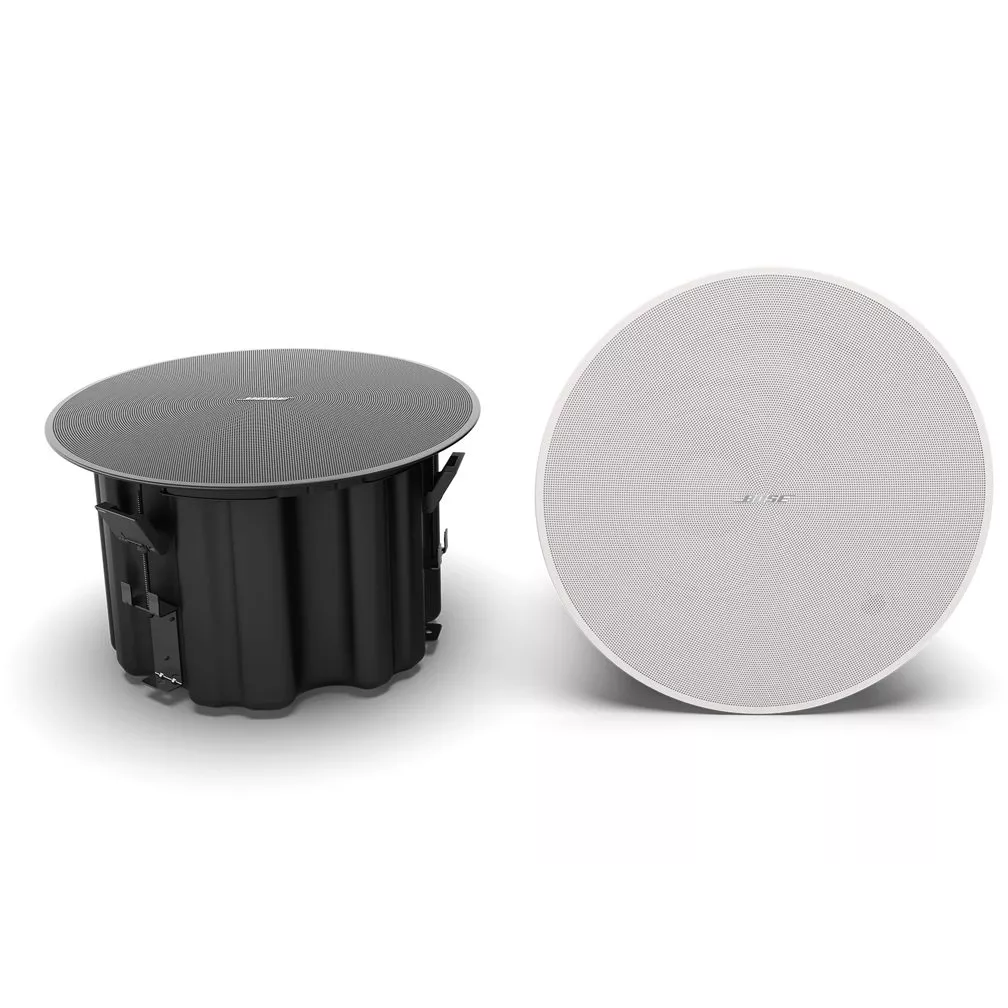

Deliver High-SPL In-Ceiling Sound with the Bose Professional DesignMax DM8C Loudspeaker
The Bose Professional DesignMax DM8C is a 150-watt in-ceiling loudspeaker designed for commercial sound installations that need powerful SPL, rich low end, and clear high-frequency performance. Featuring an 8-inch woofer and a center-firing coaxial 1-inch compression driver, the DM8C delivers a 52 Hz - 20 kHz frequency range with premium aesthetics for restaurants, retail stores, houses of worship, conference centers, hospitality venues, and performing arts spaces.
- 150-watt in-ceiling loudspeaker for foreground music and commercial audio installations
- Coaxial 2-way driver design delivers rich lows and clear, intelligible highs
- 8-inch woofer with center-firing 1-inch compression driver
- 52 Hz - 20 kHz frequency range
- 113 dB calculated maximum SPL at 1 meter
- 135° conical coverage provides wide, even sound dispersion
- QuickHold mounting system reduces installation time and strain
- Minimum-bezel magnetic grille blends cleanly with room design
- Includes plenum-rated backcan, tile bridge, and front-access audio wiring
- No DSP or EQ required, with Bose Professional EQ voicing and SmartBass processing available
- White grille included; black grille available separately as an accessory
Powerful Sound for Demanding Commercial Spaces
The DesignMax DM8C is built for applications that require higher SPL from an in-ceiling loudspeaker. Its 150-watt power handling, 8-inch woofer, and compression driver make it suitable for foreground music, high-ceiling spaces, ballrooms, concourses, convention centers, and other demanding installed audio environments.
Coaxial 2-Way Performance
The DM8C uses a coaxial 2-way design with an 8-inch low-frequency woofer and a center-firing 1-inch compression driver. This configuration helps deliver full low-frequency response, clear highs, and balanced coverage without requiring external DSP or EQ.
Fast Installation with QuickHold Mounting
The patented QuickHold mounting system uses three spring-loaded mounting arms to simplify installation and reduce strain during setup. Included installation accessories such as the tile bridge, cutout template, and front-access wiring help make the DM8C easier to install and service.
Clean Design for Professional Interiors
The magnetically attached perforated steel grille features a minimum-bezel design, removable logo, and paintable finish to blend into a wide range of commercial interiors. The in-ceiling DesignMax models are sold in white, with optional black grilles available separately.
Flexible System Integration
DesignMax loudspeakers can be mixed and matched across the series to complete systems of different sizes. For enhanced performance, select Bose Professional DSPs and amplifiers can enable Bose Professional loudspeaker EQ and SmartBass processing.
SPECIFICATIONS
General
- Product Type: In-ceiling loudspeaker
- Model: DesignMax DM8C
- Product Code: 802080-0210
- Product Description: DESIGNMAX DM8C SINGLE WHT
- Color: White grille, similar to RAL 9003
- Optional Grille Color: Black grille, similar to RAL 9005
- Paintable: Yes
- Environmental Rating: Indoor only
Performance
- Frequency Range: 52 Hz - 20,000 Hz, -10 dB
- Calculated Maximum SPL at 1 m: 113 dB
- Sensitivity: 91 dB SPL / 1 W at 1 m
- Nominal Impedance: 8 ohms, transformer bypass
- Power Handling, Long-Term Continuous: 150 W
- Power Handling, Peak: 600 W
- Coverage: 135° conical horizontal and vertical
- Recommended Signal Processing: Not required
- Optional Signal Processing: Bose Professional EQ voicing and SmartBass processing available
Transducers
- Low-Frequency Driver: 1 x 8-inch / 203 mm woofer
- High-Frequency Driver: 1 x 1-inch / 25 mm compression driver, coaxial center-firing
- Crossover: 1.5 kHz passive 2-way crossover
- Driver Protection: Recommended high-pass protection at 48 Hz with recommended 24 dB/octave filter
- Additional Protection: Overload protection and resistor-network power reduction with automatic reset
Transformer Taps
- 70V Transformer Taps: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- 100V Transformer Taps: 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Construction
- Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan
- Grille: Magnetically attached perforated steel with powder-coated finish and safety tether
- Logo: Rotatable and removable
- Ceiling Cutout: 13.8 inches / 349 mm
Mounting
- Mounting System: 3 x QuickHold spring-loaded mounting arms
- Safety Cable Attachment Points: 3
- Included Installation Accessories: Tile bridge and cutout template
Compliance
- Safety Agency Ratings: UL-1480A, S5591 / UL Listed
- Plenum Compliance: UL2043 for plenum-space installation
- Additional Compliance: NFPA70, NFPA90-A, CE compliant
Operating Environment
- Operating Temperature Range: 0°C to 50°C / 32°F to 122°F
Dimensions
- Product Dimensions: 16.1-inch diameter x 10.0-inch depth / 409 mm x 255 mm
- Backcan Dimensions: 13.4-inch diameter x 9.5-inch depth / 340 mm x 240 mm
Weight
- Net Weight: 21.1 lb / 9.6 kg, loudspeaker with grille
- Tile Bridge Weight: 2.2 lb / 1.0 kg
- Shipping Weight: 28.0 lb / 12.7 kg, single
What's in the Box?
- 1 x Bose Professional DesignMax DM8C Loudspeaker
- 1 x Tile Bridge
- 1 x Cutout Template
Manufacturer: BOSE
Model: 802080-0210
SKU: I634710-N-4-WHXD
UPC: 017817786423
