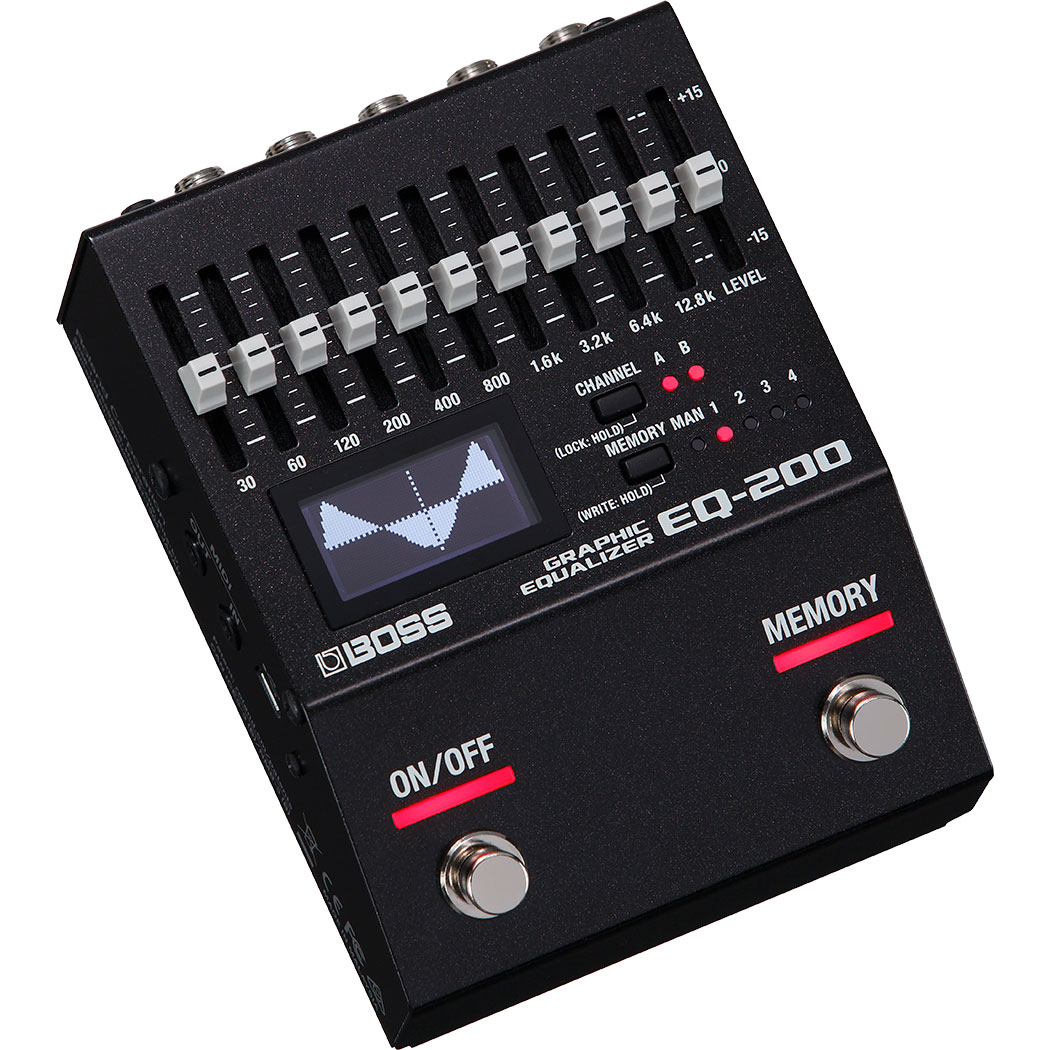

Boss EQ-200 Graphic Equalizer Pedal

by Boss
Original price $0.00 - Original price $0.00
Original price $0.00
$274.99
$274.99 - $274.99
Current price $274.99
Inventory Status:

♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.


Simply Sophisticated - The Boss EQ-200 Graphic Equalizer Pedal

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.

Version 1.1 Update: User Memory Expansion: The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.


  • Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • Dual 10-band EQs that can be used in stereo, parallel, or series
  • Insert function for processing external effects with pre and/or post tone shaping
  • Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz
  • 15 dB boost/cut on each band, plus overall level control for each channel
  • Stereo link function for operating both EQ channels together
  • Intuitive interface with hands-on sliders and graphic EQ display
  • Access 128 user setups from the panel or MIDI program change
  • Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
  • Panel Lock function disables controls to prevent unwanted changes
  • Two onboard footswitches with customizable assignments
  • Support for expanded control via external footswitches, an expression pedal, or MIDI
  • Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
  • Micro USB jack for firmware updates
  • Runs on PSA-series AC adaptor or three AA-size batteries


Dual 10-Band EQs with Adjustable Range

With its refined design, 32-bit/96 kHz engine, and ultra-low noise specs, the EQ-200 delivers precision tonal control with superior audio quality. Up to 15 dB of cut or boost is available on each band, and each channel has a level slider for balancing with the bypass sound or kicking in a solo boost when needed. The center frequency configuration of the bands can also be set to one of three types, letting you optimize the EQ-200’s equalization for all types of instruments, from electric and acoustic guitars to bass, keyboards, and beyond.

Flexible Signal Flow and Pre/Post FX Insert

The EQ-200’s variable signal flow structure offers an uncommon level of versatility in sculpting sounds. The A and B channels can be linked together or used independently, and you can also patch in an external pedal (or a chain of pedals) for pre-EQ and/or post-EQ processing. When used with overdrive and distortion pedals, this provides an exceptional level of power in honing your tone for both rhythm and lead playing. Series mode runs the two EQs one after the other, allowing you to shape your basic tone with one and set up the second for solos or additional sound shaping.

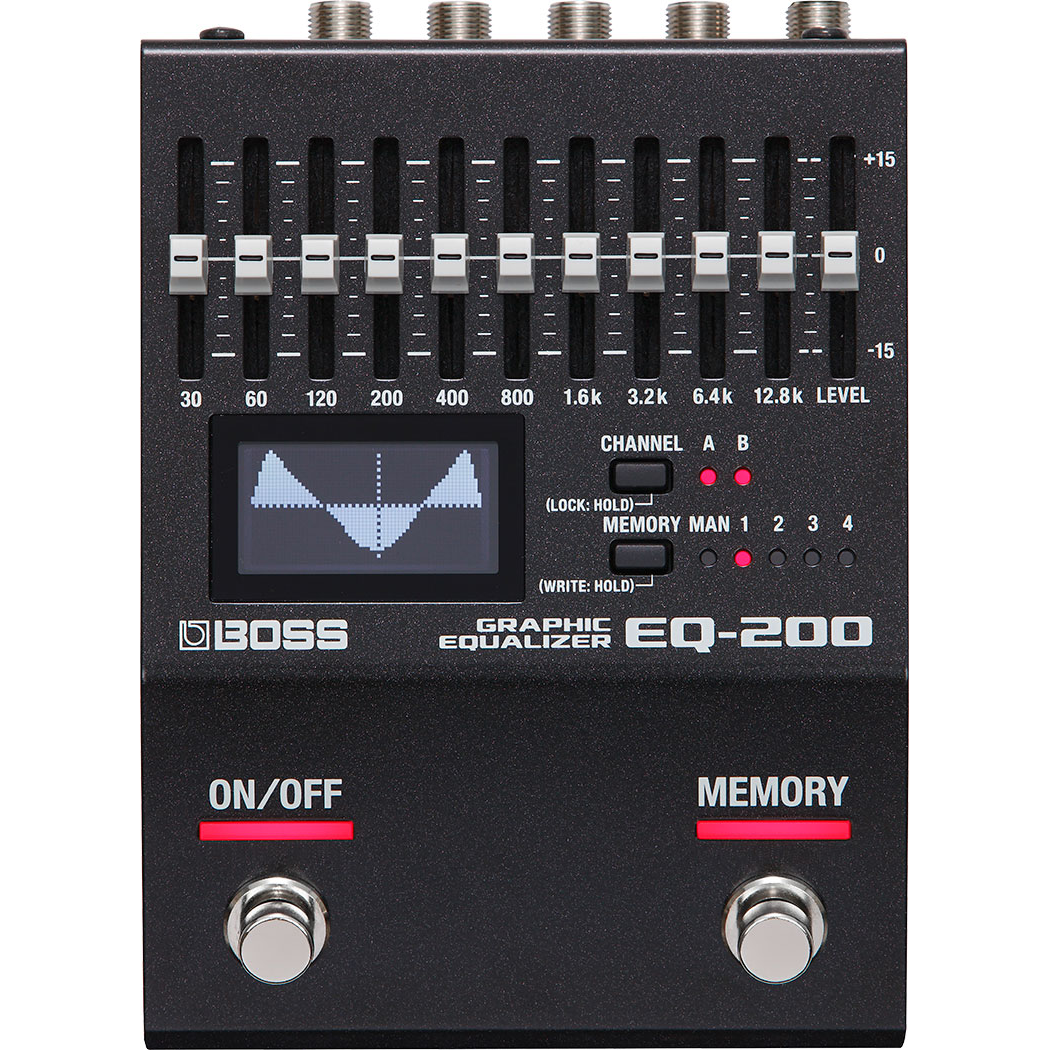

Simple Interface and Visual EQ Display

Using the EQ-200 is fast, intuitive, and frustration-free. Hands-on sliders provide direct access to 10 EQ bands and master channel level, while the informative display offers a visual overview of the current EQ curve. The two channels are toggled with a dedicated panel button, and navigating deeper parameters is quick and efficient. And with the useful Panel Lock function, you can disable the controls to prevent accidental changes while operating other pedals on your board.

Save and Recall Your Favorite Setups

The EQ-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch. It’s also possible to limit the scrolling range or assign memories directly for even faster recall. And if you crave deeper control, setups can be directly recalled via program change messages from an external MIDI device.

Deep Real-Time Control

By default, the EQ-200’s footswitches control EQ bypass and memory scrolling, but you can reassign them to turn channels on/off, select specific memories, and more. Control is also possible via external footswitches, and these are freely assignable as well. Alternately, you can connect an expression pedal to control A or B channel levels, or even the overall output (a handy stand-in for a volume pedal). MIDI I/O is also available on mini TRS jacks, letting you operate various functions from external MIDI controllers and chain multiple 200 series pedals to select memories on all of them at once.


SPECIFICATIONS

  • Sampling Frequency: 96 kHz
  • AD/DA Conversion: 32 bits
  • Processing: 32-bit floating point
  • Memory: 127 + Manual
  • Nominal Input Level - INPUT A/MONO, B: -10 dBu
  • Maximum Input Level - INPUT A/MONO, B: +7 dBu
  • Input Impedance - INPUT A/MONO, B: 2 M ohm
  • Nominal Output Level - OUTPUT A/MONO, B: -10 dBu
  • Maximum Output Level - OUTPUT A/MONO, B: +7 dBu
  • Output Impedance - OUTPUT A/MONO, B: 1 k ohms
  • Recommended Load Impedance - OUTPUT A/MONO, B: 10 k ohms or greater
  • Bypass: Buffered bypass
  • Controls
    • ON/OFF switch, MEMORY switch
    • 30--12.8 k sliders, LEVEL slider
    • A/B button, MEMORY button
  • Display: Graphic LCD (64 x 32 dots, backlit LCD)IndicatorA/B indicator, MEMORY (MAN, 1--4) indicators

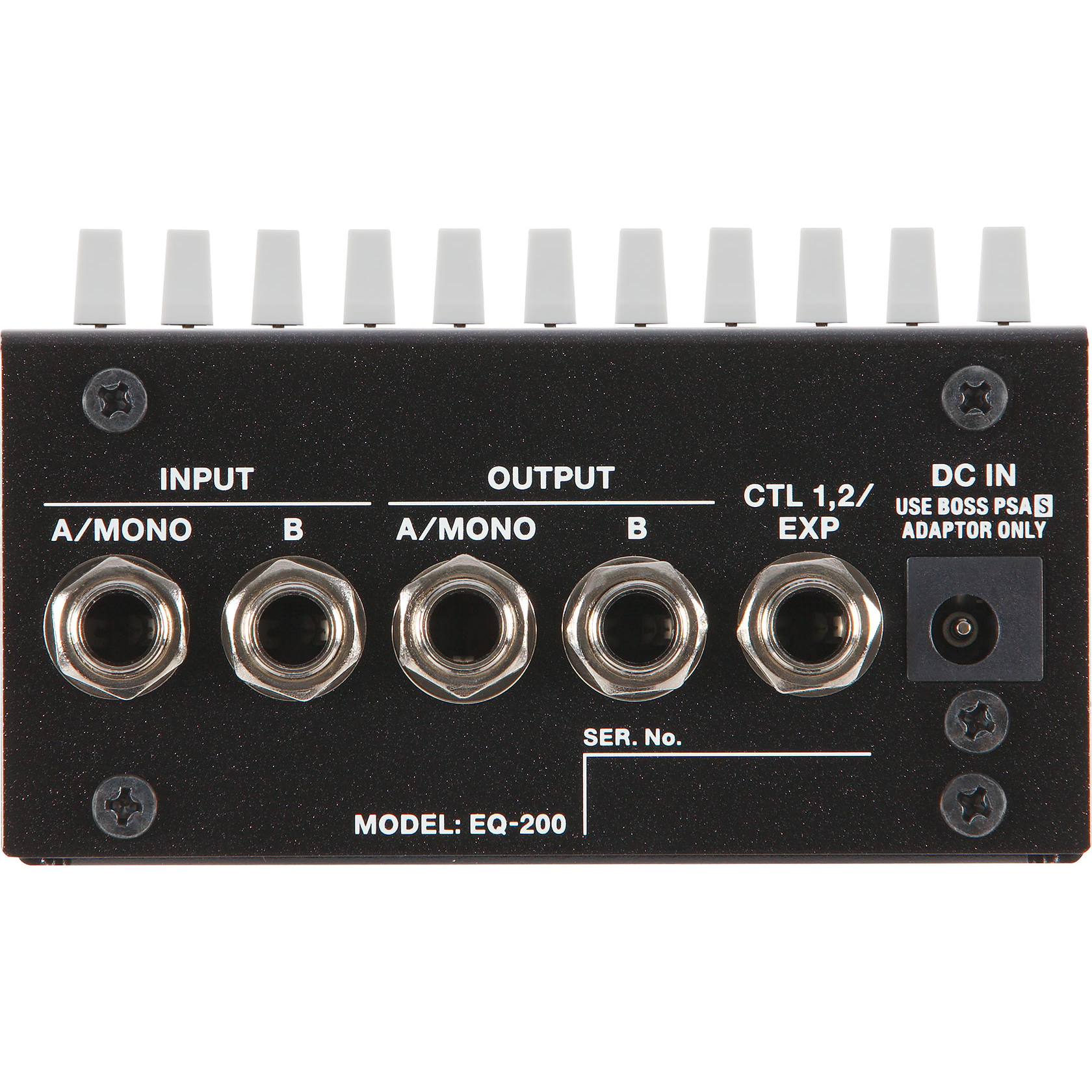

  • Connectors
    • INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
    • CTL 1, 2/EXP jack: 1/4-inch TRS phone type

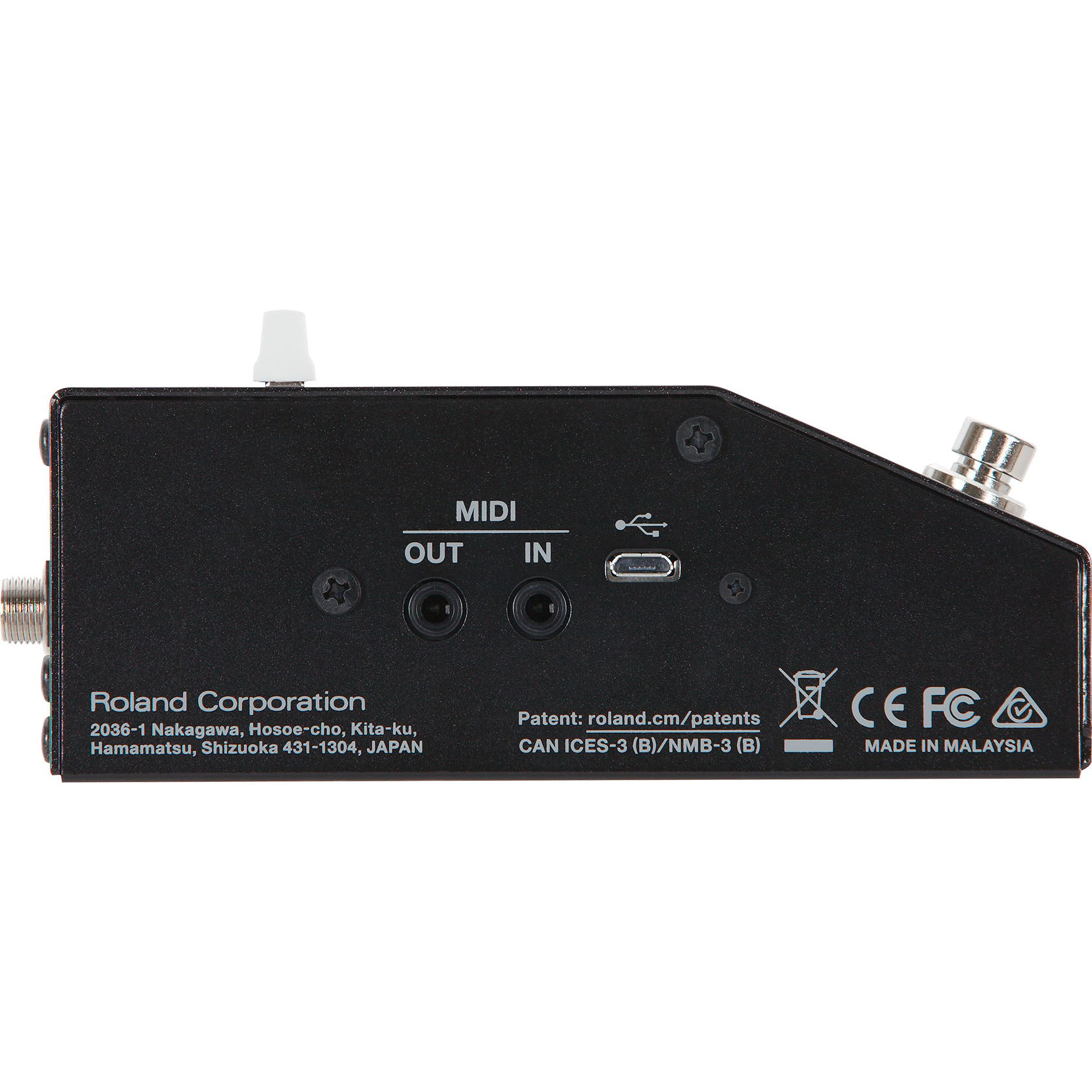

    • MIDI (IN, OUT) jacks: Stereo miniature phone type
    • DC IN jack
    • USB port: USB micro-B type (program update only)
  • Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
  • Current Draw: 170 mA
  • Expected Battery Life Under Continuous Use - Alkaline: Approx. 7 Hours (These figures will vary depending on the actual conditions of use.)
  • Accessories
    • Owner's Manual
    • Leaflet "USING THE UNIT SAFELY"
    • Alkaline battery (AA, LR6) x 3
    • Rubber foot x 4

Size and Weight

  • Width
    • 101 mm
    • 4 inches
  • Depth
    • 138 mm
    • 5-7/16 inches
  • Height
    • 60 mm
    • 2-3/8 inches
  • Height (including rubber foot)
    • 62 mm
    • 2-1/2 inches
  • Weight
    • 630 g
    • 1 lb 7 oz
  • Weight (including battery)
    • 700 g
    • 1 lb 9 oz

Manufacturer: Boss
Model: EQ-200
SKU: I613107-N-3-WHXA
UPC: 761294514610
