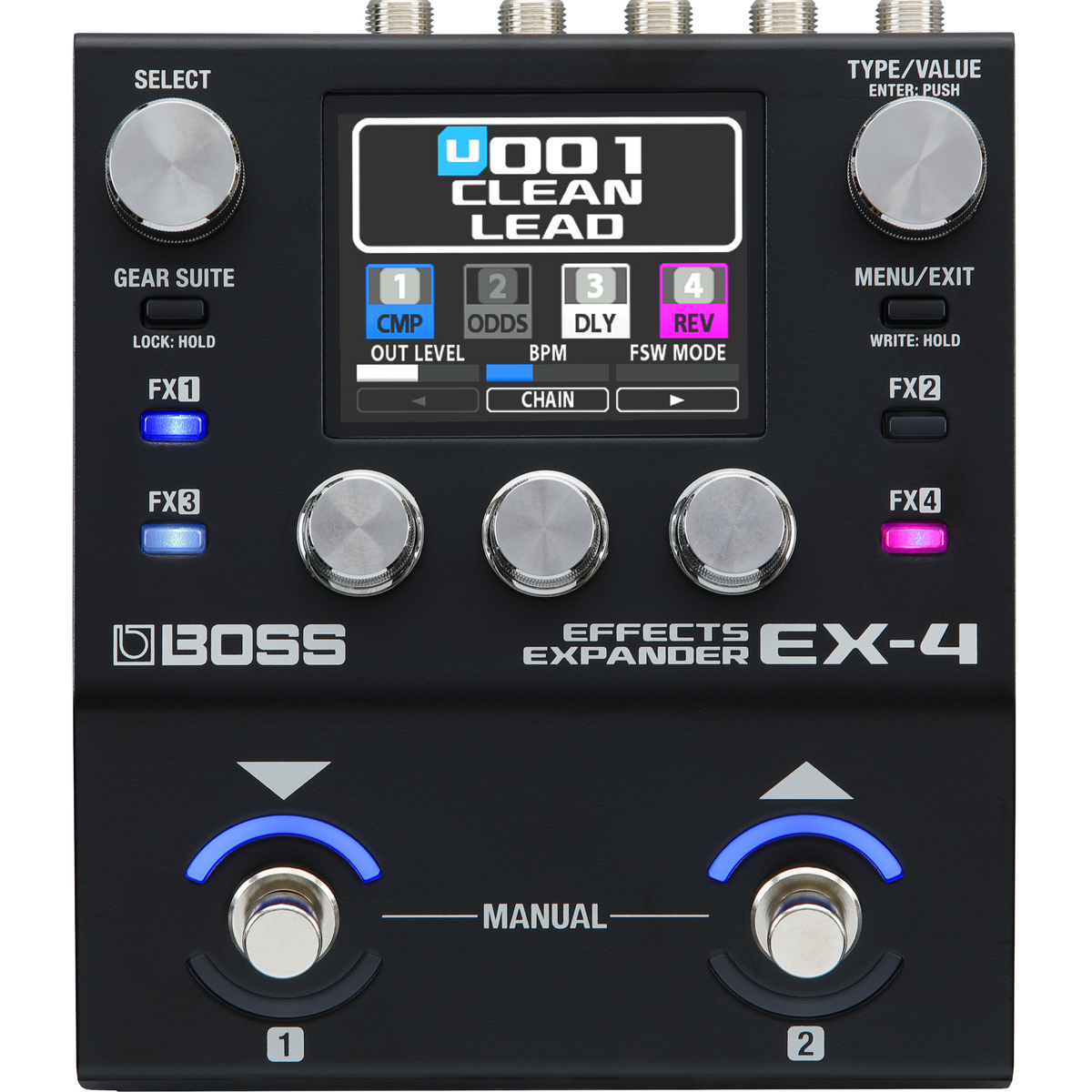

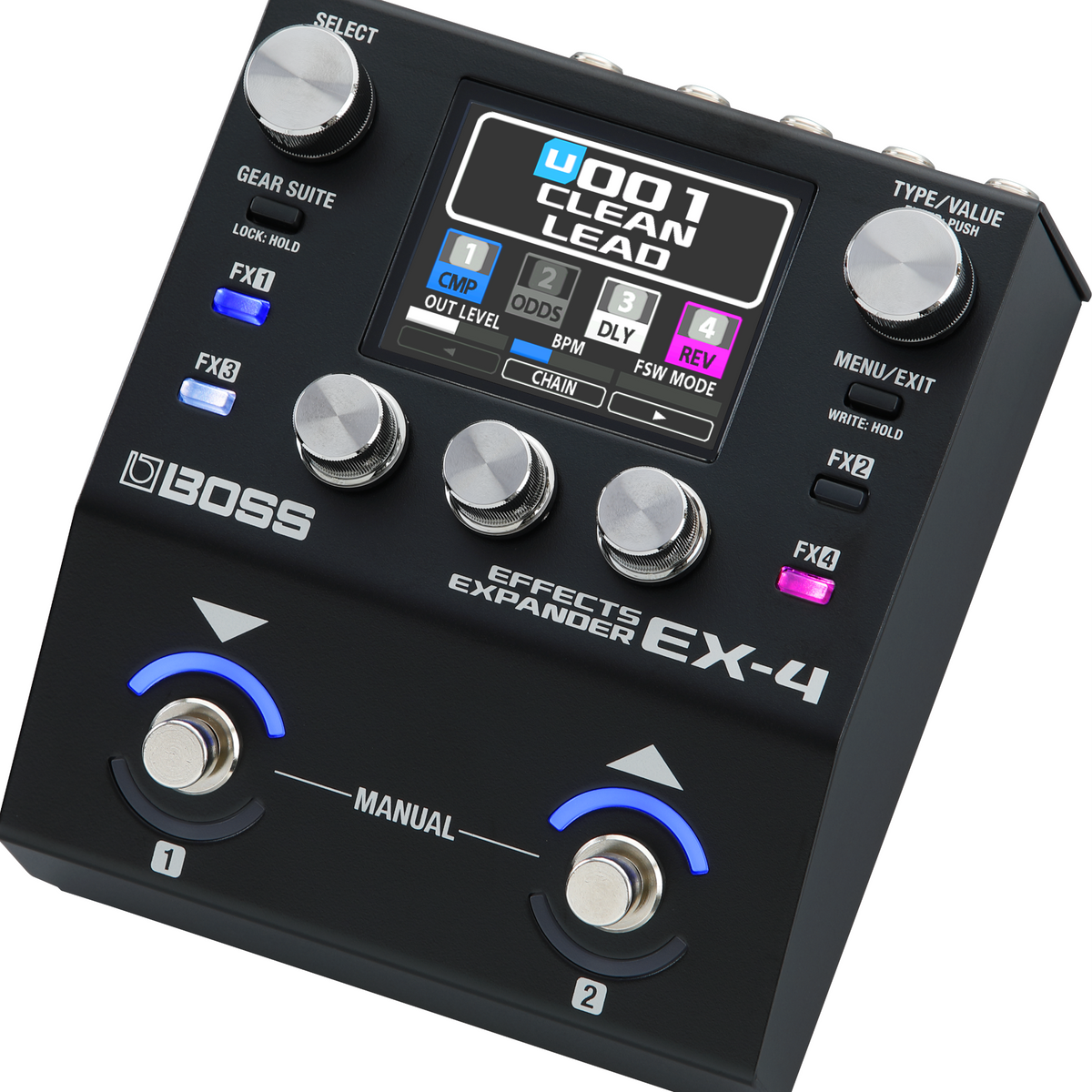

Boss EX-4 Effects Expander Compact Pedalboard Multi-Effects Pedal

Endless Array of Sounds - The Boss EX-4 Effects Expander Compact Pedalboard Multi-Effects Pedal

The EX-4 is a premium BOSS effects unit that instantly expands the sonic capabilities of any pedalboard setup. This compact powerhouse delivers up to four simultaneous effects from a vast onboard library, accessed with an intuitive user interface, flexible footswitches, and a versatile range of connectivity options. The EX-4 is ideal for guitarists, bassists, and other musicians who carefully curate effect choices to maximize creative and tonal options in their pedalboard builds. Offering a large selection of classic BOSS effects in a space-saving package, this is the ultimate utility pedal for players needing to cover many songs/styles or craft professional sounds on the fly.

Expanded Range, Small Footprint

• With 120 high-quality BOSS effects on tap, the EX-4 brings a nearly endless array of on-demand sounds to any pedalboard
• Compact size saves valuable pedalboard space
• Every major effect category is available—including overdrives/distortions, mod effects, delays, and reverbs—plus bass-tuned effects and unique BOSS favorites like Slow Gear, Slicer, and more
• Dedicated utility blocks that can be placed anywhere within an effect chain—including foot volume, two noise suppressors, send/return, and divider/mixer—plus a global EQ for overall sound shaping
• Control effects using dual multi-function footswitches with color LEDs
• Versatile mono/stereo I/O, flexible effect loop, and space-saving TRS MIDI jacks

Dial in Great Sounds Fast

• Gear Suite function makes sound creation quick and simple, allowing players to call up ready-to-play effects and save favorite parameter setups for each effect type
• Fluid operation with an informative color display, intuitive knobs, and dedicated FX buttons
• Manual and Memory modes for stompbox-style or preset-based effect control
• 128 preset memories for guitar and bass, plus 128 user memories for saving custom sounds

No Creative Barriers

• Run up to four effects at once, including multiple instances of the same effect
• Set up standard serial effects chains and reorder effects as needed
• Create complex effect configurations with advanced series, parallel, and wet/dry options
• Use the effect loop to build reorderable chains with external pedals
• Seamless memory changes with full carryover of delay and reverb effects possible with certain effect configurations
• Use the footswitches for basic effect and preset control or access deeper assignment features for sophisticated custom operation

Vivid Color Display

Full color 2.4-inch screen for clear viewing of the full effect signal chain, individual effect blocks, editing options, menus, and more.

Dedicated FX Button

Quickly turn effect blocks on/off with a single press and access editing parameters with a long press. FX button colors match each effect's display colors for fast identification.

Dual Footswitch with Split Leads

Rugged dual-function footswitches can be custom-configured system-wide or per memory, with assignments that include effect block on/off, memory up/down, master bypass, tap tempo, and more. A newly designed color LED system surrounds the footswitches, allowing players to clearly identify current footswitch functions while performing.

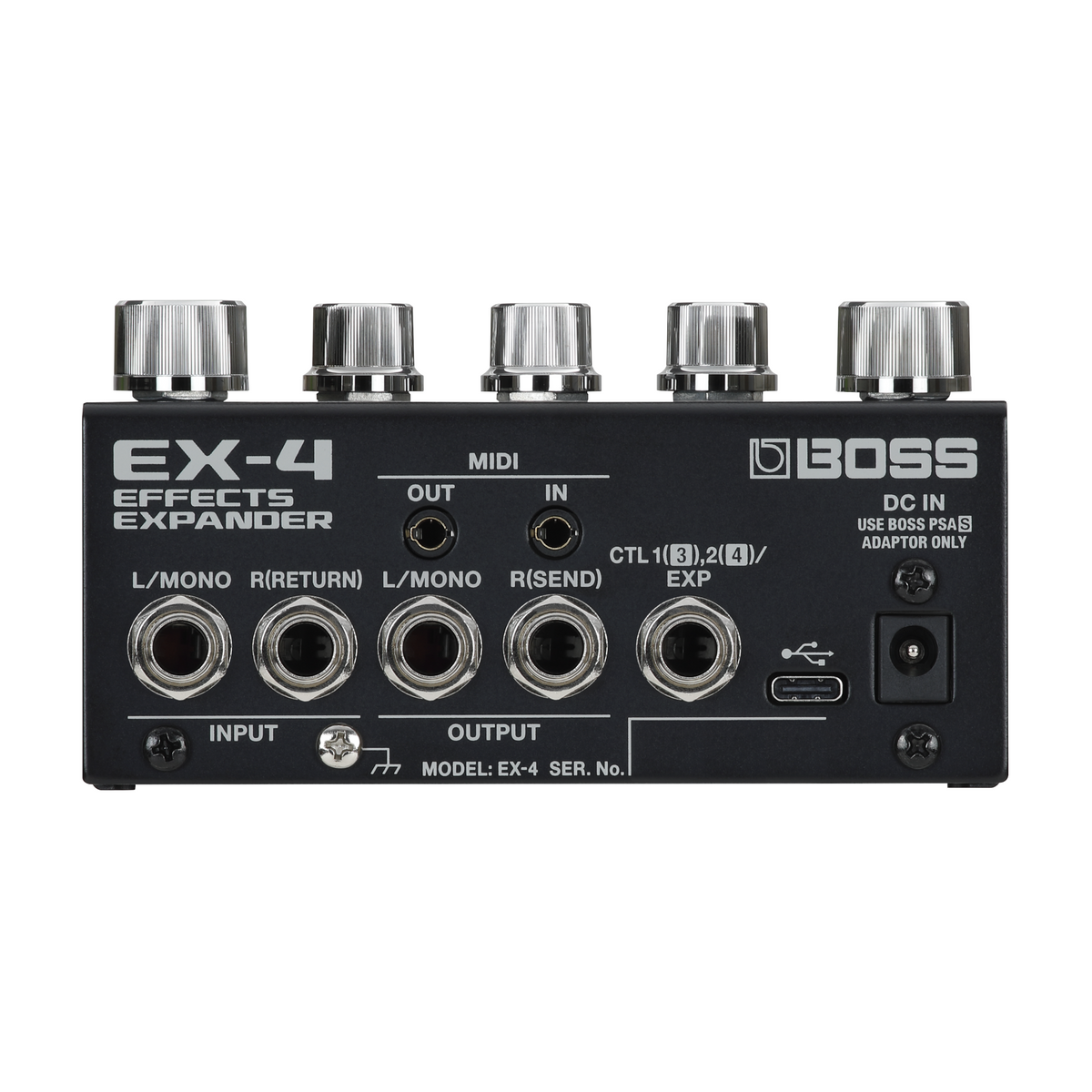

Comprehensive I/O

Four audio jacks provide mono or stereo connectivity, with the option to use two jacks as an effect loop for placing one or more external pedals anywhere within the EX-4's effect chain. Two footswitches or an expression pedal can be connected for more real-time control, while MIDI I/O unlocks deep integration with other MIDI pedals, switching systems, and external clocking devices.

SPECIFICATIONS

• Sampling Frequency: 48 kHz
• AD Conversion: 24 bits + AF method *AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters
• DA Conversion: 32 bits
• Processing: 32-bit floating point
• Effects: 120 types
• Maximum Number of Effects: 4(FX1-4) + 6(DIVIDER+MIXER, SEND RETURN, FOOT VOLUME, NOISE SUPPRESSOR1, NOISE SUPPRESSOR2, GLOBAL EQ)
• Memories: 128 (User) + 128 (Preset)
• Nominal Input Level: INPUT L/MONO jack, INPUT R(RETURN) jack: -10 dBu
• Maximum Input Level: INPUT L/MONO jack, INPUT R(RETURN) jack: +7 dBu
• Input Impedance: INPUT L/MONO jack, INPUT R(RETURN) jack: 1 M ohm
• Nominal Output Level: OUTPUT L/MONO jack, OUTPUT R(SEND) jack: -10 dBu
• Output Impedance: OUTPUT L/MONO jack, OUTPUT R(SEND) jack: 1 k ohm
• Recommended Load Impedance: OUTPUT L/MONO jack, OUTPUT R(SEND) jack: 10 k ohms or greater
• Controls: DOWN/1 switch, UP/2 switch, MENU/EXIT button, GEAR SUITE button, FX1 button, FX2 button, FX3 button, FX4 button, SELECT knob, TYPE/VALUE knob, 1-3 knobs
• Display: Color Graphic LCD (320 x 240 dots)
• Connectors: INPUT L/MONO jack, INPUT R(RETURN) jack, OUTPUT L/MONO jack, OUTPUT R(SEND) jack, : 1/4-inch phone type; MIDI IN jack, MIDI OUT jack : Miniature phone type; CTL1([3]),2([4])/EXP; jack: 1/4-inch TRS phone type; USB port: USB Type-C(R); DC IN jack
• Power Supply: AC adaptor (PSA-S series)
• Current Draw: 300 mA
• Size: 4-5/8 x 5-7/16 x 2-9/16 inches (117 x 138 x 63 mm)
• Weight: 1 lbs
• Included: STARTUP GUIDE, Leaflet "Read Me First," AC adaptor: PSA-S series, Rubber foot x 4

Manufacturer: Boss
Model: EX-4
SKU: I944570-N-20-WHXA
UPC: 761294523490
