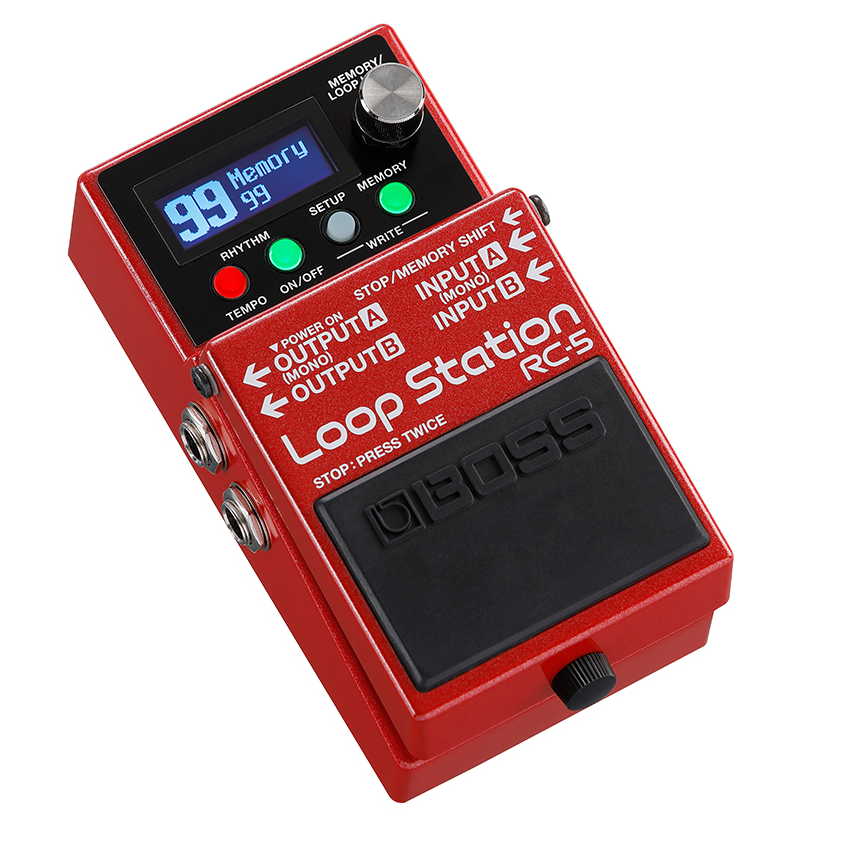

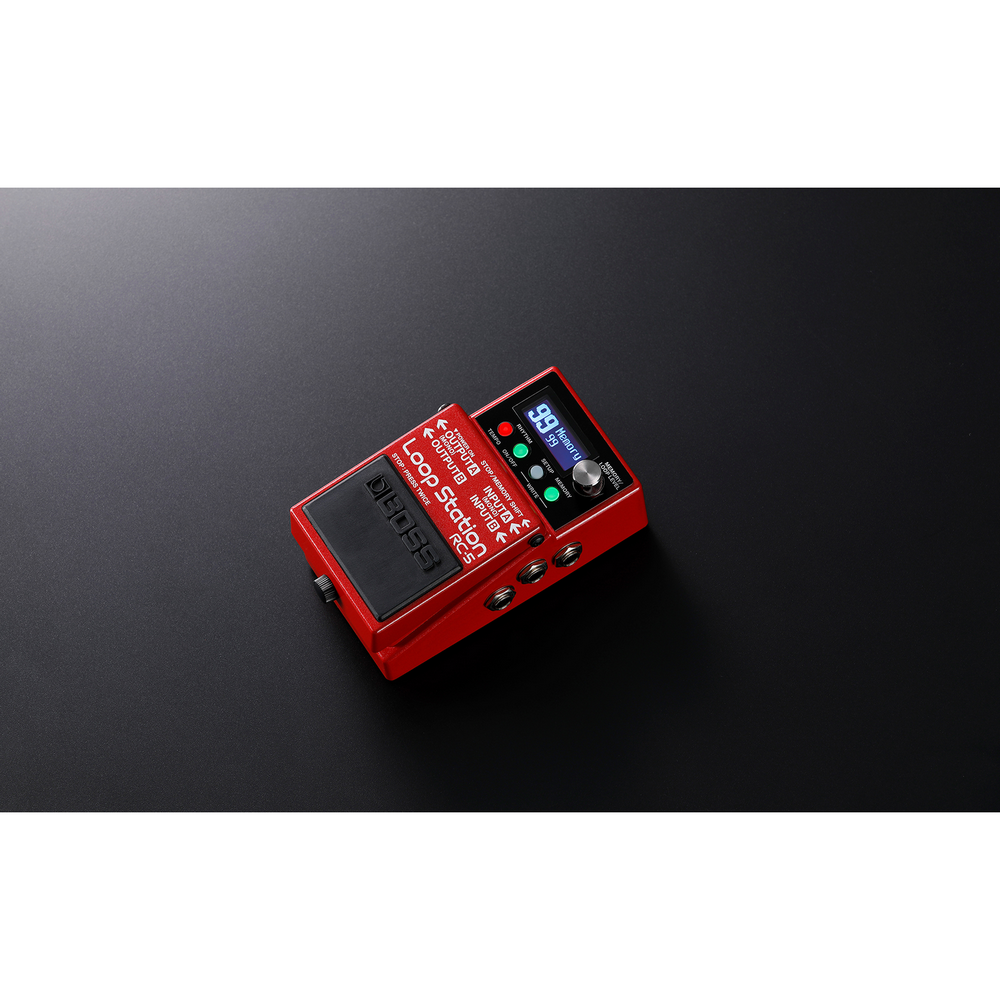

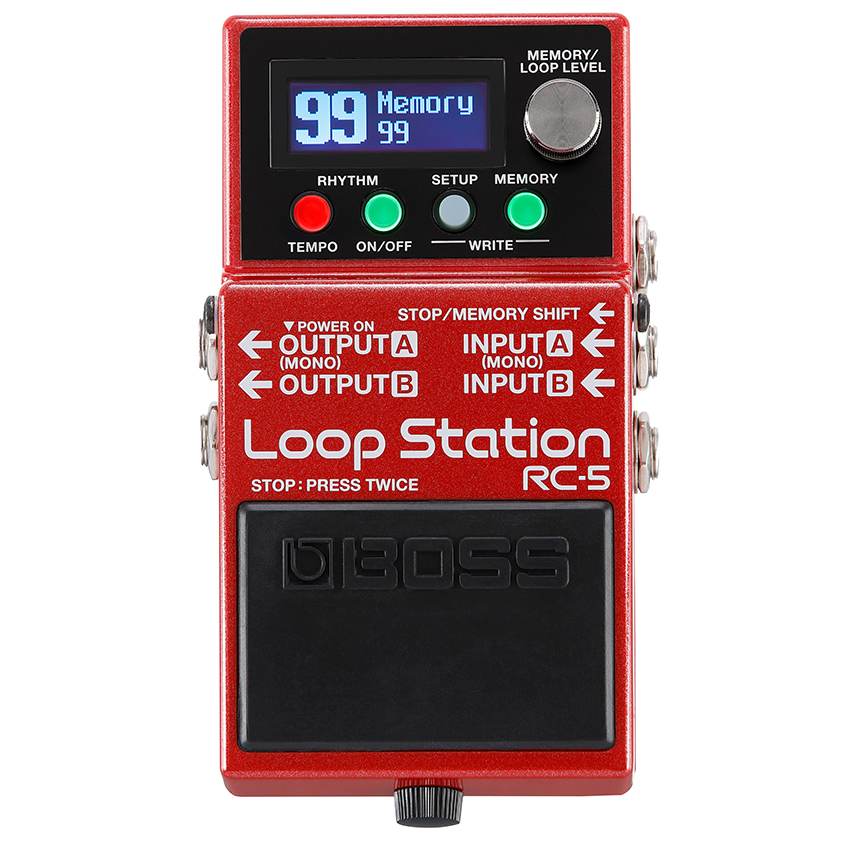

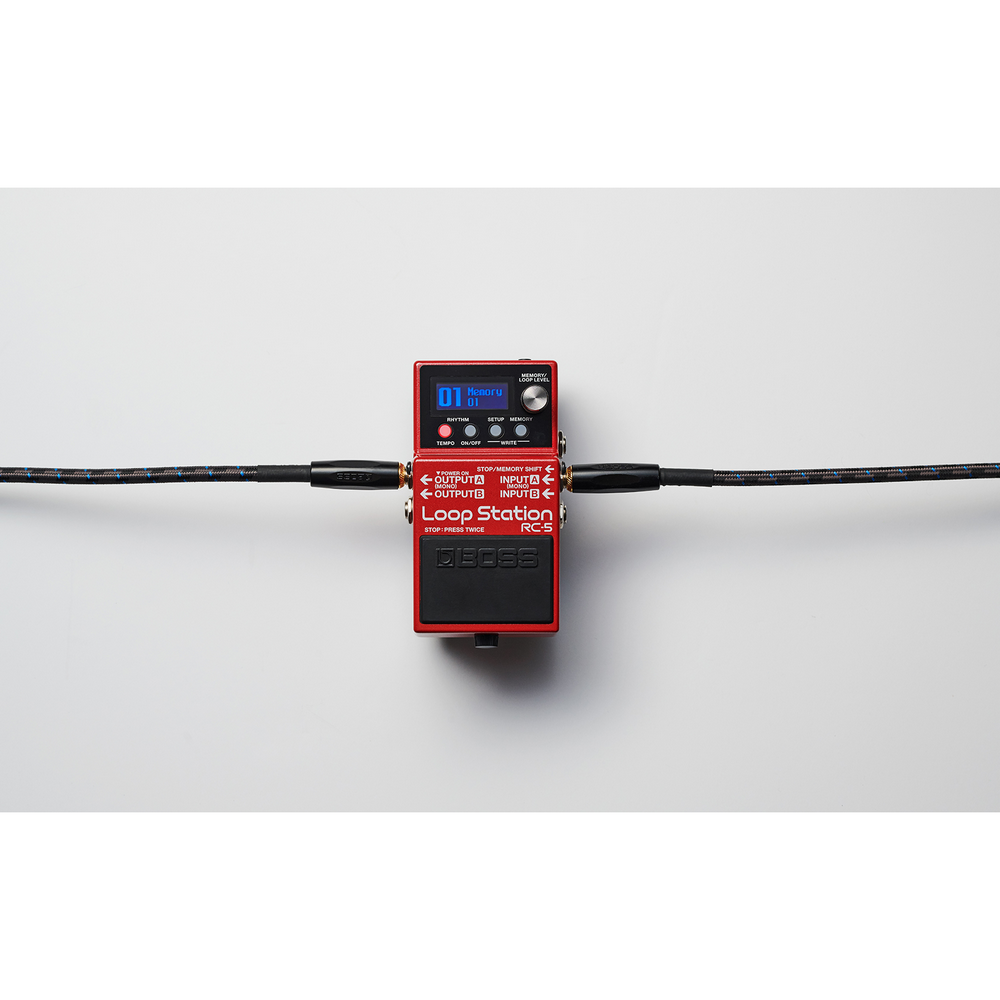

Boss RC-5 Loop Station - Guitar Effect Pedal

  • Our Price
  • Regular price $199.99


With Class-leading Sound Quality And It's Compact Size, It's A Looper You'll Love Time And Time Again, The Boss RC-5 Loop Station Effect Pedal

Boss' RC-5 is an advanced compact looper with superb sound quality, 99 phrase memories, 57 rhythms, and MIDI control support. Step up to the RC-5 and prime your pedalboard with maximum looping range. Capture sound with premium 32-bit quality, navigate parameters and monitor loop status with the backlit LCD, and tap into expanded operation via the control jack and TRS MIDI I/O. And with over 50 rhythms, 13 hours of stereo recording , 99 phrase memories, and more, the compact RC-5 puts a deep well of musical power at your feet.


  • Sampling Frequency: 44.1 kHz
  • AD/DA Conversion: 32 bits
  • Processing: 32-bit floating point


  • Number of Track: 1
  • Data Format: WAV (44.1 kHz, 32-bit float, stereo)
  • Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)
  • Rhythm Type: 57 Patterns x 2 Variations
  • Rhythm Kit: 7 types


  • Reverb (only for rhythm part)
  • Memory: 99 Phrases

Nominal Input Level

  • INPUT A/MONO, B: -20 dBu

Input Impedance

  • INPUT A/MONO, B: 1 M ohm

Nominal Output Level

  • OUTPUT A/MONO, B:-20 dBu

Output Impedance

  • OUTPUT A/MONO, B: 1 k ohm

Recommended Load Impedance

  • OUTPUT A/MONO, B: 10 k ohms or greater


  • Buffered bypass


  • MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch


  • Graphic LCD (96 x 32 dots, RGB backlit LCD)

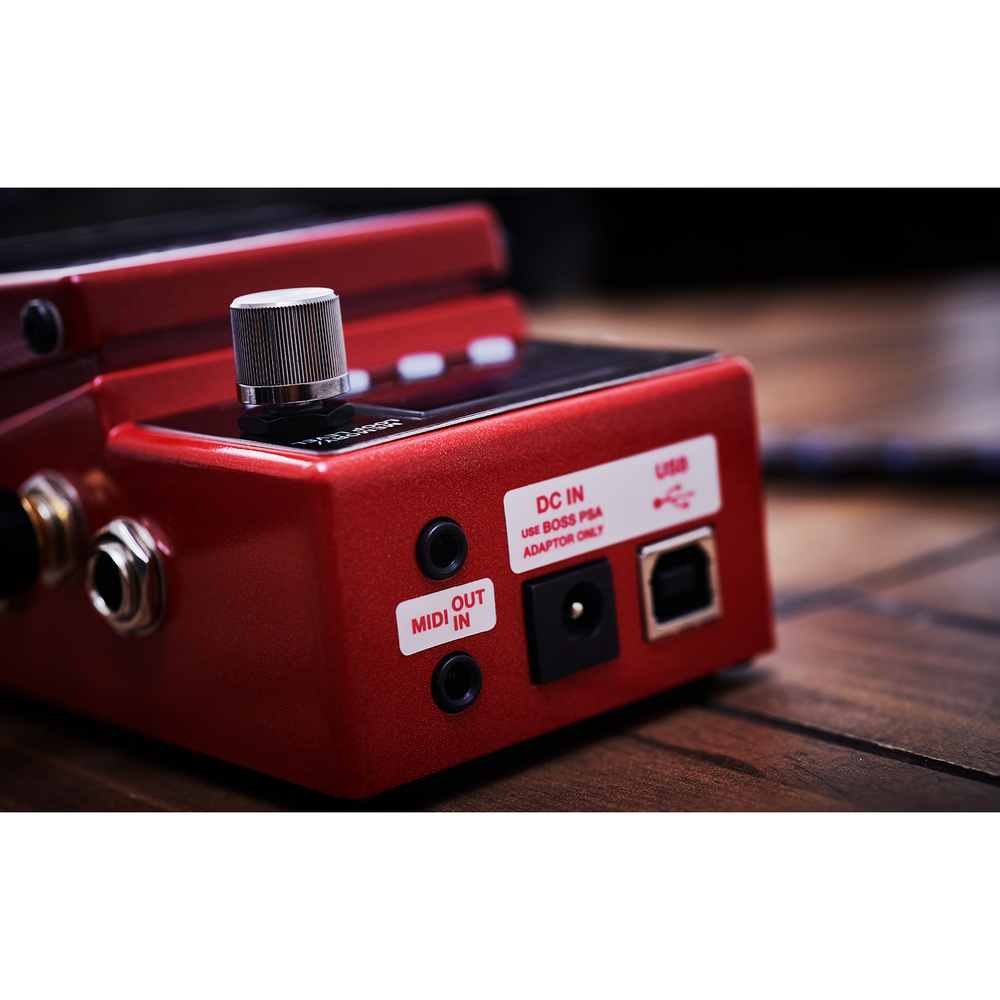

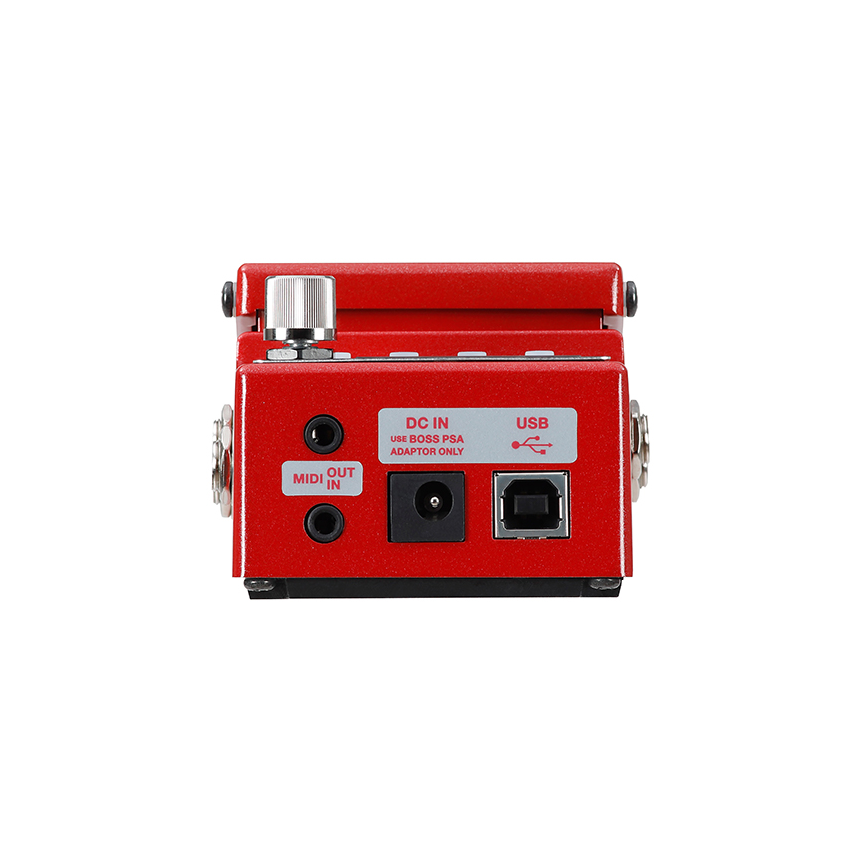

  • INPUT A/MONO, B jacks: 1/4-inch phone type
  • OUTPUT A/MONO, B jacks: 1/4-inch phone type
  • STOP/MEMORY jack: 1/4-inch TRS phone type
  • USB port: USB B type
  • MIDI (IN, OUT) jacks: stereo miniature type
  • DC IN jack

Power Supply

  • Alkaline battery (9 V, 6LR61 or 6LF22)
  • AC adaptor (PSA series: sold separately)

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

  • Alkaline: Approx. 2 hours


  • 73 (W) x 129 (D) x 56 (H) mm
  • 2-7/8 (W) x 5-1/8 (D) x 2-1/4 (H) inches


  • 405g or 15oz.(excluding battery)
  • 450g or 1lb.(including battery)


  • Owner's Manual
  • Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
  • Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

  • AC adaptor: PSA-S series
  • Footswitch: FS-5U
  • Dual Footswitch: FS-6, FS-7
  • Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
  • TRS/MIDI connecting cable: BMIDI-5-35

Manufacturer: Boss
Model: RC-5
Warranty: See manufacturer website for details
SKU: I641817-N-12
UPC: #761294516744
