Boss WL-60 Wireless System For Guitar


  • Our Price
  • Regular price $279.99



OUT OF STOCK BUT WE CAN GET IT
• Ship time varies by availability - C19 delays possible
• Order now to reserve yours ~ risk free


Get Set Up For Quick Response With The Boss WL-60 Guitar Wireless System For Guitar

The pedalboard-friendly WL-60 is a perfect fit for serious stage performers, combining great tone and ultra-low latency, quick response performance, together with easy visual set up. The system's receiver features a large display and automatic 14-channel scanning that makes operation quick and efficient, while the rugged bodypack receiver offers best-in-class runtime and compatibility with nearly any electric instrument.

SET UP

The WL-60 set up process is virtually effortless, eliminating the complicated procedures required with other systems. The comparative strength of all 14 channels is shown after scanning, providing a complete overview of the current wireless conditions. This makes it simple to choose the optimum channel for any stage situation, and also provides fast set up when multiple band members are using WL-60 systems.

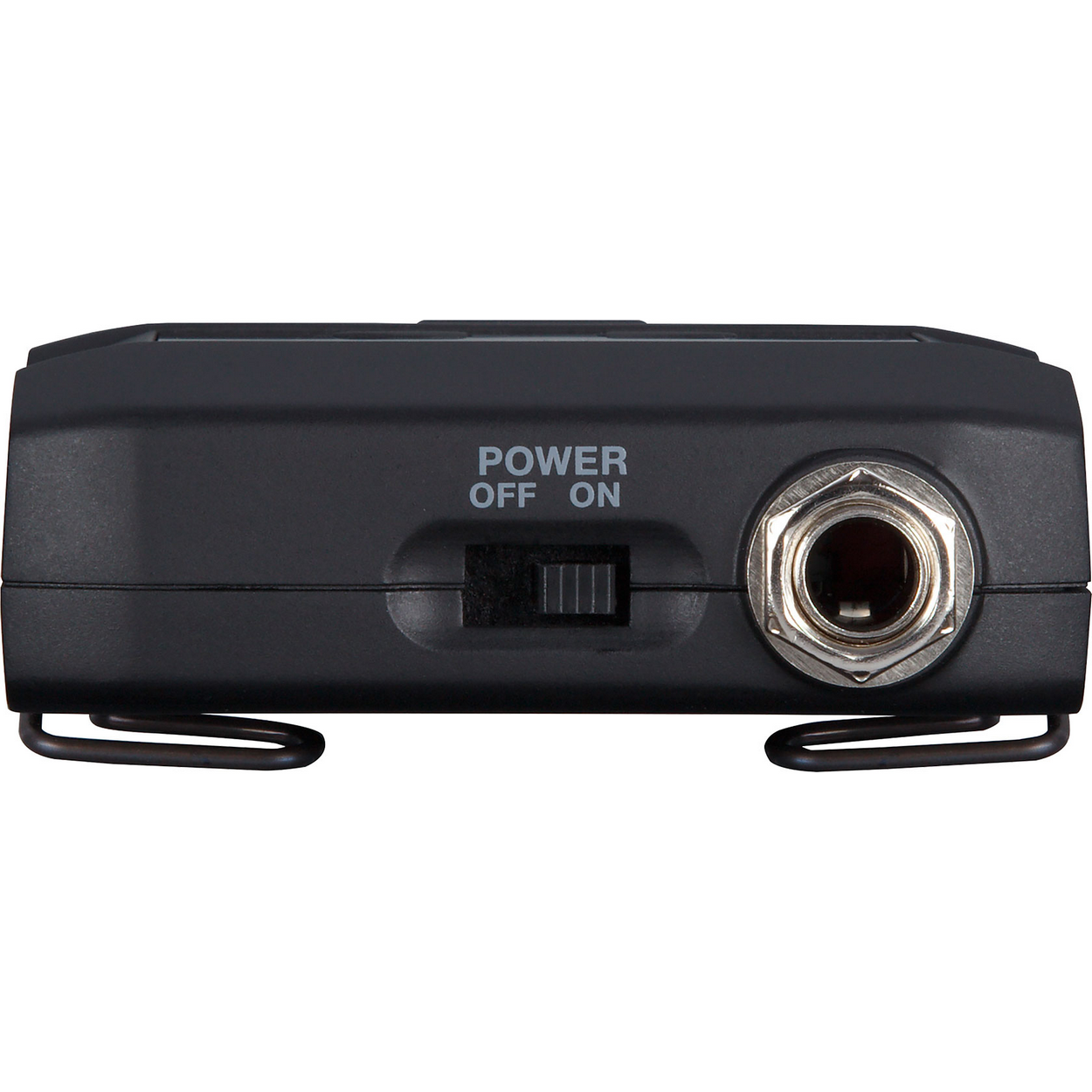

TRANSMITTER

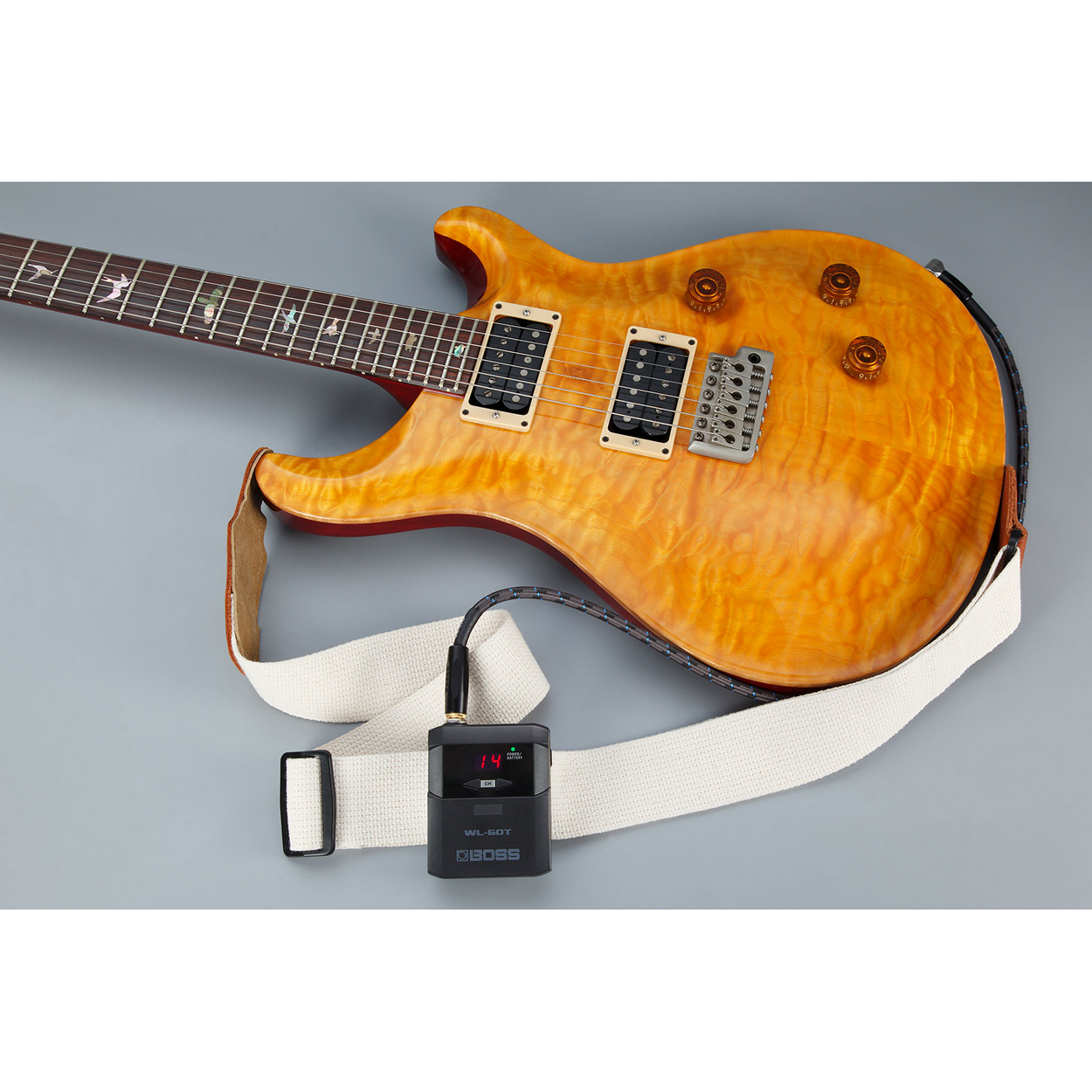

The included WL-60T Transmitter mounts securely on a belt or instrument strap. Thanks to BOSS's efficient power technology, users can enjoy extra-long runtime of up to 25 hours with two alkaline AA batteries. A short standard cable (included) provides the instrument connection, allowing the WL-60T to work with nearly any guitar or bass. The WL-60T is also available separately for backup and outfitting multiple stage instruments.

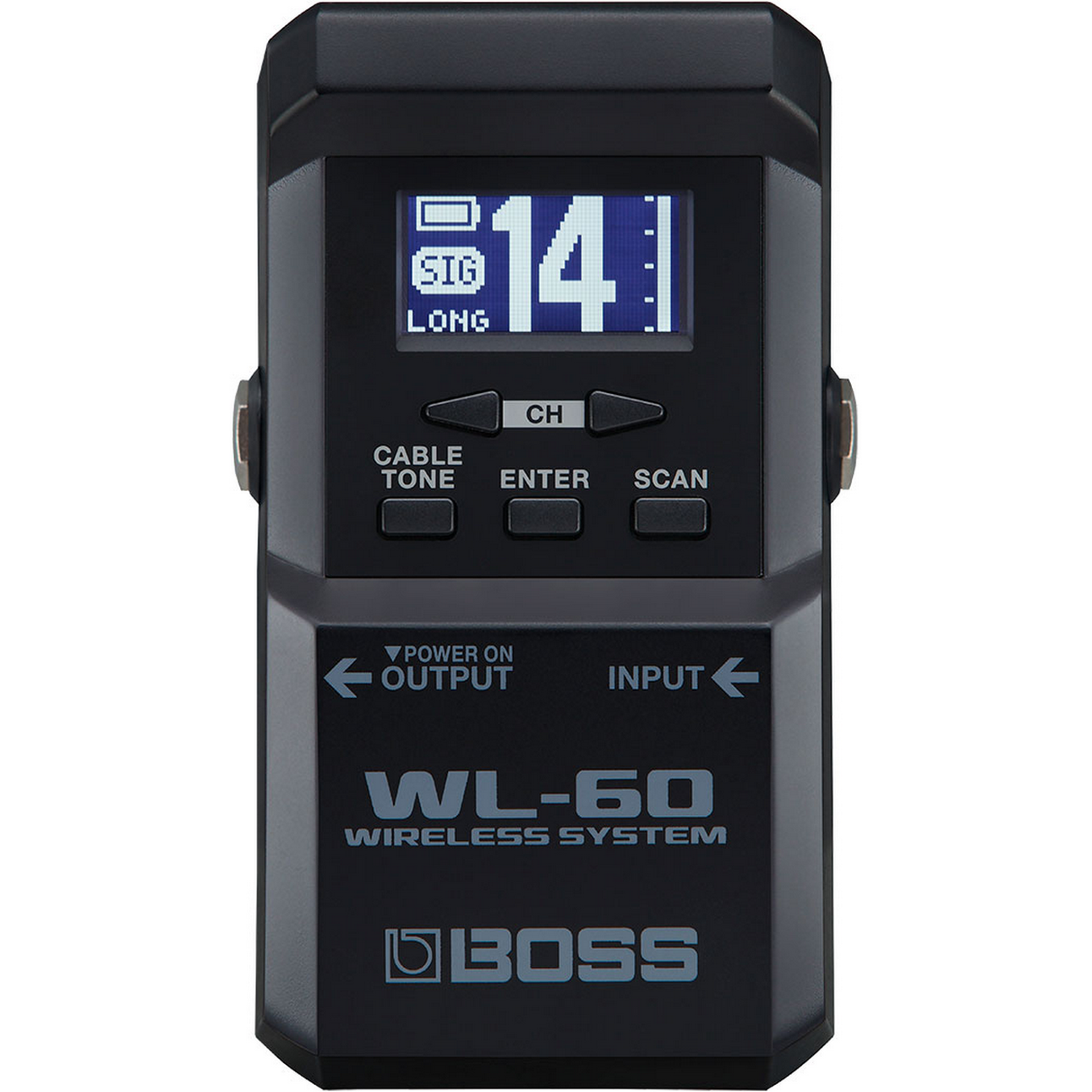

RECEIVER

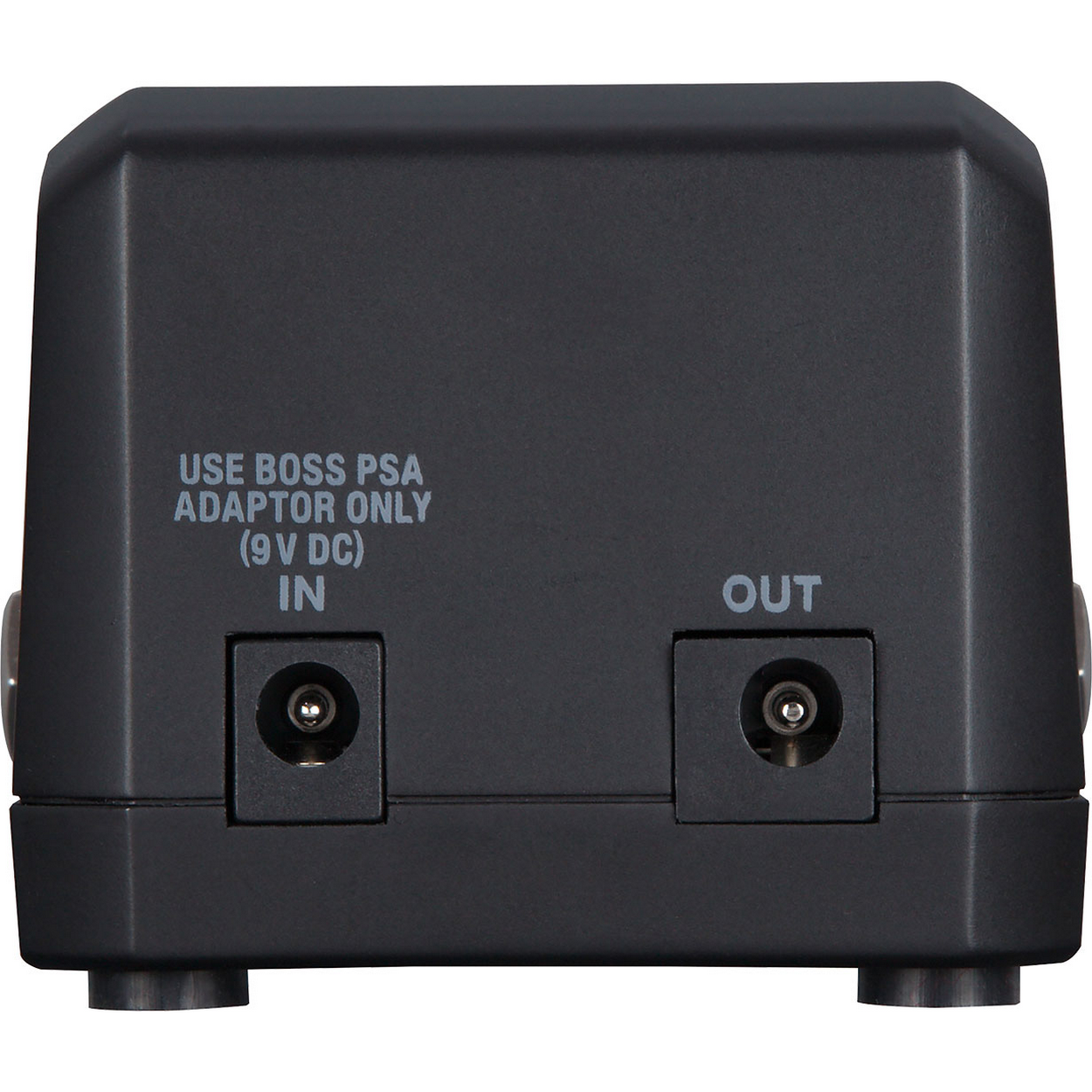

The WL-60's receiver is the same size as a BOSS compact pedal, making it ideally suited for pedalboards. In addition to simplifying set up, the large LCD provides visual feedback on channel selection, wireless strength, and more. Two cable tone simulation options are available, and a standard input jack is provided for connecting with a traditional guitar cable when needed. The receiver is powered via a PSA-series adaptor or AA batteries. With adaptor power, the receiver's DC output can distribute power to one or more pedals.

GENERAL

  • Model: BOSS WL-60 Wireless System

RECEIVER

  • Wireless Format: BOSS proprietary digital audio format
  • Wireless carrier frequency: 2.4 GHz
  • Compatible Channels: 14 (May Vary Due To Local Conditions)
  • Transmission Range: 65 Feet Line-Of-Sight (May Vary Due To Local Conditions)
  • Latency: 2.3 ms
  • Dynamic Range: 110 dB or greater
  • Frequency Response: 20 Hz--20 kHz
  • Nominal Input Level: -10 dBu
  • Input Impedance: 1 M ohm
  • Nominal Output Level: -10 dBu
  • Output Impedance: 1 k ohm
  • Recommended Load Impedance: 10 k Ohms Or Greater
  • Controls: CH button, Scan button, Enter button, Cable Tone Button
  • Indicators: Graphic LCD 64 x 32 dots
  • Connectors: Input Jack: 1/4-inch phone type; Output Jack: 1/4-inch phone type
  • Power Supply: Alkaline battery (AA, LR6) x 2
  • Optional AC Adaptor (sold separately): Current Draw: 70 mA
  • Expected Alkaline Battery Life (AA, LR6), Continuous Use: Approx. 10 hours
  • Dimensions: 2-13/16 (W) x 4-3/4 (D) x 2-1/8 (H) inches (excluding rubber foot); 2-13/16 (W) x 4-3/4 (D) x 2-1/4 (H) inches (including rubber foot)
  • Weight: 7 oz (excluding battery); 8 oz (including battery)

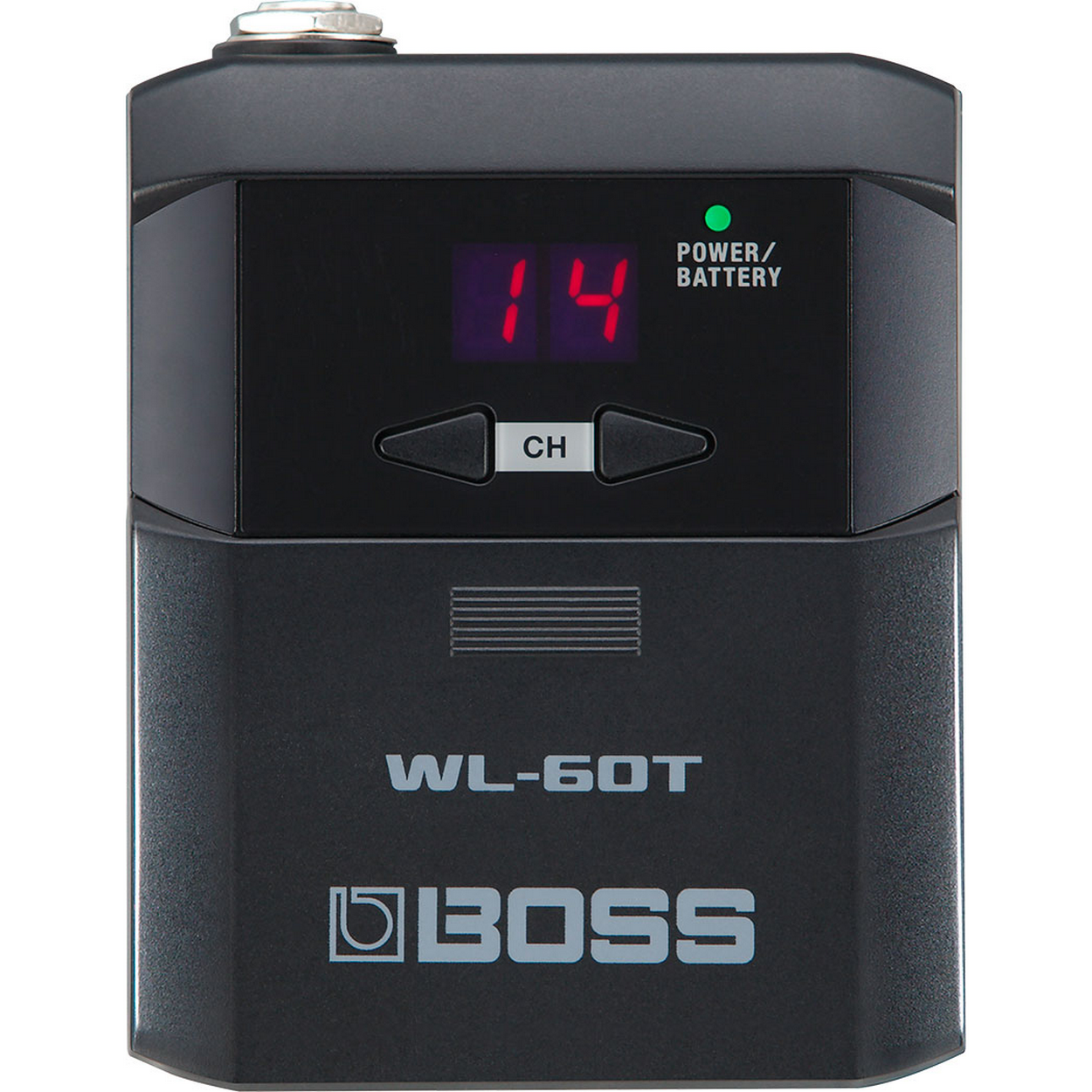

TRANSMITTER

  • Model: WL-60T
  • Nominal Input Level:  -10 dBu (1 M ohm)
  • Controls: Power switch, CH button
  • Display: 7 segments, 2 characters (LED)
  • Indicator: Power/Battery
  • Connectors: Input jack: 1/4-inch phone type
  • Power Supply: Alkaline battery (AA, LR6) x 2
  • Current Draw: 110 mA
  • Expected Battery Life Under Continuous Use:
  • Alkaline battery (AA, LR6): Approximately 25 hours
  • Dimensions (including strap clip): 68 (W) x 88 (D) x 30 (H) mm; 2-11/16 (W) x 3-1/2 (D) x 1-3/16 (H) inches
  • Weight (including battery): 120g 5 oz
  • Accessory: Alkaline battery (AA, LR6) x 2* 0 dBu = 0.775 Vrms

OTHER

  • Included Accessories: Owner's Manual & Leaflet, Transmitter, Guitar cable, Rubber foot x 4, Alkaline battery (AA, LR6) x 2
  • Optional Accessories (sold separately): AC adaptor: PSA-S series; Parallel DC cord: PCS-20A (DC Plug x8) * 0 dBu = 0.775 Vrms

Manufacturer: Boss
Model: WL-60
Warranty: See manufacturer website for details
SKU: I613682-N-0
UPC: #761294514658
Listing ID: NA92947
