PRODUCT DETAILS

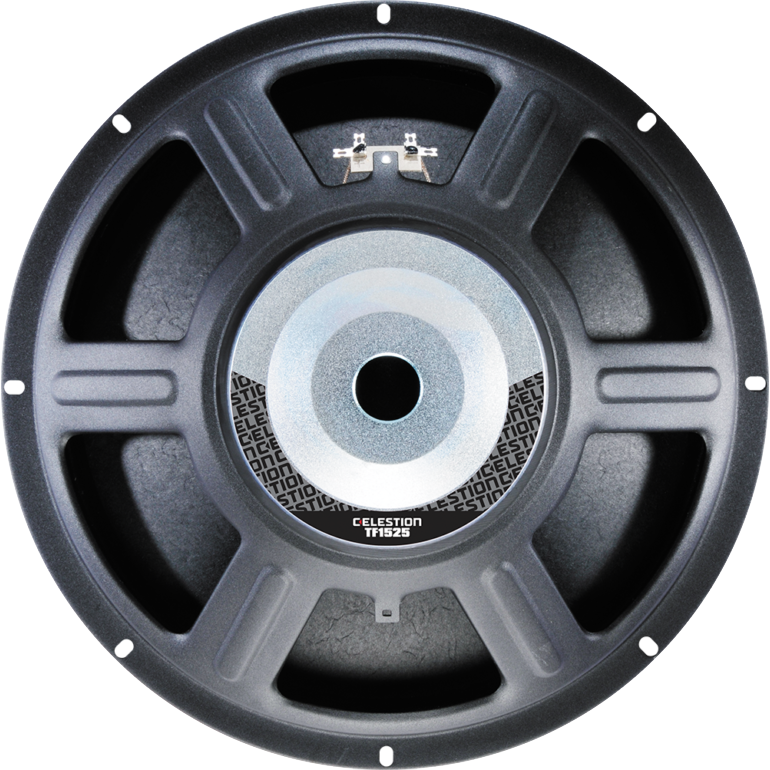

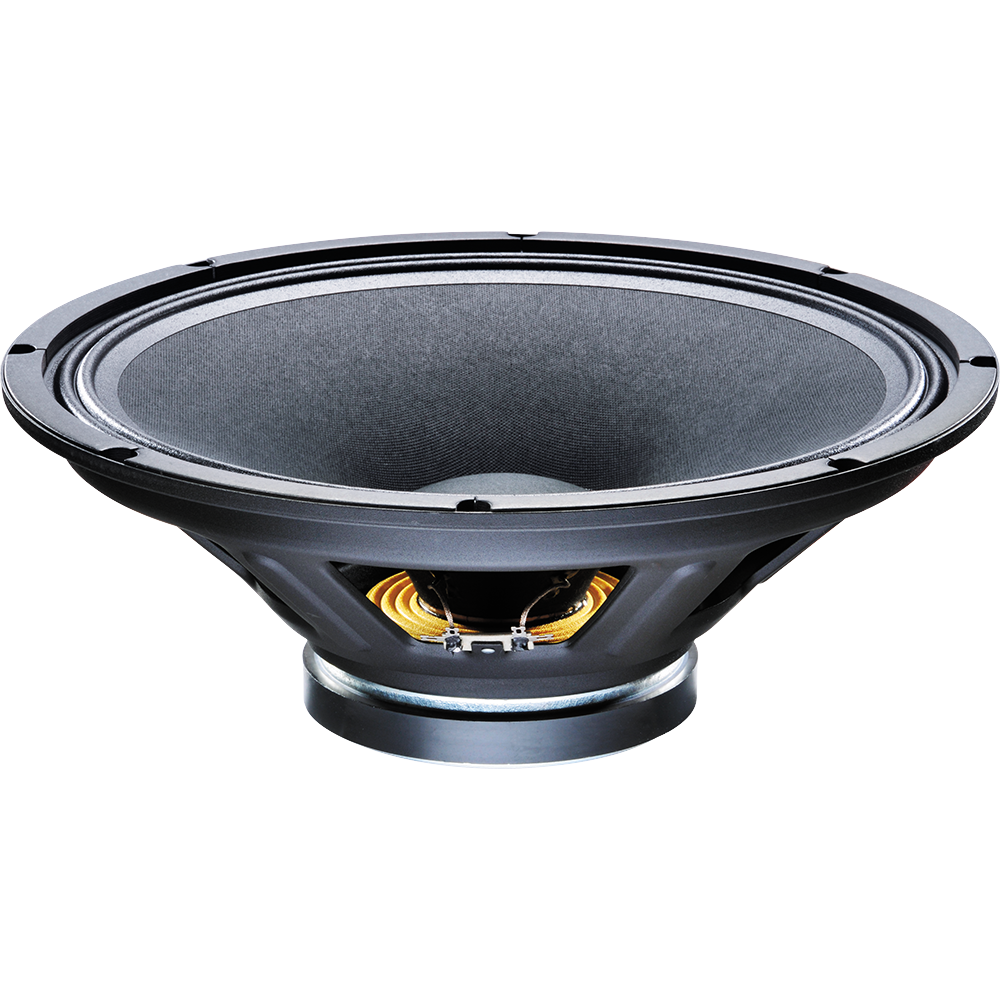

Celestion TF1525 15-Inch 250-Watt Pressed Chassis Replacement Speaker
Get Dependable Output With the Celestion TF1525 15-Inch Bass/Mid Driver
15-inch pressed steel chassis, ferrite magnet bass/mid driver
SPECIFICATIONS
General
- Nominal Diameter: 381mm / 15in
- Power Rating: 250W
- Continuous Power Rating: 500W
- EIA Power Rating: 400W
- Rated Impedance: 8Ω
- Sensitivity: 98dB
- Frequency Range: 40-3000Hz
- Chassis Type: Pressed steel
- Magnet Type: Ferrite
- Magnet Weight: 1.2kg / 42oz
- Voice Coil Diameter: 64mm / 2.5in
- Voice Coil Material: Round copper
- Former Material: Polyimide
- Cone Material: Kevlar loaded paper
- Surround Material: Cloth-sealed
- Suspension: Single
- Gap Height (Hg): 8mm / 0.31in
- VC Winding Height (Hvc): 13mm / 0.51in
Parameters
- Sd: 855.30cm2 / 132.57in2
- Fs: 47.60Hz
- Mms: 77.93g / 2.75oz
- Qms: 3.835
- Qes: 0.565
- Qts: 0.493
- Re: 5.15Ω
- Vas: 148.41l / 5.24ft3
- BI: 14.57Tm
- Cms: 0.14mm/N
- Rms: 6.08kg/s
- Le (at 1kHz): 0.90mH
- Xmax: 4.5mm / 0.18in
Mounting Information
- Overall Diameter: 385mm / 15.16in
- Overall Depth: 153mm / 6in
- Cut-out Diameter: 351mm / 13.82in
- Mounting Hole Dimensions: 9.2x6.2mm / 0.36x0.24in
- Number of Mounting Holes: 8
- Mounting Hole PCD: 369mm / 14.56in
- Unit Weight: 5.2kg / 11.5lb
Manufacturer: Celestion Industries, Inc.
Model: TF1525
SKU: I921109-N-4-WHXA
