Charvel Pro-Mod DK24 HH FR M Mahogany With Quilt Maple Electric Guitar - Dark Amber

by Charvel
Original price $1,369.85
Original price $1,369.85 - Original price $1,369.85
Original price $1,369.85
Current price $1,149.99
$1,149.99 - $1,149.99
Current price $1,149.99
► New - ♫ In stock
► Display Model - ♫ In stock
Condition: New
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

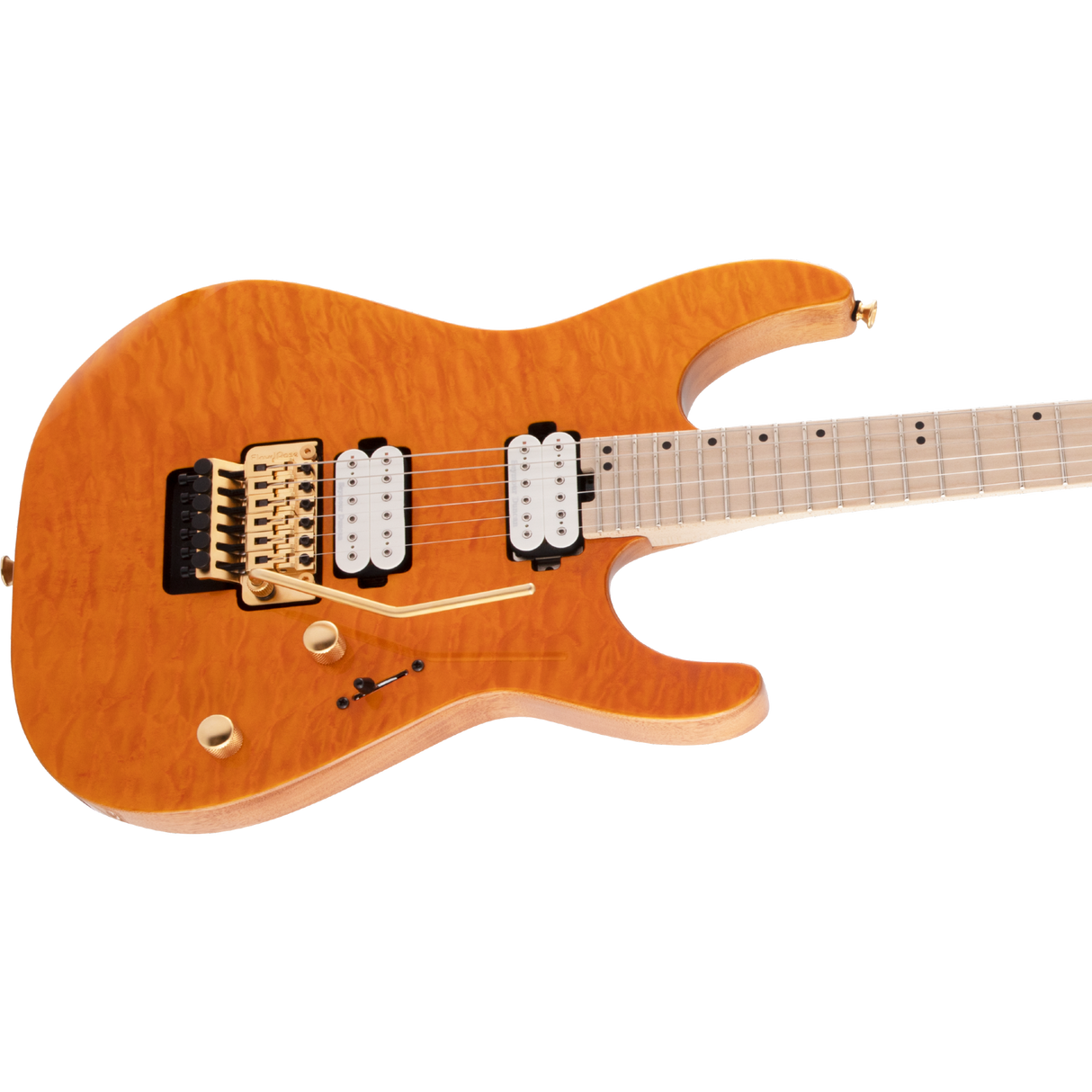

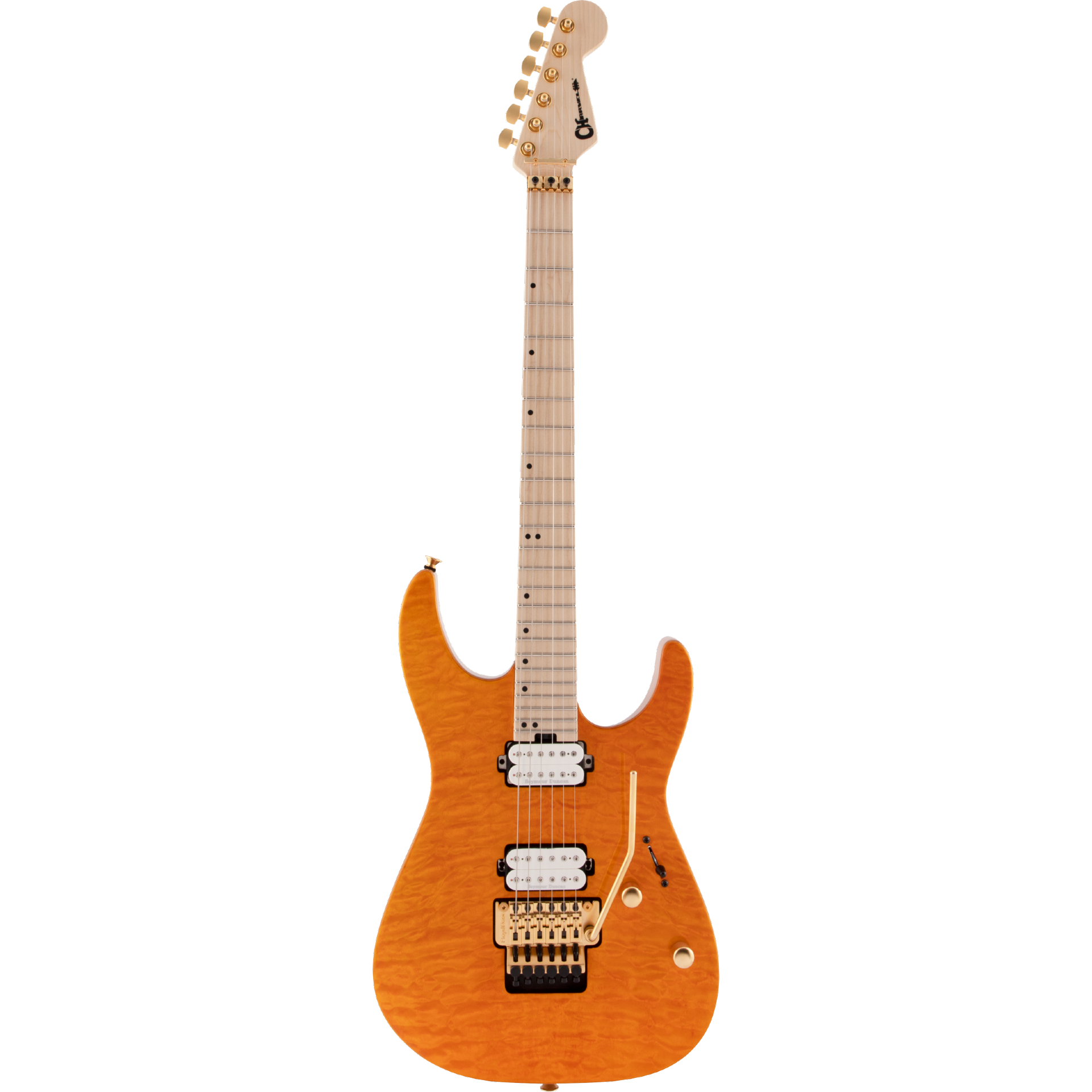

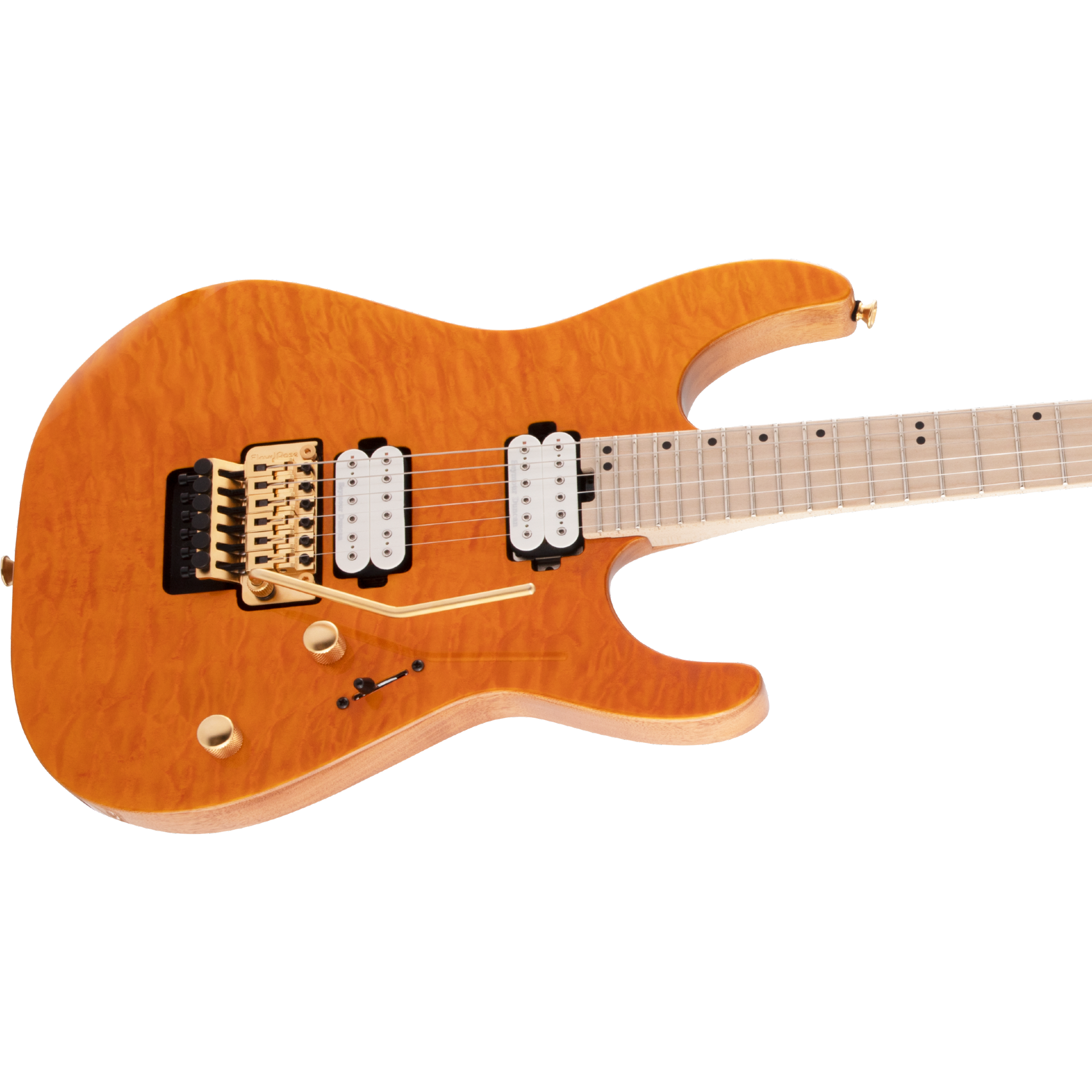

The Charvel Pro-Mod DK24 HH FR M With Quilt Maple is a Perfect Fusion of Elegance and High Performance

Loaded with premium features, this DK24 model has a sleek Dinky™ body constructed from mahogany with an exquisite quilt maple top finished in Dark Amber with satin gold hardware. The sculpted shredder's cut heel and scalloped lower back bout make access to the upper registers seamless, while the bolt-on maple neck features graphite reinforcement for rock-solid stability. The silky-smooth hand-rubbed satin urethane finish on the back of the neck grants sublime playability, while the conveniently located heel-mount truss rod adjustment wheel makes for painless neck relief tweaks. Designed for speed, the 12 - 16 inches compound radius maple fingerboard features comfortable rolled edges, 24 jumbo frets and offset black dot inlays.

Under the hood, the DK24 is ready to handle your heaviest riffs, tastiest leads or angelic clean tones with a Seymour Duncan® Full Shred™ bridge pickup and Seymour Duncan Alnico II™ Pro APH-1N neck pickup. Dial in the tonal spectrum that best suits playing with five-way blade switching, volume control (with 500K EVH® Bourns™ low friction potentiometer) and a no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through. The Pro-Mod DK24 HH FR M Mahogany with Quilt Maple is also equipped with a recessed Floyd Rose® 1000 Series double-locking tremolo bridge system, providing super tuning stability with radical pitch-raising capability.


SPECIFICATIONS

General

  • Model Number: 2969431558
  • Series: Pro-Mod
  • Color: Dark Amber
  • Number of Strings: 6
  • Orientation: Right-Hand

Body

  • Body Finish: Gloss
  • Body Shape: Dinky™

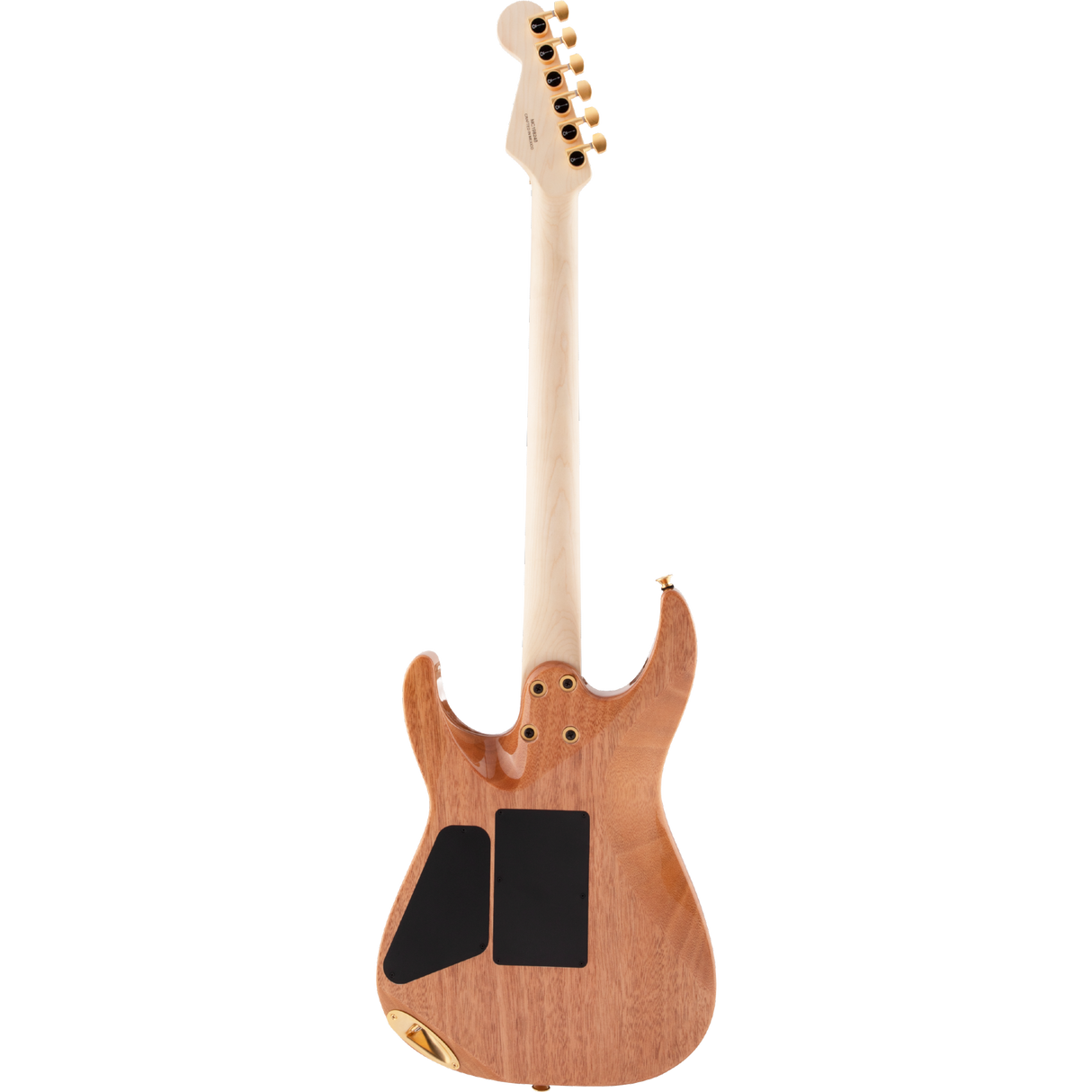

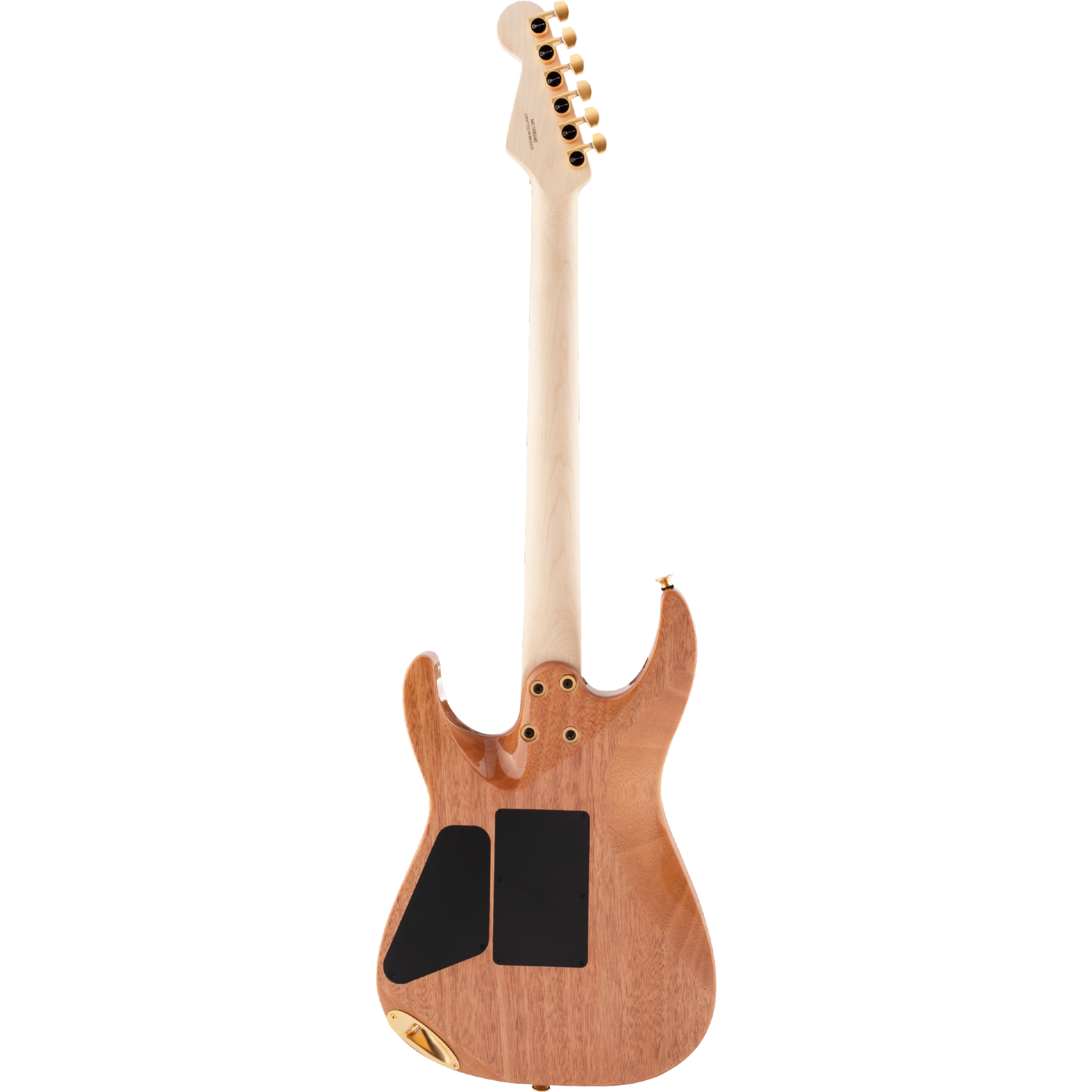

  • Body Material: Mahogany
  • Top Material: Quilt Maple

Neck

  • Neck Material: Maple
  • Neck Construction: Bolt-On with Graphite Reinforcement
  • Neck Finish: Hand-Rubbed Satin Urethane
  • Neck Shape: Speed Neck with Rolled Fingerboard Edges
  • Neck Binding: None - Rolled Fingerboard Edges
  • Scale Length: 25.5 inches / 648 mm
  • Fingerboard Radius: 12 - 16 inches Compound Radius (305 - 406 mm)
  • Fingerboard Material: Maple
  • Number of Frets: 24
  • Fret Size: Jumbo
  • Nut Material: Floyd Rose® 1000 Series Locking
  • Nut Width: 1.6875 inches / 43 mm
  • Position Inlays: Offset Black Dot
  • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
  • String Trees: Floyd Rose® Retainer Bar

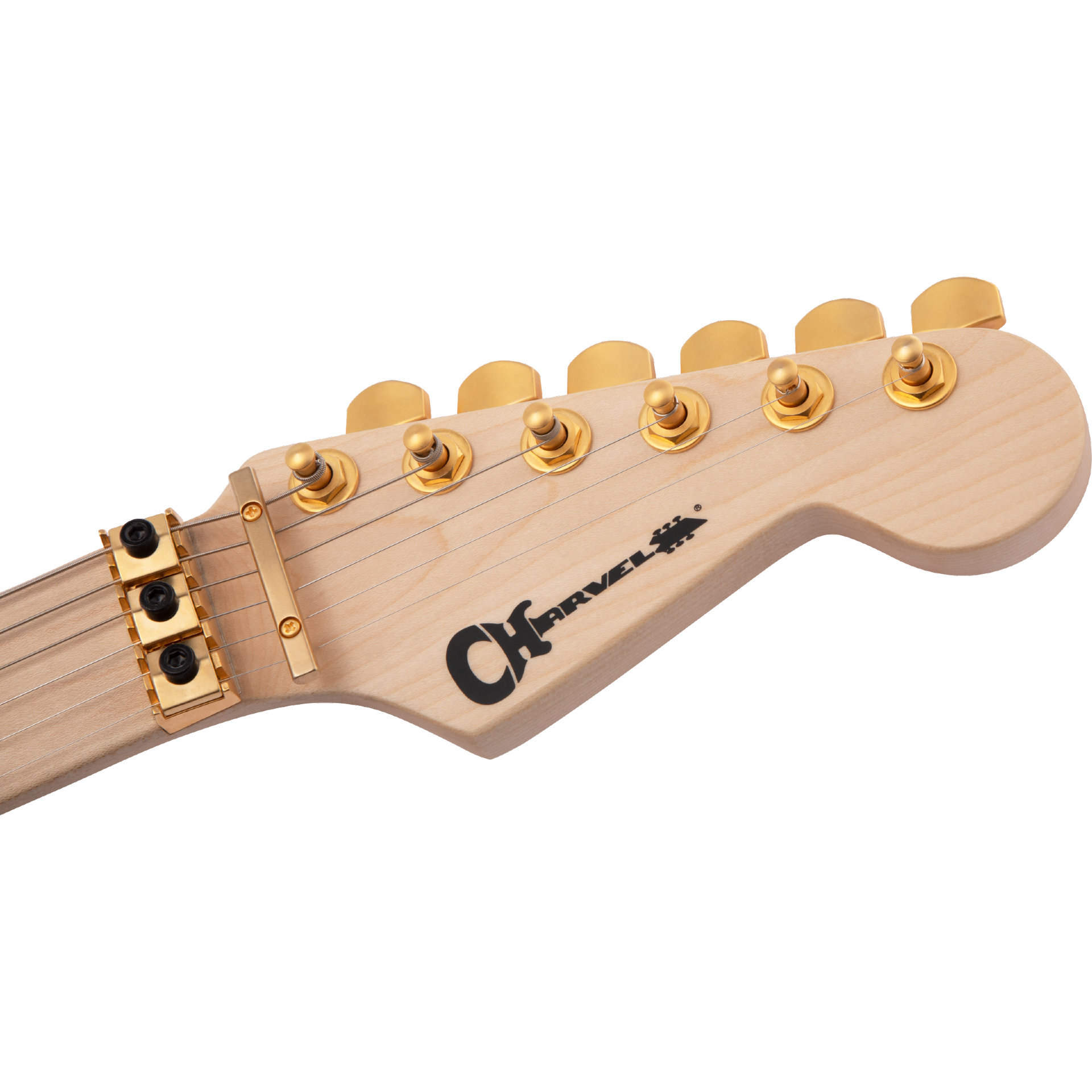

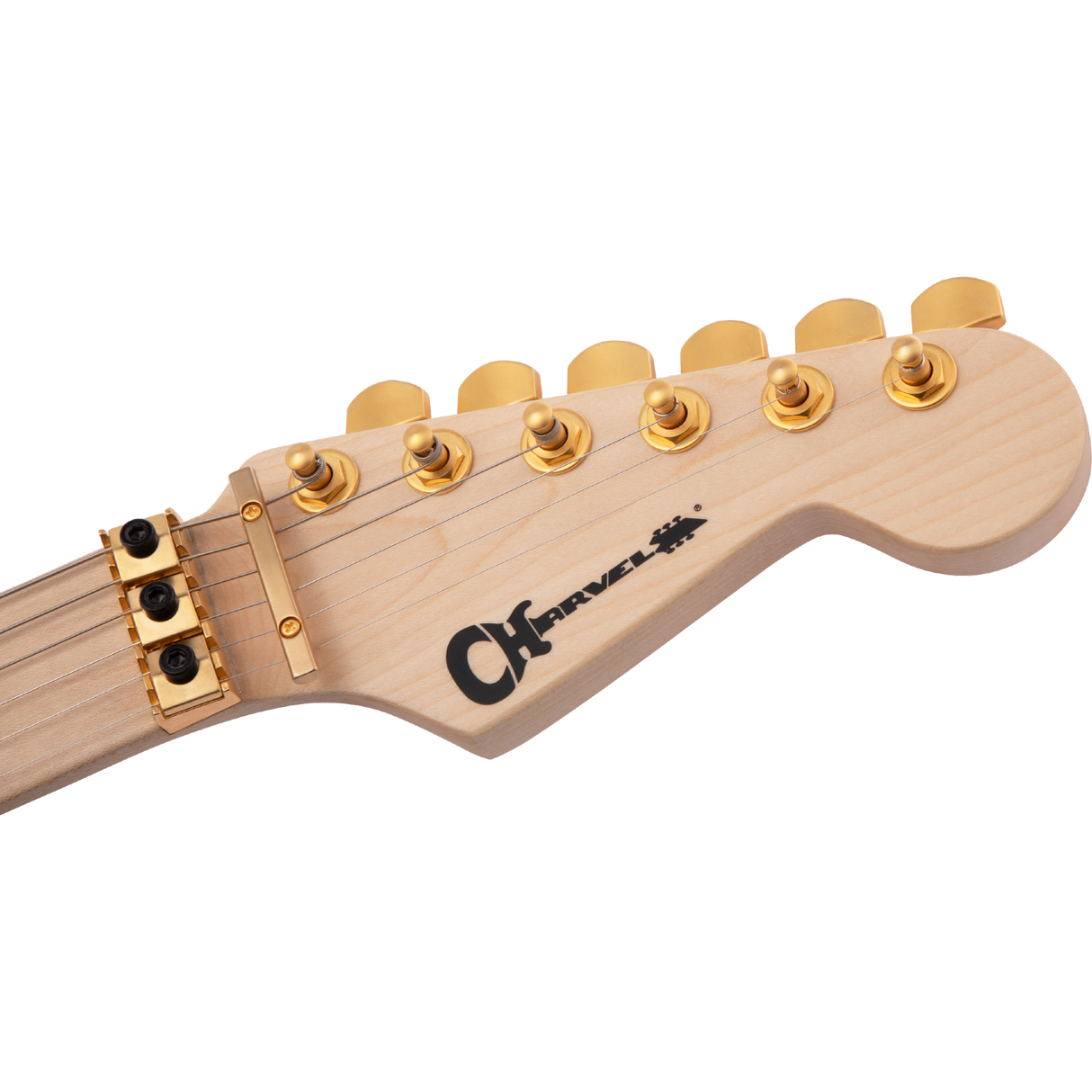

  • Headstock: Licensed Fender® Stratocaster®
  • Neck Plate: None - 4-Bolt Sculpted Heel

Hardware

  • Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
  • Hardware Finish: Satin Gold
  • Tremolo Arm: Floyd Rose® 1000 Series Locking

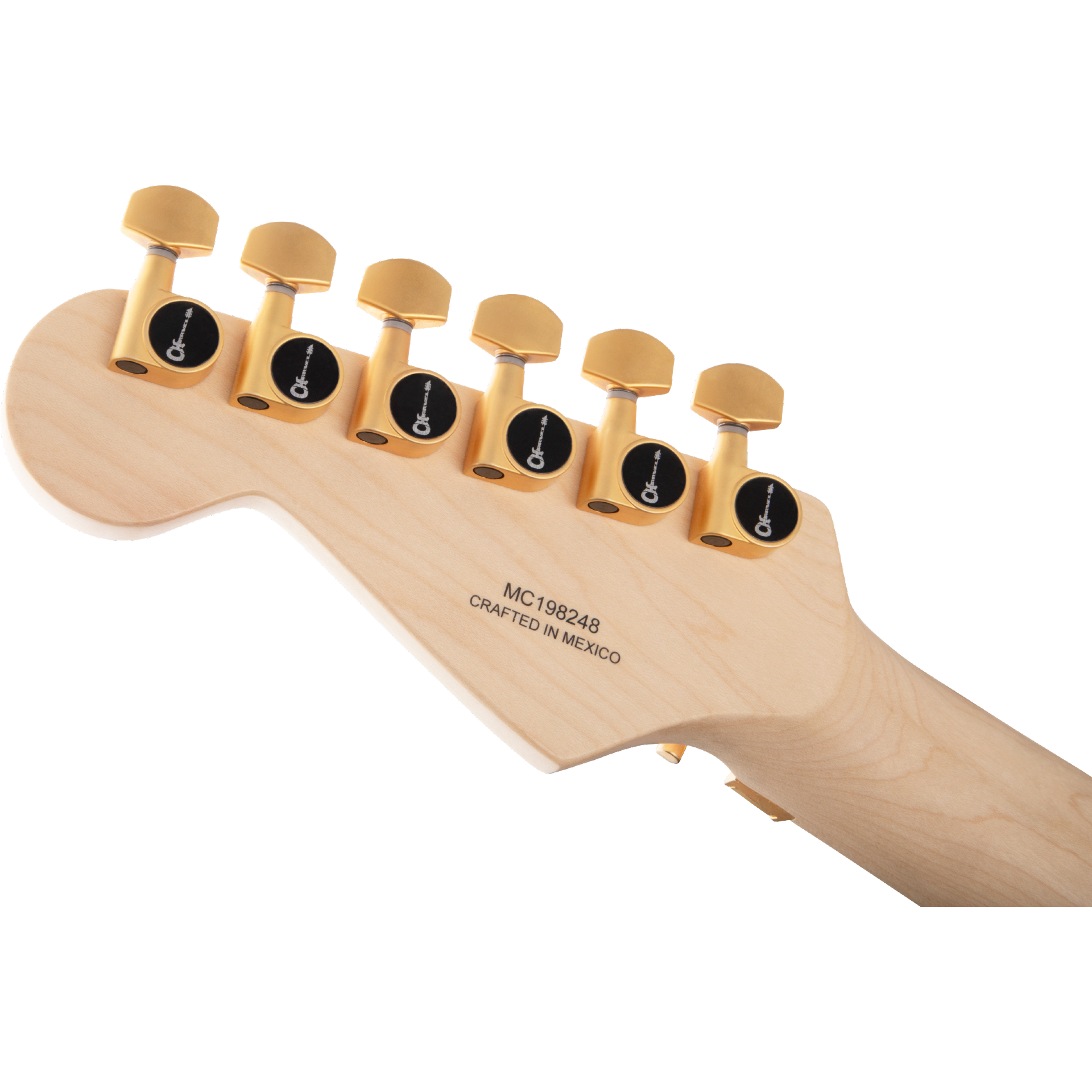

  • Tuning Machines: Charvel®-Branded Die-Cast Locking
  • Pickguard: None
  • Control Knobs: Dome-Style
  • Switch Tip: White
  • Saddle Height Wrench: Yes
  • Strings: Nickel Plated Steel (.009 - .042 Gauges)
  • Strap Buttons: Standard

Electronics

  • Bridge Pickup: Seymour Duncan® Custom Full Shred™ SH-10B
  • Neck Pickup: Seymour Duncan® Alnico II Pro™ APH-1N
  • Pickup Configuration: HH
  • Pickup Color: Flat Parchment
  • Controls: Volume (500K EVH® Bourns® Low Friction Pot), No-Load Tone
  • Pickup Switching: 5-Position Blade
    • Position 1. Full Bridge Pickup
    • Position 2. Bridge Inner Coil
    • Position 3. Both Inner Coils
    • Position 4. Neck Inner Coil
    • Position 5. Full Neck Pickup

Manufacturer: Charvel
Model: 2969431558
SKU: I625240-2-WHXD
