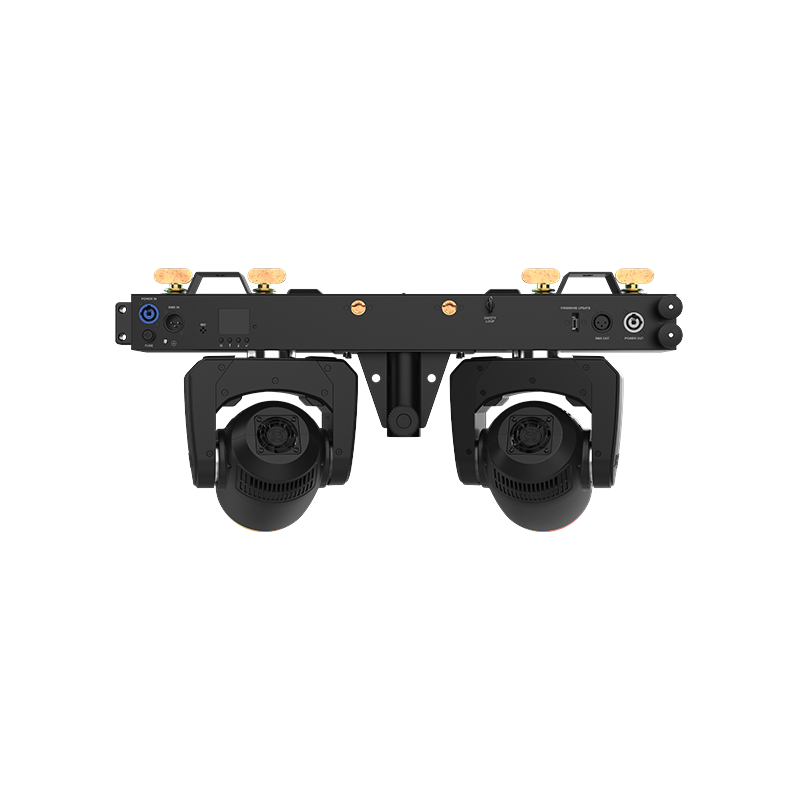

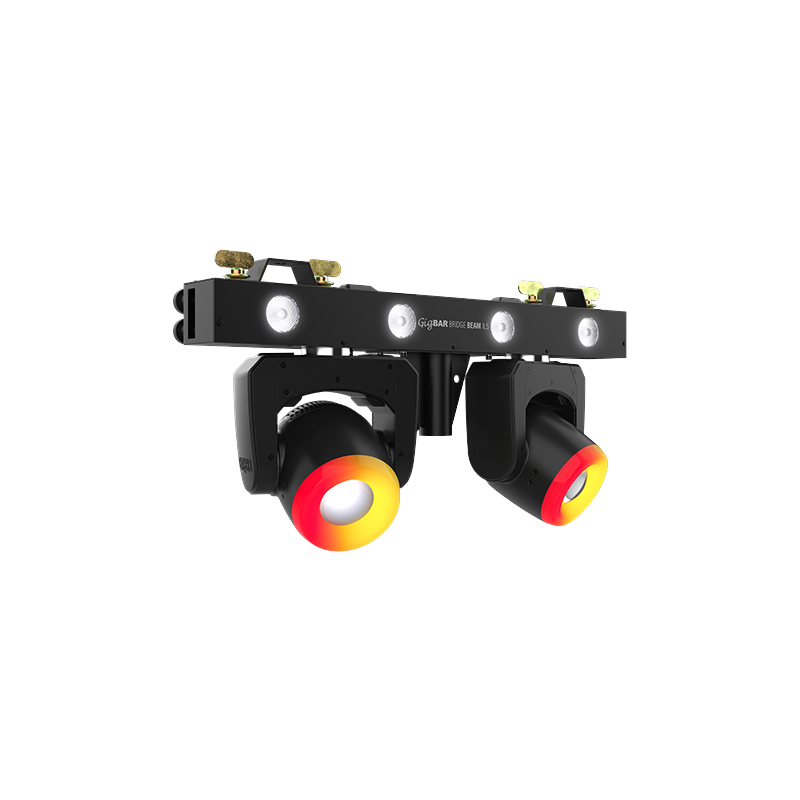

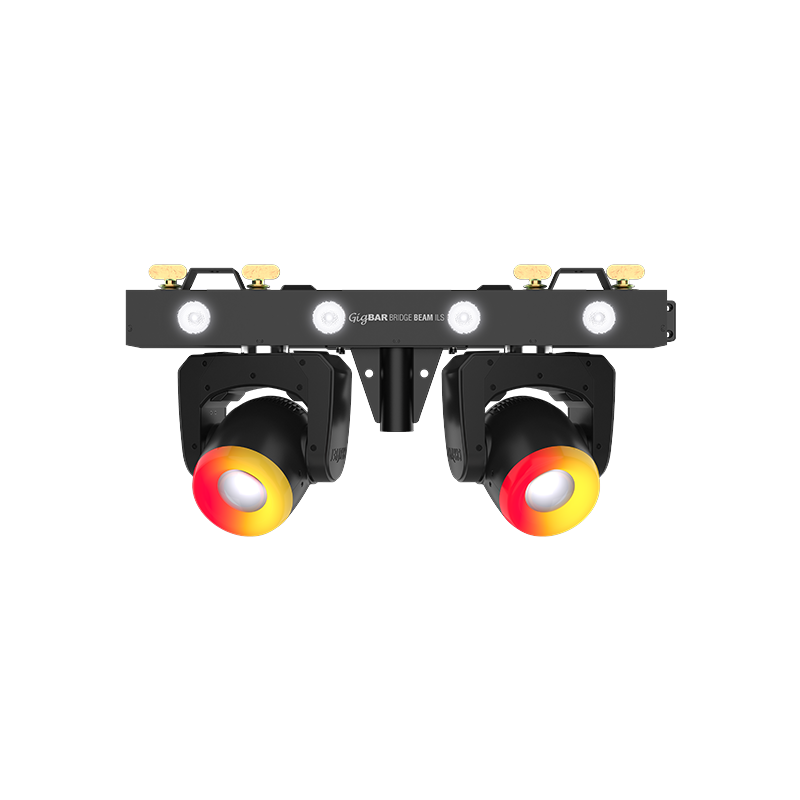

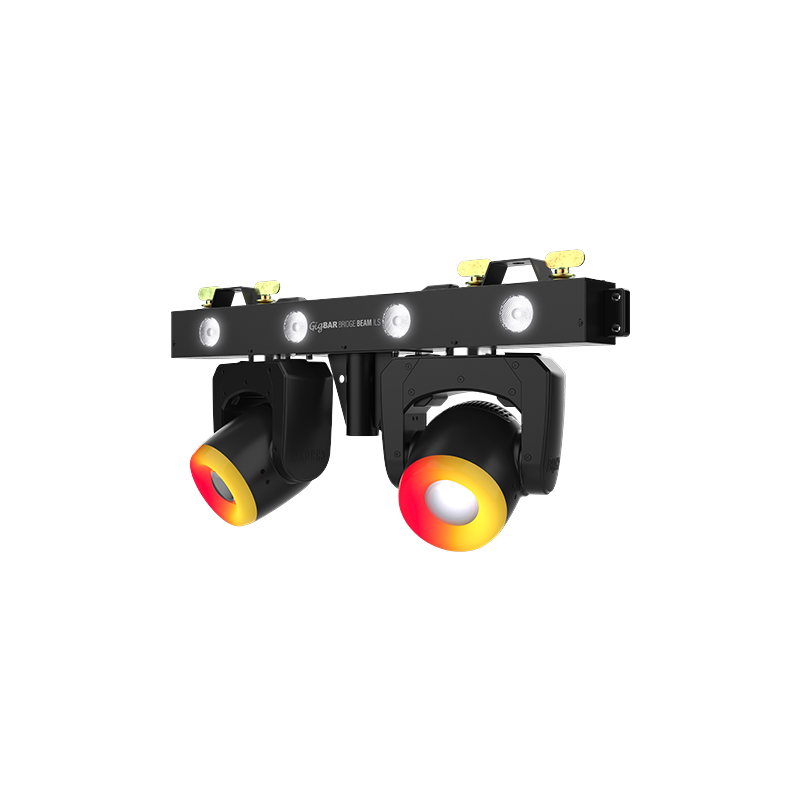

Chauvet DJ GigBAR Bridge Beam ILS 3-in-1 Lighting System

Create Dynamic Light Shows with the Chauvet DJ GigBAR Bridge Beam ILS 3-in-1 Lighting System

It’s all happening with GigBAR Bridge Beam ILS, the 3-in-1 pre-mounted lighting rig. Dual moving heads send punchy narrow beams across the dance floor, RGBAW+UV wash lights fill the room with every color from white to blacklight, and dynamic LED rings add dazzling eye candy to the setup. GigBAR Bridge Beam ILS is always ready in its grab-and-go carry bag. Trigger built-in shows with the included RF remote, instantly create coordinated light shows with ILS, and enjoy wireless ILS or DMX control with built-in D-Fi. Captivate the party with GigBAR Bridge Beam ILS.

• 3-in-1 lighting system that includes moving heads, RGBW rings and washes pre-mounted on a single bar
• Quickly and securely connect multiple fixtures with the built-in locking system
• Built-in D-Fi transceiver communicates DMX or ILS signals wirelessly
• ILS compatibility for use in the ILS ecosystem
• Safely mounts onto truss or mobile tripods using the removable bracket
• Easy navigation and access all functions directly from the full-color LCD display
• Totem Mode keeps the moving heads focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• Use the included RF remote to trigger the built-in shows without needing line of sight

SPECIFICATIONS

Control

• DMX Channels: 3, 24, or 60
• DMX Connectors: 3-pin XLR
• Operating Frequency: 2.4 GHz
• Max Unobstructed Distance: 600 feet / 183 m with D-Fi
• Optional Controllers: RF, footswitch, ILS Command

Movement

• Pan and Tilt: 540° / 270°
• Pan Ranges: 180°, 360°, 540°
• Tilt Ranges: 90°, 180°, 270°

Light Source

• Moving Head Light Source: 2 RGBW LEDs, 80 W total, 2.8 A, 50,000 hours life expectancy
• Wash Light Source: 4 RGBAW+UV LEDs, 40 W total, 2.6 A, 50,000 hours life expectancy
• LED Ring Light Source: 48 RGBW LEDs, 10 W total, 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz

Optics

• Moving Head Beam Angle: 5°
• Wash Beam Angle: 20°
• Wash Field Angle: 37°
• Moving Head Illuminance: 24,670 lux at 2 m per head
• Wash Illuminance: 525 lux at 2 m per section

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Power Linking: 9 units at 120 V, 18 units at 230 V
• Power and Current: 147 W, 1.2 A at 120 V, 60 Hz
• Power and Current: 144 W, 0.6 A at 230 V, 50 Hz

Mounting

• Tripod Compatibility: 1.5 inches / 37.4 mm
• Mounting Brackets: 2 hanging brackets included

Dimensions

• Size: 25 x 2.6 x 11.4 inches / 635 x 65 x 290 mm

Weight

• Weight: 16.4 lb / 7.5 kg

Approvals

• Approvals: CE, RoHS, FCC

Included Accessories

• Included Item: GigBAR Bridge Beam ILS
• Included Item: Power cable
• Included Item: Carrying case
• Included Item: 2 hanging brackets
• Included Item: RF remote
• Included Item: Quick reference guide
