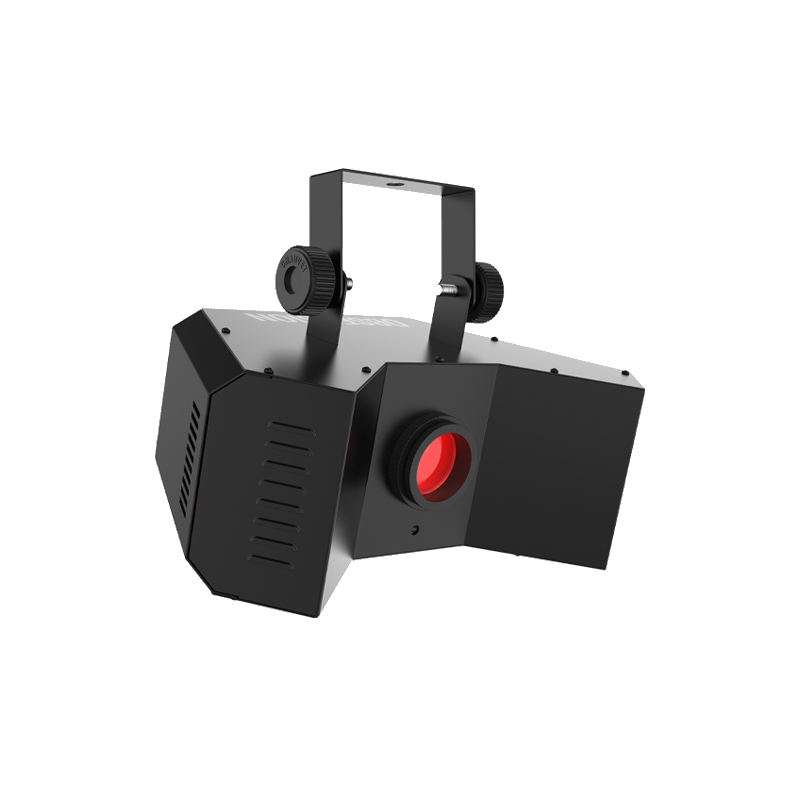

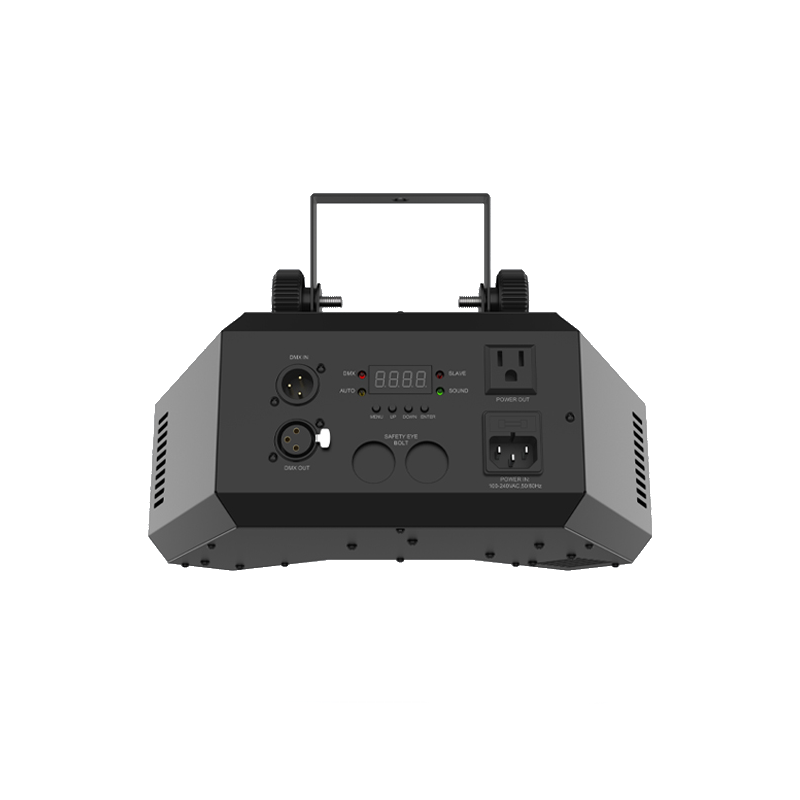

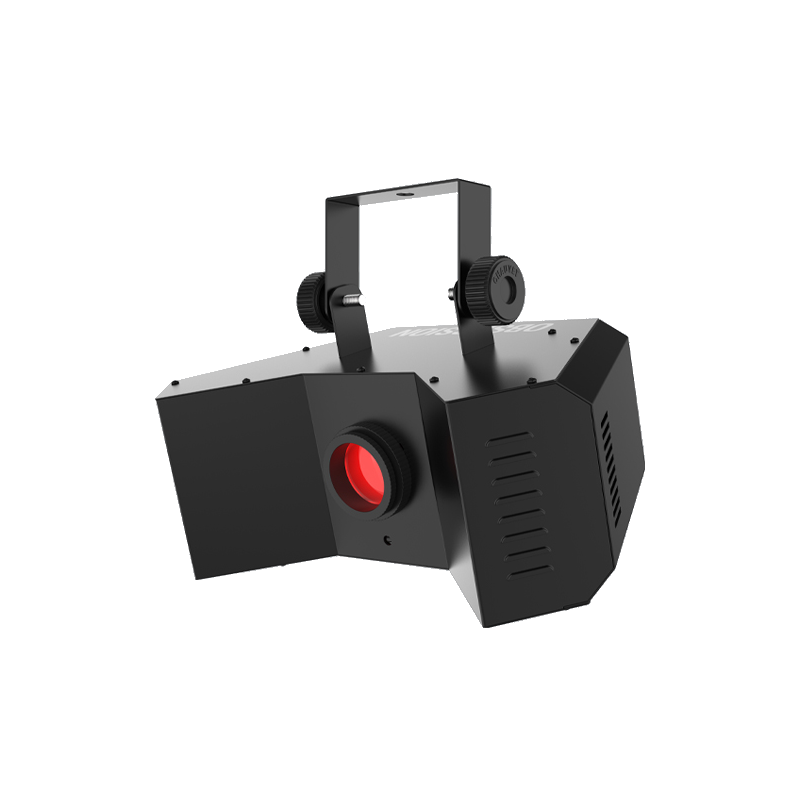

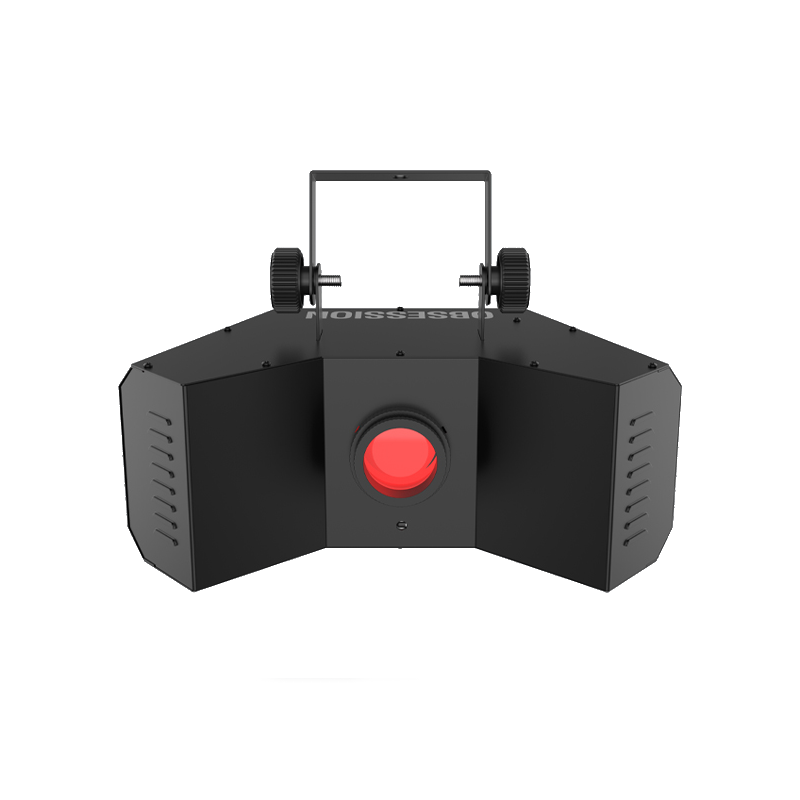

Chauvet DJ Obsession Compact LED Effect Light

Get Obsessed with Breathtaking Mid-Air Effects from the Chauvet DJ Obsession Compact LED Effect Light

The Obsession compact LED effect light projects ever-changing, multicolored rotating gobos. Separate color and gobo wheels allow you to blanket the room with ever-changing patterns. Generate synchronized shows in Master/Slave mode with built-in automated programs or use other control options like stand-alone, or DMX modes, or optional IRC-6 remote control. Power linking capabilities save time running cables. Obsession fits best in the CHS-40 VIP Gear Bag.

• Compact LED effect light projects multicolored rotating gobos
• Create mid-air effects and blanket the room with ever-changing patterns
• Separate color and gobo wheels allow for creative programming
• Generate a synchronized show in Master/Slave mode with built-in automated programs
• Compatible with IRC-6 for flexible control over all features
• Save time running cables and extension cords by power linking multiple units
• Multiple control options include stand-alone, DMX, IR or master/slave

SPECIFICATIONS

General

• DMX Channels: 7
• DMX Connectors: 3-pin XLR
• Colors: 13 + white, split colors, continuous scroll at variable speeds
• Gobos: 14 (metal) + open, continuous scroll at variable speeds
• Light Source: 1 LED (cool white) 60 W, (2.25 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• PWM Frequency: 4 KHz
• Coverage Angle: 44°
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current
• 70 W, 1 A @ 120 V, 60 Hz
• 70 W, 0.5 A @ 230 V, 50 Hz
• Weight: 5.6 lb / 2.6 kg
• Size: 12.6 x 8.26 x 8.26 inches / 320 x 210 x 210 mm
• Approvals: CE
• Optional Controllers: IRC-6

Included in Box

• Obsession
• Power Cord
• Quick Reference Guide
