Description
Description

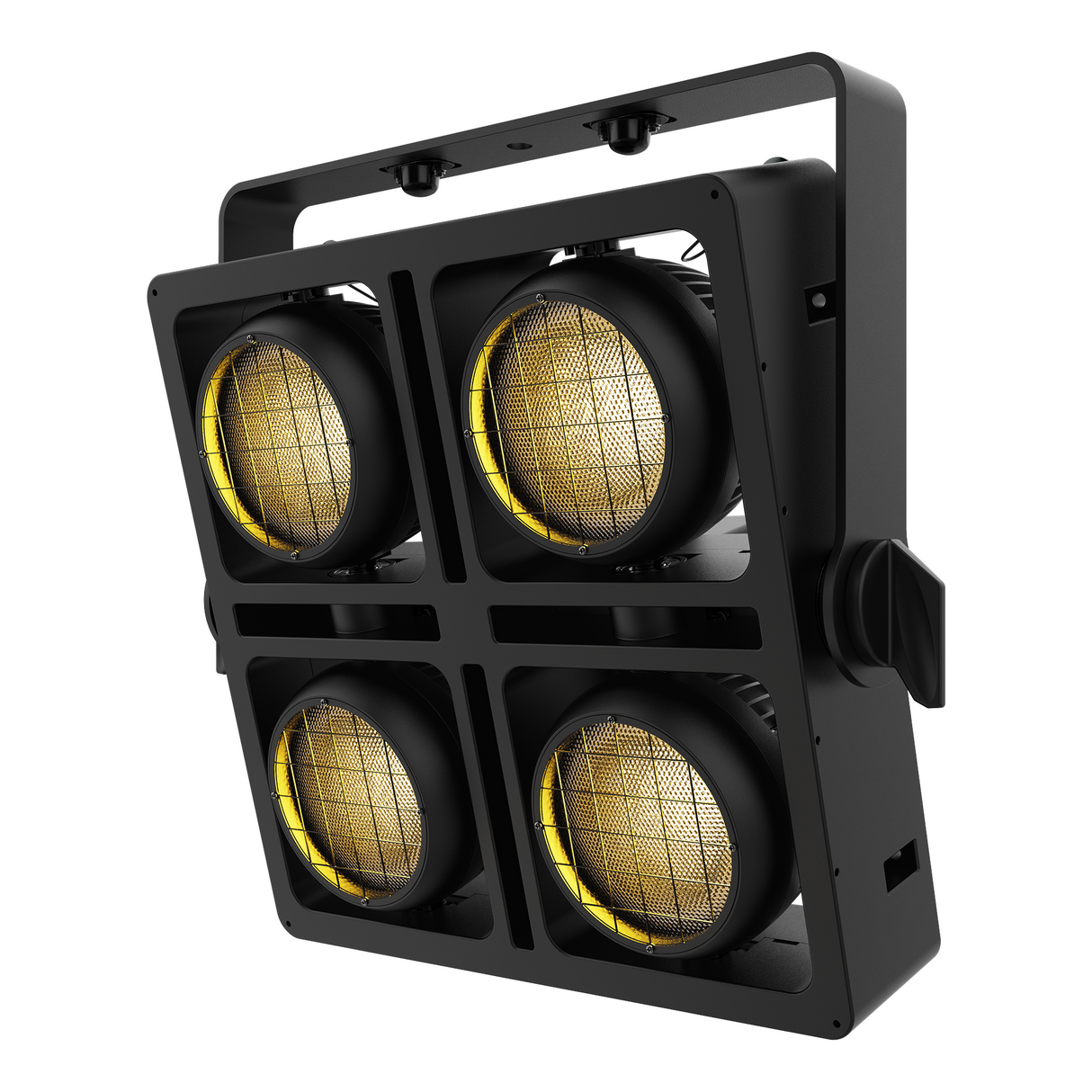

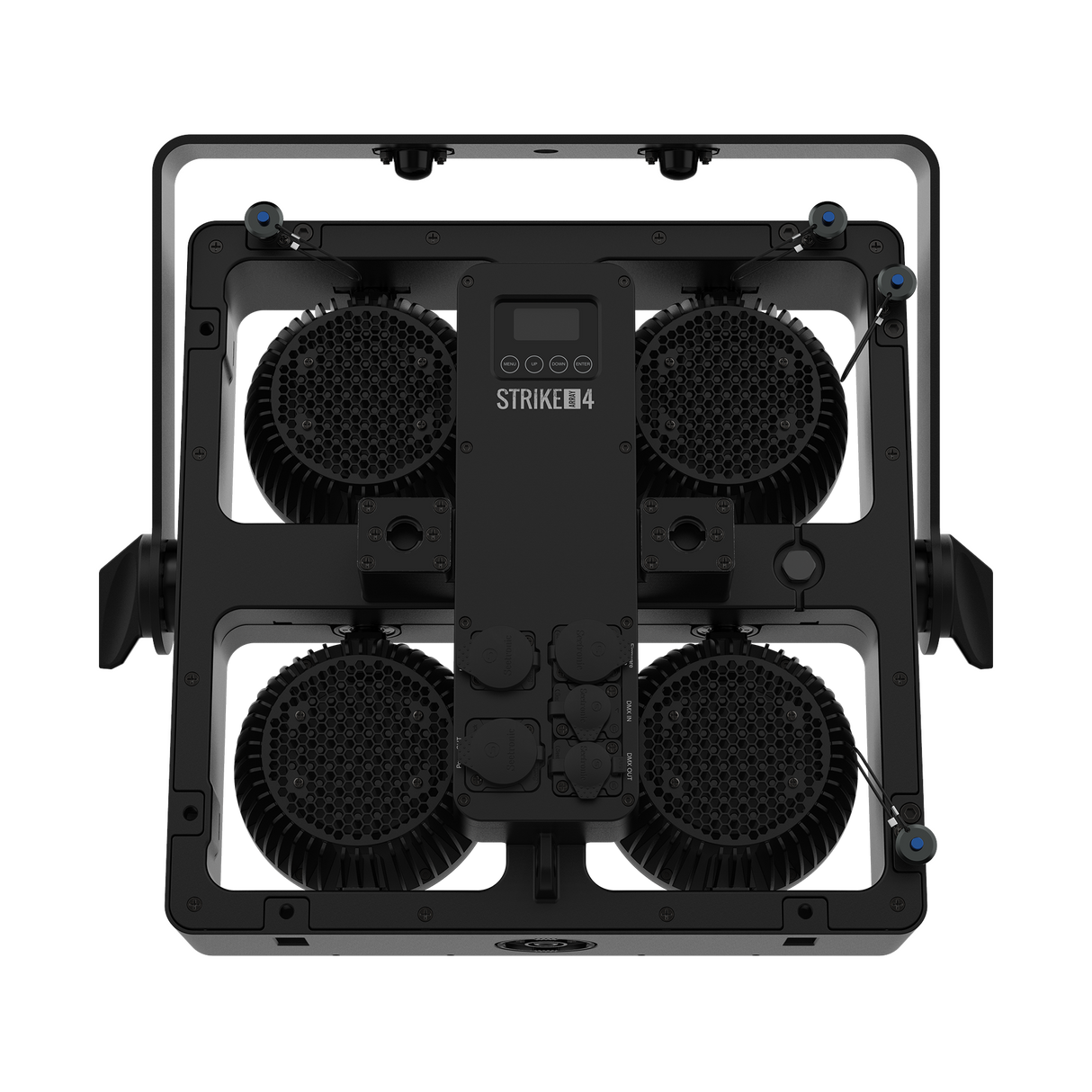

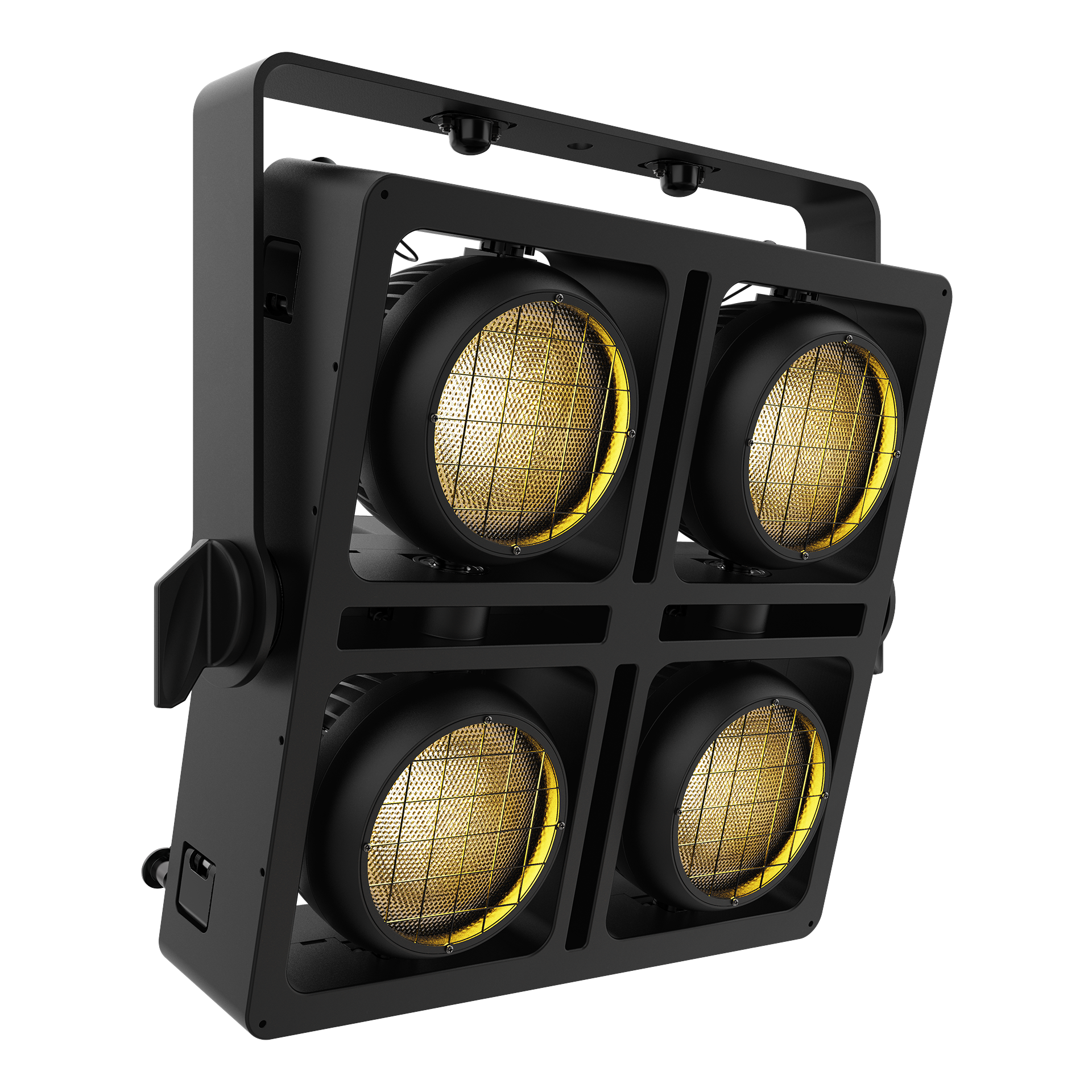

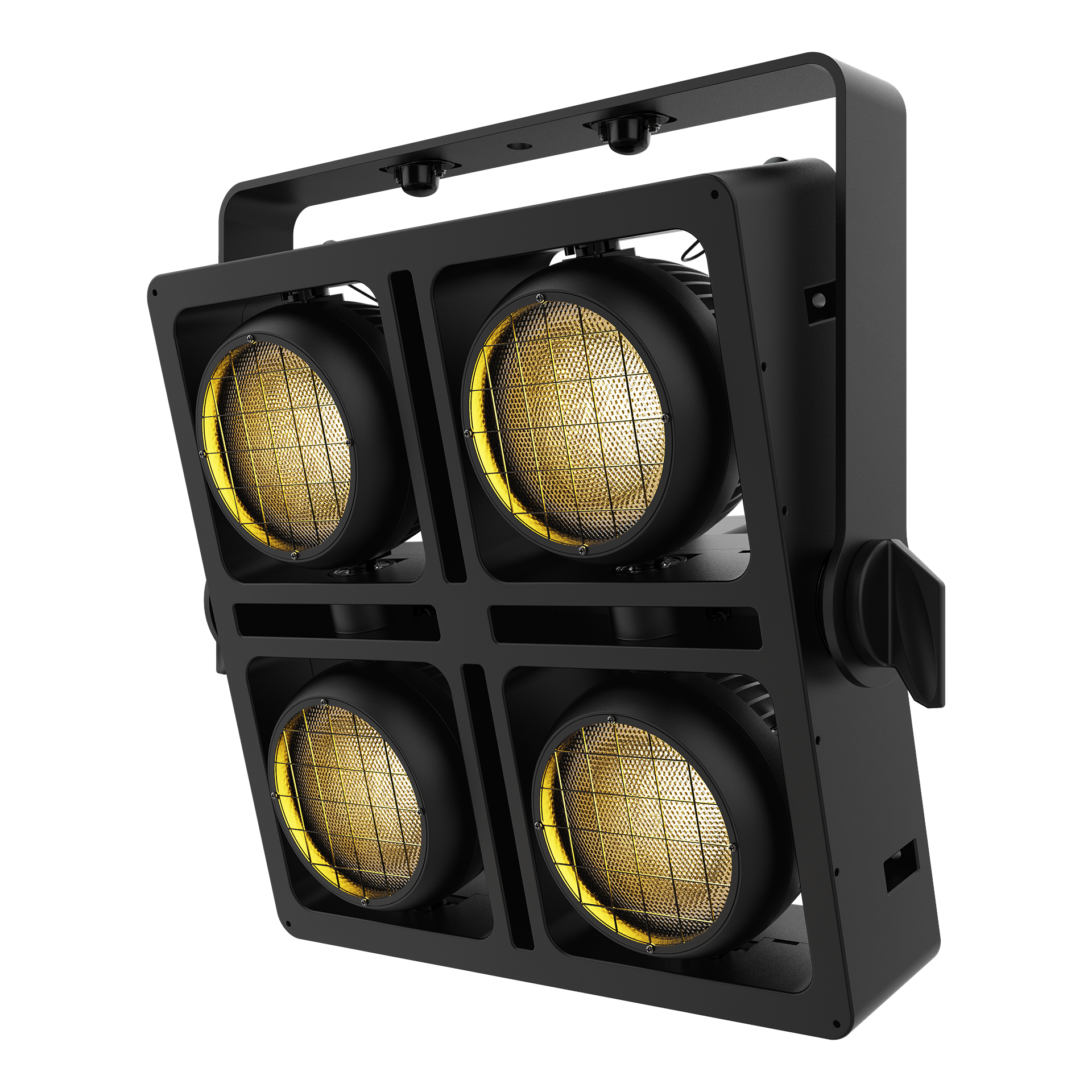

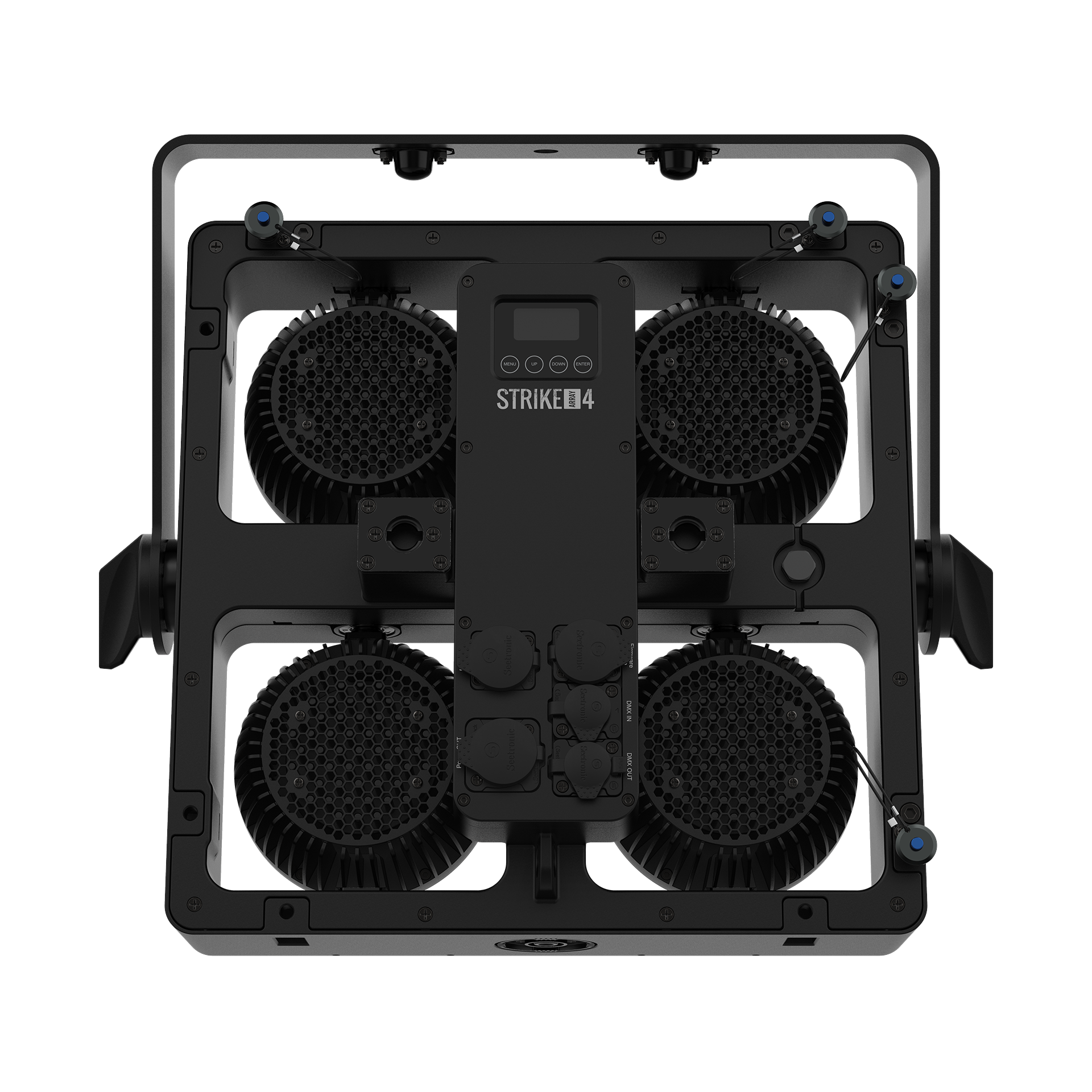

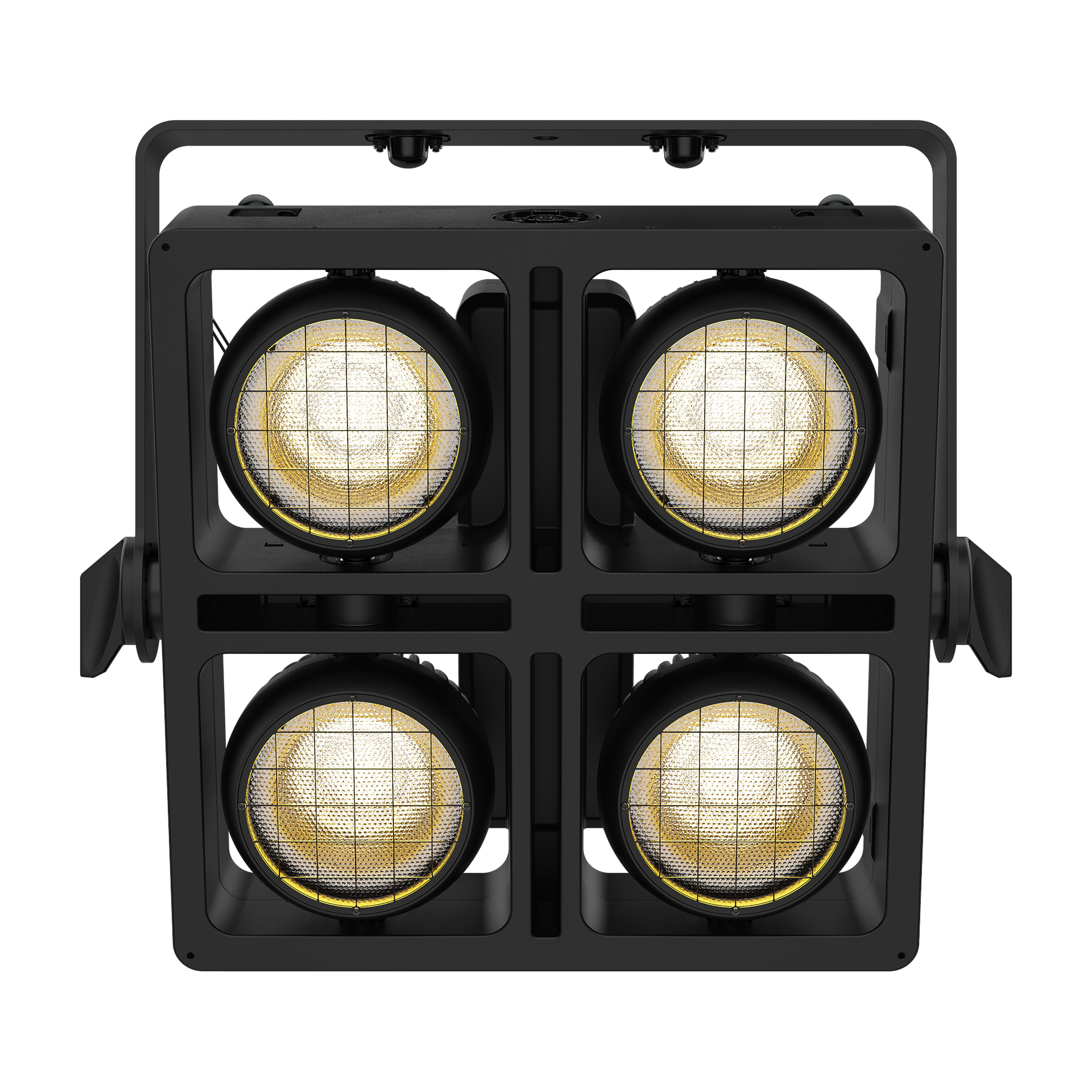

Build Scalable Blinder Arrays with the Chauvet Pro Strike Array 4 4-LED Strobe / Blinder Effect Light
The STRIKE Array 4 is an IP65-rated audience blinder featuring four independently focusable warm white LED pods with a tungsten-emulating amber shift and a tool-free interlocking system for building scalable arrays.
- Renders exceptional color for broadcast with a high CRI of 93.2 and adjustable PWM
- Provides exceptionally smooth fades with high-resolution 16-bit dimming control
- Features four independently adjustable light pods for precise, targeted audience illumination
- Streamlines truss mounting with Omega-Bracket locks on the yoke and fixture body
- Offers flexible control with multiple DMX modes and RDM for remote device management
- Reduces cable runs by power linking up to 12 units on a single 230 V circuit
Perfect for broadcast, concert, festival, and touring applications where a scalable, high-CRI, outdoor-rated blinder with a classic tungsten look is required.
IP65 All Weather Blinder
An intense 4-pod blinder and strobe with an IP65 rating for reliable use in any weather condition.
Red Shift Emulation
Perfectly mimics the warm, dimming glow of traditional incandescent fixtures.
Independent Pod Adjustment
Each of the four light pods can be individually panned or tilted for precise directional control.
Interlocking System
An innovative design allows for the easy connection of multiple STRIKE Array units together.
Versatile Rigging
Multiple mounting locations and a repositionable yoke offer creative and convenient rigging options.
16-Bit Dimming Control
Achieve exceptionally smooth and perfect fades with high-resolution 16-bit dimming.
High Impact Strobe
Create powerful visual effects on the fly with dedicated strobe functionality.
Easy to Use OLED Display
Navigate settings and options effortlessly with a clear and simple OLED display.
Advanced Control Flexibility
Adjustable PWM and RDM support provide added flexibility for broadcast and remote management.
SPECIFICATIONS
Optical
- Warm White Light Source: 192 WW LEDs, 1.33 W, 2.2 A, 2700 K, 50,000 hours life expectancy
- Amber Light Source: 20 amber LEDs, 2.63 W, 0.758 A, 50,000 hours life expectancy
- Color Temperature at Full: 2770 K
- CRI: 93.2
- TLCI: 91
- Beam Angle: 61.5°
- Field Angle: 100.5°
- Total Illuminance: 684 lux at 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25000 Hz
Dynamic Effects
- Dimmer: Electronic
- Strobe Rate: 0 to 25 Hz
- Dim Modes: 4
- Built-In Automated Programs: Yes
Construction and Physical
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Dimensions: 18.5 x 16.7 x 6.3 inches / 470 x 424.5 x 161 mm
- Shipping Dimensions: 20.7 x 8.5 x 19.3 inches / 525 x 215 x 490 mm
- Weight: 28.7 lb / 13 kg
- Shipping Weight: 33.1 lb / 15 kg
Connections
- Power Connection: Edison local plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Power Cable Length: 5 feet / 1.5 m
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 3, 4, 5, 6, or 10
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
- Power Linking: 5 units at 100 V, 6 units at 120 V, 11 units at 208 V, 12 units at 230 V, 12 units at 240 V
- Power and Current: 243 W, 2.44 A at 100 V, 60 Hz, 9.0 A inrush
- Power and Current: 241 W, 2.01 A at 120 V, 60 Hz, 10.8 A inrush
- Power and Current: 244 W, 1.18 A at 208 V, 60 Hz, 14.2 A inrush
- Power and Current: 245 W, 1.07 A at 230 V, 50 Hz, 12.8 A inrush
- Power and Current: 247 W, 1.03 A at 240 V, 50 Hz, 12.8 A inrush
- Resting Power and Current: 8 W, 0.087 A at 100 V, 60 Hz
- Resting Power and Current: 9 W, 0.083 A at 120 V, 60 Hz
- Resting Power and Current: 17 W, 0.083 A at 208 V, 60 Hz
- Resting Power and Current: 18 W, 0.082 A at 230 V, 50 Hz
- Resting Power and Current: 21 W, 0.084 A at 240 V, 50 Hz
Certifications and Qualifications
- Certifications: CE, MET, FCC, ETL, cULus
- IP Rating: IP65, temporary outdoor/wet use
- IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
- Ambient Temperature: -4 °F to 113 °F / -20 °C to 45 °C
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Compatible Accessories: Seetronic Powerkon power linking cables, 5-pin IP or non-IP DMX cables, STRIKE Array Flush Bracket
Included Accessories
- Included Item: STRIKE Array 4
- Included Item: Seetronic Powerkon IP65
- Included Item: Omega bracket with mounting hardware
- Included Item: Warranty card
- Included Item: Quick reference guide or user manual
Manufacturer: Chauvet Professional
Model: STRIKEARRAY4
SKU: I668892-N-6-WHXB
UPC: 781462220624
