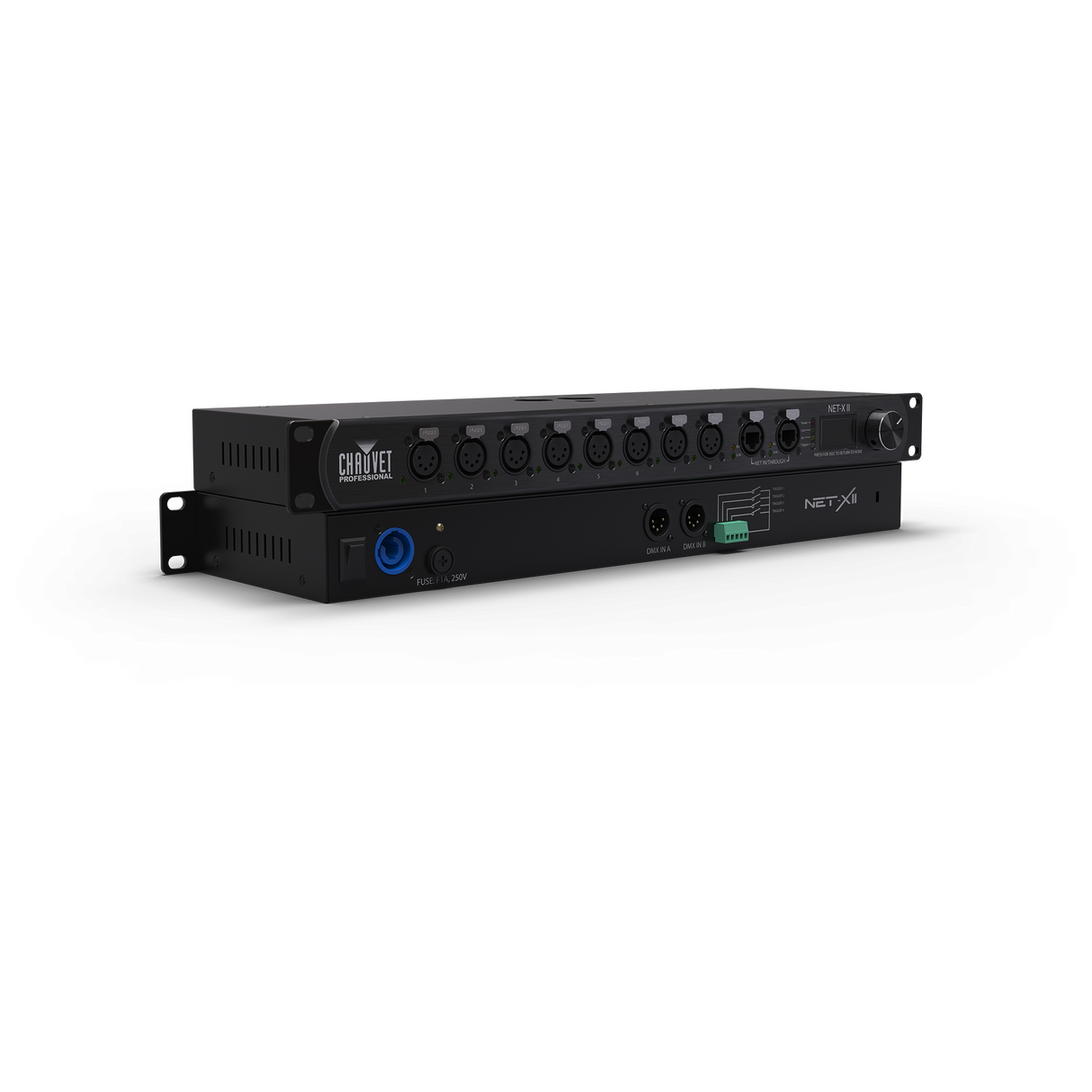

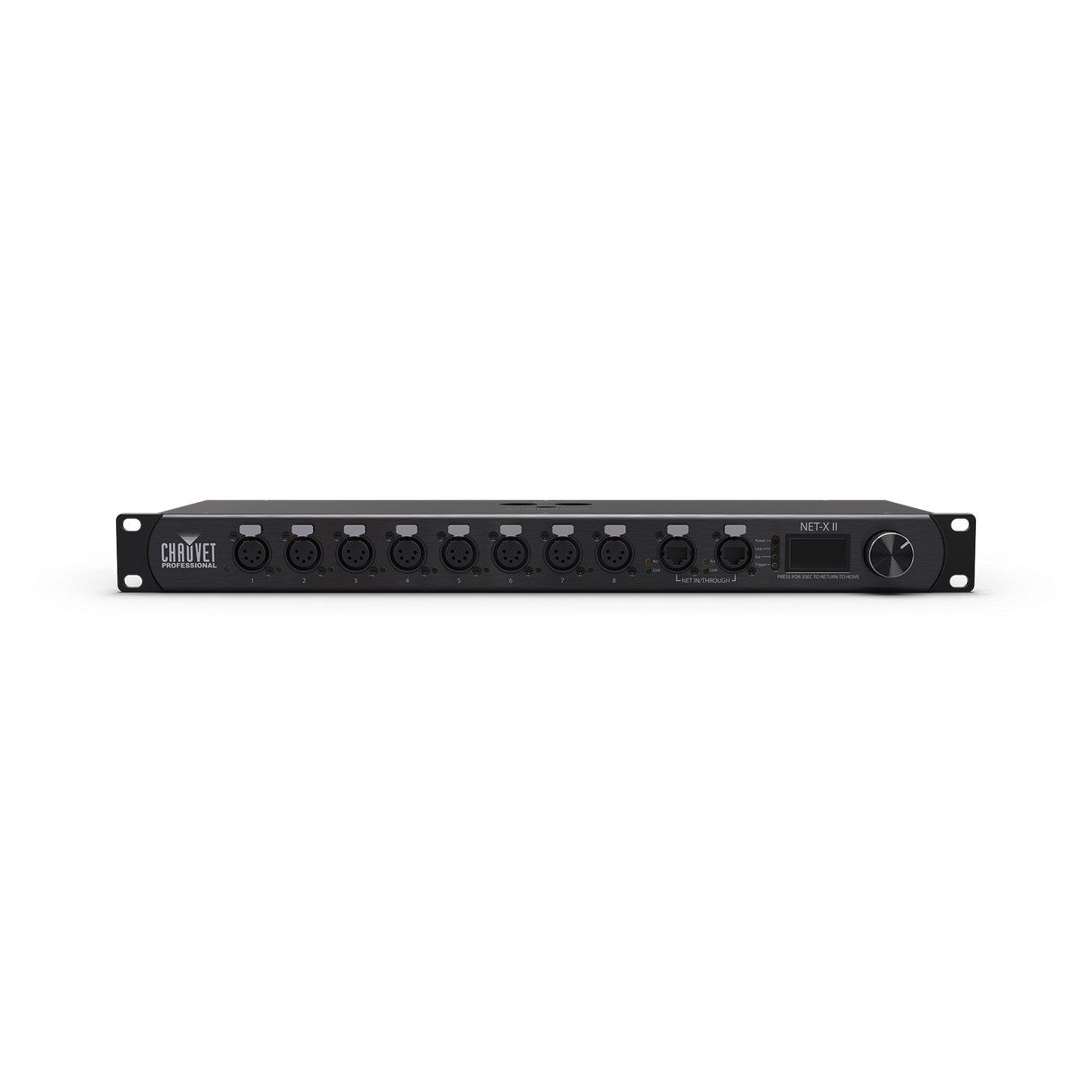

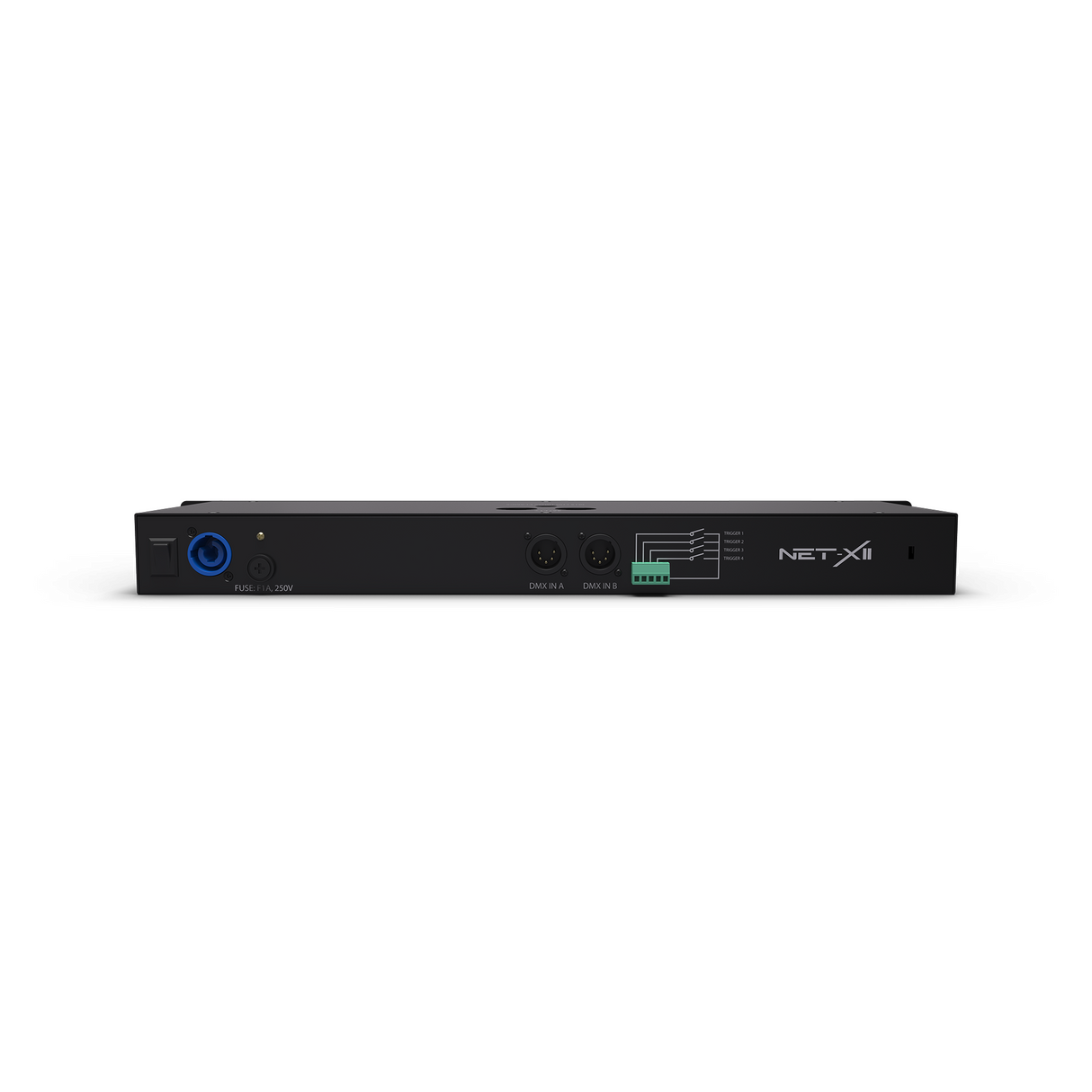

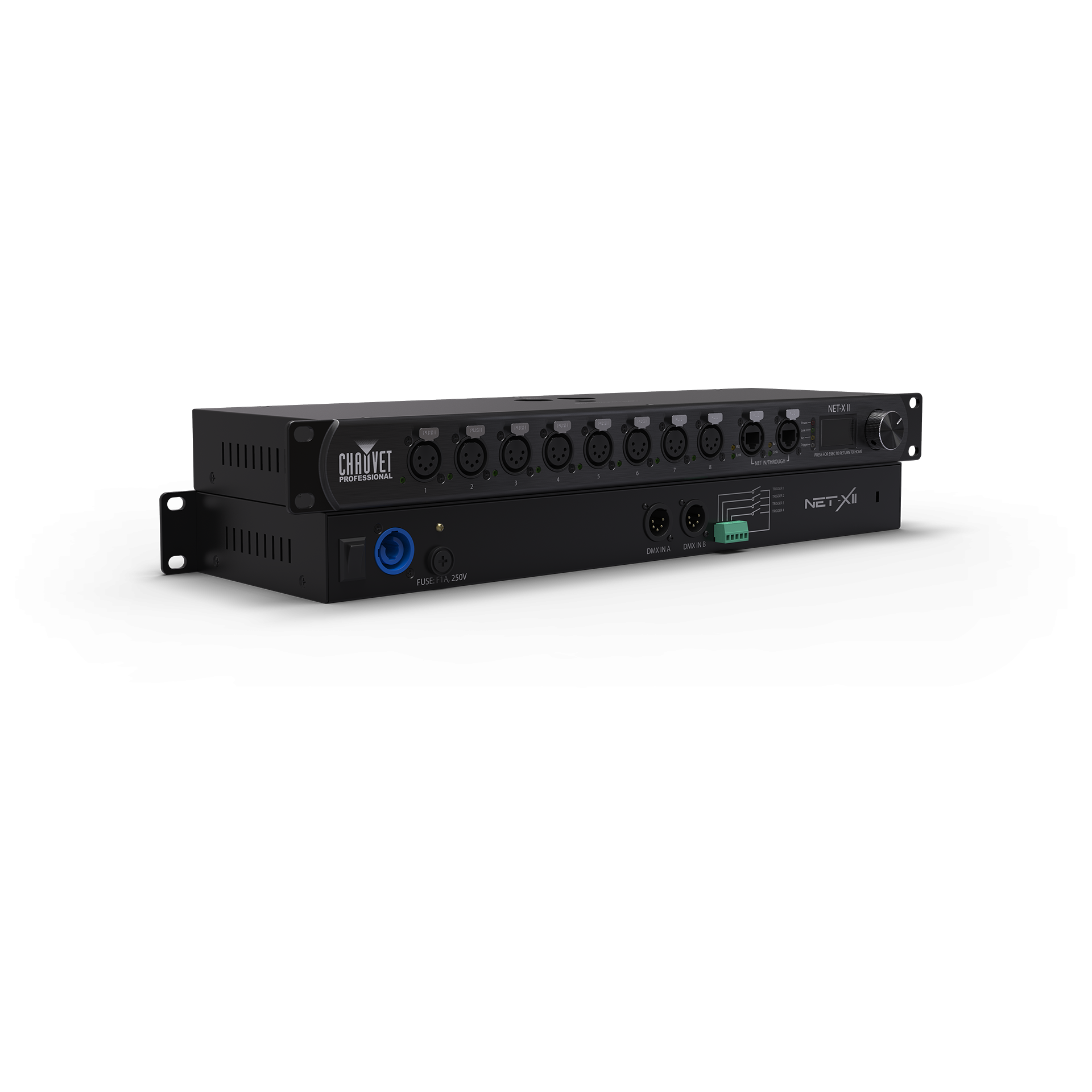

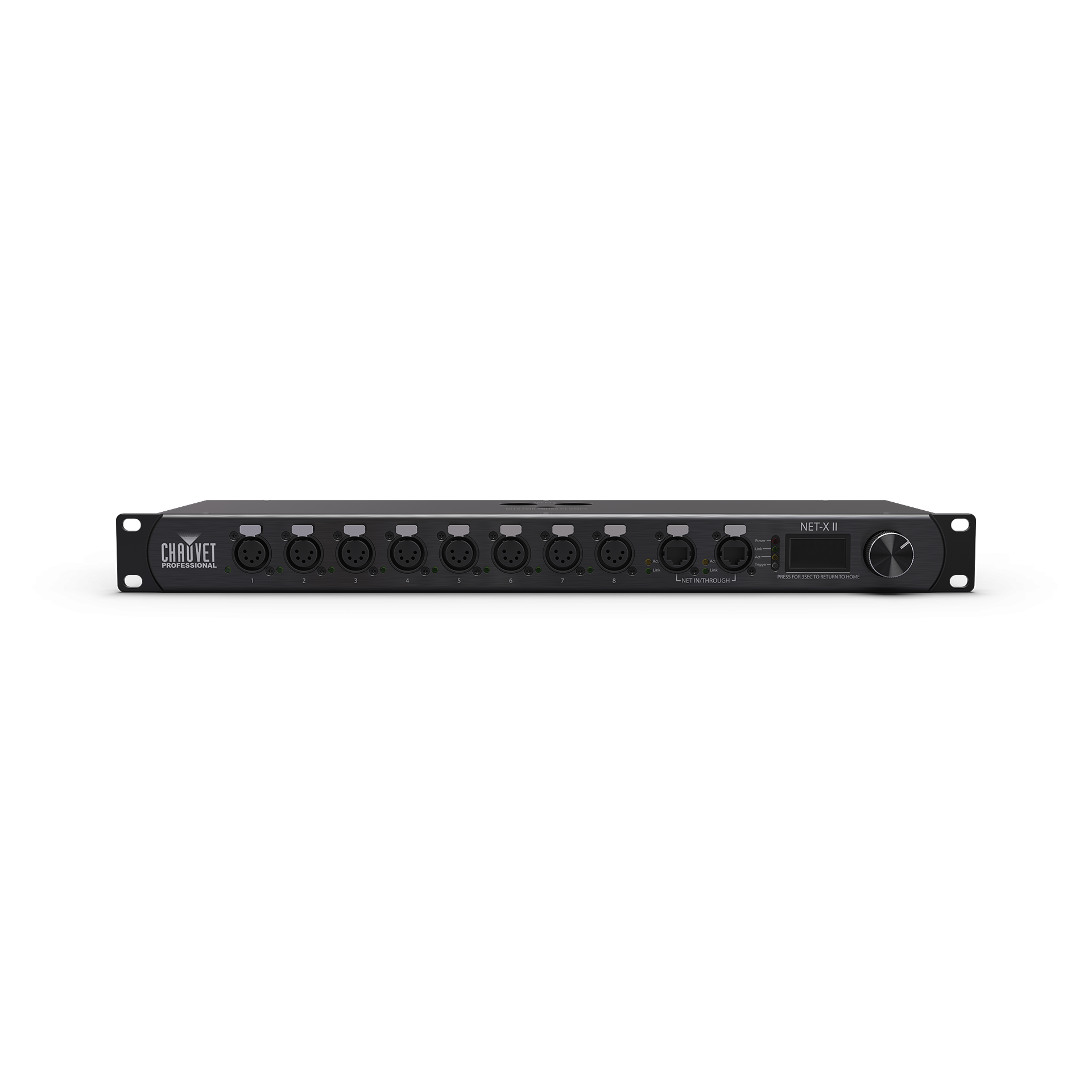

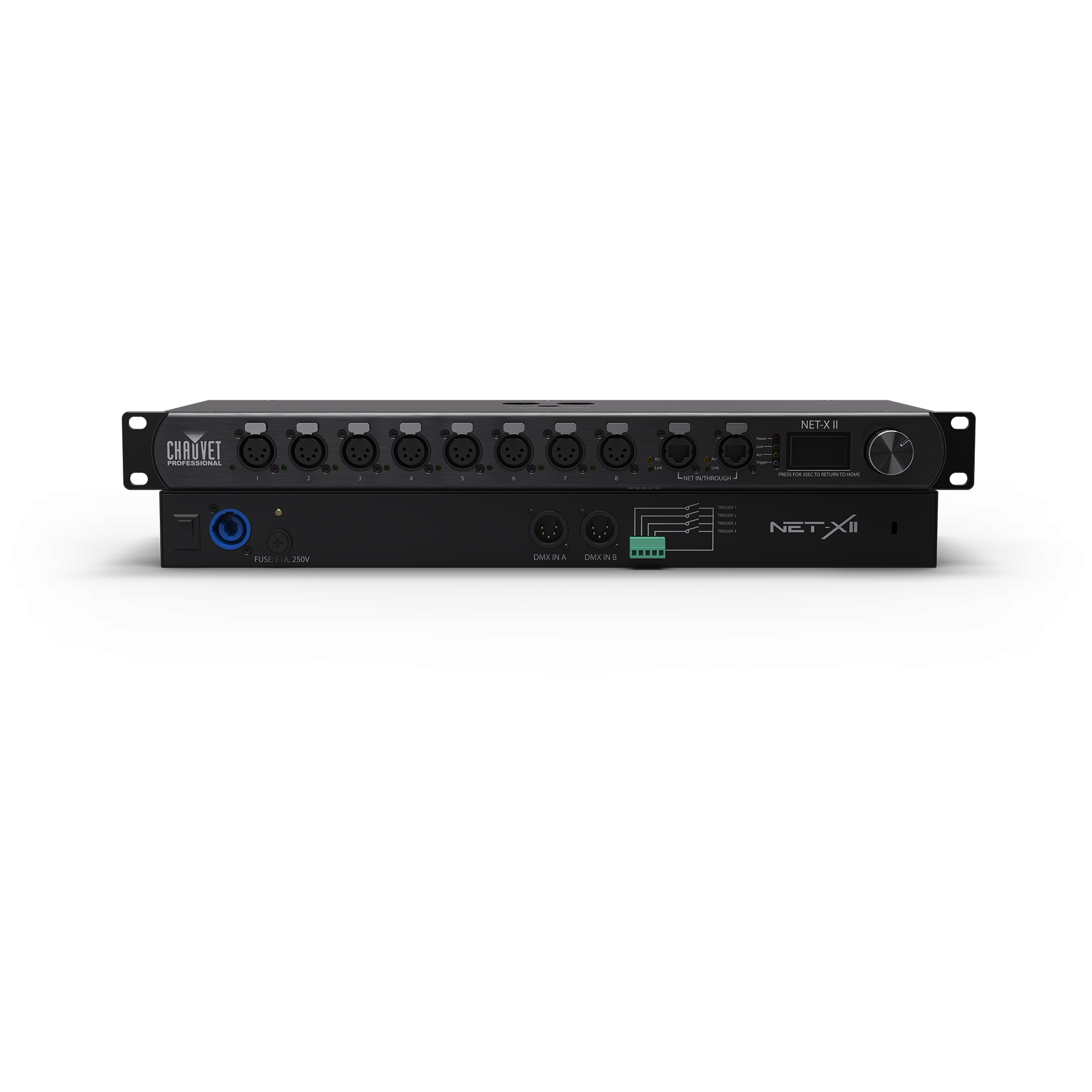

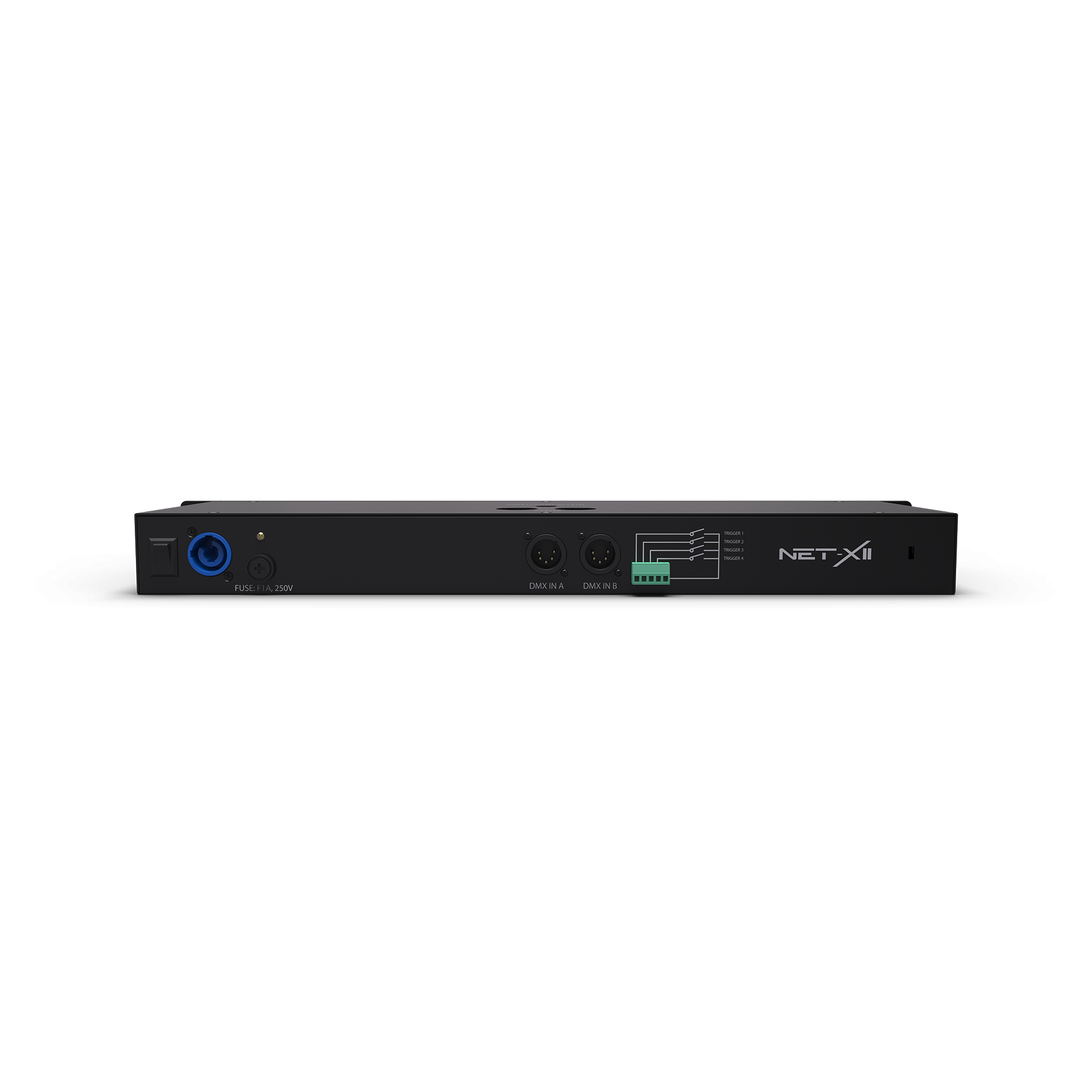

Chauvet Professional Net-X-II Ethernet to DMX Node
MSRP: $125500
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
Get Flexible Network and DMX Routing with the Chauvet Professional Net-X-II Ethernet to DMX Node
A versatile rack-mountable Ethernet-to-DMX node and merger that converts Art-Net or sACN to eight individually assignable DMX outputs and supports DMX preset recording. Perfect for creating a reliable and highly customizable network infrastructure for complex lighting control systems in touring, production, and installation environments.
- Features two 5-pin DMX inputs and eight optically isolated 5-pin DMX outputs.
- Converts up to eight DMX universes into Art-Net or sACN network protocols.
- Merges two controllers using HTP or LTP protocols for flexible signal management.
- Records up to 10 DMX presets for standalone playback or remote contact triggering.
- Supports RDM over Art-Net for simplified remote fixture configuration and management.
- Includes an integrated webserver for remote setup, system backup, and firmware updates.
Net-X II is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs – all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.
5-Pin DMX Splitter
Functions as a versatile 5-pin DMX splitter and distributor for your lighting rig.
Network to DMX Conversion
Converts Art-Net or sACN network data into as many as eight standard DMX universes.
DMX to Network Conversion
Converts up to eight standard DMX universes into Art-Net or sACN network protocols.
Advanced Merging Capability
Merges two 5-pin DMX inputs or two network controllers into a single DMX universe output.
HTP and LTP Merging
Supports both Highest Takes Priority (HTP) and Latest Takes Priority (LTP) for merging DMX signals.
Configuration Backup and Restore
Allows you to backup and share settings and configurations with other Net-X II units.
Integrated Webserver
Features a built-in webserver for remote configuration, backup, and firmware updates.
Onboard Scene Recording
Record and store lighting looks into memory for standalone playback triggered by external contacts.
RDM Over Art-Net
Supports Remote Device Management (RDM) over Art-Net for easy remote fixture management.
SPECIFICATIONS
Construction and Physical
- Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
- Weight: 4.6 lb (2.1 kg)
- Threaded Bolt: M12
- Exterior Color: Black
- Housing Material: Steel
- Rackmount: 1U
Connections
- Power Connection: Edison (Local) plug to Seetronic powerKON
- Power Input: Seetronic powerKON
- Device Data Inputs: Seetronic powerKON (1 total) and 5-pin XLR (2 total)
- Device Data Outputs/Inputs (Assignable): 5-pin XLR (8 total)
- Device Date Throughputs: Seetronic etherKON (1 total)
- Cable Length (Power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, sACN
- Merge Support: Yes
- Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
- Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
Certifications and Qualifications
- Certifications: CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
- Compatible Mounting Options: M12 Bolt/Clamp
Manufacturer: Chauvet Professional
Model: NETXII
SKU: I556238-N-1-WHXX
UPC: 781462218034
