Description
Description
Complete Pedalboard Power, Expanded Connectivity & Ultimate Versatility - The Cioks Special Edition Bundle DC7 & C8e Power Supply and Accessories Bundle
When you are building the ultimate pedalboard you need the ultimate in flexible, powerful and reliable power supply and the combination of the CIOKS DC7 and the CIOKS 8 Expander is just what the doctor ordered. With this combo you get fifteen isolated outlets in total with four switchable voltages on each outlet and a USB outlet for your smartphone or tablet via DC7.
In order to make the options for where to place the DC7 and the CIOKS 8 on your board as flexible as possible, the Superpower Bundle includes two DC Link cables in different lengths so you can connect and mount both units on the same board or place the DC7 on one board and the CIOKS 8 Expander on a separate board if you use two.
To make the CIOKS Superpower Bundle as future-proof as possible you can expand the number of available outlets for your pedals by purchasing a CIOKS 4 Expander Kit or a separate CIOKS 8 Expander and connecting it to the 24V DC link outlet on the included CIOKS 8.
Both DC7 and CIOKS 8 are compatible with CIOKS GRIP* which allows for super easy drill-free mounting underneath Pedaltrain boards.
SPECIFICATIONS
General
- 1-Inch Profile (25.4 mm)
- Ultra-Low Noise Achieved by Multistage Filtering
- 7 Isolated DC Outlets, 6W Each on CIOKS DC7
- 8 Isolated DC Outlets, 6W Each on CIOKS 8 Expander
- 660 mA at 9V DC on Each Outlet on Both CIOKS DC7 and CIOKS 8
- 4 Selectable Voltages on Each Outlet: 9V DC / 660 mA, 12V DC / 500 mA, 15V DC / 400 mA, or 18V DC / 330 mA
- 5V USB Output: Max. 1A
- 24V DC Auxiliary Outlet: Max. 2A
- Three LED Power Meter Showing the Total Load of Both Power Supplies
- Expandable with a Separate CIOKS 4 Expander Kit or CIOKS 8 Expander
- Total Maximum Output Power from the 15 DC Outlets: 42W
- Mounting Hardware for Pedaltrain and Templeaudio Boards Included
- Compatible with CIOKS GRIP for Drill-Free Mounting on Pedaltrain Boards
- 24 Flex Cables Included
- Designed in Denmark, Assembled in Poland
- 5-Year Worldwide Warranty
Outputs
- Outlet 1-7 on DC7 and Outlet 1-8 on CIOKS 8: 15 Total Outlets
- 9V DC / 660 mA Each
- 12V DC / 500 mA Each
- 15V DC / 400 mA Each
- 18V DC / 330 mA Each
- 5V USB / 1A on CIOKS DC7
- 24V DC Link on CIOKS 8

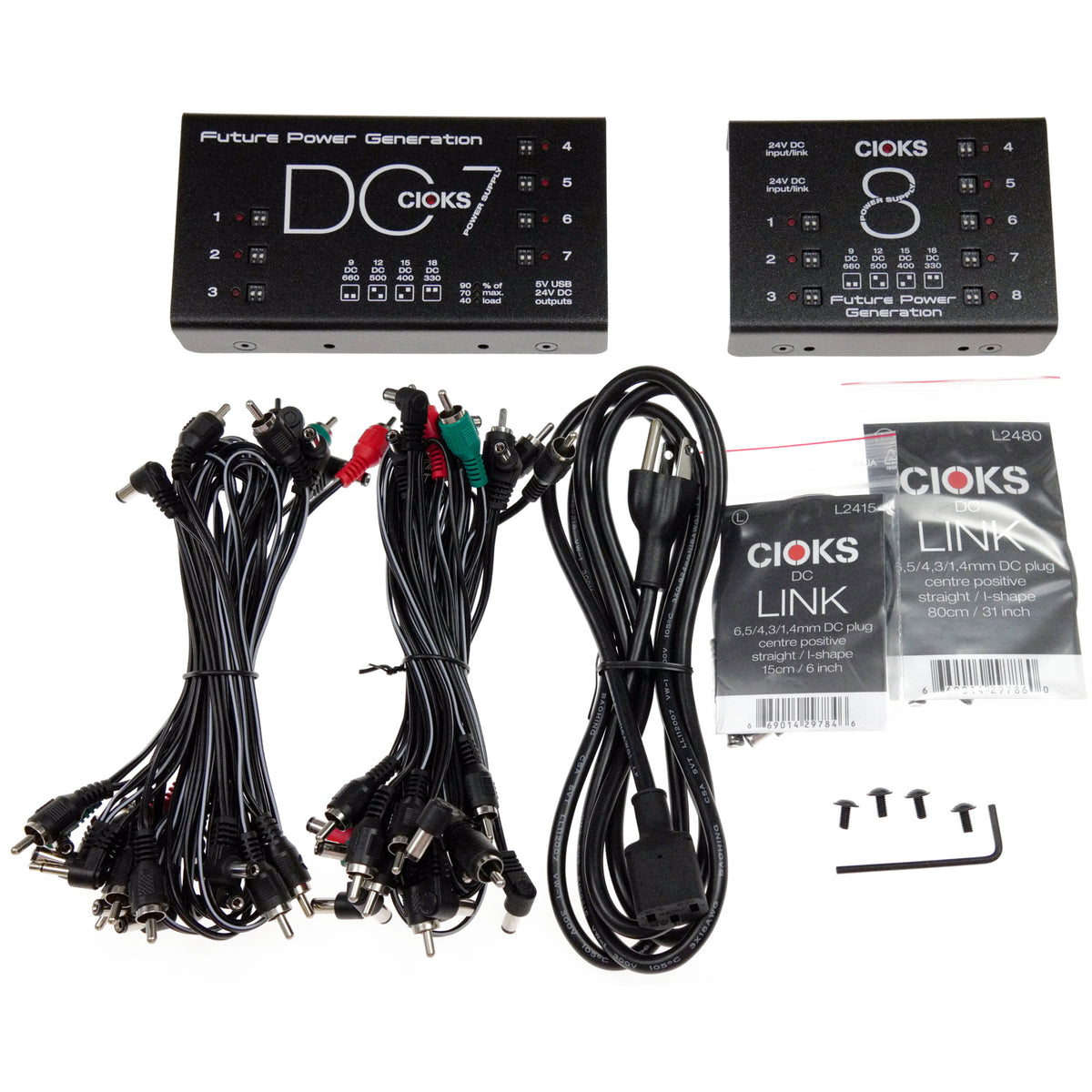

Package
- CIOKS DC7 and CIOKS 8 Expander Power Supplies
- Mains Power Cord
- 24 Flex Cables & 2 DC Link Cables
- Mounting Hardware (4 Screws and a Hex Key)
- 2x Manual
- 2x Product Sheet (Drill Guide)
- Flex Guide
Flex Cables Included
- Standard Flex Type 1: Black with 5.5/2.1 mm Center Negative DC Plug x14
- Standard Flex Type 2: Red with 5.5/2.1 mm Center Positive DC Plug x2
- Standard Flex Type 4: Green with 5.5/2.5 mm Center Positive DC Plug x2
- Standard Flex Type 5: Black with Tip Positive 3.5 mm Jack Plug x2
- Split Flex Type 1: Black with Two 5.5/2.1 mm Center Negative DC Plugs x2
- 3-Way Daisy Chain Flex Type 1: Black with Three 5.5/2.1 mm Center Negative DC Plugs x2
DC Link Cables Included
- To Connect the CIOKS 8 to the 24V DC Auxiliary Outlet on CIOKS DC7
- L2415: Black with EJAI Plug at Each End, 15 cm / 6"
- L2480: Black with EJAI Plug at Each End, 80 cm / 31"
Power
- Compatible with 100-240 VAC
- US Power Cord Included
Size & Weight
- CIOKS DC7 Dimensions: 160 x 88 x 25.4 mm | 6.3 x 3.5 x 1.0"
- CIOKS 8 Expander Dimensions: 120 x 88 x 25.4 mm | 4.7 x 3.5 x 1.0"
- CIOKS DC7 Weight: 500 g | 1.1 lb
- CIOKS 8 Expander Weight: 340 g | 0.75 lb
Manufacturer: Cioks
Model: CIO-SPB
SKU: I762830-N-2-WHXD
UPC: 669014298034
