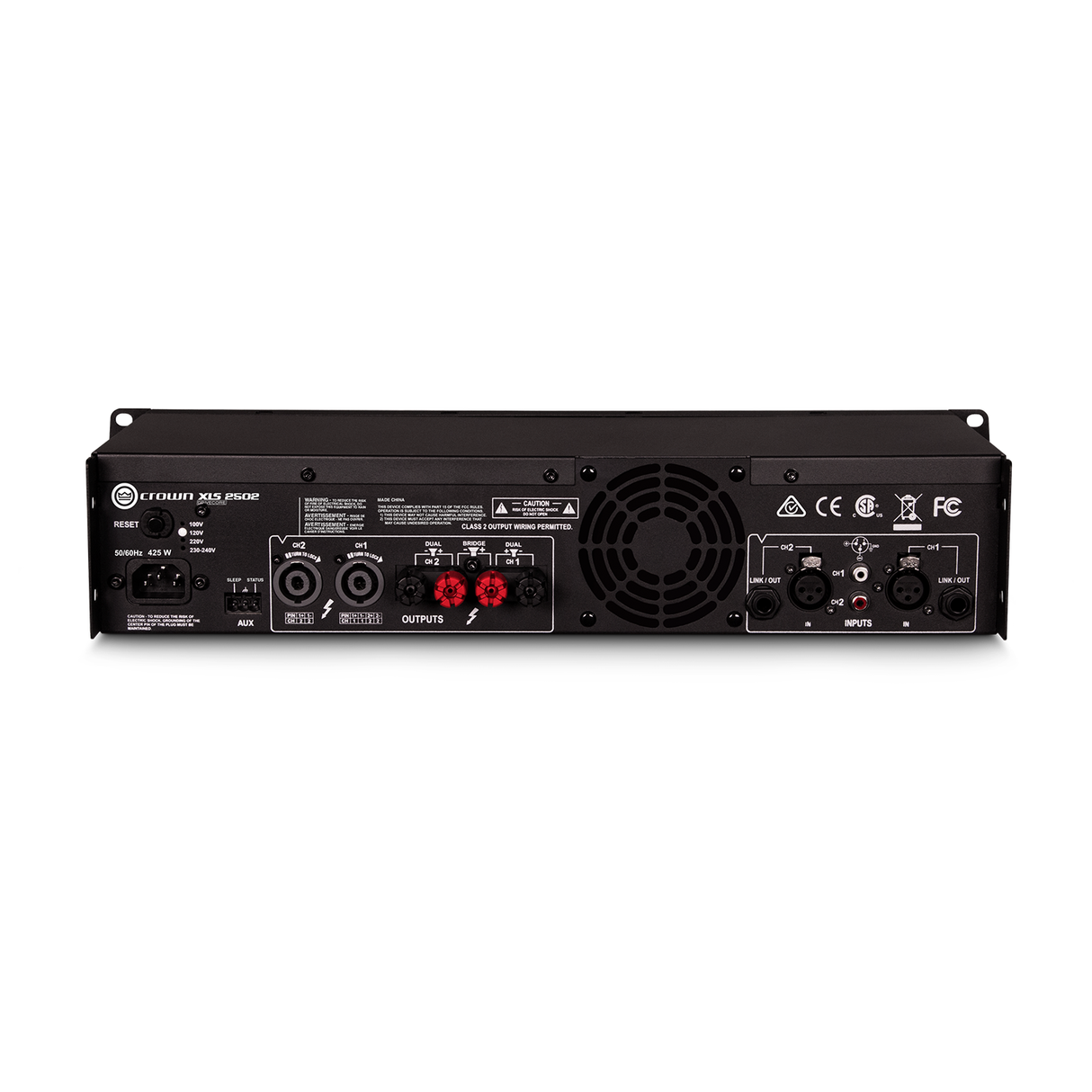

Crown Audio XLS 2502 Drivecore 2 Power Amplifier - Mint (Open Box)

  • Our Price
  • $529.00
  • Regular price MSRP: $1,190.74


Get Ultra-Efficient Class D Amplification With The Crown Audio XLS 2502 Drivecore 2 Power Amplifier

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS has Crown's patented DriveCore technology and can drive 2400W at 4 ohms bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

  • Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
  • Higher DSP capabilities: More control; has band pass filter per channel
  • Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
  • Set sleep mode after specified time without having to press a button
  • Security setting disables menu buttons; menu locked/unlocked by entering combination
  • System reset allows factory settings to be restored
  • Remote power trigger
  • Peakx Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide flexibility
  • Integrated PureBand Crossover System for better performance and control
  • Efficient forced-air fans prevent excessive thermal buildup



  • Sensitivity: 1.4Vrms
  • Frequency Response: +0dB, -1dB
  • Signal to Noise: greater than 103dB (at .775Vrms, 6dB lower)
  • Intermodulation Distortion: less than 0.3%
  • Damping Factor: greater than 200
  • THD: less than 0.5%
  • Crosstalk: At 1kHz: greater than 85dB, At 20kHz: greater than 55dB
  • Dimensions: 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm)
  • Weight: 10.8 lbs (4.9 kgs)


  • Channels: 2
  • 2 Ohms Dual: 1200 W
  • 4 Ohms Dual: 775 W
  • 8 Ohms Dual: 440 W
  • 4 Ohms Bridged: 2400 W
  • 8 Ohms Bridged: 1550 W

Manufacturer: Crown Audio
Model: XLS2502
Warranty: See manufacturer website for details
SKU: I360166-GA1-43-B
UPC: 691991001161
