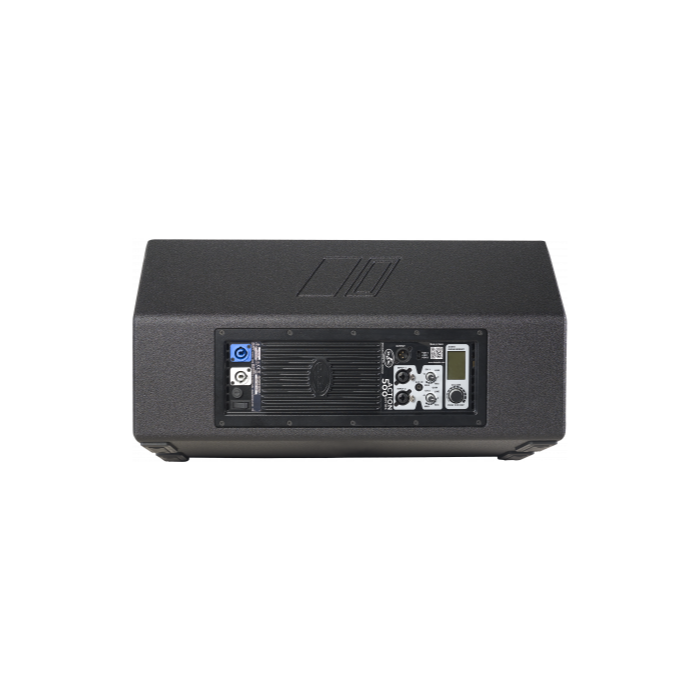

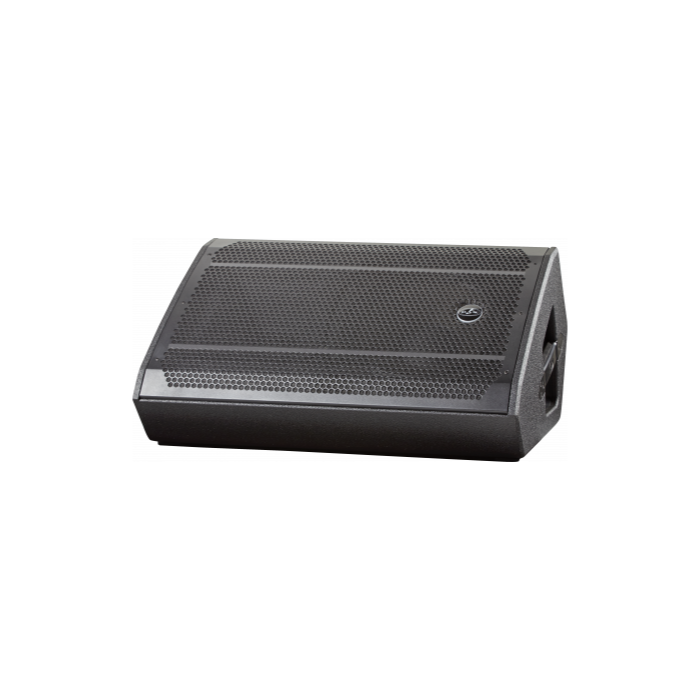

DAS M512A 12" Active Point Source Floor Monitor

Get Clear Audio On Stage With The DAS M512A 12" Active Point Source Floor Monitor

ACTION-M512A is an active stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable monitor application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA. As part of DAS' company culture, all of their systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series they use the same birch plywood as their touring systems for a tight, natural warm sound found nowhere else on the market. The series' full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection. The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol™ interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.

SPECIFICATIONS

• Frequency Range (-10 dB): 60 Hz – 20 kHz
• Horizontal Coverage (-6 dB): 80º
• Vertical Coverage: 50º
• Maximum Peak SPL at 1 m: 130 dB
• Nominal Amplifier Power (continuous): 500 W
• Nominal Amplifier Power (peak): 1000 W
• Input Type: Balanced
• Input Impedance: 20 kohms
• Input Sensitivity: 1.95 V (+8 dBu)
• Audio Signal Input Connector: 2 x Female XLR
• AUX Input: 1 x 3.5 mm Mini Jack
• Audio Signal Loop Thru Connector: 2 x Male XLR
• AC Input Connector: powerCON NAC3MPA
• AC Output Connector: powerCON NAC3MPB
• Operating Range: 90-127/180-250 VAC
• Current Draw 115 V: 2.2 A
• Current Draw 230 V: 1.1 A
• Enclosure Construction: Birch Plywood
• Enclosure Geometry: Trapezoidal
• Finish: ISO-flex Paint
• Color: Black
• Dimensions ( H x W x D ): 335 x 650 x 450 mm (13,2 x 25,6 x 17,7 in)
• Net Weight: 19.5 kg ( 43,0 lb )
• LF Driver: 12MI4
• HF Driver: M-34
• Horn/Waveguide: BC-85
