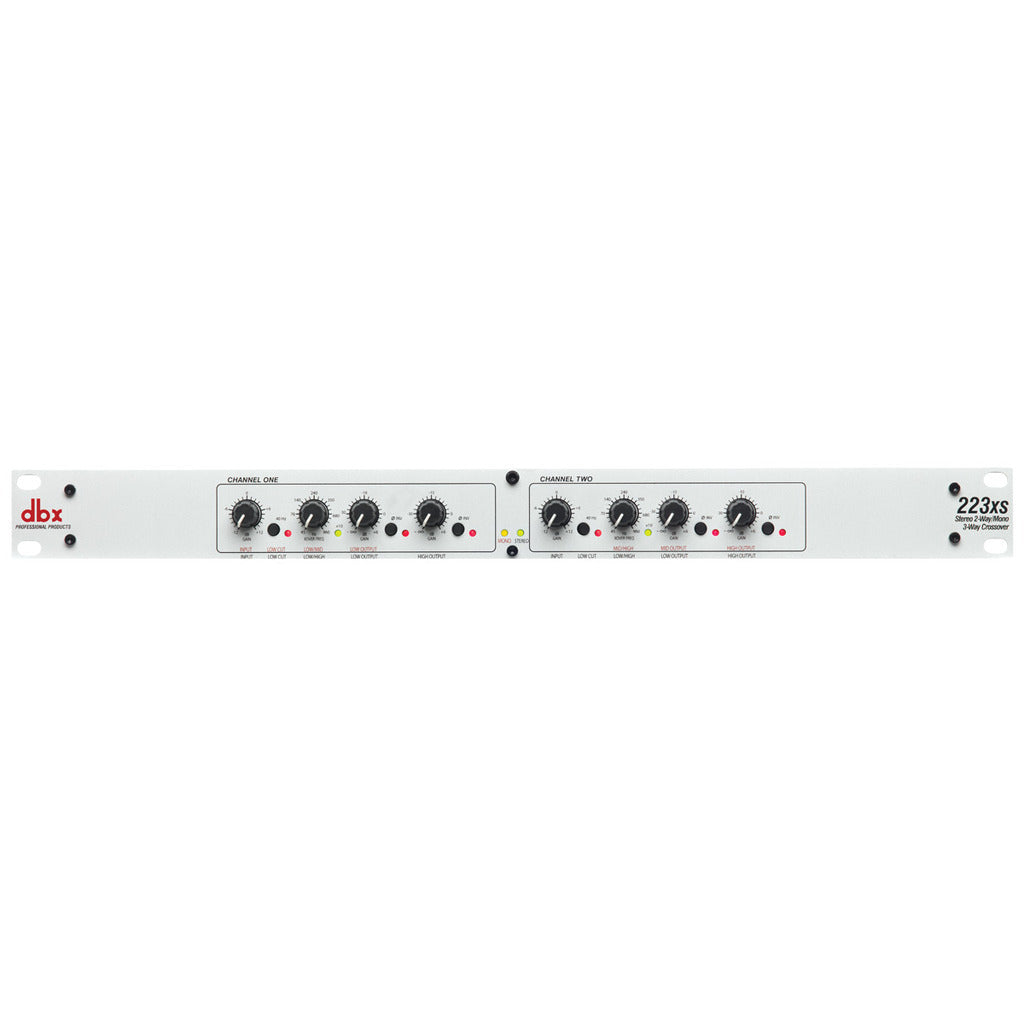

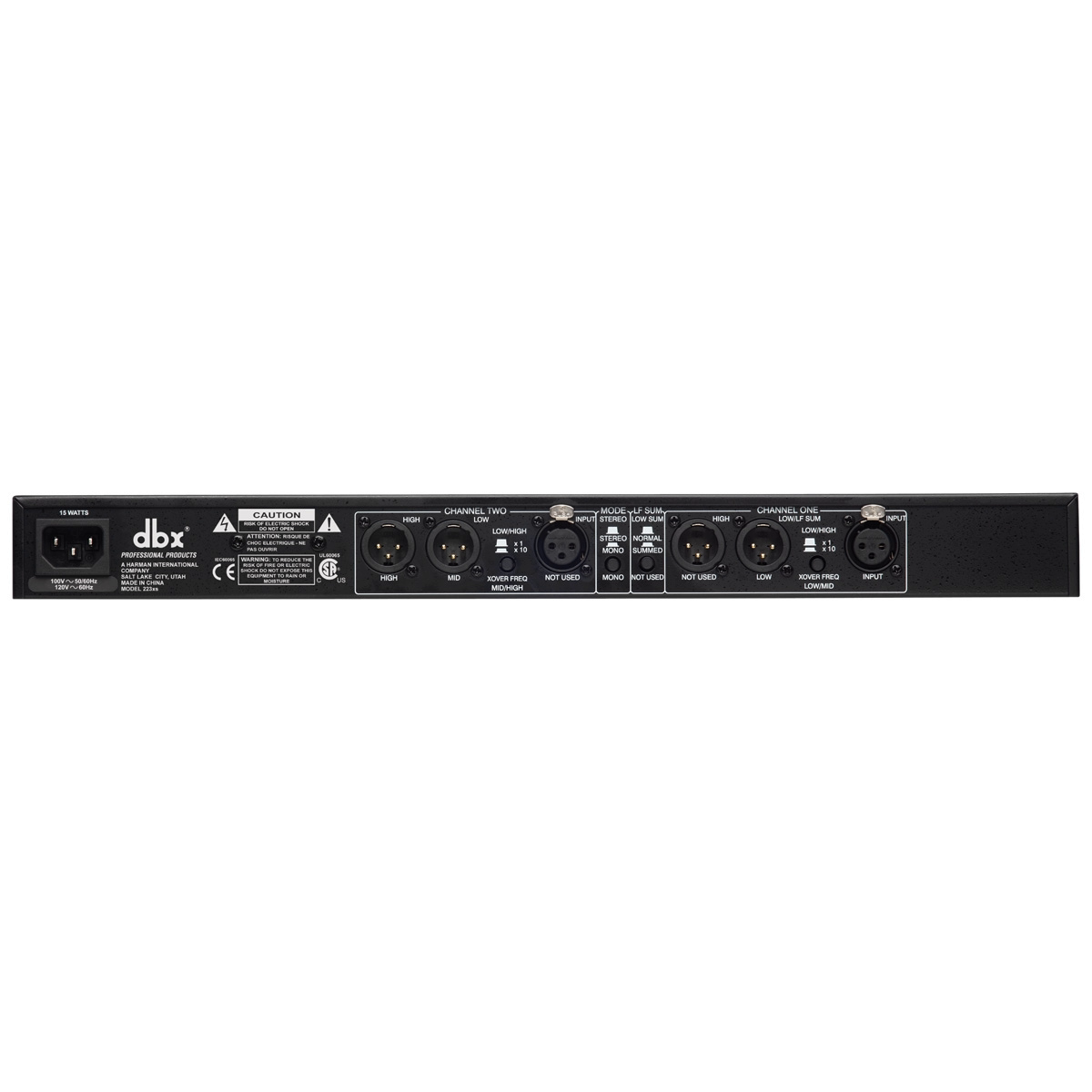

DBX 223xs Stereo 2-Way / Mono 3-Way Crossover (XLR)
Couldn't load pickup availability
About Inventory Status
About Inventory Status
Questions? Call or text us at 301-946-8808.
♫ In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.
📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.
❓ Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.
❔ Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.
█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.
About Item Conditions
About Item Conditions
Questions? Call or text us at 301-946-8808.
New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.
Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.
Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.
Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.
Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.
B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.
Description
Description
More Sound to Your Amps and Speakers
The secret to making speakers sound great lies with the crossover you use. With the dbx® 223xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The 223xs uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.
The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.
SPECIFICATIONS
Inputs
- Connectors: XLR (pin 2 hot)
- Type: Electronically balanced/unbalanced, RF filtered
- Impedance: Balanced 50k ohm, unbalanced 25k ohm
- Max Input Level: +22dBu balanced or unbalanced
Outputs
- Connectors: XLR
- Type: Electronically-balanaced/unbalanced, RF filtered
- Impedance: Balanced 60 ohm, unbalanced 30 ohm
- Max Output Level: +20dBu balanced/unbalanced into 600 ohms or greater
Crossover
- Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
- Mono Mode: Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
- Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
- Filter type: Linkwitz-Riley, 24 dB/octave, state-variable
Function Switches
- Front Panel (Low Cut): Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
- Phase Invert: Inverts the phase at the output, one switch per output
- Rear Panel: x10: Multiplies the crossover frequency range by 10, one switch per channel
- Mode: Selects stereo/mono and 2/3-way operation.
- LF sum: Selects normal (stereo) or mono-summed low frequency operation.
Indicators
- Stereo Operation: Green LED
- Mono Operation: Yellow LED
- Low Cut: Red LED per channel
- x10 Green LED per channel
- Phase Invert: Red LED per output (3 per channel)
System Performance
- Bandwidth: 20Hz to 20kHz, +0/-0.5dB
- Frequency Response: 3Hz to 90kHz, +0/-3 dB
- Dynamic Range: 106dB, unweighted, any output
- THD + Noise: 0.004% at +4dBu, 1kHz
- 0.04% at +20dBu, 1 kHz
- Interchannel Crosstalk: -80dB, 20Hz to 20kHz
- CMRR: 40dB, typically 55dB at 1kHz
- Signal-to-Noise: Ref: +4dBu, 22kHz measurement bandwidth
- Stereo Mode 94dB (Low Output)
- 91dB (High Output)
- Mono Mode: 94dB (Low Output)
- 93dB (Mid Output)
- 91dB (High Output)
Power Supply
- Operating Voltage: 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
- Power consumption: 15W
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
Physical
- Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm )
- Weight: 3.7 lbs. (1.7 kg)
Manufacturer: DBX
Model: 223XS
