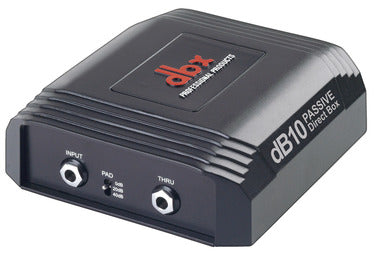

DBX dB10 Passive Direct Box


  • Our Price
  • $95.00
  • Regular price MSRP: $116.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Get A Sturdy And Great Sounding DI With The DBX dB10 Passive Direct Box

At dbx, when they do something, they do it right. So when they decided to create their new direct injection boxes, they didn't settle for the same old tired approach to direct box design. With the dbx name on the line, how could they? One look at their new dB10 Passive direct box will tell you that it's clearly different. With its bullet-proof construction, and extraordinary audio performance to rival its looks, finally there's a direct box worthy of the dbx name.

Utilizing custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors, and low-noise circuitry preserves the sonic integrity and true characteristics of the signal source. The db10 includes a pad switch that accommodates instrument, line and even speaker level signals. Take even more control of your sound by utilizing the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don't have time for interference, so they've included a ground lift switch to solve potential hum and buzz problems due to ground loops. And between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference. All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.


SPECIFICATIONS

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • Input: 1 instrument/line/speaker level
  • Input Connectors: 1/4" jack
  • Input Type: Unbalanced, RF filtered
  • Insert Impedance: 150k Ohm typical
  • Max Input: +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
  • Output: (Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
  • Output Connectors: XLR male balanced
  • Output Impedance: 150k Ohm typical
  • Max Output: 0dBu
  • Transformer: Custom dbx mu-metal-shielded
  • Frequency Response: 20Hz to 20kHz, +/-2.5dB
  • Noise: -105dB unweighted, 22kHz BW
  • THD: 0.01%, 20Hz to 20kHz BW; 0.005%, 1kHz

Manufacturer: DBX
Model: DB10
Warranty: See manufacturer website for details
SKU: I230964-N-0-B
UPC: 691991401015
