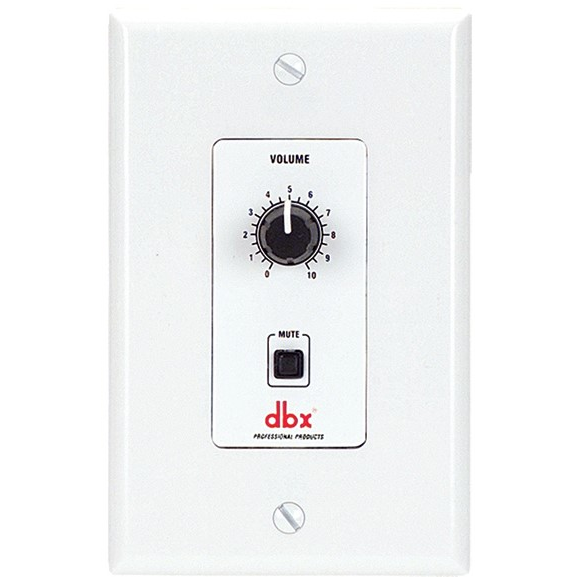

DBX Professional ZC-2 Wall-Mounted Zone Controller For Driverack


  • Our Price
  • $59.00
  • Regular price MSRP: $74.30





Take Control With The DBX Professional ZC-2 Wall-Mounted Zone Controller For Driverack

The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. Wired with readily available and affordable CAT5 cable with universally accepted rj-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor. The ZC-2 offers programmable volume and mute control for the DriveRack 220i, 260 and the ZonePro 640 and 641.

The ZC-2 offers programmable volume and mute control for the DriveRack 220i, 260 and ZonePRO products.

Specifications

  • Connectors: (2) RJ-45
  • Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
  • Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
  • Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
  • Safety Agency Certifications: UL 60065, IEC 60065, EN 55013, E60065

Manufacturer: DBX
Model: ZC-2
Warranty: See manufacturer website for details
SKU: I168888-N-28
UPC: #691991400674
Listing ID: NA23167
