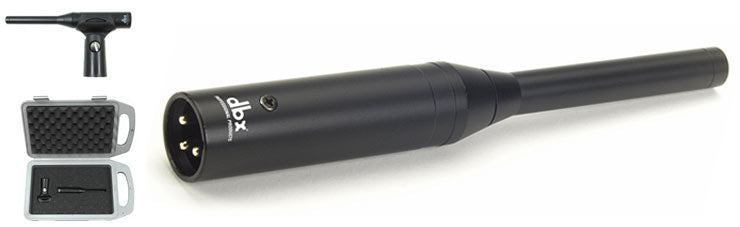

DBX RTA-M Reference Microphone

Get Optimized Sound Quality In The Most Difficult Spaces With The DBX Professional RTA-M Reference Microphone

The RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA, DriveRack PA+ and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments.

The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.

SPECIFICATIONS

• Polar Pattern: omni-directional
• Element: back electret-Condenser
• Frequency Response: 20 Hz - 20 kHz
• Impedance: 250 30% (at 1,000Hz)
• Sensitivity: -63 dB +-3 dB ( 0 dB=1V/ microbar 1,000 Hz indicated by open circuit )
• Operating Voltage: phantom power 9V-52VDC
• Element: Back Electret Condenser
• Polar Pattern: Omnidirectional
• Frequency Range: 20 Hz ~ 20,000Hz
• Impedance: 250 Ohm +/- 30% (@ 1KHz)
• Operating Voltage: 9~52V DC Phantom Power
• Sensitivity: -63 dB +/-3 dB (0 dB=1V/microbar 1,000 Hz indicated by open circuit)
• Dimensions: Ø10(mic head) x 145(L) mm
