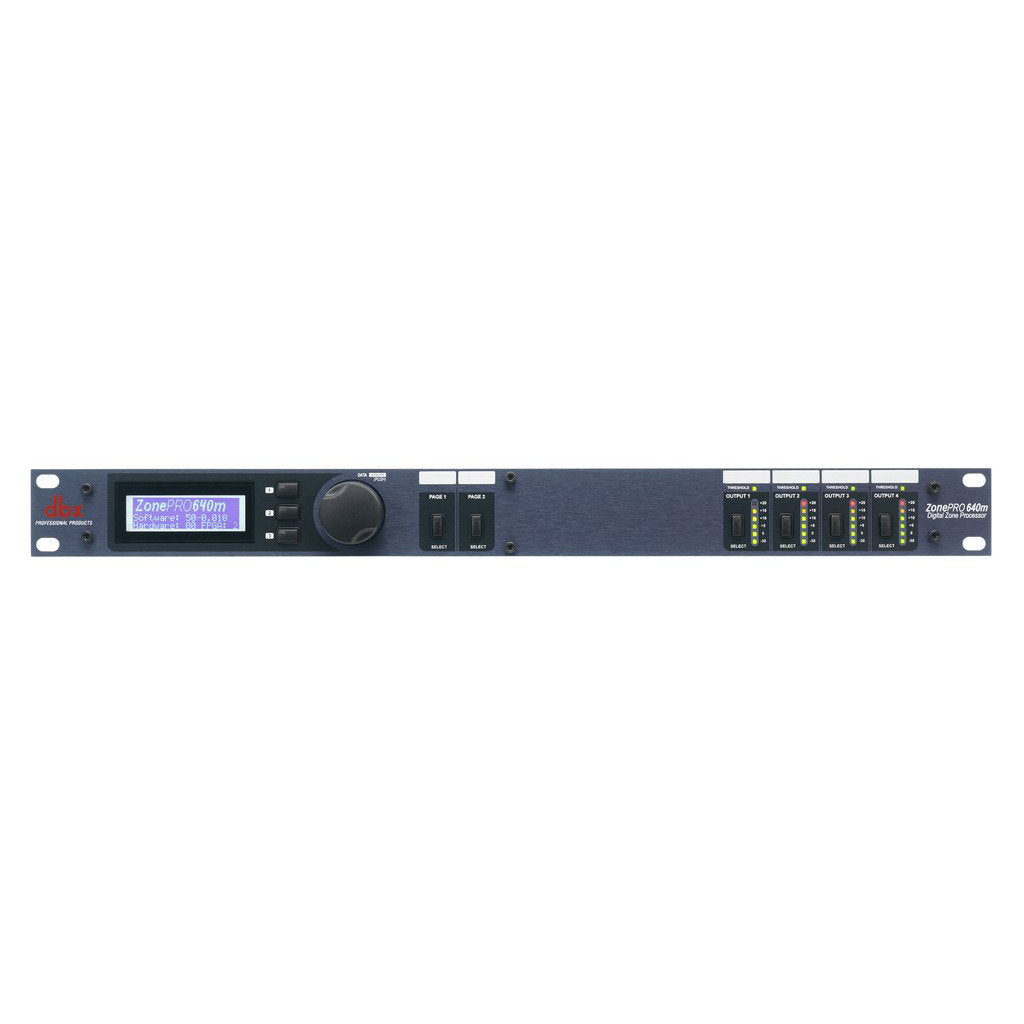

DBX ZonePro 640 Digital Zone Processor

by DBX
Original price $817.76
Original price $817.76 - Original price $817.76
Original price $817.76
Current price $749.00
$749.00 - $749.00
Current price $749.00
Inventory Status:

► New - ♫ In stock
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Condition: New

Get Superior Sonic Performance And Flexibility With The DBX ZonePro 640 Digital Zone Processor

With 6 inputs and 4 outputs the DBX ZonePRO 640 provides flexible signal routing, powerful DSP processing and multiple control interfaces for Commercial Audio applications.

Designed to offer superior system sonic performance and flexibility, the 640/641 deliver the highest quality tools available. Even the input and outputs connectors were chosen for their standard usage and reliability. The ZonePRO products offer Euroblock connectors for balanced signals and RCA connectors for interfacing with consumer equipment often used in commercial applications; there is also a simple analog input buss that allows inputs to be sent from one unit to the next for unit and job scalability. The 640 and 641 provide every necessary processing tool, from the input processing like gain control and EQ available on all inputs to highly sophisticated and specific functions such as selectable paging microphone processing including Gating, De-Essing, Auto Gain Control, Compression and Feedback Suppression. The heart of the ZonePRO products is the Routing module that provides of course Primary Source Selection but also Source Ducking for Paging and Priority Override. The outputs also offer a wealth of processing designed for commercial applications like our patent-pending AutoWarmth function that was co-developed with JBL to provide natural low frequency extension at any signal level. Each output also offers EQ, Bandpass and Crossover filters, Limiting and Delay for system optimization. With the ZonePRO every tool is at your disposal to maximize the response of your system.

Beyond processing, the ZonePRO products offer multiple forms of control to further extend the versatility of your system. From easy-to-use wall panel Zone Controllers for standard end-user functions like source select and volume control to advanced system control including a built-in Real Time Clock that can provide programmable system changes throughout the day or week. For system setup and monitoring the ZonePRO Designer software provides an intuitive interface and a speedy setup Wizard for configuring and editing all system parameters.

The ZonePRO 640 will take your Commercial Audio system to the next level with advanced processing, versatility and control.


  • Advanced Feedback Suppression (AFS)
  • Autowarmth
  • Auto Gain Control
  • Compression
  • Limiting
  • Noise Gating
  • Notch Filtering
  • Bandpass and Crossover Filters
  • Parametric EQ
  • Security Lockout
  • Wall Panel Control
  • RS-232 Control
  • Windows 2000 and XP GUI
  • IEC, UL and CSA Approvals


SPECIFICATIONS

  • Input: (6 total) (2) Switchable line or mic inputs (4) RCA Source
  • Input Connectors: Euroblock (Line and Mic) RCA (Source)
  • Input Type: Electronically balanced/RF-filtered
  • Input Impedance: 50k ohm balanced, 75k ohm unbalanced
  • Max Input: +20dBu Mic/Line, +12dBu RCA
  • CMRR: 40dB, typically 55dB @ 1 kHz
  • Mic Preamp gain: 30 to 60dB
  • Mic Preamp Equivalent Input Noise (EIN): -118dB
  • Mic Preamp Phantom Power: 15V
  • Output: 4 total
  • Output Connectors: Euroblock
  • Output Type: Electronically Balanced, RF Filtered
  • Output Impedance: 120 ohms balanced, 60ohm unbalanced
  • Max Output: +20dBu
  • A/D Converter: DBX Type IV conversion system
  • A/D Dynamic Range: (line) 113 dB, A-weighted, 110 dB unweighted
  • Type IV Dynamic Range: 119dB, A-weighted, 22kHz; BW: 117dB, unweighted, 22kHz BW
  • Digital Output: RCA 24-Bit oversampling
  • Digital Output Dynamic Range: 114 dB A-weighted, 110dB unweighted
  • Sample Rate: 48kHz
  • D/A Dynamic Range: 112 dB A-weighted, 109dB unweighted
  • Dynamic Range: 109 dB A-weighted, 106 dB unweighted
  • THD+Noise: 0.003% typical at +4dBu, 1kHz, 0dB gain
  • Frequency Response: 20Hz - 20kHz, +/-0.5dB
  • Interchannel Crosstalk: 80dB typical
  • Propagation Delay: 0.6 msec
  • Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
  • Power Consumption: 29 W
  • Unit Weight: 6.8 lbs.(3.1 kg)
  • Shipping Weight: 8.8 lbs. (4.0 kg)
  • Dimensions: 1.75 inch H x 5.75 inch D x 19 inch W
  • Safety Agency Certifications: UL 600065, IEC 60065, EN 55013, E60065

Manufacturer: DBX
Model: 640
SKU: I152385-8-WHXPL
