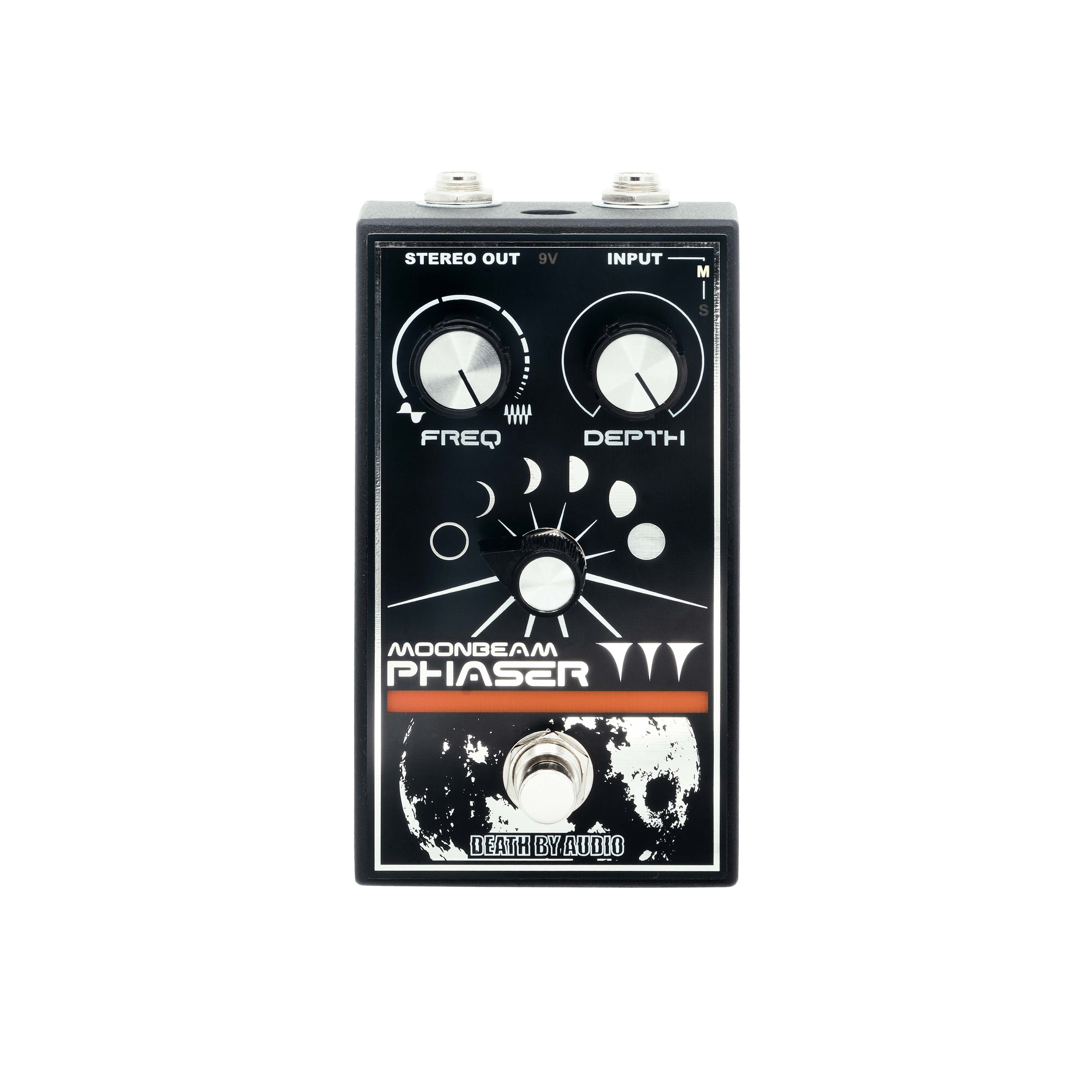

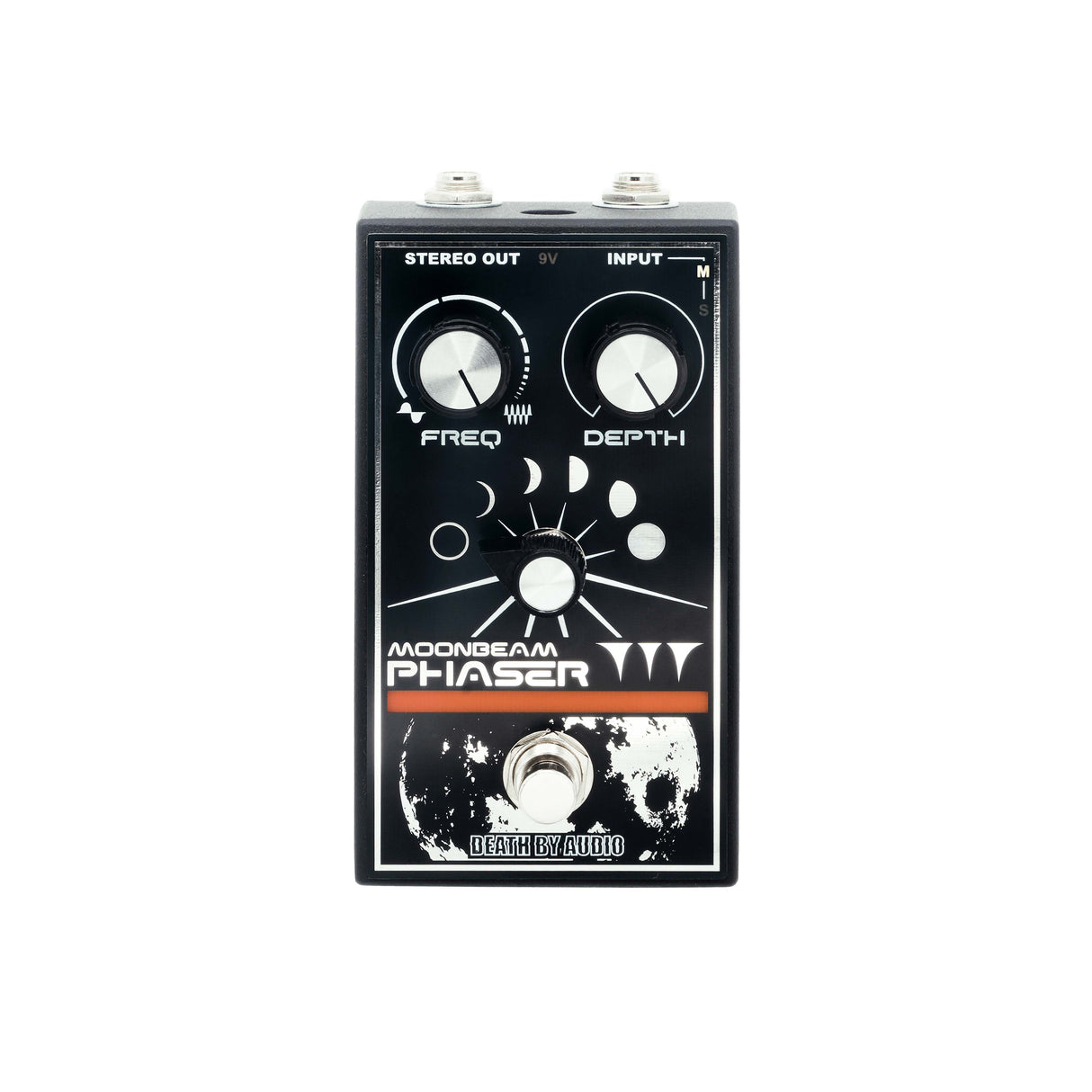

Death by Audio Destroyer Series Moonbean Phaser Effects Pedal

A Mesmerizing Array of Phasers - The Death by Audio Destroyer Series Moonbean Phaser Effects Pedal

The Moonbeam Phaser has landed. A stereo, multi-stage phaser like no other, the Moonbeam Phaser lets you completely reshape your sound by choosing between one and six stages of phase shifting for any modulation occasion. With its expansive range of controls, you can instantly explore everything from classic swirling movements to ultra-gooey bends, resonant filtered tremolos, and textures yet to be discovered. Take a trip through the world of tones from beyond the exosphere.

At its core, the Moonbeam Phaser houses two fully analog 6-stage phase shifter engines. You can tap into each stage individually and hear its unique movement as the display morphs through a spectrum of colors that mirror the sound. To unleash the full potential of this unique circuit, we supercharged the FREQ control far beyond the usual range. Drift slowly through 2-minute phase sweeps, dive into liquid swirls, or blast off into ring-modulated frequency shifts. Combined with the DEPTH control, the Moonbeam Phaser opens a vast spectrum of refracted phasing tones- from shimmering rotary-style warbles to deep, resonant bends. And if one phaser wasn’t enough, we’ve packed two phasers in one, letting you bring your guitar, bass, synth, or anything you can imagine into mesmerizing stereo with the click of a stomp.

Part of Death By Audio’s Destroyer Series, the Moonbeam Phaser sports the line’s signature look: a compact footprint, glowing vintage-style LED display, and minimal controls that conceal a world of sonic madness. Each Destroyer pedal delivers a distinct, over-the-top effect in a smaller, stage-friendly box - together forming a family of beautifully chaotic tone machines in stereo.

Features

• Six Phasers In One – Six selectable phase stages, each with a unique sonic character
• Fully Analog Phaser – Organic modulation from true analog circuitry
• Full Stereo Modulation – Expands sound from mono to wide stereo movement
• Ultra-High Headroom – Maintains clarity even with hot signal levels
• Super-Slow Phasing – Over two minutes of evolving slow sweeps available
• Hyper Speed To Ring Modulation – Extreme high-speed modulation via FREQ control
• Adjustable Depth – Full control over subtle shimmer to intense resonant sweeps
• Moving Light Indicator – Color-coded stage display reacts to the LFO movement
• Pedalboard-Friendly – Compact footprint with massive sonic range
• Tour-Grade Build Quality – Hand-assembled with durable hardware and components

SPECIFICATIONS

General

• Current Draw: 72 mA
• Power Jack: 9V 2.1mm Center-Negative
• Battery: No
• True Bypass: No
• Jack Position: Top
• Dimensions (including hardware): 5.16" x 2.76" x 2.38"
• Pedal Weight: 10.3 oz.
• Boxed Dimensions: 6" x 3.125" x 2.9375"
• Shipping Weight: 12.3 oz.

Controls

• PHASE SELECTOR – Choose 1 to 6 phasing stages
• 1 (Red): High-pass sweep with tremolo feel
• 2 (Yellow): Notch filter sweep with dual resonant peaks
• 3 (Green): Hybrid of phaser and harmonic tremolo
• 4 (Cyan): Classic widely-known phaser tone
• 5 (Blue): More resonance and treble emphasis than Stage 4
• 6 (Purple): Thick, bass-rich, chewy modulation
• FREQ – Controls modulation rate from 0.006Hz to 130Hz
• DEPTH – Adjusts sweep intensity, character, and resonance

Internal Controls

• Accessible via backplate removal
• INPUT CONFIGURATION SWITCH
• MONO INPUT – Standard TS for mono or mono-to-stereo (indicator shows “M”)
• STEREO INPUT – TRS for full independent stereo (indicator shows “S”)

Inputs and Outputs

• TRS stereo input/output supporting mono or stereo routing
• MONO – TS for input + TS for output
• MONO TO STEREO – TS input + TRS output (internal switch set to Mono Input)
• STEREO – TRS input + TRS output (internal switch set to Stereo Input)
