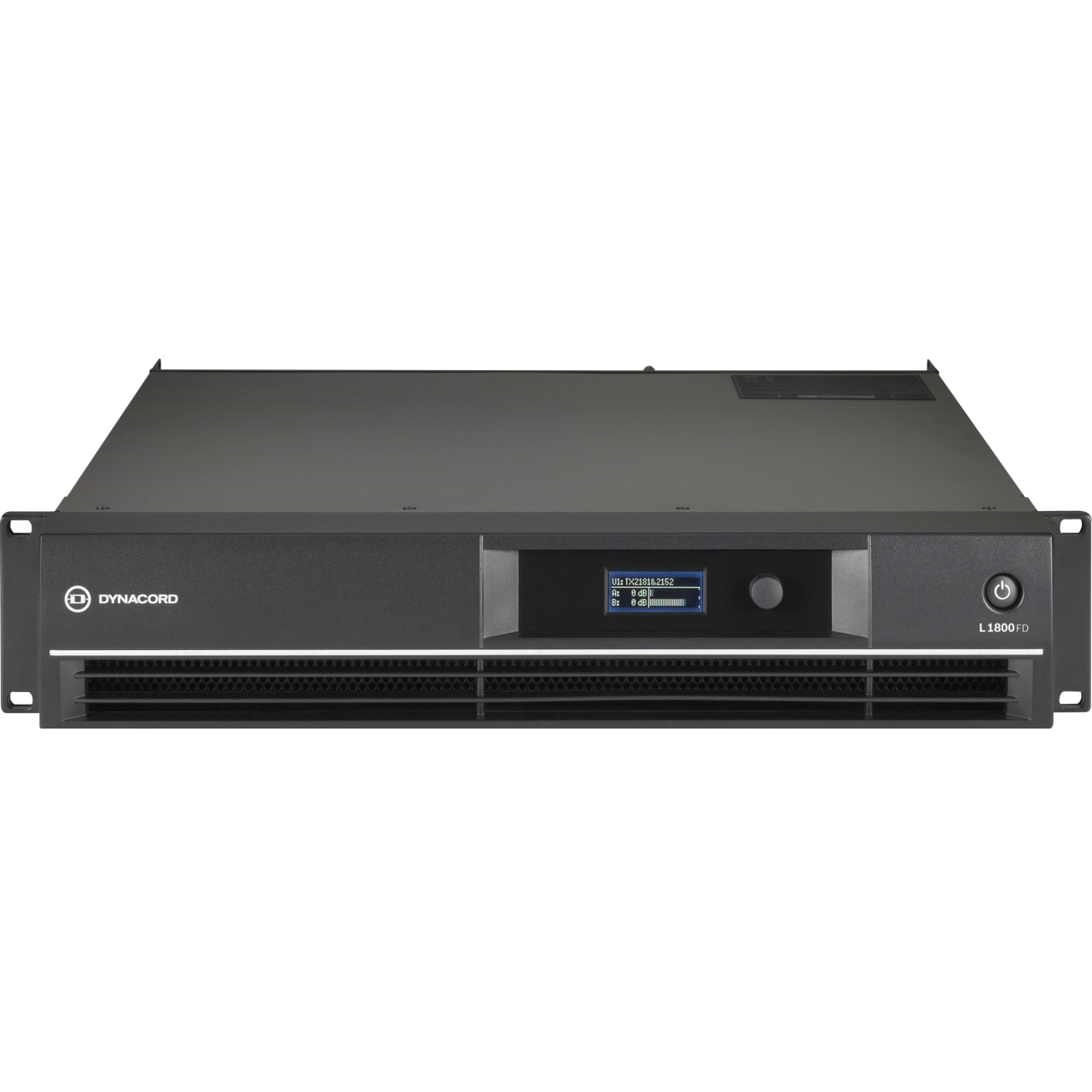

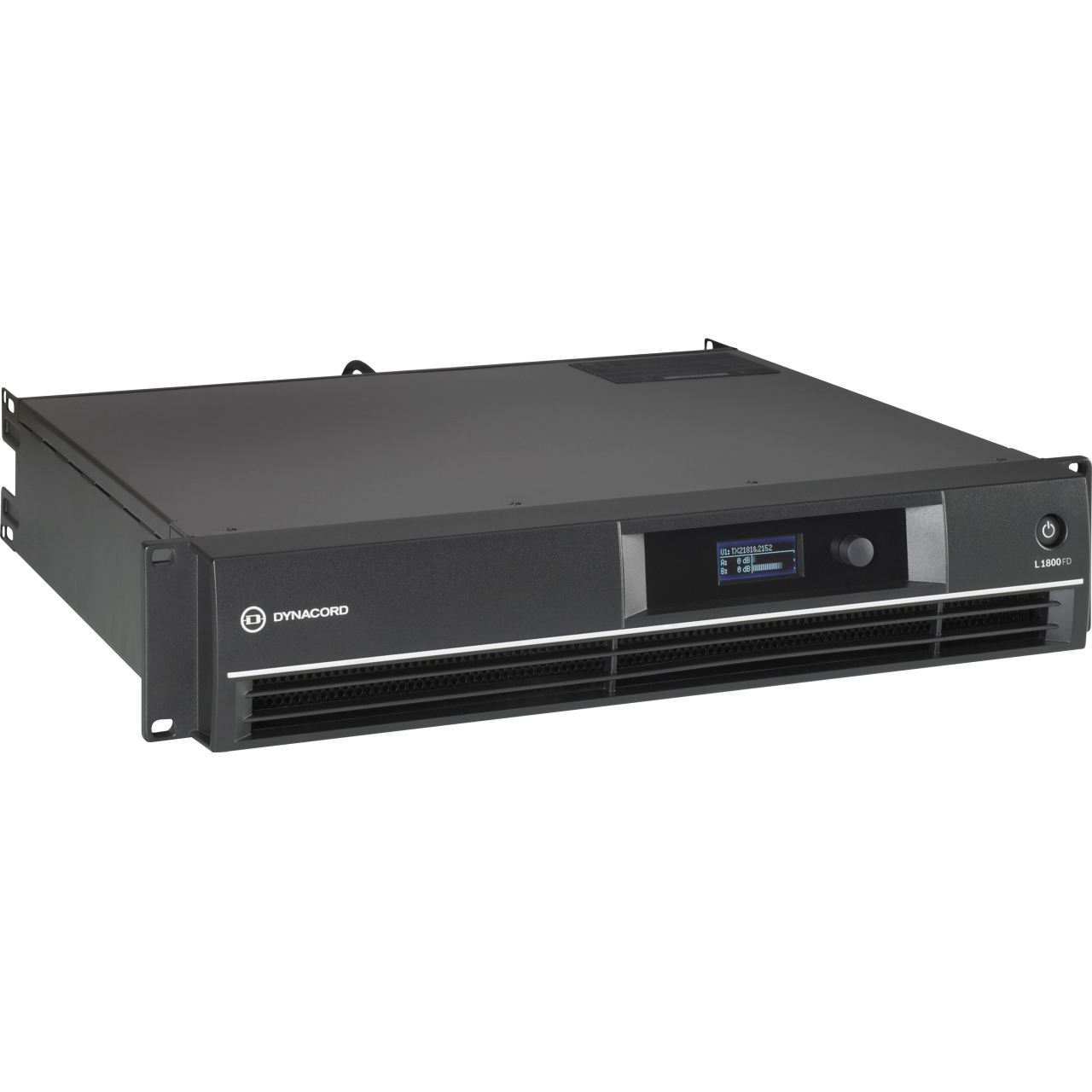

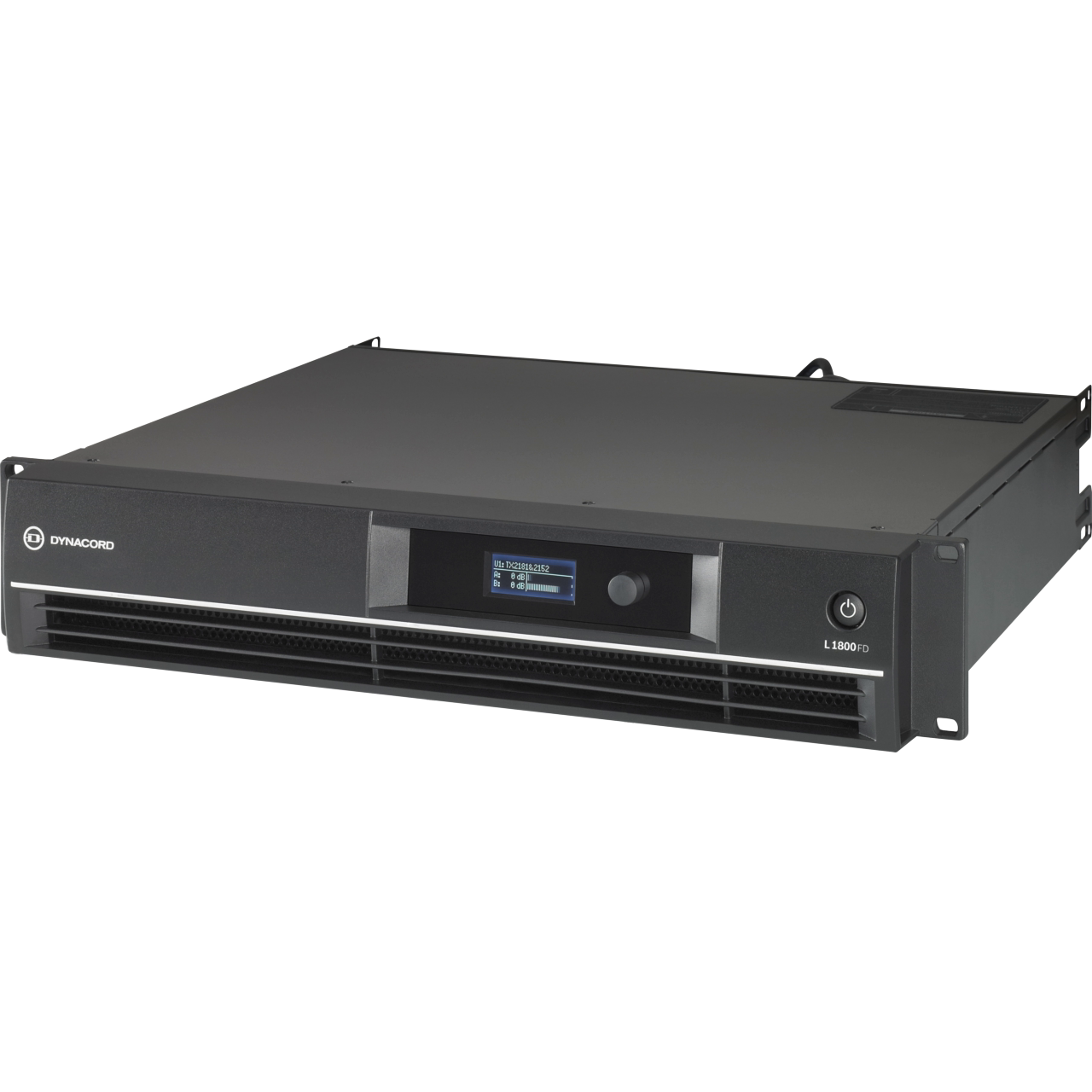

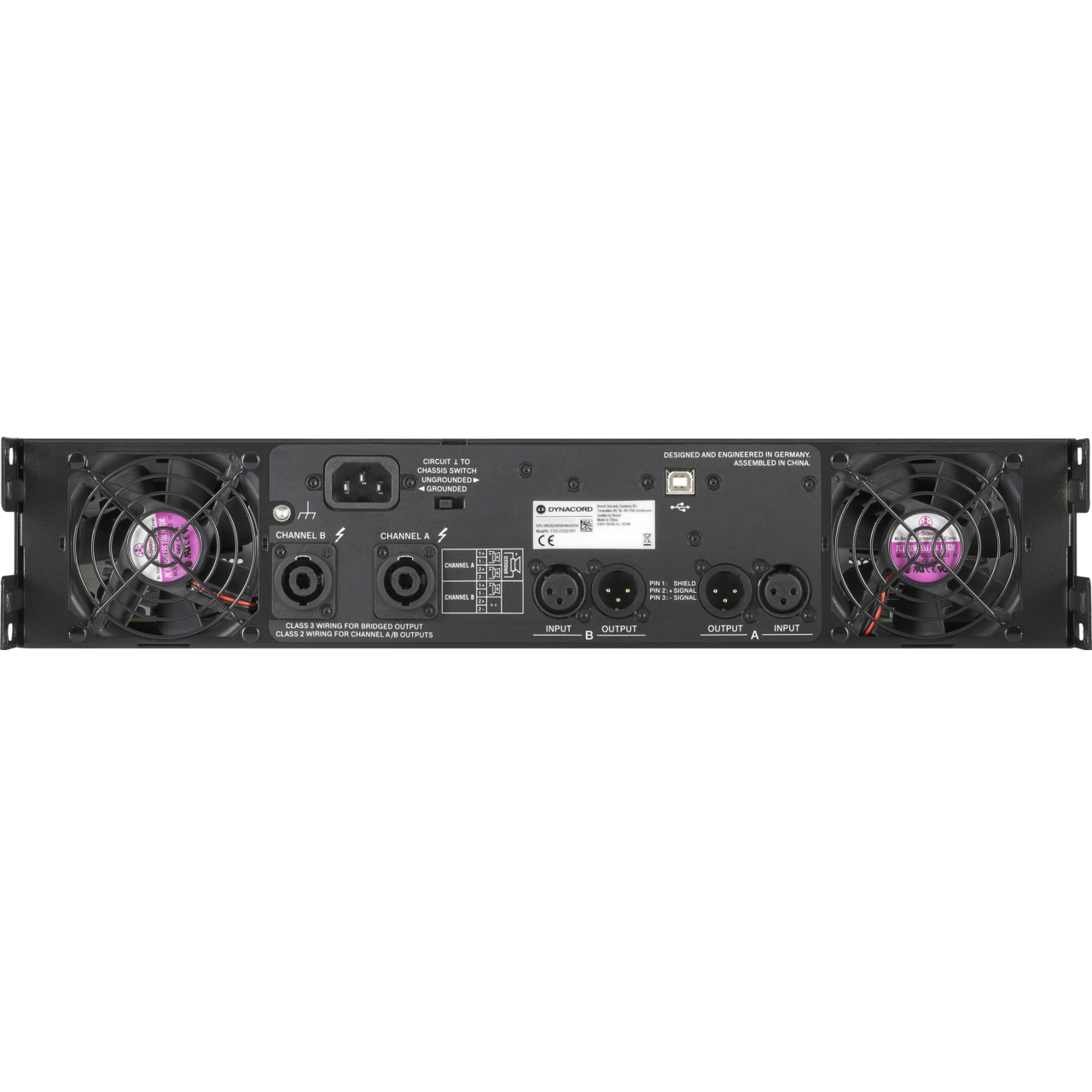

Dynacord L1800FD Amplifier


  • Our Price
  • $849.00
  • Regular price MSRP: $1,051.00





*IN STOCK - READY TO SHIP



Dynacord L1800FD is a Premier DSP 2 x 950W Power Amplifier for Live Performance Applications

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.


  • Professional DSP amplifier for live and mobile application
  • Fully integrated professional speaker processing with FIR drive technology
  • Market-leading acoustic performance and rock solid reliability
  • Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0


SPECIFICATIONS

General

  • Maximum RMS Voltage Swing (THD = 1%, 1 kHz): 65.1 V
  • Voltage Gain (Ref. 1 kHz): 32.0 dB
  • THD at 600 W/4 Ω MBW = 80 kHz, 1 kHz: less than 0.05%
  • IMD-SMPTE, 60 Hz, 7 kHz: less than 0.1%
  • DIM30, 3.15 kHz, 15 kHz: less than 0.05%
  • Maximum Input Level: +21 dBu
  • Crosstalk ref. 1 kHz, at 100 W/4 Ω: less than -80 dB
  • Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
  • Input Impedance, Active Balanced: 20 k Ω
  • Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 Ω: greater than 105 dB
  • Output Noise, A-weighted: less than -68 dBu
  • Output Stage Topology: Class AB
  • Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
  • Power Consumption (1/8 Maximum Output Power @ 4 Ω): 700 W
  • Mains Fuse: 240 V/230 V: T12AH; 120 V/100 V: T25AH
  • Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
  • Cooling: Front-to-rear, 3-stage-fans
  • Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
  • Safety Class: I
  • Color: Black
  • Dimensions (W x H x D): 483 x 88 x 462.4 mm
  • Weight: 15.2 kg (33.5 lb)
  • Signal Processing: FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
  • Remote Control: SONICUE sound system software**
  • Accessories: RMK15 (rear rack mount kit)

** requires Firmware 2.0

Max Output Power

  • Max Output Power, Single Channel: 2Ω 1600 W, 2.6Ω 1300 W, 4Ω 950 W, 8Ω 480 W
  • Max Output Power, Dual Channel: 2Ω 1400 W, 2.6Ω 1200W, 4Ω 850 W, 8Ω 450 W
  • Max Output Power, Bridged: 4Ω 2800 W, 8Ω 1700 W

Manufacturer: Dynacord
Model: L1800FD-US
Warranty: See manufacturer website for details
SKU: I495014-N-2-B
UPC: 800549797764
