Description
Description

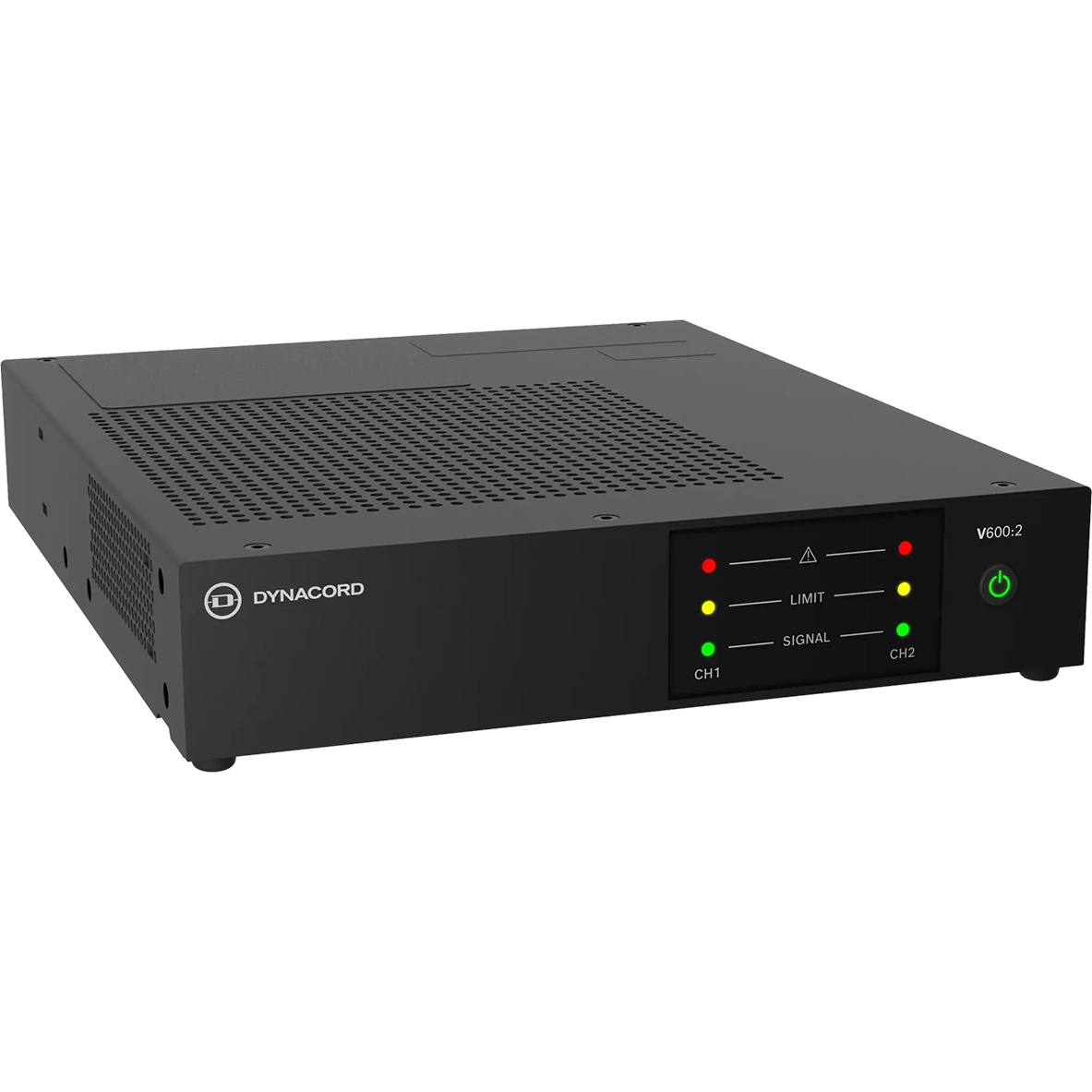

Flexible Installation Power – The Dynacord V600:2 2-Channel 600W Power Amplifier
The Dynacord V600:2 is a compact two-channel power amplifier designed for small to mid-sized fixed installations. Delivering 600 watts of total output power from a 1 RU, half-rack-width chassis, it combines flexible power sharing, direct-drive 70 V/100 V operation, integrated signal processing, and efficient thermal management for professional installed sound systems.
- 600 W total output power with two amplifier channels
- powerTANK technology allows flexible asymmetric power allocation between channels
- Direct-drive 70 V/100 V output eliminates the need for output transformers
- Supports 4-ohm, 8-ohm, 70 V, and 100 V loads selectable per channel
- Integrated signal processing with input routing, selectable HPF and LPF, and peak limiter
- ecoRAIL technology reduces idle power consumption
- Auto Power Down reduces standby consumption to less than 1 W
- dualCOOL thermal management combines convection and intelligent forced-air cooling
- Compact 1 RU, half-rack-width design
- Can be installed on a tabletop, in a 19-inch rack, under a surface, or on a wall
Flexible powerTANK Power Sharing
Dynacord powerTANK technology acts as a flexible power reservoir, giving the V600:2 access to its full 600 watts of available output power. Rather than limiting each channel to a fixed amount of power, the amplifier can allocate power asymmetrically between channels based on the requirements of the connected loudspeakers.
Direct-Drive Low- and High-Impedance Systems
The V600:2 supports 4-ohm, 8-ohm, 70 V, and 100 V operation, selectable per channel. Direct-drive 70 V/100 V capability allows distributed loudspeaker systems to be powered without the need for external output transformers, making the amplifier suitable for a wide range of commercial and installed audio applications.
Integrated Signal Processing
Built-in signal processing includes input routing, selectable 24 dB/octave high-pass and low-pass filtering, flat response operation, and peak limiting. These tools help optimize the amplifier for different loudspeaker systems and installation requirements.
Efficient Power and Cooling
ecoRAIL technology helps minimize energy use when no signal is present, while Auto Power Down can reduce standby consumption to less than 1 watt. Dynacord dualCOOL thermal management uses convection cooling during lighter operation and intelligent multi-speed forced-air cooling when installed in tighter rack spaces or under demanding thermal conditions.
Flexible Installation
The V600:2 occupies only 1 RU in height and half a rack width. Two amplifiers can be installed side by side in a single rack space, while additional mounting options support tabletop, under-surface, and wall installations.
SPECIFICATIONS
Power and Amplification
- Total Output Power: 600 W
- Channels: 2
- Output Power @ 4 Ohms, All Channels Driven: 2 x 300 W
- Output Power @ 8 Ohms, All Channels Driven: 2 x 300 W
- Output Power @ 70 V, All Channels Driven: 2 x 300 W
- Output Power @ 100 V, All Channels Driven: 2 x 300 W
- Maximum Output Power per Channel: 500 W @ 4 ohms / 70 V, 600 W @ 8 ohms / 100 V with power sharing at minimum impedance
- Maximum Output Voltage per Channel: 40.0 V RMS @ 4 ohms, 56.0 V RMS @ 8 ohms, 70.7 V RMS @ 70 V, 100 V RMS @ 100 V
- Input Sensitivity: +6 dBu at LEVEL 0 dB / 0 dBu at LEVEL +6 dB
- Maximum Input Level: +18 dBu
- Direct Drive 70 V/100 V: Yes
- Power Tank: Yes
Acoustic Performance
- Frequency Response: Filter-selectable, -3 dB referenced to 1 kHz
- 4/8 Ohm Frequency Response: HP 30/100/150 Hz to 20 kHz, LP 30 to 150 Hz
- 70/100 V Frequency Response: HP 50/100/150 Hz to 20 kHz, LP 50 to 150 Hz
- THD+N: <0.1% at 1/8 rated output power, 1 kHz
- Signal-to-Noise Ratio: >100 dB, A-weighted
- Crosstalk: <-70 dB @ 4 ohms to <-95 dB @ 100 V
Signal Processing
- Input Routing: Yes
- High-Pass Filter: 24 dB/octave, selectable 100/150 Hz
- Low-Pass Filter: 24 dB/octave, selectable 150 Hz
- Flat Mode: Yes
- Peak Limiter: Yes

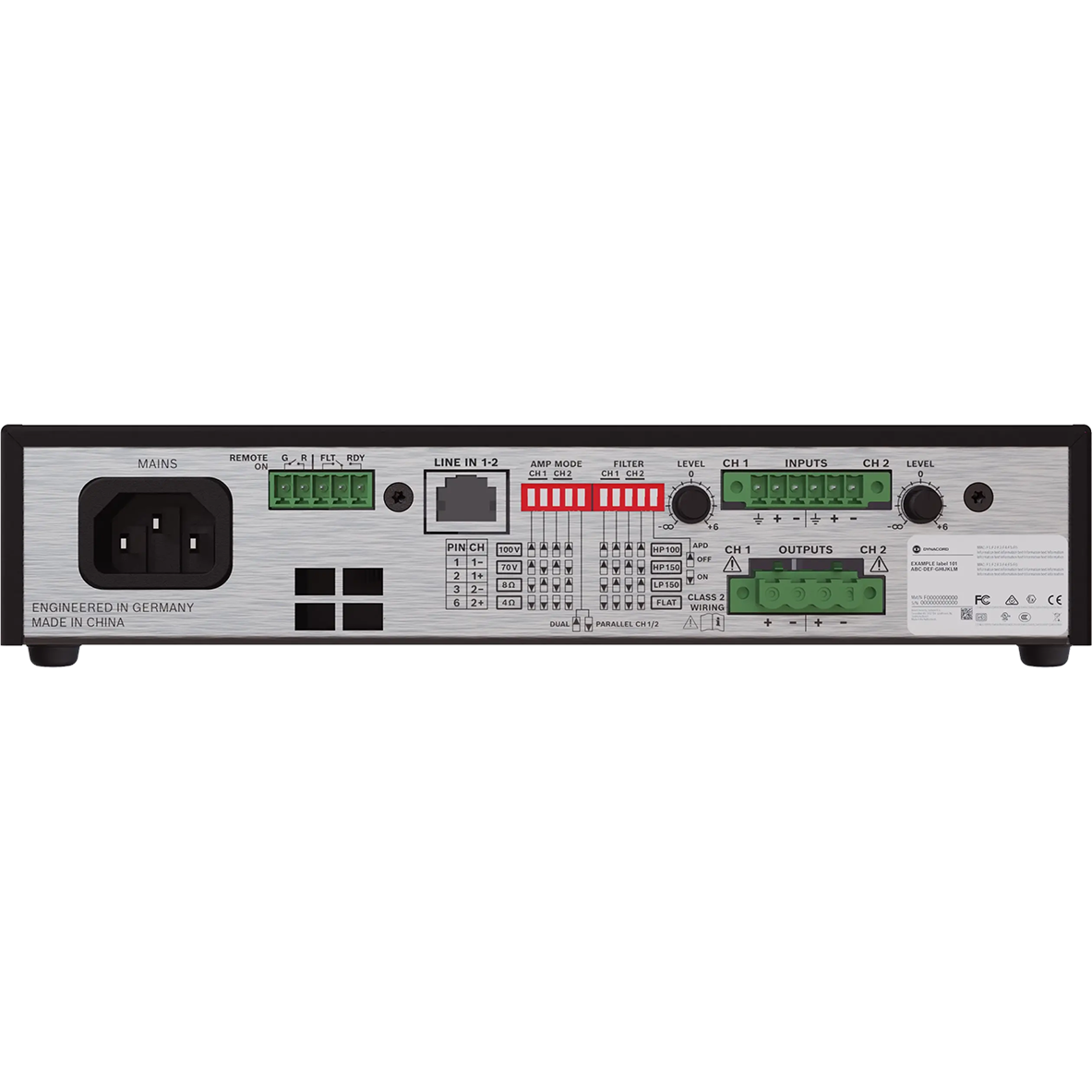

Connections
- Analog Input: 6-pin Euroblock 3.81 mm male
- Parallel Audio Connection: 1 x RJ45, AES72-1E line in/thru
- Loudspeaker Output: 4-pin Euroblock 5.08 mm female
- Control Port: 5-pin Euroblock
- Mains Connection: IEC C14
Control and Monitoring
- Remote On/Standby: Yes
- Ready/Fault Relay: Galvanically isolated, maximum 30 V DC / 500 mA DC
- Channel Indicators: Signal, Limit, Fault LEDs
Protection
- Audio Limiters: Yes
- High Temperature Protection: Yes
- DC Protection: Yes
- HF Protection: Yes
- Short Circuit Protection: Yes
- Back-EMF Protection: Yes
- Peak Current Limiters: Yes
- Inrush Current Limiters: Yes
- Mains Over/Under Voltage Protection: Yes
Power Requirements
- Operating Voltage: 100 V to 240 V AC, 50/60 Hz
- Power Consumption: 115 W at 1/8 rated output power
- Idle Consumption: <12 W with ecoRAIL and no signal
- Standby Consumption: <1 W with Auto Power Down
Cooling and Environment
- Cooling: dualCOOL convection and intelligent multi-speed forced-air cooling
- Ambient Operating Temperature: -5°C to +45°C / +23°F to +113°F
- IEC Protection Class: Class I grounded
Physical Specifications
- Rack Height: 1 RU
- Chassis Width: Half-rack
- Dimensions (H x W x D): 44.2 x 218 x 269.5 mm / 1.74 x 8.6 x 10.6 inches
- Net Weight: 2.1 kg / 4.6 lb
- Mounting Options: Tabletop, 19-inch rack, under-surface, or wall mounting
- Material Number: F.01U.410.738
Manufacturer: Dynacord
Model: V600:2-US
SKU: I780550-N-1-WHXC
UPC: 800549373098
