Earthquaker Ghost Echo V3 Guitar Effects Pedal


  • Our Price
  • Regular price $179.00

*IN STOCK - READY TO SHIP





Get Haunting Tones out of The Earthquaker Ghost Echo V3 Guitar Effects Pedal

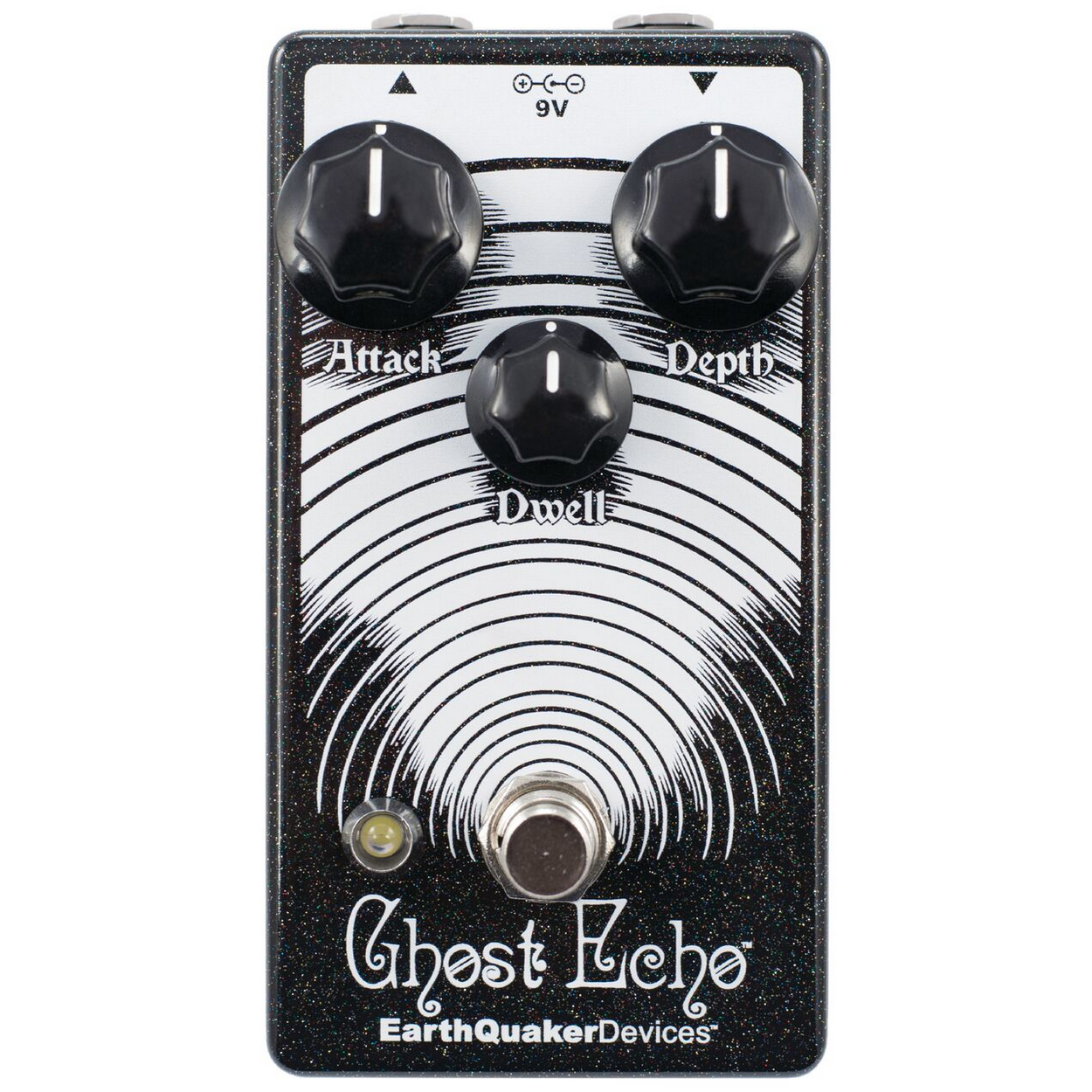

The Ghost Echo V3 is our spooky take on the haunted amp-top spring reverberation units of yesteryear. This creepy analog/digital spring reverb emulation machine boasts a terrifying 30ms - 150ms of pre-delay, controllable via the Attack knob, for everything from a quick rockabilly slapback to viscous pools of ectoplasmic reverberations. When playing staccato, you’ll hear the tortured trails of the reverb, resulting in more of a slapback or echo sound. Legato playing will reveal a massive ambient “depth” that fattens up the sound and look out, it's right behind you!

Phew, that was close. The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix, but we like to think of it more as how scary the overall effect is.

The Ghost Echo is true bypass and built one at a time by a team of friendly ghosts in the never-ending hall of funhouse mirrors that is Akron, Ohio, USA.

Features

  • Vintage Voiced Reverb
  • Analog / Digital hybrid spring reverb emulation machine
  • "Attack" control adjusts 30ms-150ms of pre-delay
  • Upgraded op-amps for better performance and lower noise
  • Stronger reverb signal with 2x the output
  • Recalibrated “Dwell” control capable of self-oscillations when all the way up
  • Accutronics Reverb Tank
  • New artwork
  • True Bypass
  • Silent relay-based switching
  • All-analog dry signal path
  • Lifetime guarantee

Specs

  • Dimensions: 4.75 x 2.50 x 2.25 in. (120.65 x 63.50 x 57.15 mm) with knobs
  • Current Draw: 86 mA
  • Input Impedance: 10 MOhm
  • Output Impedance: 1 KOhm
  • Switching: This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.
  • Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Manufacturer: EarthQuaker Devices
Model: EQDGEV3
Warranty: See manufacturer website for details
SKU: I468118-N-1-B
UPC: 858933004967
