Description

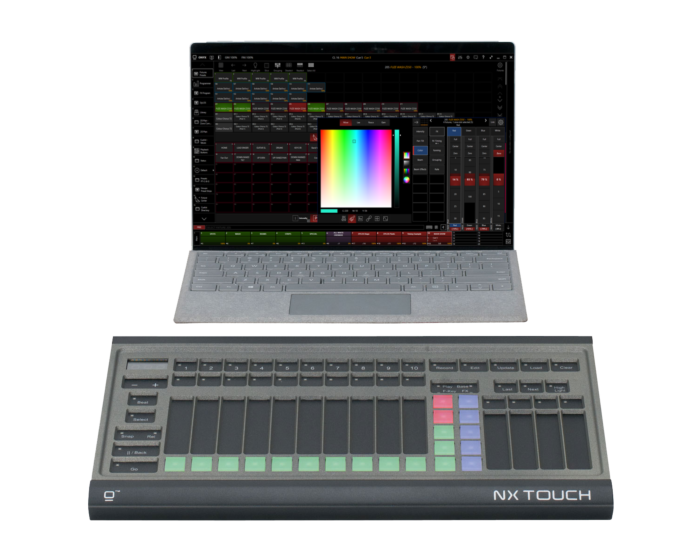

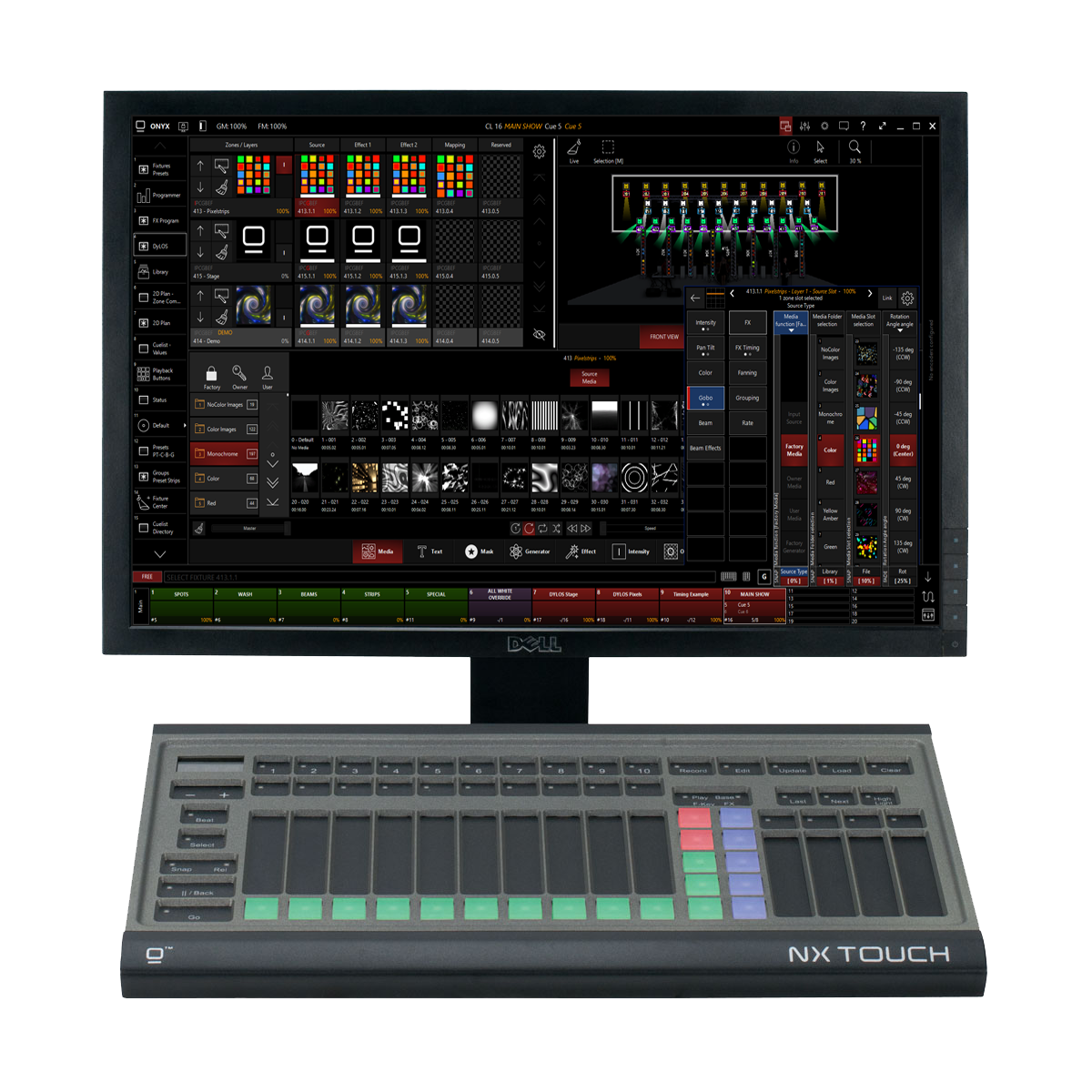

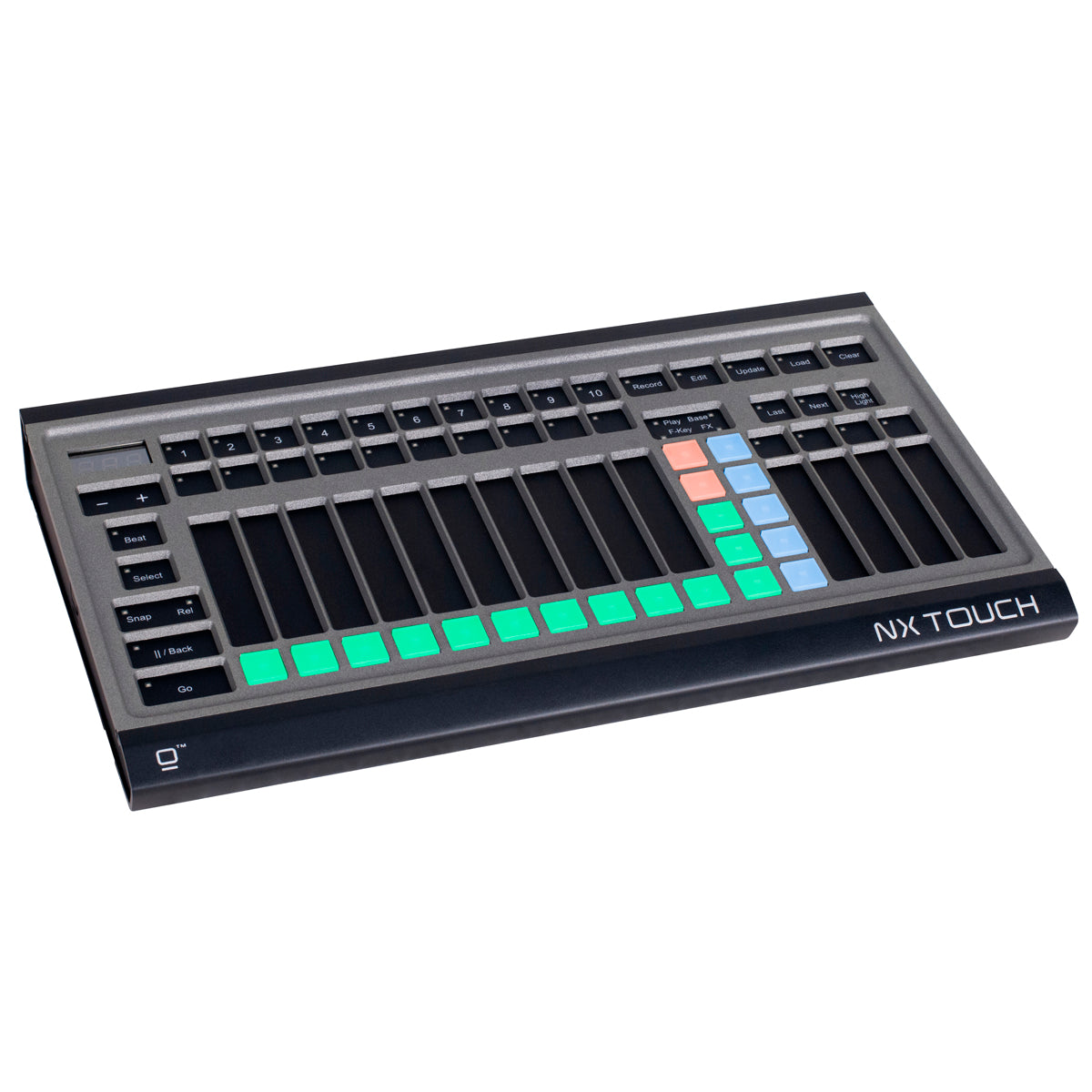

Elation NX Touch Control Surface

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console. 14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device.


SPECIFICATIONS

  • Surface

    • Bank Navigation Up/Down with numerical display
    • Main Go section: Snap, Release, Pause and Go buttons
    • Command Buttons: Record, Edit, Update, Load, Clear
    • Multifunction Mode Select button
    • Fixture Selection buttons: Last, Next, Highlight
    • 4x Parameter Select buttons
    • 4x Parameter Adjust touch faders
    • 10x Function velocity pads
    • 10x Playback touch faders with 3 buttons
    • (2x touch pad, 1x velocity pad)

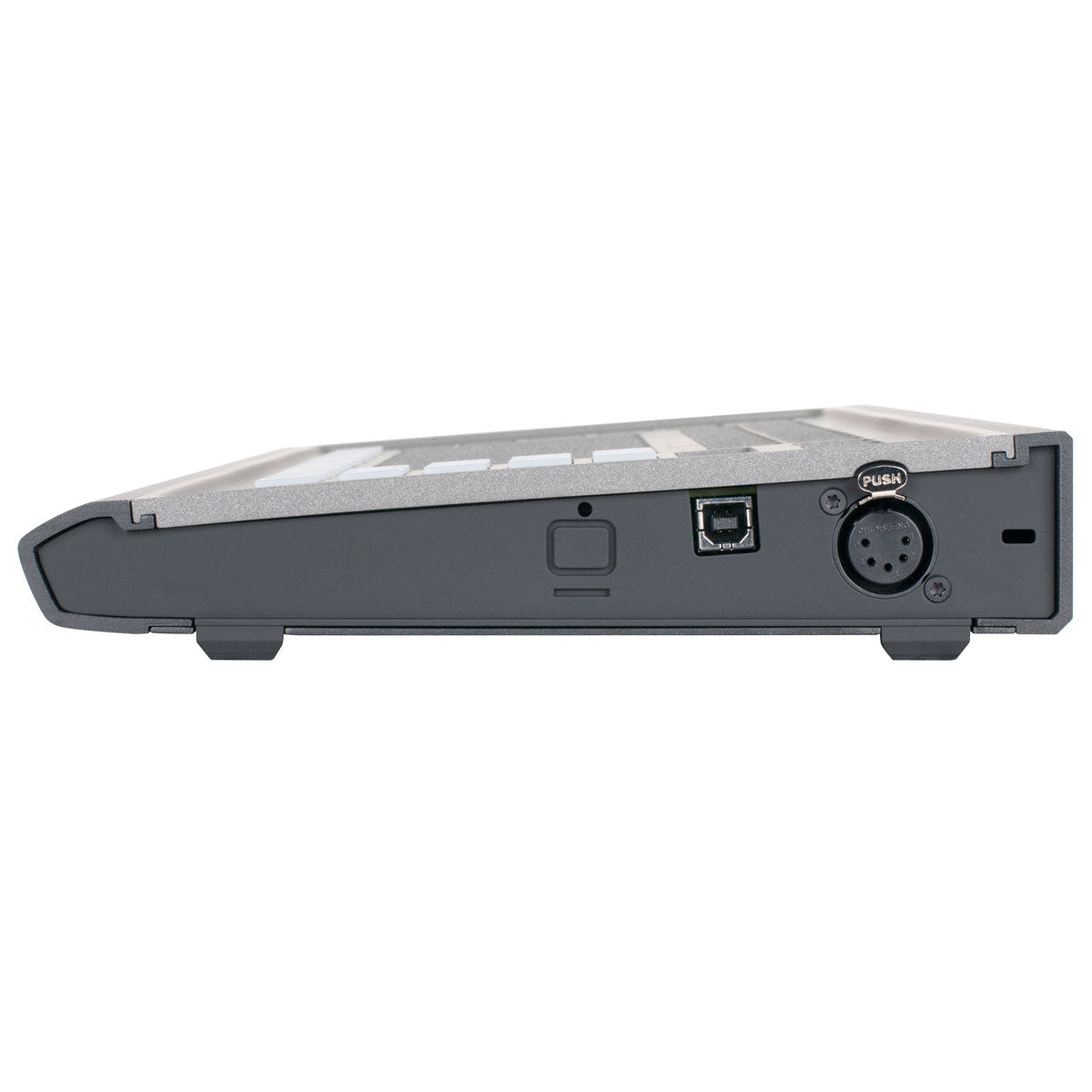

    Connections

    • DMX Out: 1x 5pin locking XLR

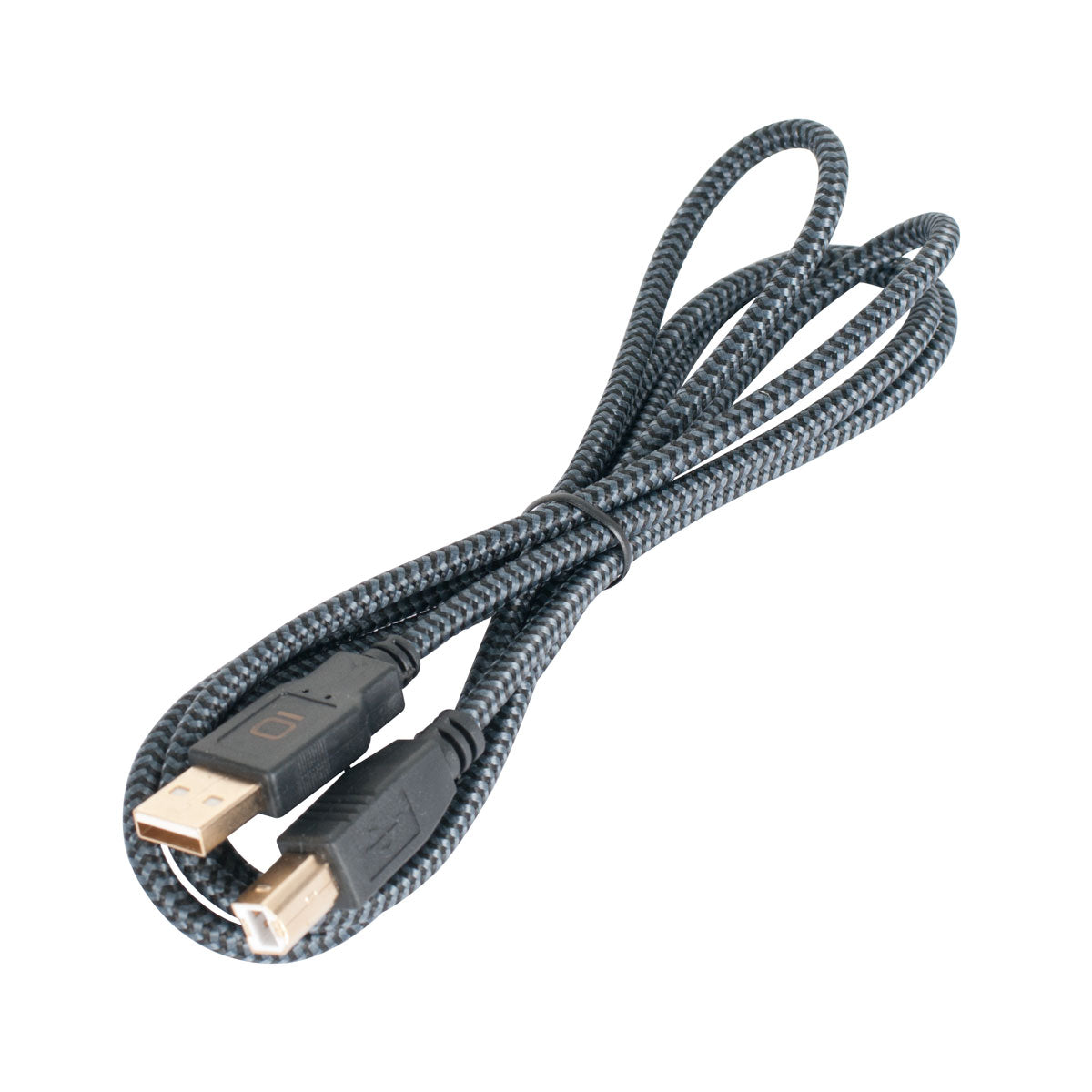

    • USB Input: USB B 2.0

    Requirements

    • Windows 10
    • Intel Core i3 processor 6th Generation+
    • 8 GB RAM
    • SSD Drive
    • 40 GB available disk space
    • Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
    • USB 2.0 port
    • 10/100 Ethernet port for Art-Net DMX output
    • 100/1000 Ethernet port for X-Net, Remote operation and sACN

    Physical

    • Length: 394 mm (15.5 in.)
    • Width: 218.5 mm (8.6 in.)
    • Height: 46.5 mm (1.8 in.)
    • Weight: 1.5 kg (3.3 lbs.)
    • Housing: Aluminum, steel, plastic

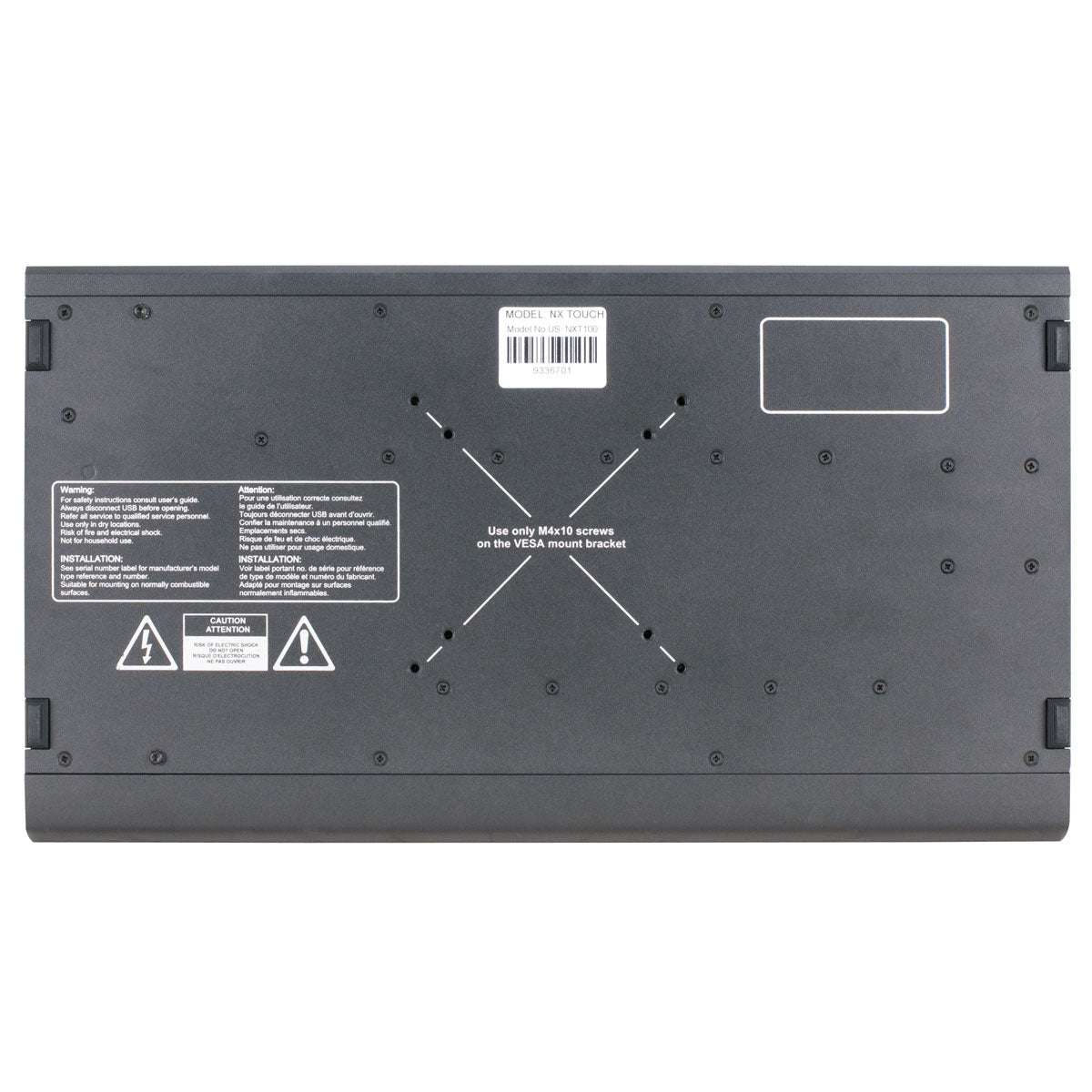

    • Mounting: VESA 75x75, 100x100
    • Security: K-Lock locking slot
    • IP Rating: IP20

    Electrical

    • Power source: 5 VDC over USB
    • Maximum current: 500 mA


Manufacturer: Elation Lighting Inc
Model: NX TOUCH
SKU: I624856-N-0-WHXA
UPC: 810008260418
