Elation Pixel Tape 16IP IP65 Outdoor Rated LED Pixel Tape

Create Instantly Stunning Effects with the Elation Pixel Tape 16IP IP65 Outdoor Rated LED Pixel Tape

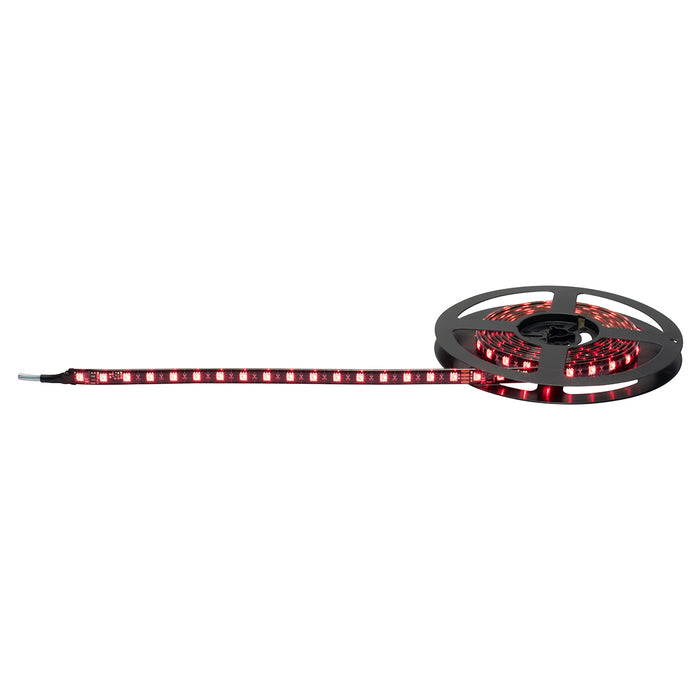

The PIXEL TAPE 16IP™ is an IP65, outdoor rated, 8.9 foot (2.7m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels), producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 rated conformal coating. PIXEL TAPE 16IP can be powered and controlled using our PIXEL DRIVER 170, PIXEL DRIVER 1000IP or PIXEL DRIVER 4000 V2 control drivers.

• IP65 Outdoor Rated Flexible LED Pixel Tape
• 8.9 foot (2.7m) Roll
• (170) RGB Tri-Color SMD LED Pixels
• (510) Total DMX Channels
• Pixels Spaced on 0.62” (16mm) Centers
• Cut Every 0.98” (25mm)
• 120° Viewing Angle
• 455 Lumens
• Over 1 Billion Color Possibilities

SPECIFICATIONS

• Source: 170 Pieces APA102 / RGB
• LED Spacing: 16mm Pixel Pitch
• Photometric Output: 455 Lumens
• Color: Over 1 Billion Color Possibilities
• Control: 510 DMX Channels, ICS APA102 Protocol
• Size / Weight:
  • Length: 107.2" (2,720mm) Roll
  • Width: 0.5” (12mm)
  • Vertical Height: 0.1" (3mm)
  • Weight: Under 1 lb. (0.2kg)
• Electrical / Thermal:
  • DC 24V
  • 35W Max Power Consumption
• Approvals / Ratings:
  • CE
  • cETLus (PENDING)
  • IP65
