Elation Professional Dartz 360 Compact Beam 50-Watt RGB LED Moving Head

Bring the Party with the Elation Professional Dartz 360 Compact Beam 50-Watt RGB LED Moving Head

The DARTZ 360™ is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

• IP65 Rated High Efficiency UV LED Spot
• 15 Degrees Narrow Beam Angle
• Peak Wavelength at 365nm
• Minimum Visible Light
• High Output 4500mW at Full Intensity
• Special Optics to Prevent Wear Degradation from High UV Exposure
• Flicker Free Operation for TV and FILM

SPECIFICATIONS

SOURCE

• Patent Pending 50W RGB LED Engine
• 50,000 Hour Average LED Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 29,562 LUX 2,746 FC @16.4’ (5m) (3° Full ON)

EFFECTS

• Motorized Focus
• 6 and 8 Facet Independent Rotating Prisms
• 0-100% Linear Frost Filter for Wash Effects
• High Speed Electronic Shutter and Strobe
• 16-Bit Variable Dimming Curve Modes
• Adjustable LED Refresh Rate and Gamma Brightness

COLOR

• RGB Smooth Color Mixing

GOBOS

• 14 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (19 / 22 / 25)
• 360° Continuous Pan and Tilt 8 / 16 Bit Movement
• Adjustable Refresh Rate (900-25,000 (Hz)
• Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
• 6 Button Menu Control Panel

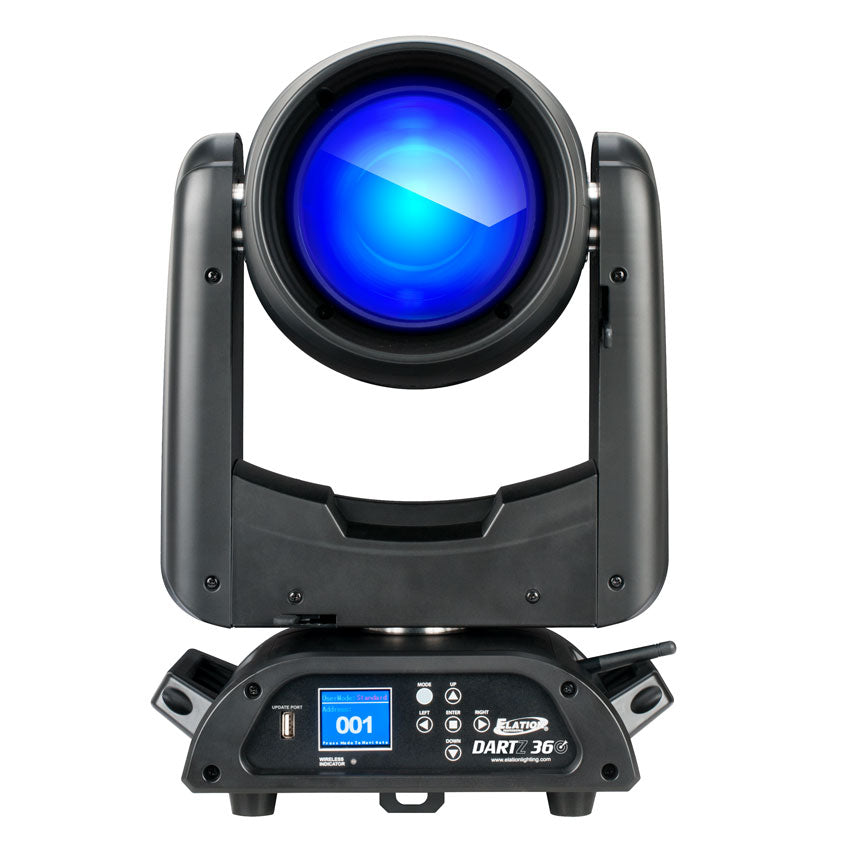

• Full Color 180° Reversible LCD Menu Display
• DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
• Elation E-FLY™ Internal Wireless DMX Transceiver

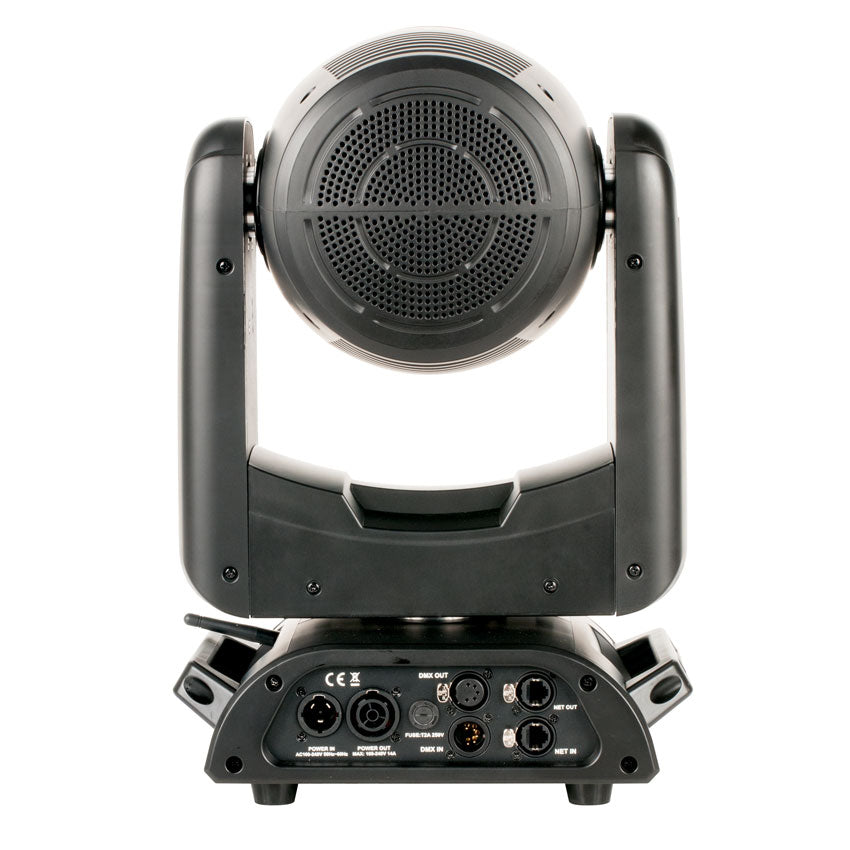

• 5pin DMX, RJ45 Ethernet In/Out
• Locking Power Cable In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 11.2” (284.15mm)
• Width: 7.7” (195.97mm)
• Vertical Height: 17.9” (454.7mm)
• Weight: 28.0 lbs. (12.7 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 154W Max Power Consumption
• 14°F to 113°F (-10°C to 45°C)
• BTU/hr (+/- 10%) 525.14

APPROVALS / RATINGS

• CE | cETLus | IP20
