PRODUCT DETAILS
Electro-Voice EKX-12 12-Inch Passive Hybrid Loudspeaker
Get Quality Sound with the Electro-Voice EKX-12 12-Inch Passive Hybrid Loudspeaker
The Electro-Voice EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology—all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.
- 1400-watt (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish

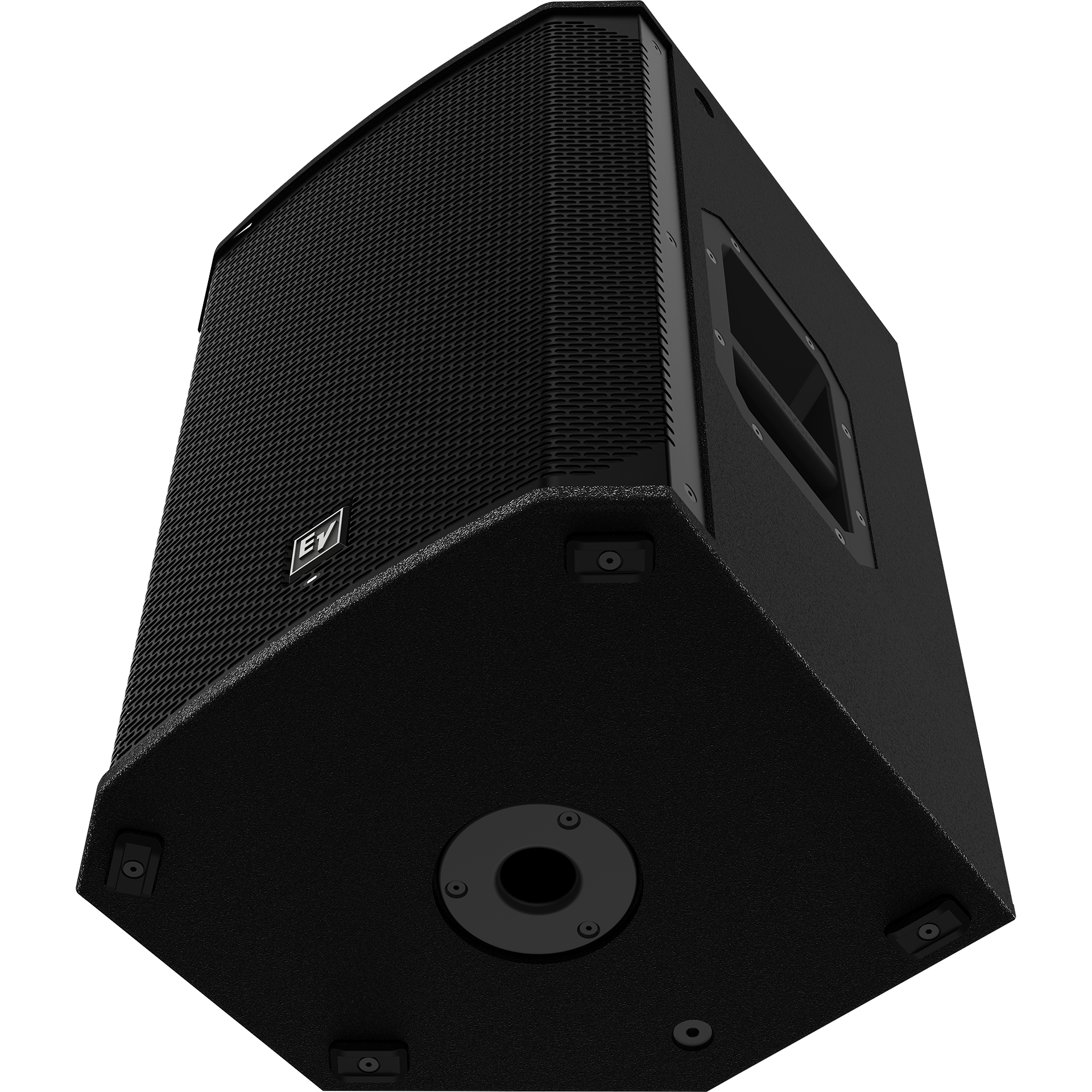

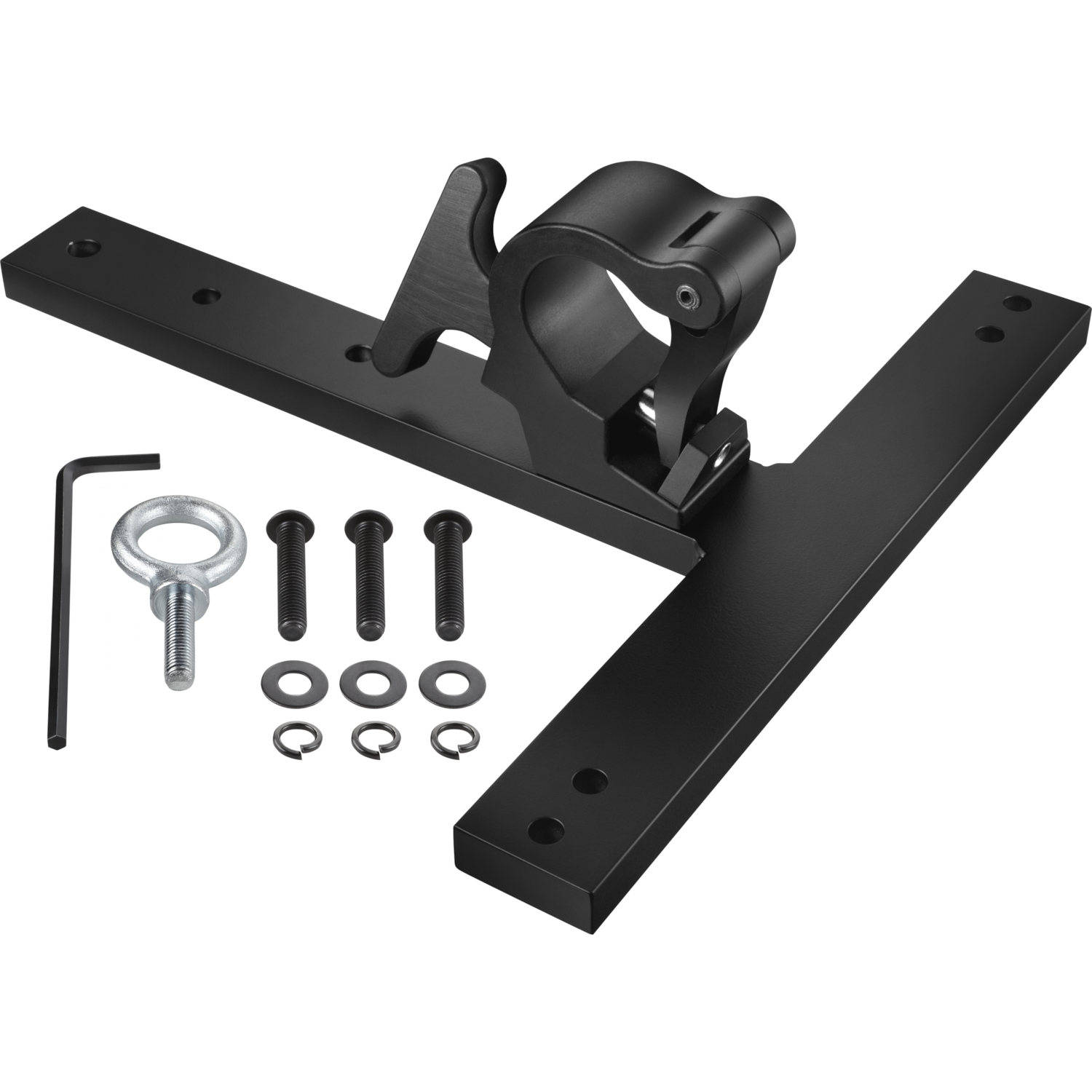

- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet
SPECIFICATIONS
- Frequency Range (-10 dB): 55 Hz - 20 kkHz (Full Space Measurement)
- Suspension: (8) M10 threaded mounting points
- Minimum Impedance: 7.5 Ω
- HF Transducer: DH-1M 1-inch titanium compression driver
- Speaker Type: Full-Range, two-way
- Woofer Size: 12-inch
- Powered or Passive: Passive
- Frequency Response (-3 dB): 82 Hz - 18 kHz (Full Space Measurement)
- Max. SPL/1m (calc): 131 dB
- Coverage (Nominal -6 dB): 90°
- LF Transducer: EVS-12M 300 mm (12 inches)
- Power Rating: 1400 watts
- Crossover Frequency: 1.6 kHz
- Connector Type: Dual NL4
- Enclosure Material: 15 mm, plywood with EVCoat
- Grille: 18 AWG steel with powdercoat
- Height: 23.9 inches (607 mm)
- Width: 14.76 inches (375 mm)
- Recommended High-Pass Frequency: 55 Hz
- Depth: 14.02 inches (356 mm)
- Weight Net: 38.36 lbs (17.4 kg)
- Shipping Weight: 47.18 lbs (21.4 kg)
- Family: EKX
- Power Handling (Continuous / Peak): 350 W / 1400 W
- Maximum SPL: 131 dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
- Passive Power Handling: 1400 watt peak
- Nominal Impedance: 8Ω
- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
Manufacturer: Electro-Voice
Model: EKX-12
SKU: I351317-2-WHXX
