Get Legendary EV Sound Quality And Reliability With The Electro-Voice EKX-12P 12 Inch Powered Loudspeaker
QuickSmartDSP features best-in-class processing, EV“ï“ç“ûs signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

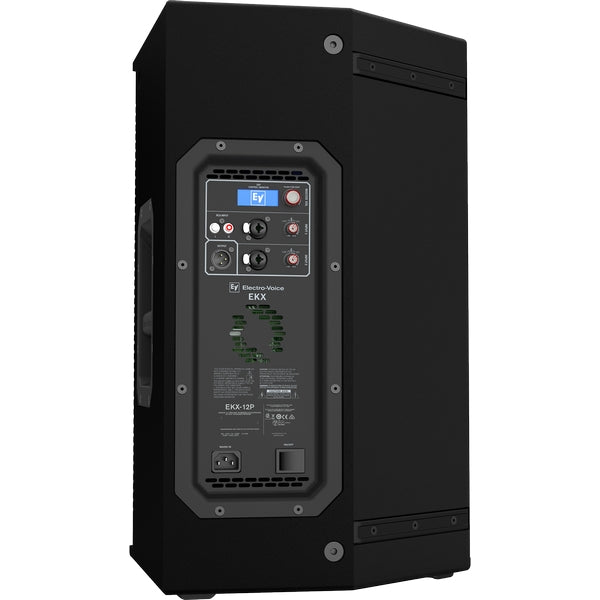

- Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
- Coverage (Nominal -6 dB) H: 90 Degrees
- Coverage (Nominal -6 dB) V: 60 Degrees
- Crossover Frequency: 1.7 kHz
- Depth: 14 inch (356mm)
- Enclosure Material: 15 mm, plywood with EVCoat
- Family: EKX
- Frequency Response (-10 dB): 50 Hz - 20 kHzHz (Full space measurement using the music DSP preset.)
- Frequency Response (-3 dB): 60 Hz - 18 kHzHz (Full space measurement using the music DSP preset.)
- Grille: 18 AWG steel with powdercoat
- Height: 23.9 inch (607mm)
- HF Transducer: DH-1M 1-inch titanium compression driver
- LF Transducer: EVS-12M 300 mm (12 in)
- Max. SPL/1m (calc)132dB
- Maximum SPL: 132 dBdB (Maximum SPL is measured at 1 m using broadband pink noise at maximum output.)
- Power Consumption: 1.8 A (Current rating is 1/8 power)
- Power Rating: 1500W
- Powered or Passive: Powered
- Shipping Weight: 50.5lbs (22.9kg)
- Speaker Type: Full-Range, two-way
- Suspension: (8) M10 threaded mounting points
- Weight Net: 41.4lbs (18.8kg)
- Width: 14.8 inch (375mm)
- Woofer Size: 12 inch
