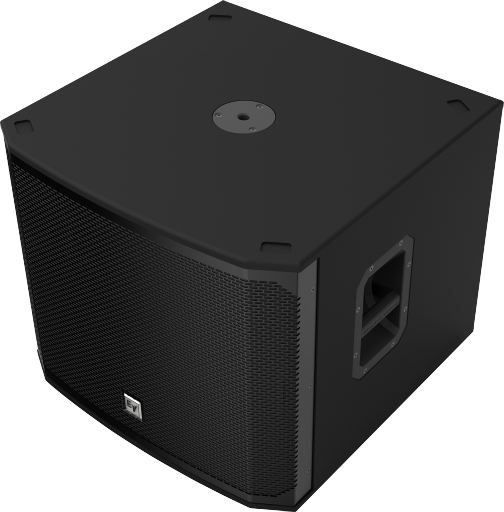

Electro-Voice EKX-18SP 18" Powered Subwoofer


  • Our Price
  • $999.00
  • Regular price MSRP: $1,799.00





*IN STOCK - READY TO SHIP


Get Exceptional Sound Quality And Reliability With The Electro-Voice EKX-18SP 18 Inch Powered Subwoofer

The EKX series is the newest member of the Electro-Voice portable loudspeaker family, and combines legendary EV sound quality and reliability with the latest technology - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD.

Cardioid Control Technology of the Electro-Voice EKX18SP 18 inch Powered Subwoofer allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.

High-efficiency 1300 W Class D power amplifier delivers up to 133 dB peak SPL on the EKX-15SP utilizing high-sensitivity transducers designed and engineered by EV.

Two XLR outputs on the Electro-Voice EKX18SP for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.

Features
  • QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD.
  • Cardioid Control Technology allows output to be steered towards the audience with up to 35 dB reduction on stage when multiple subs are deployed.
  • High-efficiency 1300 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-18SP utilizing high-sensitivity transducers designed and engineered by EV.
  • Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
  • Two XLR outputs for easy system expansion to additional loudspeakers or subwoofers. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two on the 18SP). M20 threaded pole mount plate.
Specifications
  • Frequency Range (-10 dB): 35 Hz - 180kHz (Half Space Measurement)
  • Weight Net: 32.8kg (72.31 lbs)
  • Depth: 612mm (24.09 inch)
  • Width: 606mm (23.86 inch)
  • Height: 520mm (20.47 inch)

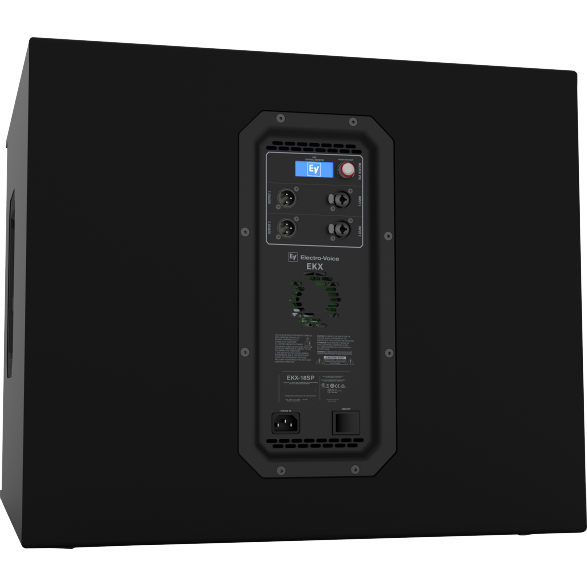

  • Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Family: EKX
  • Frequency Response (-3 dB): 40 Hz - 150kHz (Half Space Measurement)
  • Grille: 18 AWG steel with powdercoat
  • LF Transducer: EVS-18C 457 mm (18 inch)
  • Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
  • Max. SPL/1m (calc): 134dB
  • Maximum SPL: 134 dB peakdB (Maximum SPL is measured at 1 m using broadband pink noise at maximum output.)
  • Power Consumption: 1.8 A (Current rating is 1/8 power)
  • Power Rating: 1300W
  • Powered or Passive: Powered
  • Shipping Weight: 41.2kg (90.83 lbs)
  • Speaker Type: Subwoofer
  • Woofer Size: 18 inch

Manufacturer: Electro-Voice
Model: EKX-18SP-US
Warranty: See manufacturer website for details
SKU: I351324-N-4
UPC: 800549772235
