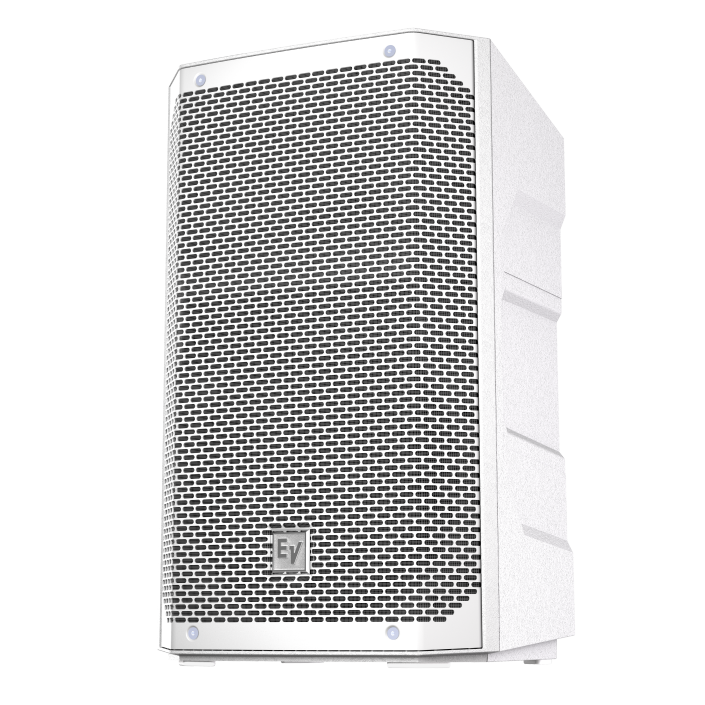

Electro-Voice ELX200-10 10-Inch Passive Loudspeaker - White

Break Barriers with the Electro-Voice ELX200-10 10-Inch Passive Loudspeaker - White

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category.

• 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
• 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
• High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

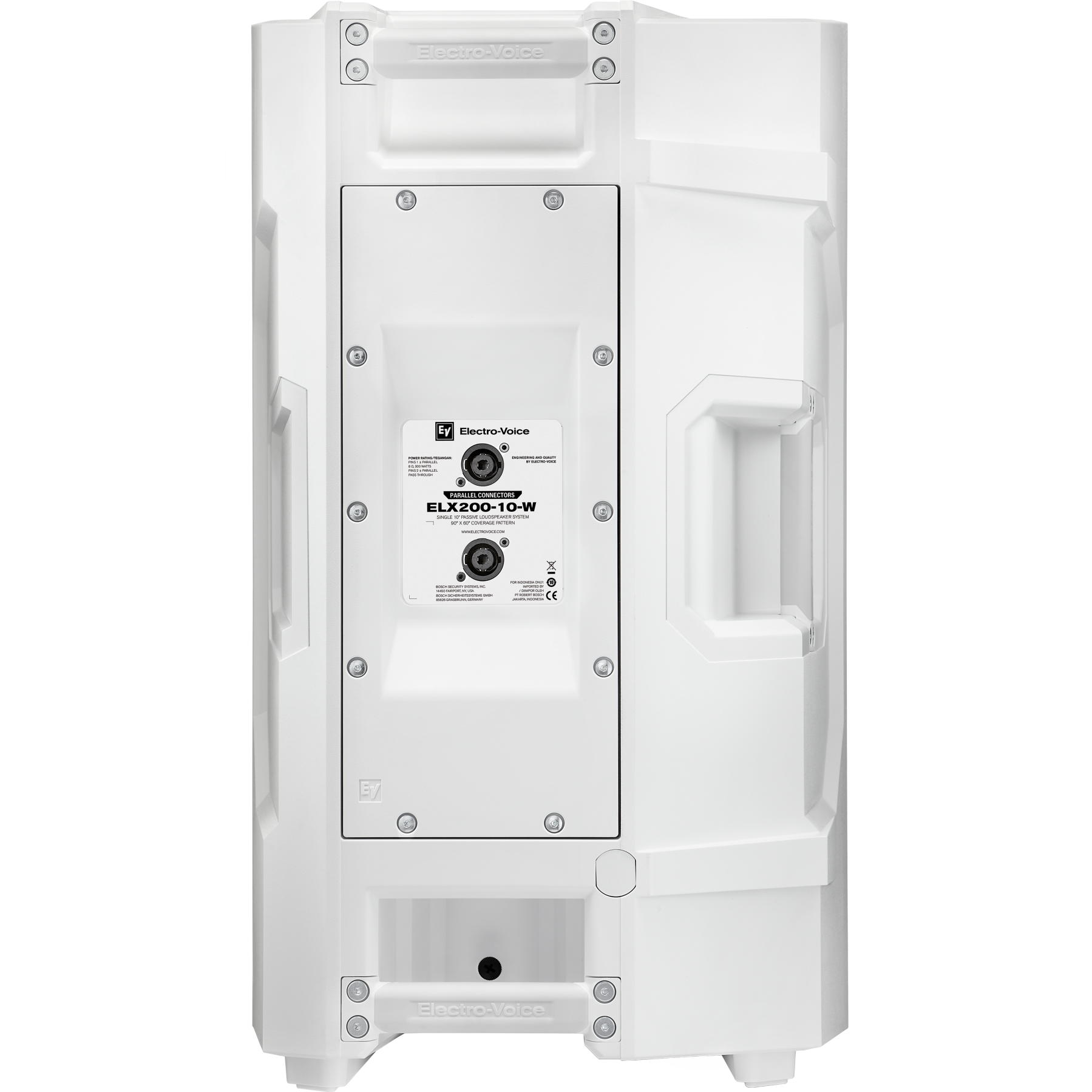

• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

SPECIFICATIONS

• Axial Sensitivity (SPL, 1 W at 1 m): 90dB

• Connector Type: Dual NL4
• Coverage (Nominal -6 dB) H: 90 degrees
• Coverage (Nominal -6 dB) V: 60 degrees
• Crossover Frequency: 2 kHz
• Enclosure Material: Polypropylene Composite
• Family: ELX200
• Frequency Range (-10 dB): 49 Hz - 22 kHz
• Frequency Response (-3 dB): 65 Hz - 20 kHz
• Grille: 18 AWG steel with powdercoat
• HF Transducer: DH-1C 1-inch titanium compression driver
• LF Transducer: EVS-10M 254 mm (10 in)
• Max. SPL/1m (calc): 127dB
• Minimum Impedance: 7.2 Ohms
• Nominal Impedance: 8 Ohms
• Power Handling (Continuous / Peak): 300 W/1200W
• Power Rating: 1200W
• Recommended High-Pass Frequency: 55Hz
• Shipping Weight: 33.73lbs (15.3kg)
• Speaker Type: Full-Range
• Suspension: (3) M10 suspension points
• Weight Net: 29.54 pounds (13.4kg)
• Woofer Size: 10 inch
