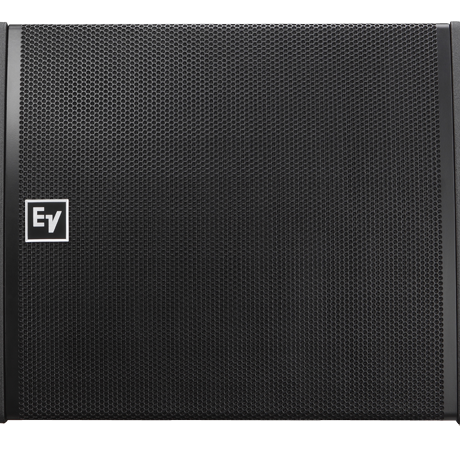

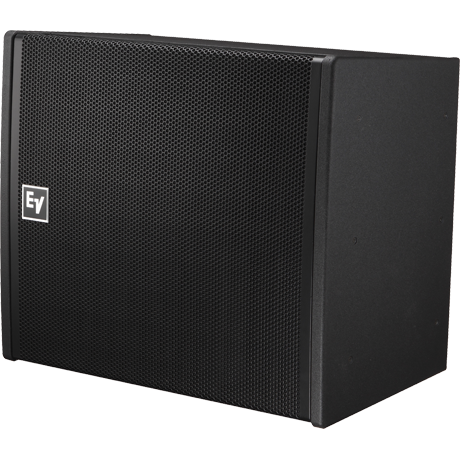

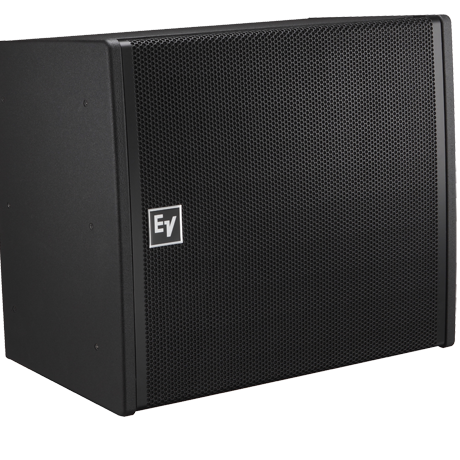

Electro Voice EVA-2082S Dual-Element 120° X 20° Full-Range Line-Array Module - PI-Weatherized Black


  • Our Price
  • $4,028.00
  • Regular price MSRP: $4,229.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





Step Up To Elite Live Sound With State Of The Art Construction And Top Quality Components - The Electro Voice EVA-2082S Dual-Element 120° X 20° Full-Range Line-Array Module

The Electro-Voice® EVA-2082S 350 watt (Passive) is a two-way multi-element loudspeaker system featuring dual Electro-Voice EVS-2008 8" woofers, accompanied by four DH2005 high-frequency compression drivers mounted on two Hydra™ waveguides (available in four distinct coverage patterns: 90° x 6°, 90° x 20°, 120° x 6°, 120° x 20°). Passive operation only.

Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).

About the EVA Series Line-Array Speakers:

The Expandable Vertical Array (EVA) series is a vertical line array with an elegant system design which provides a simple solution for installed sound applications. EVA offers true line array performance, and coherent far-field summing from the patented Hydra® plane wave generator. The internal, hidden rigging not only looks great, but also makes EVA incredibly easy to install. The sophisticated internal crossover lets you power up to eight EVA full-range modules from a single amplifier channel, eliminating the need for external crossovers or DSP. The four full-range modules in the series are complemented by two matching subwoofers that can be flown in the array. If you think that your budget isn't big enough for a great sounding line array, EVA may be just the answer you're looking for.

Contact Us To Order This Speaker In White



  • High performance, cost-effective
  • Ideal for fixed-installation line arrays
  • Two array elements in each module
  • Two 8-inch low-distortion woofers
  • Four 1.25-inch titanium diaphragm HF drivers
  • Advanced Hydra(R) plane wave generators
  • High sensitivity (104 dB) for high output
  • Super efficient: drive up to 8 boxes from a single amp channel
  • Sixth-order passive crossover with HF protection
  • Integrated hidden suspension hardware
  • EVADA (EVA Design Assistant) software tool

Contact Us To Order This Speaker In White



  • Input Connections: Phoenix/Euroblock style screw terminals
  • Frequency Response: (-3 dB) 60 - 19000 Hz
  • Frequency Response: (-10 dB) 45 - 20000 Hz
  • Recommended High-Pass Frequency: 50 Hz
  • Sensitivity 1 W/1 m: 104 dB 3 module array
  • Max. SPL/1m (calc): 135 dB
  • Coverage (Nominal -6 dB) H: 120 °
  • Coverage (Nominal -6 dB) V: 20 °
  • System Power Handling (Continuous/Program/Peak): 350, 700, 1400 Watts
  • LF Transducer: (2) EVS2008, 8 In (203mm) Driver
  • HF Transducer: (4) DH2005, 1.25 In (32mm) Diaphragm Compression Driver
  • Crossover Frequency: 1740 Hz
  • Nominal Impedance (Passive): 16 Ω
  • Minimum Impedance: 12 Ω
  • Enclosure Material: Birch plywood
  • Grill: 16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth
  • Suspension: EVA Grid (Sold Separately)

Manufacturer: Electro-Voice
Model: EVA-2082S/1220-PIB
Warranty: See manufacturer website for details
SKU: I346045-N-0-B
UPC: 800549698320
