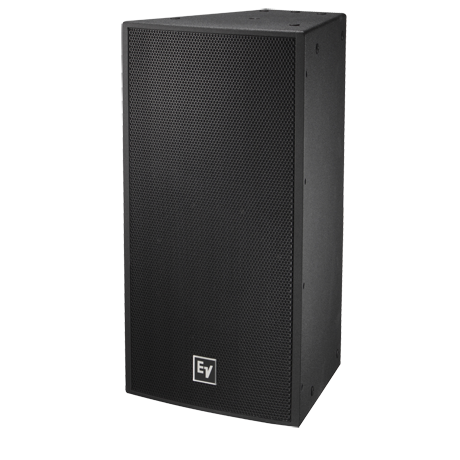

Electro Voice EVF-1122D/64-FGB 12" 2-Way Loudspeaker - Black


  • Our Price
  • $3,021.95
  • Regular price MSRP: $3,834.00

OUT OF STOCK - CALL FOR AVAILABILITY
• Inventory changes daily
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19





The Electro-Voice EVF-1122D/64-FGB Two-Way Full-Range Loudspeaker 60° x 40° Pattern With State Of The Art Fiberglass Coating, For Live Sound And Direct Weather Exposure

The Electro-Voice EVF-1122D 600 watt passive loudspeaker offers a two-way front-load design featuring the DVX3121A with forced air cooling, Electro-Voice’s latest 12" woofer innovation, accompanied by the DH7N high-frequency compression driver mounted on a new, fully rotatable 12" x 12" waveguide. The system is capable of passive or bi-amp operation. Every loudspeaker and subwoofer in the EVF Series can be used for a wide variety of fixed-install applications where high-quality sound reinforcement is required in a compact, lightweight, and simple-to-use package.


  • Fully-weatherized fiberglass finish with gland nut
  • and stainless-steel grille
  • DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit
  • pure titanium compression driver
  • DVX3121A 12” (305 mm) LF transducer with fully
  • symmetric drive
  • Advanced fourth-order crossover network with
  • HF protection
  • Coverage pattern: 60° x 40° Constant
  • DirectivityTM 12” rotatable waveguide
  • 97 dB sensitivity, 131 dB maximum SPL
  • System rating: 600 W continuous, 2400 W peak
  • Active rating: LF 500 W/HF 75 W continuous
  • (2000 W/300 W peak)


SPECIFICATIONS

  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 60º to 120º
  • 97 dB sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI, and fiberglass (FG)
  • Input Connections: Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
  • Frequency Response (-3 dB): 57 - 18000 Hz
  • Frequency Response (-10 dB): 49 - 21000 Hz
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity 1 W/1 m: 97 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage (Nominal -6 dB) H: 60 °
  • Coverage (Nominal -6 dB) V: 40 °
  • System Power Handling (Continuous/Program/Peak): 600/1200/2400 Watts
  • LF Transducer: DVX3121A 12-inch (305mm) woofer
  • LF Nominal Impedance: 8 Ω
  • HF Transducer: DH7N 3-inch (76mm) diaphragm compression driver
  • Crossover Frequency: 1300 Hz
  • Minimum Impedance: 6 Ω
  • Enclosure Material: 13-ply weather-resistant birch with EVCoat
  • Grill: 16 GA powder-coated
  • Suspension: (22) M10 threaded suspension points

Manufacturer: Electro-Voice
Model: EVF-1122D/64-FGB
Warranty: See manufacturer website for details
SKU: I279443-N-0-B
UPC: 800549701068
