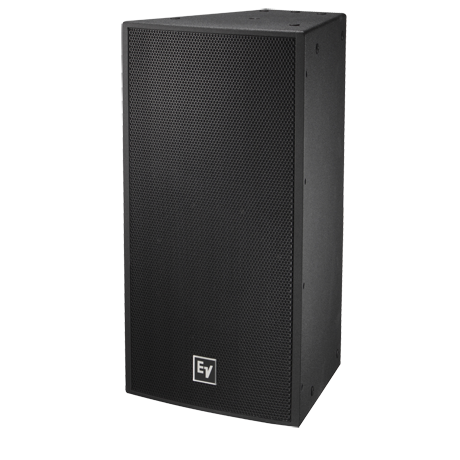

Electro Voice EVF-1122D Two-Way 90° x 40° Full-Range Loudspeaker - Fiberglass Black


  • Our Price
  • Regular price $3,651.00




CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19



Step Up To Elite Live Sound With State Of The Art Construction And Top Quality Components - The Electro Voice EVF-1122D Two-Way 90° x 40° Full-Range Loudspeaker

The Electro-Voice® EVF-1122D 600 watt (passive) loudspeaker offers a two-way front-load design featuring the DVX3121A with forced air cooling, Electro-Voice’s latest 12" woofer innovation, accompanied by the DH7N high-frequency compression driver mounted on a new, fully rotatable 12" x 12" waveguide (available in 60° x 40°, 60° x 60°, 90° x 40°, 90° x 60°, 90° x 90°, and 120° x 60° patterns). System capable of passive or bi-amp operation. Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).

About the EVF Series Front Load Speaker Systems:

Every loudspeaker and subwoofer in the EVF Series can be used for a wide variety of fixed-install applications where high-quality sound reinforcement is required in a compact, lightweight, and simple-to-use package. Part of the EV-Innovation loudspeaker family, the EVF Series of two-way, front-loaded, full-range systems is available with 12“ or 15“ woofers, a wide range of coverage patterns, and includes low-frequency systems.

Contact Us To Order This Speaker In White



  • Fully-weatherized fiberglass finish with gland nut and stainless-steel grille
  • DH7N 3” (76 mm) diaphragm, 1.4” (36 mm) exit pure titanium compression driver
  • DVX3121A 12” (305 mm) LF transducer with fully symmetric drive
  • Advanced fourth-order crossover network with HF protection
  • Coverage pattern: 60° x 40° Constant Directivity 12” rotatable waveguide
  • 97 dB sensitivity, 131 dB maximum SPL
  • System rating: 600 W continuous, 2400 W peak
  • Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
  • (22) M10 threaded suspension points

Contact Us To Order This Speaker In White



  • Input Connections: Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing
  • Frequency Response (-3 dB): 118 Hz - 18 k Hz
  • Frequency Response (-10 dB): 66 Hz - 21 k Hz
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity 1 W/1 m: 97 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 40 °
  • System Power Handling (Continuous/Program/Peak): 600/1200/2400 Watts
  • LF Transducer: DVX3121A, 12" (305 mm) driver
  • LF Nominal Impedance: 8 Ω
  • HF Transducer: DH7N, 3" (76 mm) diaphragm compression driver
  • Crossover Frequency: 1300 Hz
  • Nominal Impedance (Passive): 8 Ω
  • Minimum Impedance: 6 Ω
  • Enclosure Material: 13-ply weather-resistant birch with fiberglass finish
  • Grill: 18 GA stainless steel with hydrophobic cloth
  • Suspension: (22) M10 threaded suspension points

Manufacturer: Electro-Voice
Model: EVF-1122D/94-FGB
Warranty: See manufacturer website for details
SKU: I279455-N-0-B
UPC: 800549701105
