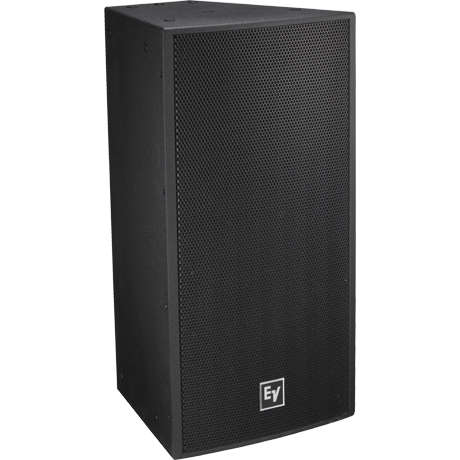

Step Up To Elite Live Sound With State Of The Art Construction And Top Quality Components - The Electro Voice EVF-1122S Two-Way 60° x 40° Full-Range Loudspeaker
The Electro-Voice® EVF-1122S 500 watt (passive) loudspeaker offers a two-way front-load design featuring the SMX2121 with Fully Symmetric Drive, Electro-Voice’s latest 12" woofer innovation, accompanied by the new ND2B high-frequency compression driver mounted on a new, fully rotatable 12" x 12" waveguide (available in 60° x 40°, 60° x 60°, 90° x 40°, 90° x 60°, 90° x 90°, and 120° x 60° patterns). System capable of passive or bi-amp operation. Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).
Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.
About the EVF Series Front Load Speaker Systems:
Every loudspeaker and subwoofer in the EVF Series can be used for a wide variety of fixed-install applications where high-quality sound reinforcement is required in a compact, lightweight, and simple-to-use package. Part of the EV-Innovation loudspeaker family, the EVF Series of two-way, front-loaded, full-range systems is available with 12“ or 15“ woofers, a wide range of coverage patterns, and includes low-frequency systems.
Contact Us To Order This Speaker In White
- Very high maximum SPL output capability with extremely low distortion level.
- 2 inch or 3 inch Pure titanium compression driver mounted on one of 7 Constant Directivity rotatable waveguides, ranging from 40° x 30° to 120° x 60°.
- SMX or DVX LF transducers.
- Advanced fourth order crossover network with HF protection.
- Convenient threaded rigging points for multiple configurations.
- Passive Sytem: 98 dB Sensitivity, 131 dB Maximun SPL
- System Rating: 500W Continues, (2000 W Peak)
- PI and FG Versions are Standard with Gland Nut and Stainless Steel Grille
- Available in black or white in one of three versions: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass - direct exposure).
- Coverage Patterns: 60x40, 60x60, 90x40, 90x60, 90x90, 120x60 Constant Directivity 12-inch Rotatable Waveguide
- EN54-24 type B certification 1438/CPR/0283 (Only available in select regions)
Contact Us To Order This Speaker In White
- Environmental Specs: Standard versions: IEC 60529 IP44
- Input Connections: Phoenix/Euroblock style screw terminals
- Frequency Response (-3 dB): 58 - 16000 Hz
- Frequency Response (-10 dB): 49 - 19000 Hz
- Recommended High-Pass Frequency: 65 Hz
- Sensitivity 1 W/1 m: 98 dB
- Max. SPL/1m (calc): 131 dB
- Coverage (Nominal -6 dB) H: 60 °
- Coverage (Nominal -6 dB) V: 40 °
- System Power Handling (Continuous/Program/Peak): 500/1000/2000 Watts
- LF Transducer: SMX2121, 12 in (305mm) Driver
- HF Transducer: ND2B, 2 in (51 mm) Diaphragm Compression Driver
- Crossover Frequency: 1450 Hz
- Nominal Impedance (Passive): 8 Ω
- Minimum Impedance: 6 Ω
- Enclosure Material: 13 Ply Weather Resistant Birch
- Grill Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind
- Suspension: (22) M10 Threaded Points
Warranty: See manufacturer website for details
