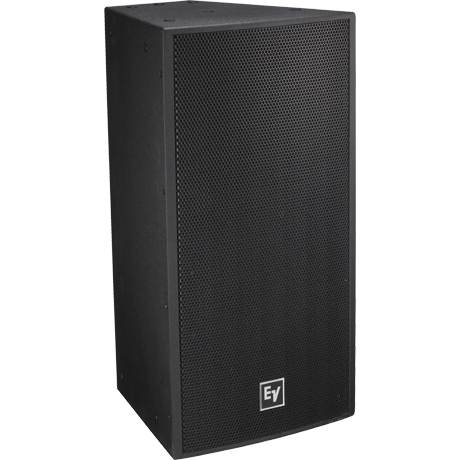

The Electro-Voice EVF-1122S Two-Way Full-Range Loudspeaker, 90° x 90° Pattern With EVCoat Finish For Interior Use
The Electro-Voice® EVF-1122S 500 watt passive loudspeaker offers a two-way front-load design featuring the SMX2121 with Fully Symmetric Drive, Electro-Voice’s latest 12" woofer innovation, accompanied by the new ND2B high-frequency compression driver mounted on a new, fully rotatable 12" x 12" waveguide. The system is capable of passive or bi-amp operation. EVF-1122S/99 features a 90° x 90° rotatable waveguide, design for near-field widespread coverage pattern.
- Very high maximum SPL output capability with extremely low distortion level.
- Pure titanium compression driver mounted on one of 7 Constant Directivity rotatable waveguides
- SMX or DVX LF transducers.
- Advanced fourth-order crossover network with HF protection.
- Convenient threaded rigging points for multiple configurations.
- Passive System: 98 dB Sensitivity, 131 dB Maximum SPL
- System Rating: 500W Continues, (2000 W Peak)
- PI and FG Versions are Standard with Gland Nut and Stainless Steel Grille
- Coverage Pattern: 90x90 Constant Directivity 12-inch Rotatable Waveguide
- EN54-24 type B certification 1438/CPR/0283
- Environmental Specs: Standard versions: IEC 60529 IP44
- Input Connections: Phoenix/Euroblock style screw terminals
- Frequency Response (-3 dB): 58 - 16000 Hz
- Frequency Response (-10 dB): 49 - 19000 Hz
- Recommended High-Pass Frequency: 65 Hz
- Sensitivity 1 W/1 m: 98 dB
- Max. SPL/1m (calc): 131 dB
- Coverage (Nominal -6 dB) H: 90 °
- Coverage (Nominal -6 dB) V: 90 °
- System Power Handling (Continuous/Program/Peak): 500/1000/2000 Watts
- LF Transducer: SMX2121, 12 in (305mm) Driver
- HF Transducer: ND2B, 2 in (51 mm) Diaphragm Compression Driver
- Crossover Frequency: 1450 Hz
- Nominal Impedance (Passive): 8 Ω
- Minimum Impedance: 6 Ω
- Enclosure Material: 13 Ply Weather Resistant Birch
- Grill Standard versions: 16 GA Galvanneal, Powdercoat, with a screen behind
- Suspension: (22) M10 Threaded Points
Warranty: See manufacturer website for details
