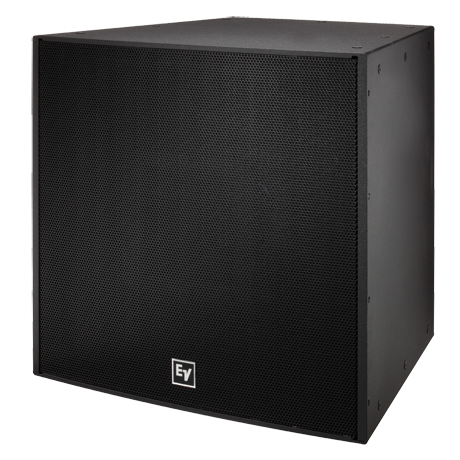

Electro-Voice EVH-1152D Two-Way 60x40-Degree Coaxial Horn-Loaded Full-Range Loudspeaker - Fiberglass

Sold out
Original price $5,927.95 - Original price $5,927.95
Original price
$5,927.95
Default Title: $5,927.95
Current price $5,927.95
❓ Out of stock

Notify Me When Available
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.


Step Up To Elite Live Sound With State Of The Art Construction Paired With Top Quality Components - The Electro Voice EVH-1152D Two-Way 60° X 40° Coaxial Horn-Loaded Full-Range Loudspeaker

EVF-1152D/64 features a 60° x 40° rotatable waveguide, design for far field long throw raw spread coverage pattern.

About the EVH Series Two-Way Coaxial Horn-Loaded Full-Range Speaker Systems:

The EVH series is a dedicated installed sound solution that builds on everything Electro-Voice has learned from the globally successful FRX/FRX+ series. Delivering exceptional value in venues of all sizes, these mid-sized 15-inch two-way cabinets feature a unique coaxial horn loaded design that is unmatched for pattern control and intelligibility in reverberant environments.

A 400-W SMX2151 woofer provides the EVH's deep, rich lows, horn loading extends directivity control down to 500 Hz. High frequencies are handled by a pure titanium compression driver— a premium 3-inch with neodymium magnetic structure (D models)—protected by an advanced fourth order crossover network. Six coverage patterns (ranging from 40° by 30° to 90° by 90°) on Rotatable Constant directivity ™ waveguides offer extraordinary versatility.

Contact Us To Order This Speaker In White



  • Ideal for reverberant spaces
  • Pattern control maintained down to 500 Hz
  • 15-inch SMX2151 woofer
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available coverage patterns from 40º x 30º to 90º x 90º
  • 106 dB sensitivity, 139 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal enclosure in three finishes: EVCoat, FG or PI
  • M10 threaded suspension points (28)
  • Available in black or white in one of three versions: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass - direct exposure).

Contact Us To Order This Speaker In White



  • Frequency Response: (-3 dB) 60 Hz – 17 kHz1
  • Frequency Range: (-10 dB) 50 Hz – 20 kHz1
  • Recommended High-Pass Frequency: 60 Hz
  • Sensitivity (SPL, 1 W/1 m): 106 dB
  • Max. SPL @ 1 m (calc.): 139 dB
  • System Power Handling (Continuous2, Program, Peak):  500 W, 1000 W, 2000 W
  • Nominal Impedance (Passive): 8 Ω
  • Minimum Impedance: 6 Ω
  • Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
  • Coverage (Nominal -6 dB) H: 60 °
  • Coverage (Nominal -6 dB) V: 40 °
  • LF Transducer: 15" SMX2151 driver
  • HF Transducer: 3" DH7N diaphragm compression driver
  • Internal Passive Crossover Frequency: 1,300 Hz
  • Enclosure Material: 13-ply weather-resistant birch
  • Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind, PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
  • Environmental Standard versions: IEC 60529 IP33
  • PI and FG versions: IEC 60529 IP55
  • Suspension: 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)


Manufacturer: Electro-Voice
Model: EVH-1152D/64-FGB
SKU: I346076-N-0-WHXC
UPC: 800549701587
