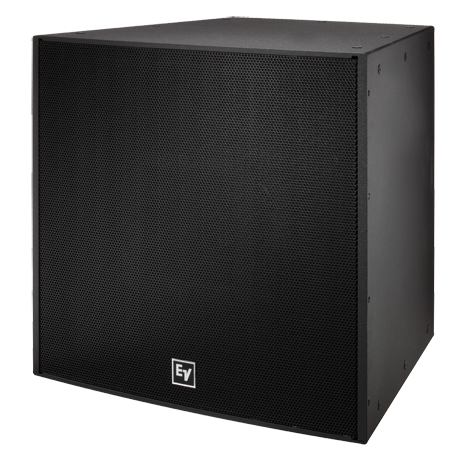

Electro Voice EVH-1152D Two-Way 90° X 40° Coaxial Horn-Loaded Full-Range Loudspeaker - Black PI-Weatherized


  • Our Price
  • Regular price $4,596.00




CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19



Step Up To Elite Live Sound With State Of The Art Construction Paired With Top Quality Components - The Electro Voice EVH-1152D Two-Way 90° X 40° Coaxial Horn-Loaded Full-Range Loudspeaker

EVF-1152D/94 features a 90° x 40° rotatable waveguide, design for medium field medium throw raw spread coverage pattern.

About the EVH Series Two-Way Coaxial Horn-Loaded Full-Range Speaker Systems:

The EVH series is a dedicated installed sound solution that builds on everything Electro-Voice has learned from the globally successful FRX/FRX+ series. Delivering exceptional value in venues of all sizes, these mid-sized 15-inch two-way cabinets feature a unique coaxial horn loaded design that is unmatched for pattern control and intelligibility in reverberant environments.

A 400-W SMX2151 woofer provides the EVH's deep, rich lows, horn loading extends directivity control down to 500 Hz. High frequencies are handled by a pure titanium compression driver— a premium 3-inch with neodymium magnetic structure (D models)—protected by an advanced fourth order crossover network. Six coverage patterns (ranging from 40° by 30° to 90° by 90°) on Rotatable Constant directivity ™ waveguides offer extraordinary versatility.

Contact Us To Order This Speaker In White



  • Ideal for reverberant spaces
  • Pattern control maintained down to 500 Hz
  • 15-inch SMX2151 woofer
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available coverage patterns from 40º x 30º to 90º x 90º
  • 106 dB sensitivity, 139 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order passive crossover with HF protection
  • Trapezoidal enclosure in three finishes: EVCoat, FG or PI
  • M10 threaded suspension points (28)
  • Available in black or white in one of three versions: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass - direct exposure).

Contact Us To Order This Speaker In White



  • Frequency Response: (-3 dB) 60 Hz – 17 kHz1
  • Frequency Range: (-10 dB) 50 Hz – 20 kHz1
  • Recommended High-Pass Frequency: 60 Hz
  • Sensitivity (SPL, 1 W/1 m): 106 dB
  • Max. SPL @ 1 m (calc.): 139 dB
  • System Power Handling (Continuous2, Program, Peak):  500 W, 1000 W, 2000 W
  • Nominal Impedance (Passive): 8 Ω
  • Minimum Impedance: 6 Ω
  • Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
  • Coverage (Nominal -6 dB) H: 90 °
  • Coverage (Nominal -6 dB) V: 40 °
  • LF Transducer: 15" SMX2151 driver
  • HF Transducer: 3" DH7N diaphragm compression driver
  • Internal Passive Crossover Frequency: 1,300 Hz
  • Enclosure Material: 13-ply weather-resistant birch
  • Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind, PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
  • Environmental Standard versions: IEC 60529 IP33
  • PI and FG versions: IEC 60529 IP55
  • Suspension: 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)

Manufacturer: Electro-Voice
Model: EVH-1152D/94-PIB
Warranty: See manufacturer website for details
SKU: I346086-N-0-B
UPC: 800549700559
