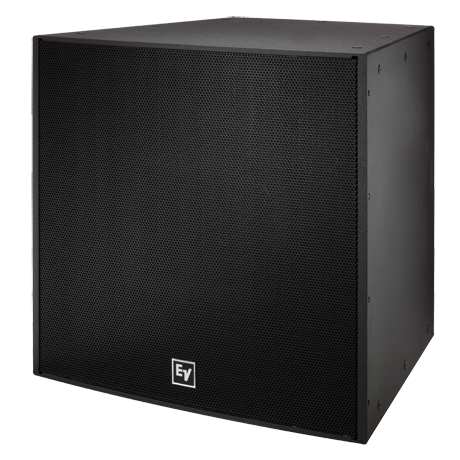

Step Up To Elite Live Sound With State Of The Art Construction Paired With Top Quality Components - The Electro Voice EVH-1152S Two-Way 40° X 30° Coaxial Horn-Loaded Full-Range Loudspeaker
The Electro-Voice® EVH-1152S 500 watt (Passive) loudspeaker offers a two-way coaxial horn-load design featuring the SMX2151 with Fully Symmetric Drive, Electro-Voice’s latest 15" woofer innovation, accompanied by the new ND2B high-frequency compression driver mounted on new, fully rotatable HF and MB waveguides (available in 40° x 30°, 60° x 40°, 60° x 60°, 90° x 40°, 90° x 60°, and 90° x 90° patterns). System capable of passive or bi-amp operation. Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure).
About the EVH Series Two-Way Coaxial Horn-Loaded Full-Range Speaker Systems:
The EVH family of models employs an unmatched combination of superior acoustic design and rigging, allowing vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. Twenty-eight suspension points for use with rated eyebolts or EV-I cluster hardware provide low-cost, simple rigging solutions.
The EVH series is a dedicated installed sound solution that builds on everything Electro-Voice has learned from the globally successful FRX/FRX+ series. Delivering exceptional value in venues of all sizes, these mid-sized 15-inch two-way cabinets feature a unique coaxial horn loaded design that is unmatched for pattern control and intelligibility in reverberant environments.
A 400-W SMX2151 woofer provides the EVH's deep, rich lows, horn loading extends directivity control down to 500 Hz. High frequencies are handled by a pure titanium compression driver— a premium 3-inch with neodymium magnetic structure (D models)—protected by an advanced fourth order crossover network. Six coverage patterns (ranging from 40° by 30° to 90° by 90°) on Rotatable Constant directivity ™ waveguides offer extraordinary versatility.
Contact Us To Order This Speaker In White
- Ideal for reverberant spaces
- Pattern control maintained down to 500 Hz
- 15-inch SMX2151 woofer
- 2-inch ND2B titanium HF compression driver
- Rotatable Constant-directivity waveguide
- Six available coverage patterns from 40º x 30º to 90º x 90º
- 106 dB sensitivity, 139 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- 4th-order passive crossover with HF protection
- Trapezoidal enclosure in three finishes: EVCoat, FG or PI
- M10 threaded suspension points (28)
- Available in black or white in one of three versions: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass - direct exposure).
Contact Us To Order This Speaker In White
- Frequency Response (-3 dB): 60 Hz – 15 kHz1
- Frequency Range (-10 dB): 50 Hz – 20 kHz1
- Recommended High-Pass Frequency: 60 Hz
- Sensitivity (SPL, 1 W/1 m): 106 dB
- Max. SPL @ 1 m (calc.): 139 dB
- System Power Handling (Continuous2, Program, Peak): 500 W, 1000 W, 2000 W
- Coverage (Nominal -6 dB) H: 40 °
- Coverage (Nominal -6 dB) V: 30 °
- Nominal Impedance (Passive): 8 â„¦
- Minimum Impedance: 6 â„¦
- Input Connections: Euroblock; PI and FG versions include dual-gland-nut input-panel cover
- LF Transducer: 15" SMX2151 driver
- HF Transducer: 2" ND2B diaphragm compression driver
- Internal Passive Crossover Frequency: 1,300 Hz
- Enclosure Material: 13-ply weather-resistant birch
- Grille: Standard versions: 16 ga Galvanneal, Powdercoat with screen behind, PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
- Environmental: Standard versions IEC 60529 IP33, PI and FG versions: IEC 60529 IP55
- Suspension: 28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
