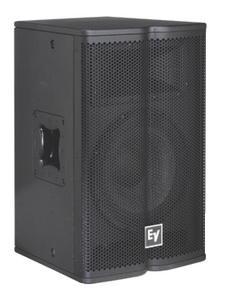

Electro-Voice TX1122 12" Two-Way Full-Range Loudspeaker


  • Our Price
  • $749.00
  • Regular price MSRP: $962.00




CALL FOR AVAILABILITY
• Inventory changes daily and this item may be out of stock
Contact us for availability | tel: 301-946-8808
• Please allow for additional delivery time due to COVID 19



Get Breakthrough Performance With The Electro-Voice TX1122 12" Two-Way Full-Range Loudspeaker

Tour X brings the engineering excellence and aesthetic design of EV's world-class tour systems to an innovative and exciting series of portable loudspeakers. Combining bold design and breakthrough performance, the Tour X series is optimized for applications such as club sound, pro music, and concert sound. The line's full-range loudspeakers and monitors utilize either 1.25-inch DH3/2010A or 2-inch ND2 compression drivers, protected by an advanced fourth-order crossover. Rotatable horns provide coverage-pattern flexibility while 12-inch or 15-inch SMX woofers deliver high power handling with high sensitivity. Tour X 18-inch subwoofers, meanwhile, use high-excursion EVS-18S LF transducers to ensure plenty of impact with ultra-low distortion. For tour-class performance in a portable package that's surprisingly affordable, look no further than Tour X.


  • High-quality sound at high levels
  • Excellent pattern control for short-to-medium throw
  • Low-distortion SMX2120 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90" H x 50" V horn
  • Advanced 4th-order crossover with HF protection
  • 97 dB sensitivity, 130 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Lightweight trapezoidal plywood/MDF enclosure
  • Pole mount for use with subwoofer or stand
  • Six 3/8-inch threaded suspension points
  • Black EVCoat finish


SPECIFICATIONS

  • Available Color: Black
  • Coverage (Nominal -6 dB) H: 90"
  • Coverage (Nominal -6 dB) V: 50"
  • Crossover Frequency: 1600Hz
  • Depth: 22.6" (573mm)
  • Enclosure Material: Ply Wood and MDF with EVCOAT
  • Family: Tour X
  • Flying: Yes
  • Frequency Response (-10 dB): 45 - 20000Hz
  • Frequency Response (-3 dB): 70 - 20000Hz
  • Height: 17.3" (440mm)
  • HF Transducer: 1.25-inch DH3/2010A
  • Input Connections: Parallel Neutrik NL4
  • Internal Crossover: Yes
  • LF Transducer: 12-inch SMX2121
  • Max. SPL/1m (calc): 132dB
  • Minimum Impedance: 6.4"
  • Nominal Impedance (Passive): 8"
  • Power Rating: 2000W
  • Powered or Passive: Passive
  • Recommended High-Pass Frequency: 45Hz
  • Rotatable Horn: No
  • Sensitivity 1 W/1 m: 97dB (1w/1m)
  • Speaker Type: Full-Range
  • Suspension: (6) 3/8-inch threaded inserts
  • System Power Handling (Continuous/Program/Peak): 500//2000Watts
  • Weight Net: 43.7lbs (19.8kg)
  • Width: 14.3" (364mm)
  • Woofer Size: 12inch

Manufacturer: Electro-Voice
Model: TX1122
Warranty: See manufacturer website for details
SKU: I227944-0-B
