Electro-Voice ZX1i 8" 2-Way Passive Full-Range Loudspeaker - White


  • Our Price
  • Regular price $698.00

*IN STOCK - READY TO SHIP

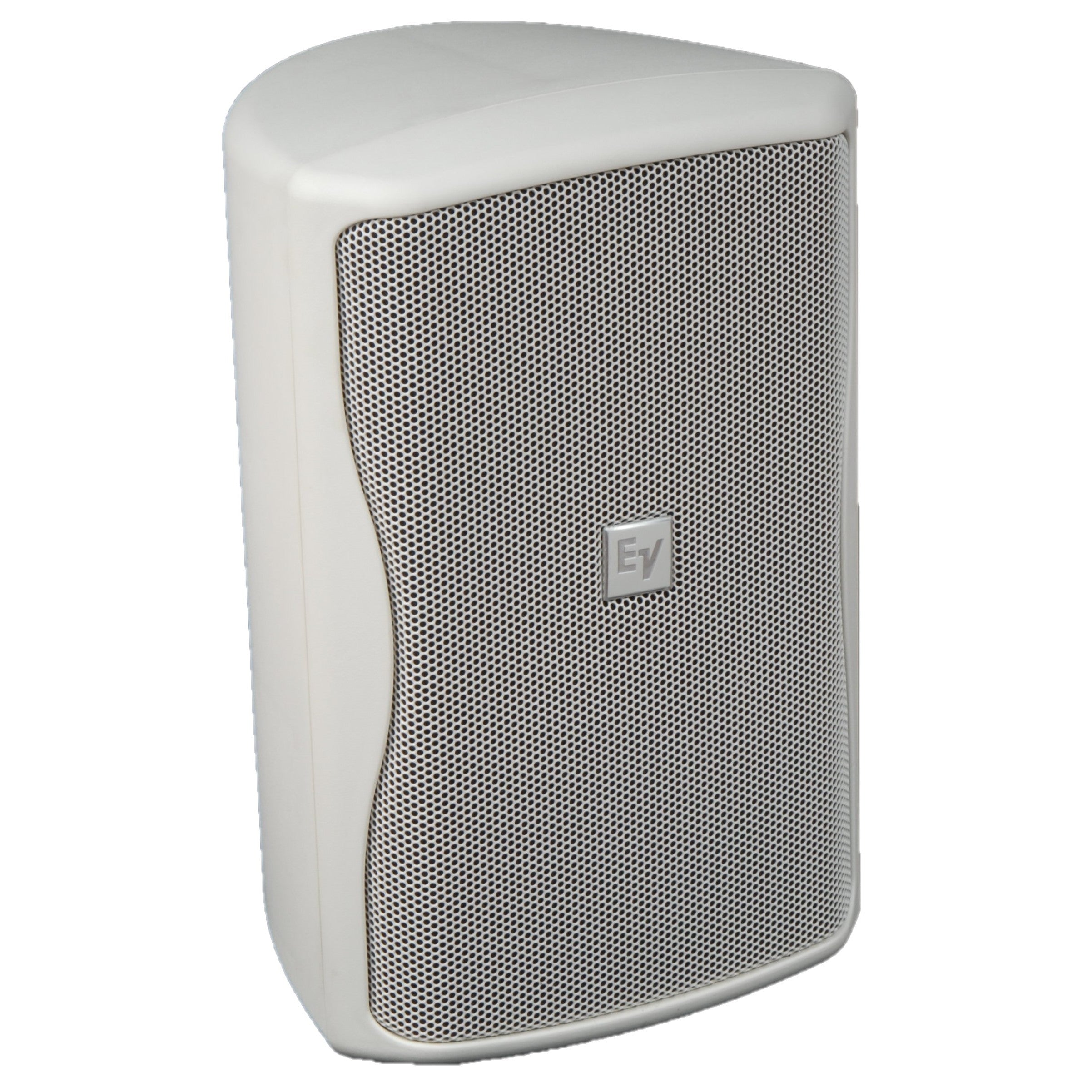

Get A 2-Way Weatherized Speaker With The Electro-Voice ZX1i 8" 2‑Way Passive Full‑Range Loudspeaker In White

8-in two-way weatherized speaker system with EV DH2005 hi-frequency compression driver in white. 100x100 coverage pattern. Includes QuickSAM mount bracket and 4 pole phoenix connector. Includes transformer for 70/100v operation at 6.5 & 12.5 & 25 & 50 & 100 watts. White high impact polymer cabinet.


SPECIFICATIONS

  • Frequency Response (-3 dB): 60 Hz - 20 kHz¹
  • Frequency Range (-10 dB): 48 Hz - 20 kHz¹
  • Rec. Hi-pass Frequency: 40 Hz
  • Axial Sensitivity: 94 dB (1W/1m)¹
  • Max Calculated SPL: 123 dB
  • Coverage (H x V): 90 x 50
  • Rated System Power: 200 W Cont.², 400 W Prog., 800 W Peak
  • LF Transducer: EV8L, 203 mm (8 in) Driver
  • HF Transducer: DH2005, 25 mm (1 in) Exit Compression Driver
  • Crossover Frequency: 1.7 kHz
  • Nominal Impedance: 8 Ohm
  • Minimum Impedance: 6 Ohm
  • "T" Version Wattage Taps
    • 70V - 6, 12.5, 25, 50, 100, 8 Ohm by
    • p0V - 12.5, 25, 50, 100, 8 Ohm bypass
  • Connectors: 4-Pin Phoenix Connector
  • Enclosure Material: ABS resin
  • Suspension: Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
  • Grille: Polyester Powder Coated, 18GA Galvanized Steel
  • Dimensions (H x W x D): 451 mm x 282 mm x 263 mm (18 in x 11 in x 10 in)
  • Net Weight
    • 8.4 kg (18.5 lb) without Transformer
    • 10.4 kg (23.0 lb) with Transformer
  • Shipping Weight
    • 10.2 kg (22.5 lb) without Transformer
    • 12.3 kg (27.0 lb) with Transformer

Manufacturer: Electro-Voice
Model: ZX1I-100TW
Warranty: See manufacturer website for details
SKU: I279637-1-B
