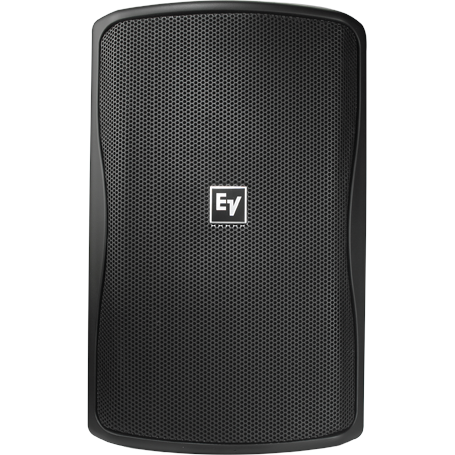

Electro-Voice ZX1I-90 8-Inch Two-Way Passive Full-Range Hybrid Loudspeaker - Black

Get Powerful Audio with the Electro-Voice ZX1I-90 2-Way Passive Full-Range Loudspeaker

The ZX1I-90 is a 200-watt weatherized speaker system with Electro-Voice DH2005 driver.

• Patented ASC (Automatic Saturation Compensation)
• Available in 70/100 volt transformer version
• Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
• EN54-24 type B certification 1438/CPD/0323 with TC-ZX1i cover (sold separately) installed (only available in select regions)

SPECIFICATIONS

• Frequency Response (-3 dB): 60 Hz - 20 kHz
• Frequency Range (-10 dB): 48 Hz - 20 kHz
• Rec. Hi-pass Frequency: 40 Hz
• Axial Sensitivity: 94 dB (1W/1m)
• Max Calculated SPL: 123 dB
• Coverage (H x V): 90 x 50
• Rated System Power: 200 W Cont., 400 W Prog., 800 W Peak
• LF Transducer: EV8L, 203 mm (8 in) Driver
• HF Transducer: DH2005, 25 mm (1 in) Exit Compression Driver
• Crossover Frequency: 1.7 kHz
• Nominal Impedance: 8 Ω
• Minimum Impedance: 6 Ω
• "T" Version Wattage Taps: 70V - 6, 12.5, 25, 50, 100, 8 Ω by p0V - 12.5, 25, 50, 100, 8 Ω bypass
• Connectors: 4-Pin Phoenix Connector
• Enclosure Material: ABS resin
• Suspension: Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
• Grille: Polyester Powder Coated, 18GA Galvanized Steel
• Dimensions: 451 mm x 282 mm x 263 mm (18 x 11 x 10 in)
• Net Weight: 8.4 kg (18.5 lb) without transformer, 10.4 kg (23.0 lb) with transformer
• Shipping Weight: 10.2 kg (22.5 lb) without transformer, 12.3 kg (27.0 lb) with transformer
