Electro-Voice ZX3-60W 12" Two-Way Passive Hybrid Loudspeaker - 60ºx60º, White

Out of Stock
Original price $1,525.00
Original price $1,525.00 - Original price $1,525.00
Original price $1,525.00
Current price $1,099.00
$1,099.00 - $1,099.00
Current price $1,099.00
About Inventory Status


Questions?
Call or text us at 301-946-8808.

In stock: It is in stock and available to ship or pickup. Apparel must be shipped from another location and is not available for in-store pickup. We can usually ship or have these items available for pickup by the next business day if they don't require inspection, special handling, or setup. Our pickup location is 11151 Veirs Mill Rd. Silver Spring, MD 20902.

📆 Preorder: It is on the way to our warehouse. We can't predict when preorder items will arrive due to current supply chain issues. If you place an order for one of these items someone will contact you to estimate the delivery date.

Out of stock: We don't currently have it available but you're not out of luck yet. We still may be able to get it. If you order one of these items we will contact you with an estimated fulfillment date. You have the option to cancel the order if you change your mind.

Special order: The item is so special that it needs to be custom ordered for you. Some of these items are works of art and have to be made individually. Orders for special order items must be prepaid and we cannot accept cancellations or refunds.

█ Sold out: We don't think we can get this item because it was either discontinued by the manufacturer or was limited in quantity. If you want or need this item call or text us. Sometimes we can help you track down the item through other sources or help you find something similar.

About Item Conditions


Questions?
Call or text us at 301-946-8808.

New: The item is brand new as received from the manufacturer with a full manufacturer warranty. Instruments such as guitars, snare drums, drum kits, brass and woodwind instruments may be opened for photography and quality control inspection and may not be in a factory sealed box.

Mint or Open Box: The item may have been opened and tested but has been repackaged. The original packaging may have superficial issues but the item itself and any originally included accessories are in perfect, like new condition.

Display Model: These items are so cool that we put them on display in our legendary shop. The condition is brand new as received from the manufacturer with manufacturer warranty. Rest assured, these items undergo a very careful inspection before shipping.

Demo: These items have been on our sales floor for demo purposes and will likely show signs of use. The original packaging may no longer be included, but you can be assured that you are receiving an awesome item and an awesome price.

Used: The item is used. These item may have varying degrees of wear. Please read the description for information about the condition of the item. Used items do not carry a warranty.

B or C Stock: Factory refurbished. These items were purchased from the manufacturer in a refurbished condition. They will show some cosmetic issues, but nothing that would impact performance. Being that these are sealed from the manufacturer, we generally do not open these to photograph the cosmetic issues. They are guaranteed to work and may have a limited warranty or you may purchase an extended warranty in some cases. Please see the listing description for item specific information.

Educational & Government Sales Quotes

Click here to inquire about an educational or government quote and discover more about our Educational & Government Sales Division.

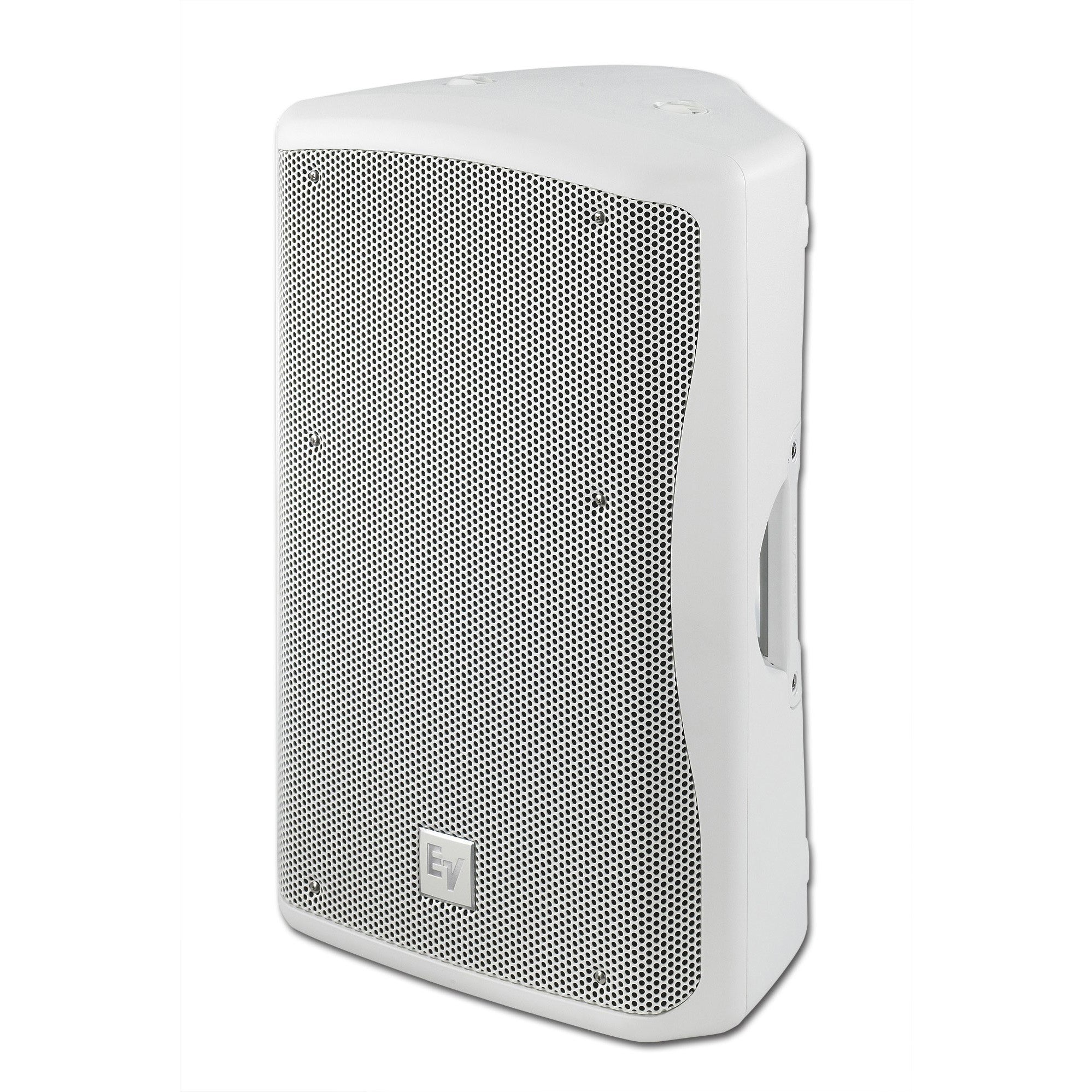

Electro-Voice ZX3-60W 12-Inch Two-Way Passive Hybrid Loudspeaker - White

The Electro-Voice Zx3 is the new standard of no compromise audio performance and versatility in a simple to use, compact package. The ZX3-60PI features a molded polymer enclosure that is inherently water resistant. The addition of a multilayer grille with hydrophobic cloth and a gland nut input connection allows for a highly weather resistant system.

At its heart are the transducers. First is the DVX3121 high performance low frequency transducer. EV used advanced computer aided design techniques to create forced air, directional voice coil cooling for high power and efficiency. Finite element analysis was used to optimize the suspension and magnetic structure for long, linear travel to provide low distortion and greater LF extension. These features and details, such as forged magnetic components and special materials, provide reliability with a 500W power rating in a lightweight transducer. Next is the ND2, a 2-inch voice coil compression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.


  • Versatile performance for mains, fills, or monitors
  • DVX3121A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Passive crossover
  • Choice of 90º x 50º or 60º x 60º coverage horn
  • High sensitivity, 131 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High-impact polypropylene enclosure
  • Compact monitor-friendly wedge shape
  • Up to four anchor-plate attachments
  • M8 mounting inserts (7)
  • Integrated handle
  • Available in black and white


SPECIFICATIONS

  • Minimum Impedance: 6.2Ω
  • HF Transducer: 2-inch ND2
  • Speaker Type: Full-Range
  • Woofer Size: 12inch
  • Powered or Passive: Passive
  • Frequency Response (-3 dB)¹: 58 - 15000Hz
  • Max. SPL/1m (calc)²: 131dB
  • Coverage (Nominal -6 dB) H: 90/60°
  • Coverage (Nominal -6 dB) V: 50/60°
  • LF Transducer: 12-inch DVX3121A
  • System Power Handling (Continuous/Program/Peak): 600//2400Watts
  • Power Rating: 2400W
  • LF Power Handling: 500Watts
  • HF Power Handling: 40Watts
  • Crossover Frequency: 2000Hz
  • Enclosure Material: High Impact Polystyrene Composite
  • Grille: Polyester Powder Coated, 18GA Galvanized Steel
  • Sensitivity 1 W/1 m: 97dB
  • Available Color: Black or white
  • Height: 24.13" (613mm)
  • Recommended High-Pass Frequency: 50Hz
  • Width: 15.63" (397mm)
  • Internal Crossover: Yes
  • Depth: 14.25" (362mm)
  • Weight Net: 43.65lbs (19.8kg)
  • Family: ZxZxA
  • Nominal Impedance: 8Ω
  • Input Connections: 2 conductor SJO cable and gland nut

Manufacturer: Electro-Voice
Model: ZX3-60W
SKU: I242579-N-0-WHXX
UPC: 800549682596
