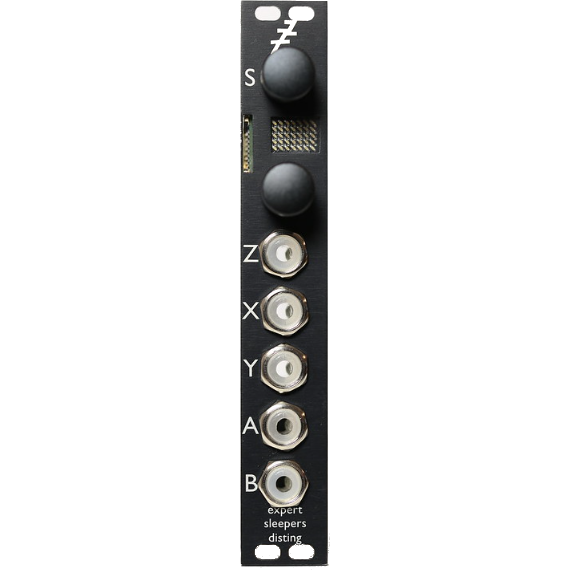

Precise Processing - The Expert Sleepers Disting MK4 Multifunction Eurorack Module

The Disting is a many-in-one multifunction module, offering a variety of CV and audio processes, including a selection of oscillators (LFOs/VCOs). All algorithms have two high-precision inputs and outputs, and a third control input, exposed on a front panel knob and a CV input.


  • Dot matrix screen, capable of showing text and numeric values
  • Micro SD card slot accessible on the front panel
  • Compatibility with the Select Bus protocol
  • An internal precision clock allowing new algorithms such as a tuner, and pitch and frequency references
  • MIDI in/out ports (on a breakout header)
  • 84 distinct algorithms


SPECIFICATIONS

General

  • Panel Width: 4HP
  • Module Depth: 42 mm
  • X and Y inputs, A & B outputs
    • Sample Rate: 75 kHz
    • ADC: 24 bit, THD+N -93 dB, Dynamic range 99 dB, SNR 99 dB
    • DAC: 24 bit, THD+N -94 dB, Dynamic range 105 dB, SNR 104 dB
  • Z Input Sample Rate: 75 kHz
  • CPU: Microchip PIC32MX at up to 50 MHz
  • Current draw: 51 mA on the +12V rail, 19mA on the -12V rail

Algorithms

  • Classic
    • Precision Adder with integer voltage offsets
    • Four Quadrant Multiplier with integer multiply/divide
    • Full-wave Rectifier
    • Minimum/maximum
    • Linear/Exponential Converter
    • Quantizer with selectable scales
    • Comparator with adjustable hysteresis
    • Dual Waveshaper wavefolder and triangle-to-sine shaper
    • Sample and Hold with noise source and adjustable slew rate
    • Slew Rate Limiter with linear and exponential slew
    • Pitch and Envelope Tracker
    • Delay/Echo
    • LFO with through zero frequency control and waveshaping
    • Clockable LFO with multiply/divide and waveshaping
    • VCO with linear FM sine and saw outputs
    • VCO with waveshaping saw/triangle and pulse outputs
  • Remaining
    • Precision Adder with fractional voltage offsets
    • Voltage Controlled Delay Line vibrato/chorus/flange effects
    • Clockable Ping Pong Delay
    • Clockable Ping Pong Delay with input pan control
    • Resonator for drum synthesis
    • Vocoder 12 band
    • Phaser up to 10 stages
    • Bit Crusher
    • Tape Delay with voltage controlled tape speed
    • Waveform Animator
    • State Variable Filter smoothly variable filter type
    • LP/HP Filter
    • LP/BP Filter
    • BP/HP Filter
    • BP/Notch Filter
    • AR Envelope
    • AR Envelope (with push)
    • AR Envelope and VCA
    • AR Envelope and VCA (with push)
    • Dual AR Envelope
    • Dual AR Envelope (with push)
    • Euro to Buchla Converter
    • Buchla to Euro Converter
    • Clockable AD Envelope (with mute)
    • Clockable AD Envelope (with gate)
    • Clockable AD Envelope (with trigger)
    • Clockable AD Envelope and VCA
    • Shift Register Random CVs
    • Shift Register Random Quantized CVs
    • Shift Register Random Triggers
    • Shift Register Random Dual Triggers
    • ES-1 Emulation
    • ES-2 Emulation
    • Pitch Reference
    • Frequency Reference
    • Tuner
    • MIDI Clock
    • MIDI/CV
    • CV/MIDI
    • Crossfade/Pan
    • Dual Sample and Hold
    • Dual Quantizer (Z scale)
    • Dual Quantizer
    • Dual Euclidean Patterns
    • Dual Delayed Pulse Generator
    • Noise
    • Programmable Quantizer
    • Stereo Reverb
    • Mono-to-Stereo Reverb
    • Dual Reverb
    • Stereo Chorus
    • Mono Chorus
    • Gate
    • Delayed LFO
    • Scaled LFO
  • Playback Functions
    • Audio Playback
    • Clocked Audio Playback
    • Audio Playback with V/Oct
    • Audio Playback with Z Speed
    • Audio Playback with Reverse
    • Dual Audio Playback
    • Dual Audio Playback with Z Speed
    • MIDI File Playback (Clocked)
    • MIDI File Playback (Free Running)
    • Audio Playback with End CV
    • Audio Recorder
    • Wavetable VCO


Manufacturer: Expert Sleepers
Model: DISTINGMK4
SKU: I640746-N-7-WHXE
