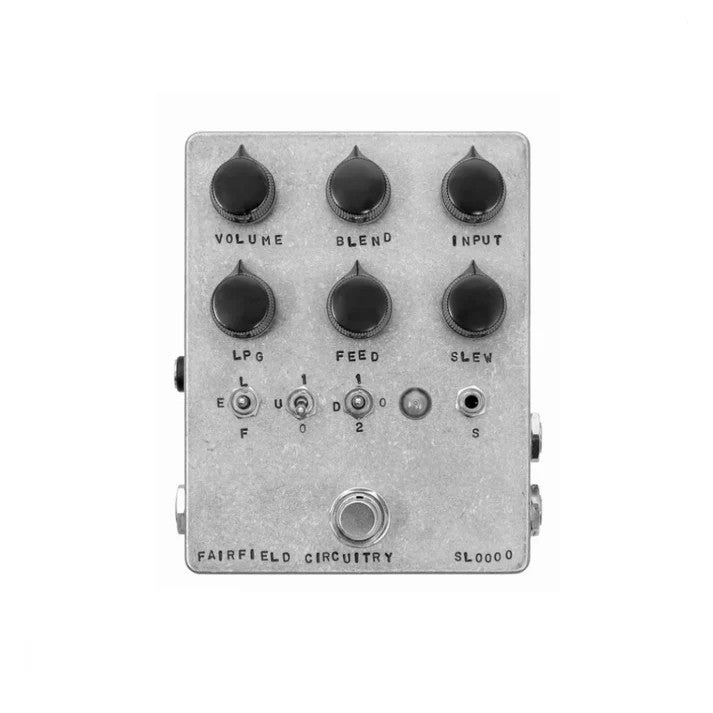

Slew-Limiting Distortion with Attitude - The Fairfield Circuity 20% More Slew Limiting Distortion Effects Pedal
Explorations around a schematic found among old papers of mysterious origin, suspiciously similar to a datasheet sq/tri oscillator. All that was needed was to connect the dots.
A slew limiter smoothes out how quickly incoming voltage can change, limiting it to a fixed v/sec. slope. Since time and frequency are intrinsically linked, this acts as a steep, somewhat distorted low pass filter.
When it resonates, these fixed slopes become triangle wave oscillations, giving 20% more its unique sound. Input signals can overwhelm this oscillation, making for pseudo-wavefolding and synthetic distortion artifacts.
jfet clipping, sub and upper octaves, envelope follower, low pass gate; impressions, ideas, pleasures and pains
SPECIFICATIONS
Controls
- INPUT – 'mu amp' JFET preamp, lots of gain
- BLEND – mixes in a square wave / sub-octave copy of the signal
- VOLUME – output volume, gets very loud
- SLEW – slew limiter frequency
- FEED – slew limiter feedback
- LPG – low pass filter
- D - OCTAVE DOWN – clock division of the blended square wave, -1 or -2 oct
- U - OCTAVE UP – analog octave up, full wave rectifier
- E - ENVELOPE DESTINATION – routing of the internal envelope, either added to the (L)PG or (F)EED controls
Connections
- IN – 1/4" instrument or line input
- OUT – 1/4" output
- CV – versatile 1/4" TRS CV/Exp port, see programming guide
- S – 1/8" input
- CV over slew limiter frequency, v/oct
- 9VDC – 2.1mm centre negative tip, 20 mA (sags quite well)
Dimnesions
- Dimensions – 4.7" x 3.8" x 1.9"
- CV Input Range – 0 - 5V normal; 0 - 8V max
- Power Supply – 9VDC
- Current Draw – 20 mA @ 9.6 VDC
Manufacturer: Fairfield Circuitry MAS Distro
Model: FC-20M
SKU: I827222-N-2-WHXB
