Flex Pixel Driver 1 5VDC Led Tape Driver

Experience the compact FLEX PIXEL DRIVER 1 with 144 pixels 432 DMX channels and seamless system integration.

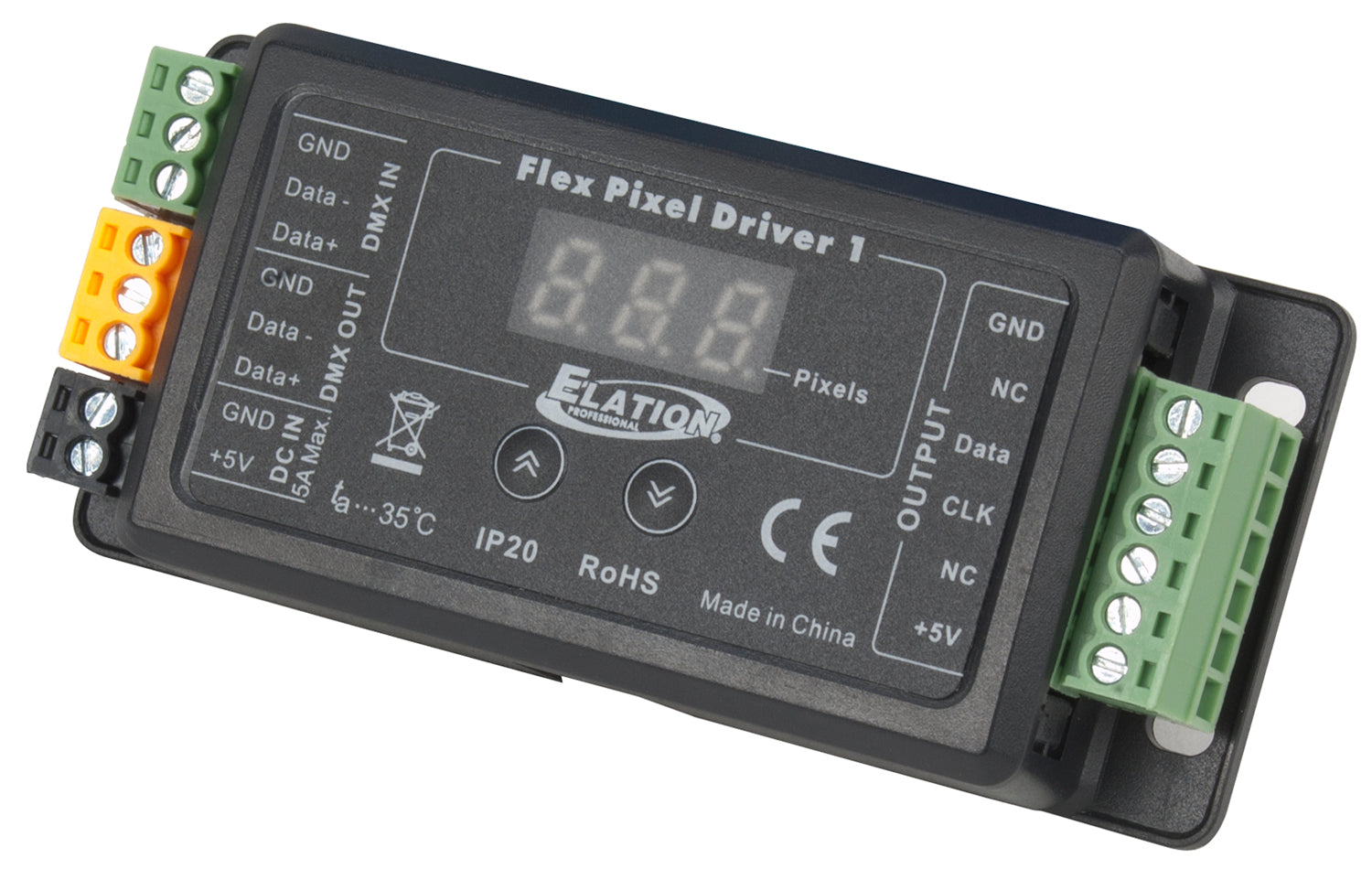

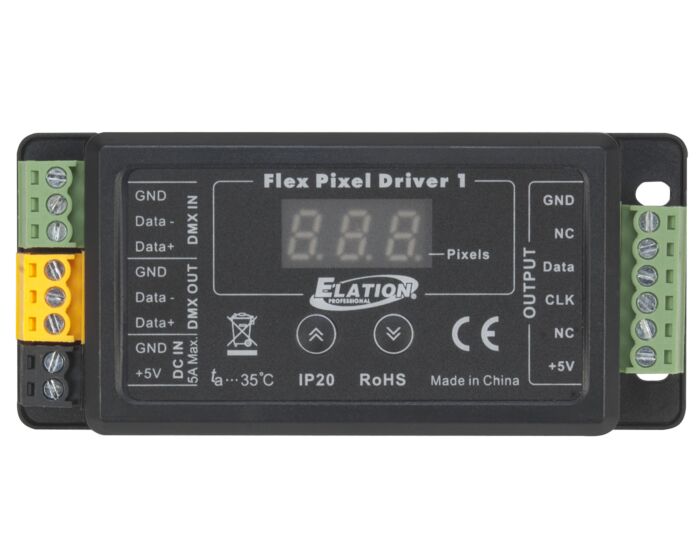

The FLEX PIXEL DRIVER™ 1 is a professional dedicated 5VDC LED tape driver that supports up to 144 pixels, and up to 432 DMX channels of control. Its small compact design allows for easy mounting and integration into any system. It features a 2-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 6pin terminal block for LED tape output, and a 2pin terminal block for 5VDC power IN.

• Professional Dedicated 5VDC LED Tape Driver
• Supports Up To 144 Total Pixels / 432 DMX Channels
• 2-Button LED Control Display
• 6pin Terminal Block LED Tape Output
• 3pin Terminal Block DMX In/Out
• 2pin Terminal Block Power In.

SPECIFICATIONS

• Control / Connections
  • Up To 144 Pixels Max
  • Up To 432 DMX Channels
  • DMX IN via 3pin Terminal Block
  • DMX OUT via 3pin Terminal Block
  • LED Tape Output via 6pin Terminal Block
  • POWER IN via 2pin Terminal Block
• Size / Weight
  • Length: 3.5” (90mm)
  • Width: 1.6” (40mm)
  • Height: 0.8” (20mm)
  • Weight: 0.12 lbs. (0.055kg)
• Approvals
  • CE
  • cETLus
  • RoHs
  • IP20
• Included Accessories
  • (1) Flex Pixel Tape Jumper First Cable
  • (1) Flex Pixel Tape Power Cable
